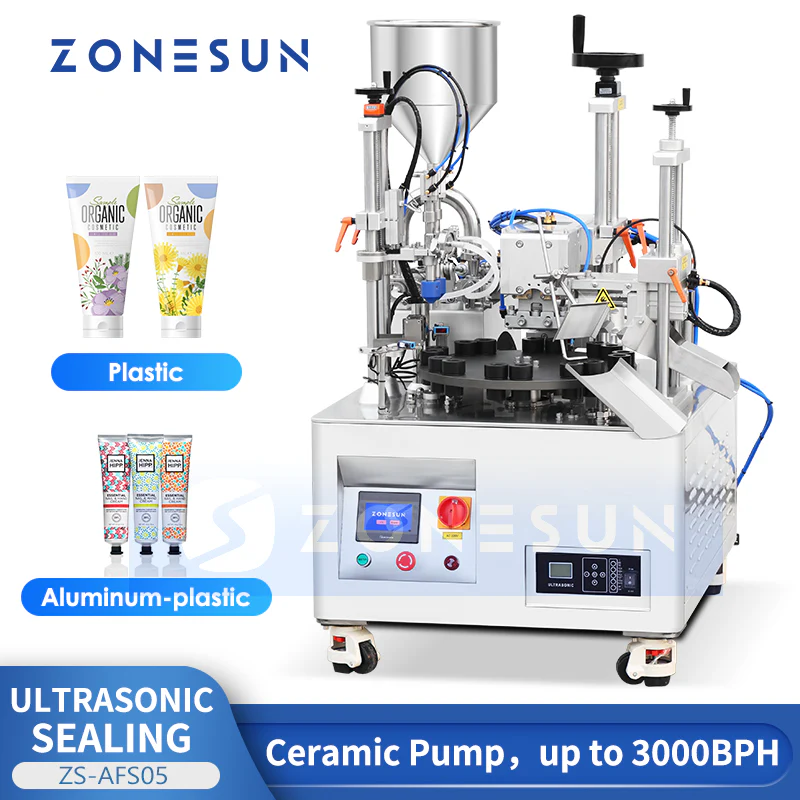

ZONESUN ZS-AFS05 Ultrasonic Tube Filling and Sealing Machine

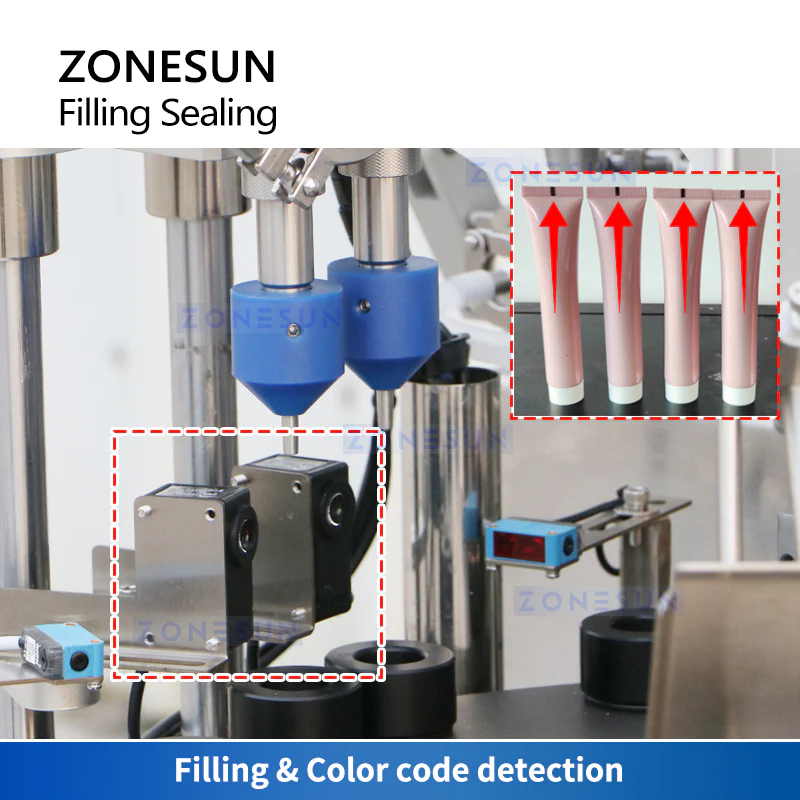

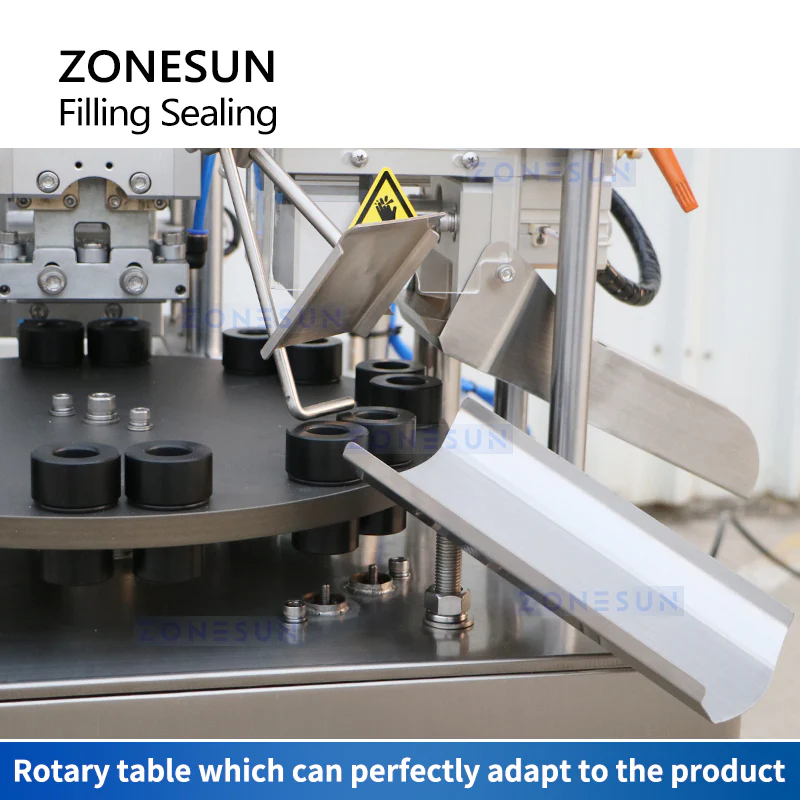

The ZS-AFS05 is a compact monoblock machine designed for precise paste filling and ultrasonic sealing of soft tubes. With dual ceramic pumps and a rotary table system, it ensures consistent, hygienic packaging for products like hand cream, lip gloss, and facial cleansers. Its ultrasonic sealing technology guarantees clean, secure seals, while the intuitive design streamlines operation and boosts production efficiency.
Parameter
- Model: ZS-AFS05
- Voltage: 220V/110V 50–60Hz
- Power: 2.6kW
- Filling Range: 3–30ml
- Filling Pump: Ceramic Pump
- Filling Nozzles: 2
- Filling Accuracy: ±0.25–0.5ml (varies by material and volume)
- Sealing Speed: 40–50pcs/min
- Sealing Diameter: 13–22mm
- Sealing Height: 50–210mm

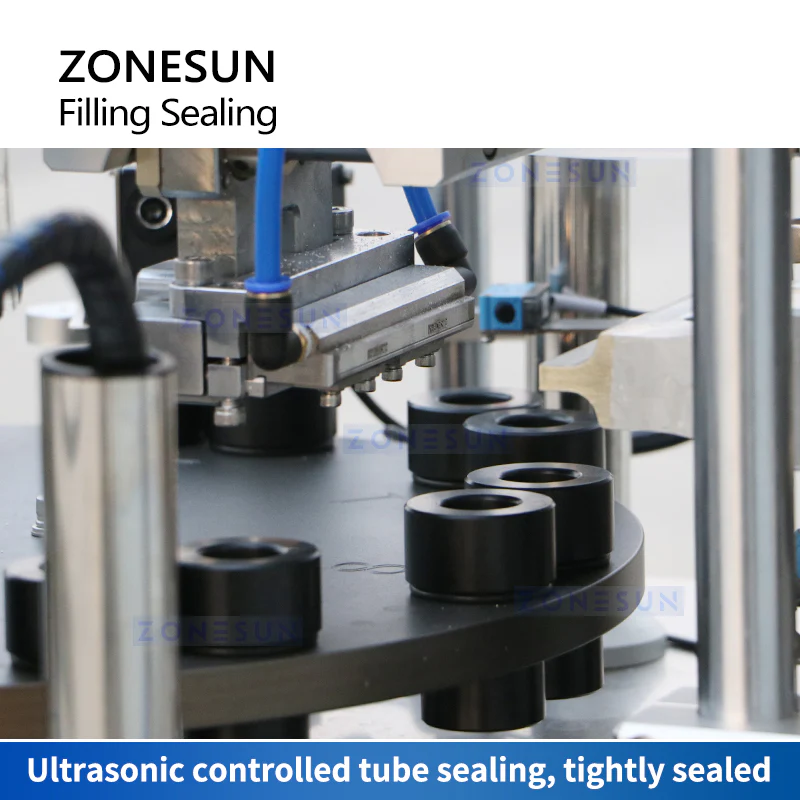

- Sealing Method: Ultrasonic Sealing
- Ultrasonic Frequency: 20KHz
- Air Pressure: 0.6MPa
- Machine Material: 304 Stainless Steel
- Machine Weight: Approx. 212kg
- Machine Size: Approx. 900×1150×1360mm
- Package Size: Approx. 1230×980×1460mm
- Package Weight: Approx. 287kg
The ZS-AFS05 is a compact monoblock machine designed for precise paste filling and ultrasonic sealing of soft tubes. With dual ceramic pumps and a rotary table system, it ensures consistent, hygienic packaging for products like hand cream, lip gloss, and facial cleansers. Its ultrasonic sealing technology guarantees clean, secure seals, while the intuitive design streamlines operation and boosts production efficiency.
Parameter
- Model: ZS-AFS05
- Voltage: 220V/110V 50–60Hz
- Power: 2.6kW
- Filling Range: 3–30ml
- Filling Pump: Ceramic Pump
- Filling Nozzles: 2
- Filling Accuracy: ±0.25–0.5ml (varies by material and volume)
- Sealing Speed: 40–50pcs/min
- Sealing Diameter: 13–22mm
- Sealing Height: 50–210mm
- Sealing Method: Ultrasonic Sealing
- Ultrasonic Frequency: 20KHz
- Air Pressure: 0.6MPa
- Machine Material: 304 Stainless Steel
- Machine Weight: Approx. 212kg
- Machine Size: Approx. 900×1150×1360mm
- Package Size: Approx. 1230×980×1460mm
- Package Weight: Approx. 287kg
Original: $11,499.00
-70%$11,499.00
$3,449.70Description
The ZS-AFS05 is a compact monoblock machine designed for precise paste filling and ultrasonic sealing of soft tubes. With dual ceramic pumps and a rotary table system, it ensures consistent, hygienic packaging for products like hand cream, lip gloss, and facial cleansers. Its ultrasonic sealing technology guarantees clean, secure seals, while the intuitive design streamlines operation and boosts production efficiency.
Parameter
- Model: ZS-AFS05
- Voltage: 220V/110V 50–60Hz
- Power: 2.6kW
- Filling Range: 3–30ml
- Filling Pump: Ceramic Pump
- Filling Nozzles: 2
- Filling Accuracy: ±0.25–0.5ml (varies by material and volume)
- Sealing Speed: 40–50pcs/min
- Sealing Diameter: 13–22mm
- Sealing Height: 50–210mm
- Sealing Method: Ultrasonic Sealing
- Ultrasonic Frequency: 20KHz
- Air Pressure: 0.6MPa
- Machine Material: 304 Stainless Steel
- Machine Weight: Approx. 212kg
- Machine Size: Approx. 900×1150×1360mm
- Package Size: Approx. 1230×980×1460mm
- Package Weight: Approx. 287kg
