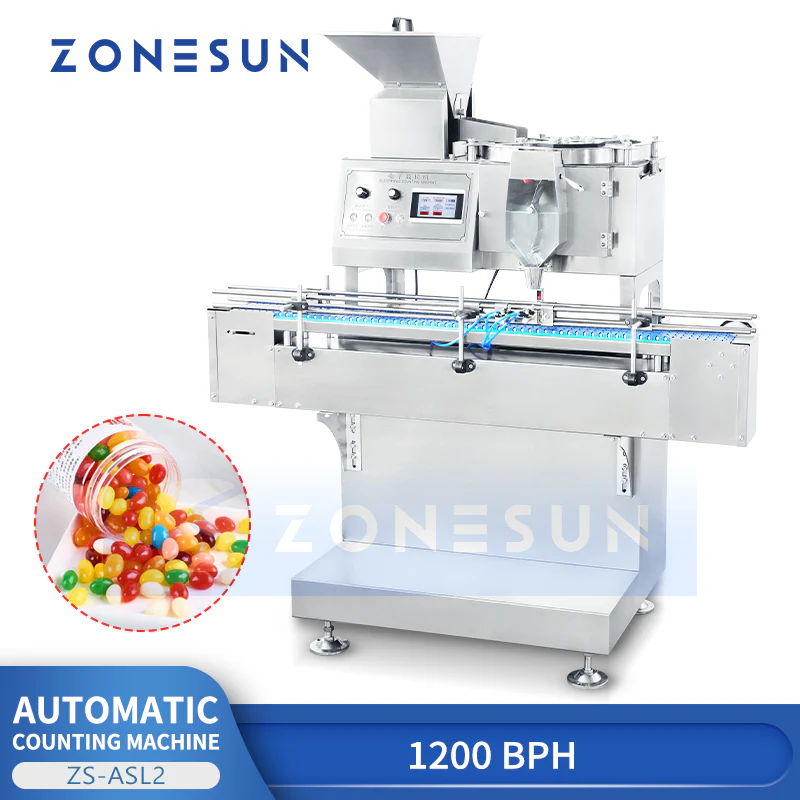

ZONESUN ZS-ASL2 Automatic Candy Counting & Filling Machine Graunle Filler

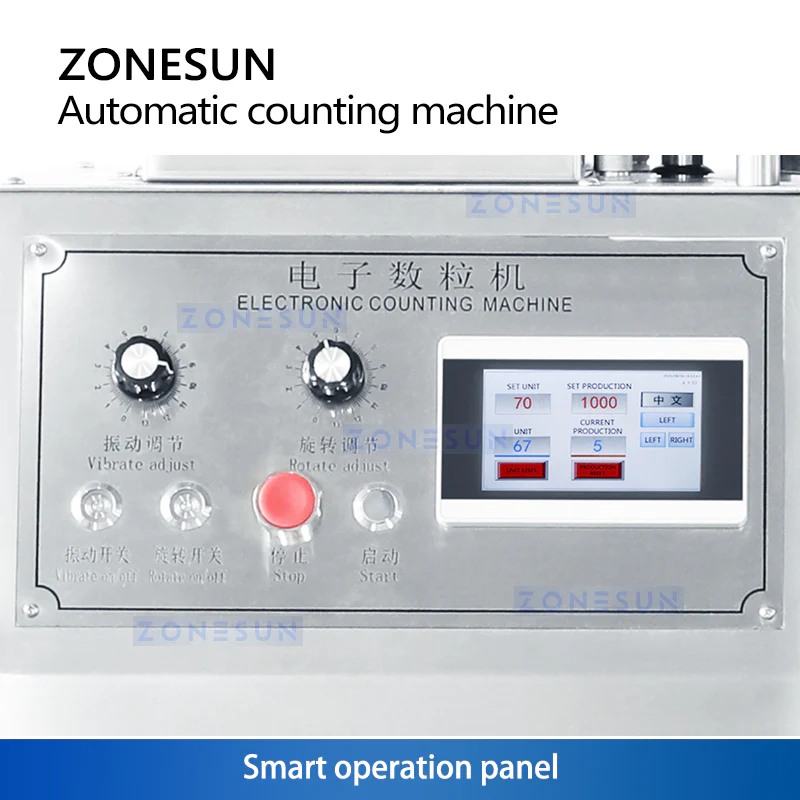

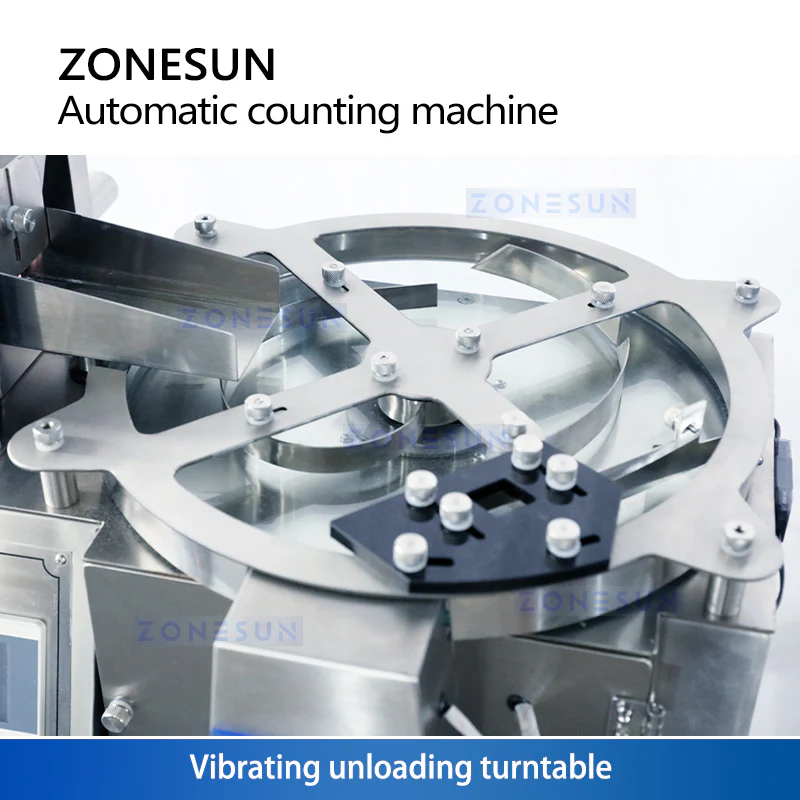

The ZONESUN ZS-ASL2 is a precision automatic counting and filling machine designed for small items like candy, gum, seeds, tablets, and capsules. Featuring a vibration channel, fiber optic sensors, and PLC touchscreen control, it ensures accurate counts and smooth operation. With a speed of 10–20 bottles per minute, it supports various bottle sizes and capsule formats (#000–#5). Built-in fault alarms, auto shutdown, and self-diagnostics enhance safety and reliability. Ideal for food and pharmaceutical industries seeking efficient, hygienic, and cost-effective packaging solutions.
TECHNICAL SPECIFICATIONS
- Model: ZS-ASL2
- Voltage: 220V / 50Hz
- Power: 0.3KW
- Application: Tablet 5–20mm, Capsule Model #000–5
- Air Consumption: 0.4–0.6Mpa / 3.8L/min
- Application Bottle Size: Diameter: 0–100mm, Height: 40–150mm
- Working Speed: 10–20 bpm
- Machine Size: 1360 × 730 × 1500mm
- Machine Weight: 100KG
The ZONESUN ZS-ASL2 is a precision automatic counting and filling machine designed for small items like candy, gum, seeds, tablets, and capsules. Featuring a vibration channel, fiber optic sensors, and PLC touchscreen control, it ensures accurate counts and smooth operation. With a speed of 10–20 bottles per minute, it supports various bottle sizes and capsule formats (#000–#5). Built-in fault alarms, auto shutdown, and self-diagnostics enhance safety and reliability. Ideal for food and pharmaceutical industries seeking efficient, hygienic, and cost-effective packaging solutions.
TECHNICAL SPECIFICATIONS
- Model: ZS-ASL2
- Voltage: 220V / 50Hz
- Power: 0.3KW
- Application: Tablet 5–20mm, Capsule Model #000–5
- Air Consumption: 0.4–0.6Mpa / 3.8L/min
- Application Bottle Size: Diameter: 0–100mm, Height: 40–150mm
- Working Speed: 10–20 bpm
- Machine Size: 1360 × 730 × 1500mm
- Machine Weight: 100KG
Description
The ZONESUN ZS-ASL2 is a precision automatic counting and filling machine designed for small items like candy, gum, seeds, tablets, and capsules. Featuring a vibration channel, fiber optic sensors, and PLC touchscreen control, it ensures accurate counts and smooth operation. With a speed of 10–20 bottles per minute, it supports various bottle sizes and capsule formats (#000–#5). Built-in fault alarms, auto shutdown, and self-diagnostics enhance safety and reliability. Ideal for food and pharmaceutical industries seeking efficient, hygienic, and cost-effective packaging solutions.
TECHNICAL SPECIFICATIONS
- Model: ZS-ASL2
- Voltage: 220V / 50Hz
- Power: 0.3KW
- Application: Tablet 5–20mm, Capsule Model #000–5
- Air Consumption: 0.4–0.6Mpa / 3.8L/min
- Application Bottle Size: Diameter: 0–100mm, Height: 40–150mm
- Working Speed: 10–20 bpm
- Machine Size: 1360 × 730 × 1500mm
- Machine Weight: 100KG
