ZONESUN ZS-BIB01D Bag-in-Box Filler | 1–30L Liquid Packaging Machine
ZS-BIB01D is a fully automated Bag-in-Box filling machine designed for high-volume liquid packaging. With a servo rotor pump and optional nitrogen dosing, it delivers precise filling for both uniform and particle-rich materials. Capable of handling 1–30L bags, this system boosts production speed and hygiene standards across food, beverage, and chemical industries. Its compact design and intelligent controls make it a powerful asset for modern filling lines.
Parameter
- Model: ZS-BIB01D
- Voltage: 220V / 110V, 50–60Hz
- Power: Approx. 2.3kW
- Production speed: Approx. 450 bags/h (based on 3L filling volume)
- Filling range: 1–30L (customizable)
- Filling accuracy: ±0.5% (uniform materials like peanut butter); ±1% (particle-containing materials like jam, chili sauce)

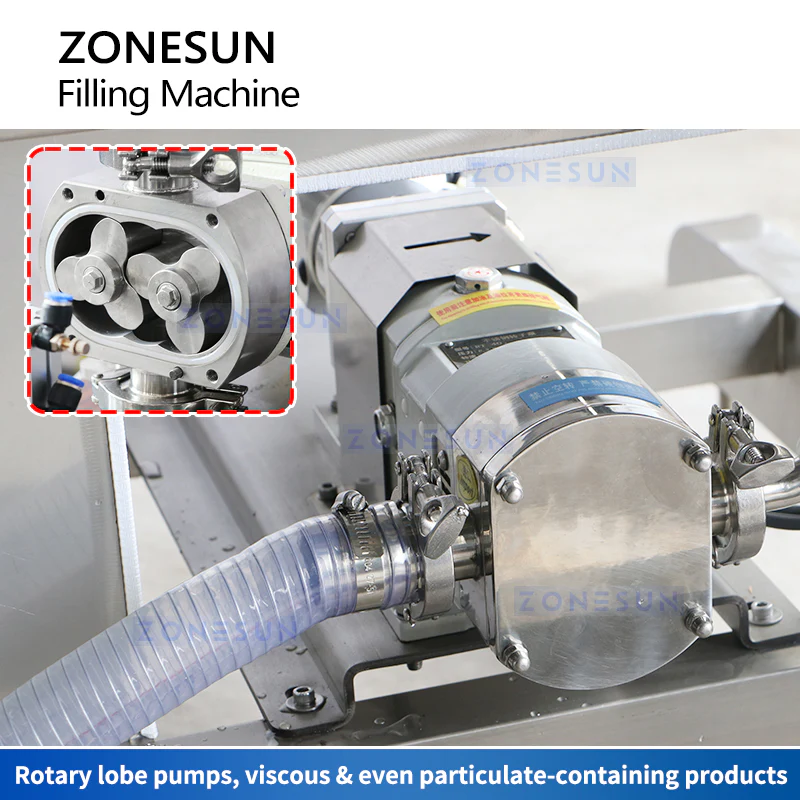

- Filling pump: Servo Rotor Pump
- Optional function: Nitrogen dosing
- Air pressure: 0.6–0.8 MPa, 0.5 m³/min
- Machine size (L×W×H): Approx. 1510×950×1650mm
- Package weight: Approx. 286kg
- Package size (L×W×H): Approx. 1600×1400×1770mm
ZS-BIB01D is a fully automated Bag-in-Box filling machine designed for high-volume liquid packaging. With a servo rotor pump and optional nitrogen dosing, it delivers precise filling for both uniform and particle-rich materials. Capable of handling 1–30L bags, this system boosts production speed and hygiene standards across food, beverage, and chemical industries. Its compact design and intelligent controls make it a powerful asset for modern filling lines.
Parameter
- Model: ZS-BIB01D
- Voltage: 220V / 110V, 50–60Hz
- Power: Approx. 2.3kW
- Production speed: Approx. 450 bags/h (based on 3L filling volume)
- Filling range: 1–30L (customizable)
- Filling accuracy: ±0.5% (uniform materials like peanut butter); ±1% (particle-containing materials like jam, chili sauce)
- Filling pump: Servo Rotor Pump
- Optional function: Nitrogen dosing
- Air pressure: 0.6–0.8 MPa, 0.5 m³/min
- Machine size (L×W×H): Approx. 1510×950×1650mm
- Package weight: Approx. 286kg
- Package size (L×W×H): Approx. 1600×1400×1770mm
Original: $13,499.00
-70%$13,499.00
$4,049.70Description
ZS-BIB01D is a fully automated Bag-in-Box filling machine designed for high-volume liquid packaging. With a servo rotor pump and optional nitrogen dosing, it delivers precise filling for both uniform and particle-rich materials. Capable of handling 1–30L bags, this system boosts production speed and hygiene standards across food, beverage, and chemical industries. Its compact design and intelligent controls make it a powerful asset for modern filling lines.
Parameter
- Model: ZS-BIB01D
- Voltage: 220V / 110V, 50–60Hz
- Power: Approx. 2.3kW
- Production speed: Approx. 450 bags/h (based on 3L filling volume)
- Filling range: 1–30L (customizable)
- Filling accuracy: ±0.5% (uniform materials like peanut butter); ±1% (particle-containing materials like jam, chili sauce)
- Filling pump: Servo Rotor Pump
- Optional function: Nitrogen dosing
- Air pressure: 0.6–0.8 MPa, 0.5 m³/min
- Machine size (L×W×H): Approx. 1510×950×1650mm
- Package weight: Approx. 286kg
- Package size (L×W×H): Approx. 1600×1400×1770mm
