DESCRIPTION

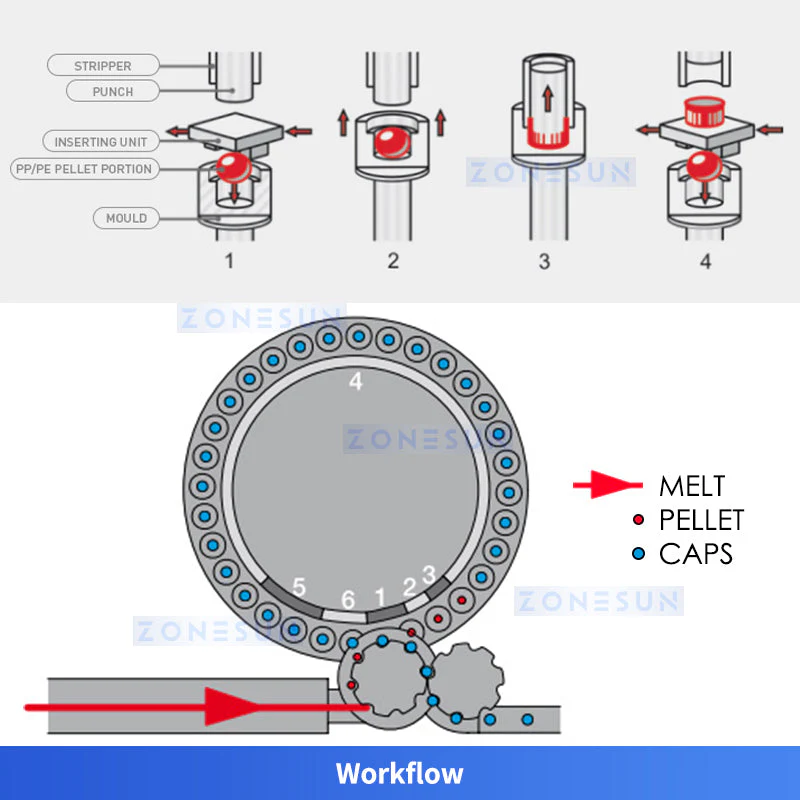

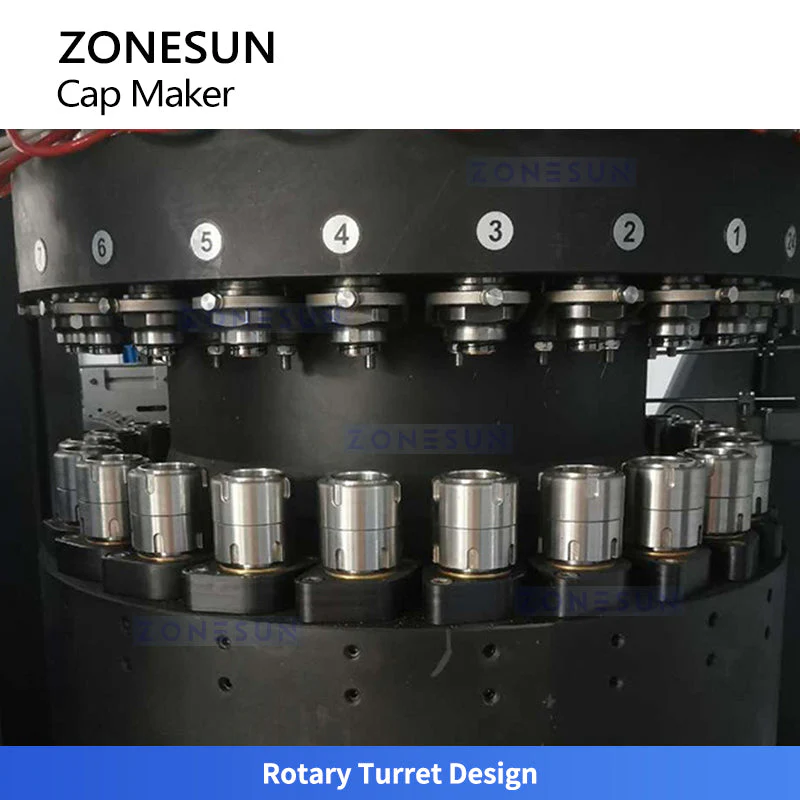

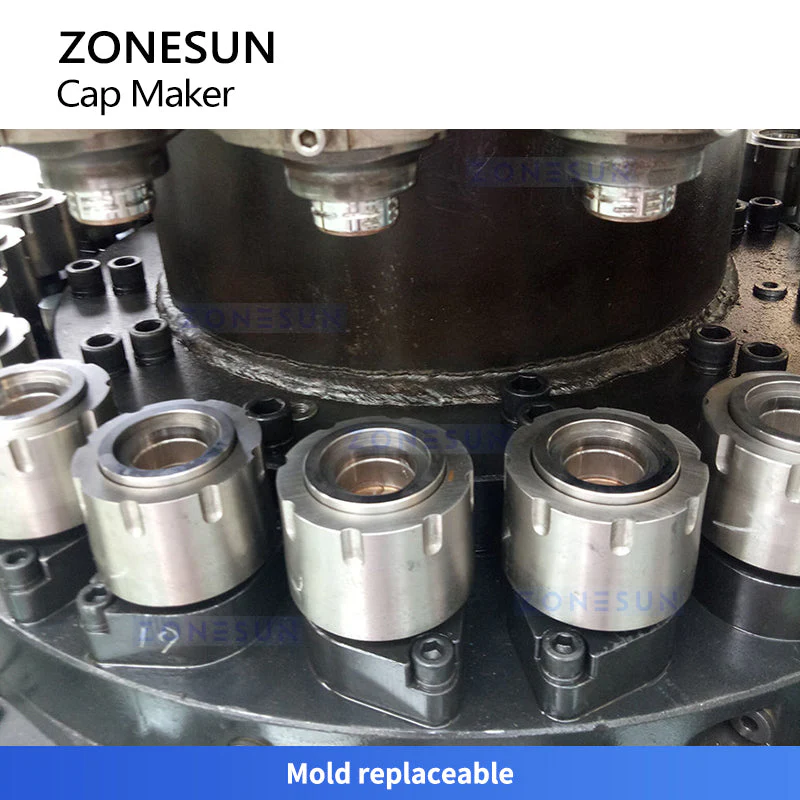

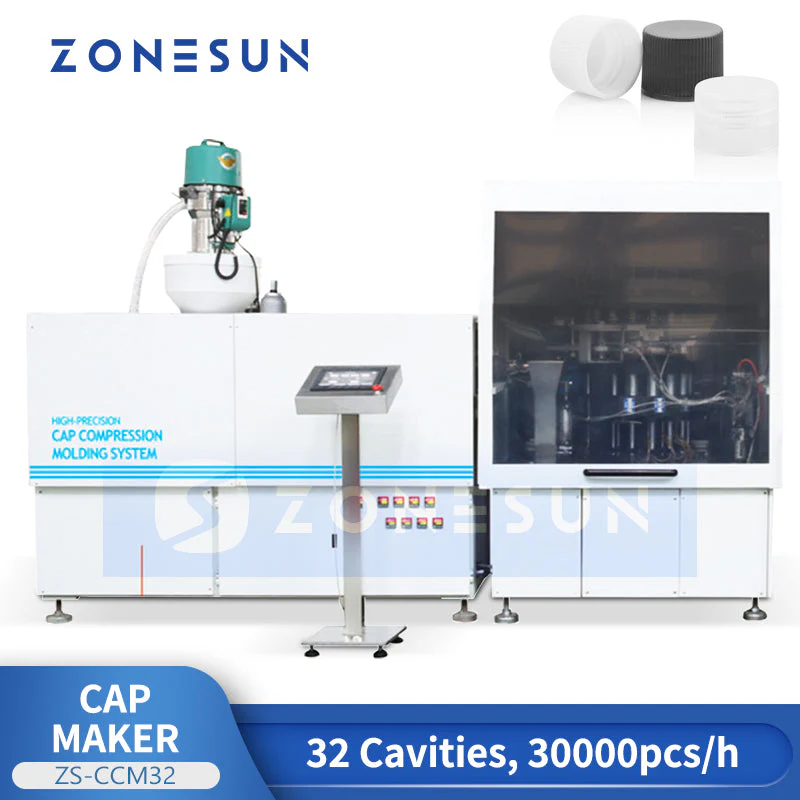

Our cap compression molding machine is engineered for efficient, high-volume production of plastic bottle caps. As a reliable bottle cap making machine, it features 32 cavities and delivers up to 30,000 pcs/h, making it an ideal solution for mass production. Designed with interchangeable molds and multiple cavity options, this plastic cap maker offers unmatched flexibility and customization. Achieve consistent cap quality and streamline your workflow with this durable, high-performance system built for modern manufacturing demands.

Parameters

• Model：ZS-CCM16
• Capacity：12000-13000 pcs/h
• Cap Diameter：20-45mm
• Cap Height：10-30mm

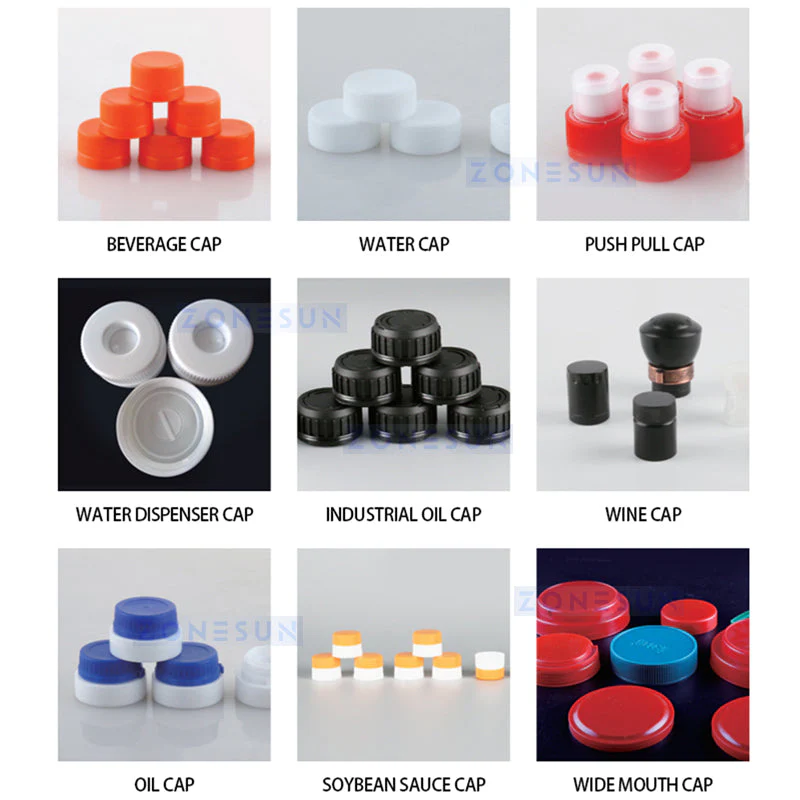

• Cap Material：PP/HDPE/LDPE
• Mold Cavity：16
• Voltage： 380V, 3ph,50Hz
• Power： 30kW
• Air Consumption： 0.9m'/h,0.8MPa
• Size：3327*1417*2100mm
• Weight：. 2.1t



• Model：ZS-CCM24
• Production Capacity: 18,000–20,000 pcs/hour
• Cap Diameter: 20–45 mm
• Cap Height: 10–30 mm
• Cap Material: PP / HDPE / LDPE
• Mold Cavity: 24
• Voltage: 380V, 3Ph, 50Hz
• Power: 50 kW
• Air Consumption: 1.4 m³/h, 1.0 MPa
• Machine Size: 3980 × 1560 × 2100 mm
• Weight: 3.0 t

• Model：ZS-CCM32
• Production Capacity: 28,000–30,000 pcs/hour
• Cap Diameter: 20–45 mm
• Cap Height: 10–30 mm
• Cap Material: PP / HDPE / LDPE
• Mold Cavity: 32
• Voltage: 380V, 3Ph, 50Hz
• Power: 78 kW
• Air Consumption: 2.8 m³/h, 1.0 MPa
• Machine Size: 5183 × 1700 × 2100 mm
• Weight: 4.8 t



• Model：ZS-CCM48
• Production Capacity: 38,000–40,000 pcs/hour
• Cap Diameter: 20–45 mm
• Cap Height: 10–30 mm
• Cap Material: PP / HDPE / LDPE
• Mold Cavity: 48
• Voltage: 380V, 3Ph, 50Hz
• Power: 95 kW
• Air Consumption: 3.6 m³/h, 1.0 MPa
• Machine Size: 6000 × 2000 × 2100 mm
• Weight: 5.8 t
