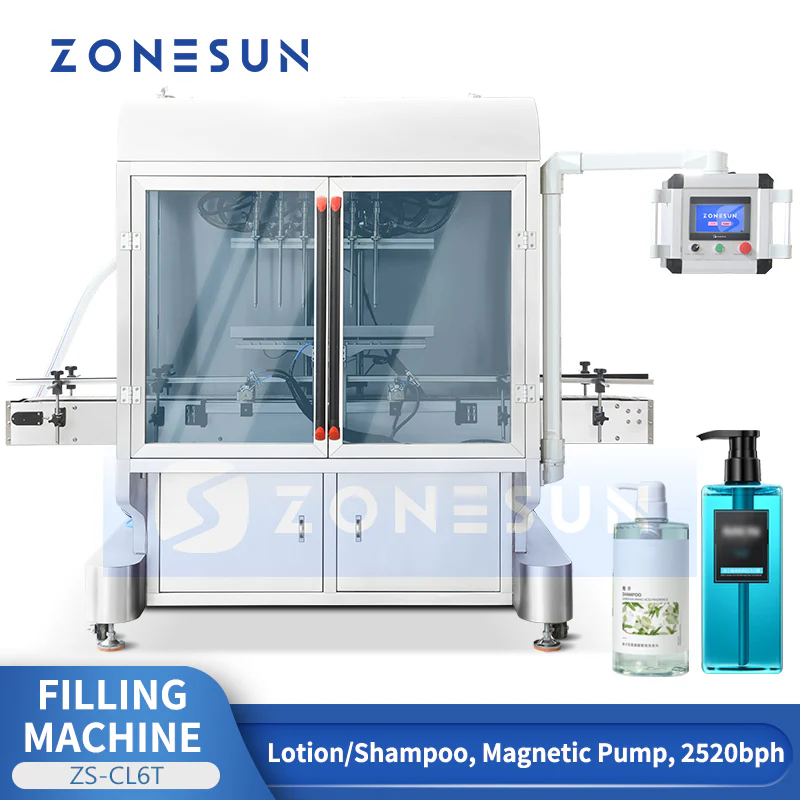

ZONESUN ZS-CL6T High-Volume Liquid Filling Machine for Chemical & Cosmetic Bottles

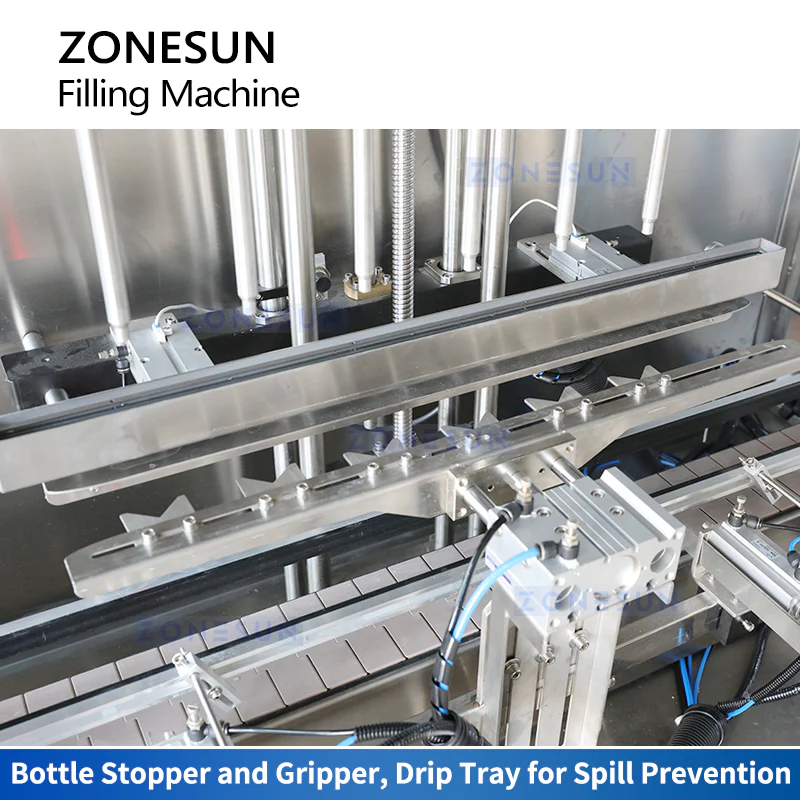

The ZONESUN ZS-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing. Bottles are positioned by a stopper and gripper system, while the servo-controlled filling heads descend for precise dispensing. A drip tray prevents spills, and the PLC interface allows easy adjustment of filling parameters. Ideal for chemical, cosmetic, and food-grade liquid packaging, this machine supports up to 42 bottles/min with ±1% accuracy.
Parameter
- Model: ZS-CL6T
- Filling range: 500–5000ml
- Filling head: Quantity: 6, Size: 8mm

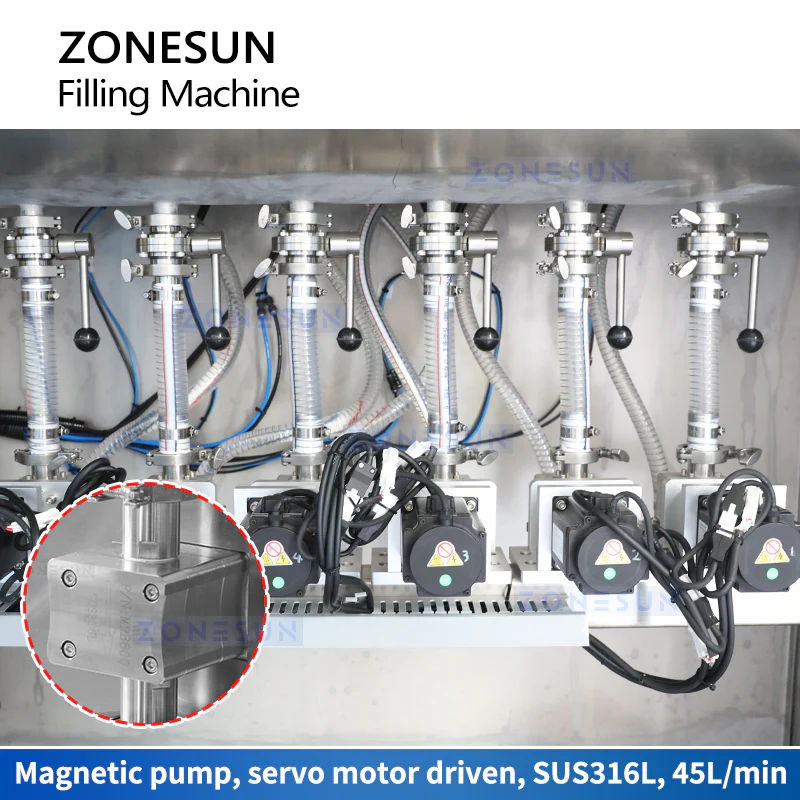

- Filling pump: Magnetic pump, 45L/min, servo motor driven
- Capacity: Max 42 bottles/min (500ml)
- Accuracy: ≤ ±1%
- Applicable bottle: Height ≤ 330mm, Diameter ≤ 110mm

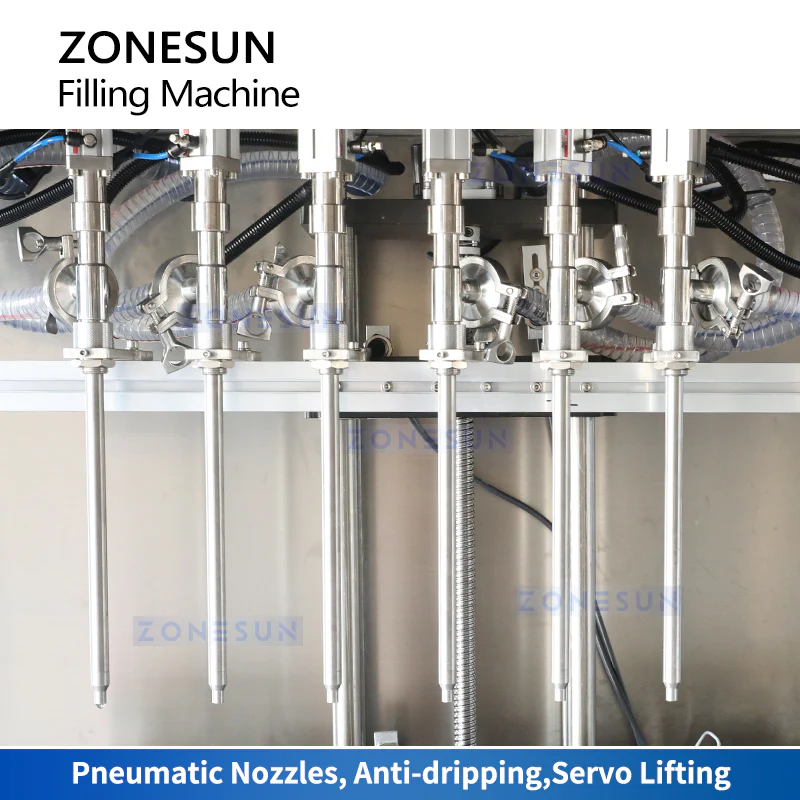

- Lifting: Servo motor driven
- Conveyor: Width: 114mm, Length: 2422mm

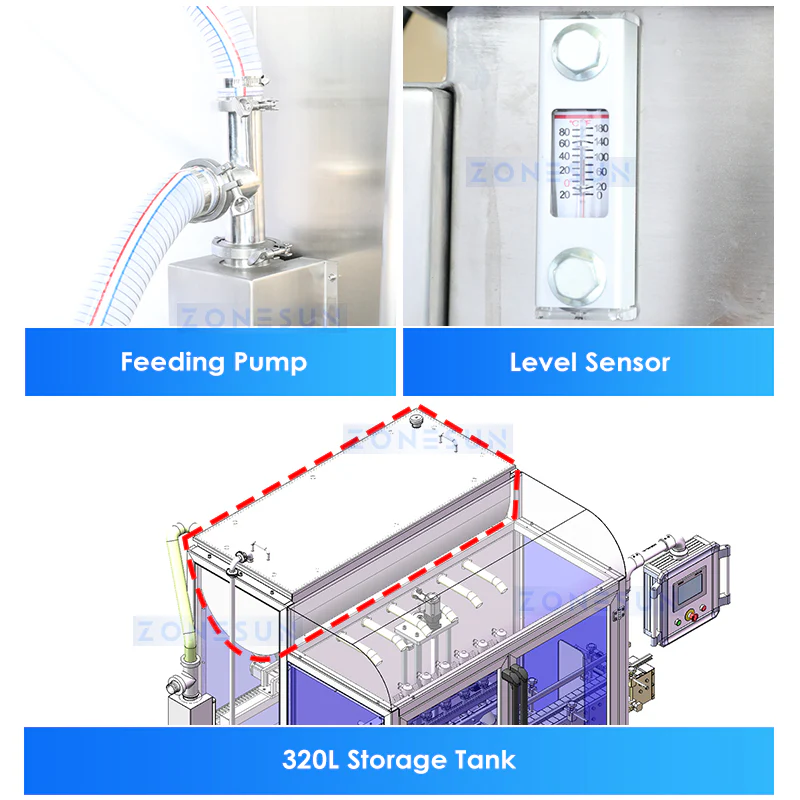

- Storage tank: 320L
- Size (L×W×H): 2615×1621×2153mm
- Weight: 752kg
The ZONESUN ZS-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing. Bottles are positioned by a stopper and gripper system, while the servo-controlled filling heads descend for precise dispensing. A drip tray prevents spills, and the PLC interface allows easy adjustment of filling parameters. Ideal for chemical, cosmetic, and food-grade liquid packaging, this machine supports up to 42 bottles/min with ±1% accuracy.
Parameter
- Model: ZS-CL6T
- Filling range: 500–5000ml
- Filling head: Quantity: 6, Size: 8mm
- Filling pump: Magnetic pump, 45L/min, servo motor driven
- Capacity: Max 42 bottles/min (500ml)
- Accuracy: ≤ ±1%
- Applicable bottle: Height ≤ 330mm, Diameter ≤ 110mm
- Lifting: Servo motor driven
- Conveyor: Width: 114mm, Length: 2422mm
- Storage tank: 320L
- Size (L×W×H): 2615×1621×2153mm
- Weight: 752kg
Original: $15,980.00
-70%$15,980.00
$4,794.00Description
The ZONESUN ZS-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing. Bottles are positioned by a stopper and gripper system, while the servo-controlled filling heads descend for precise dispensing. A drip tray prevents spills, and the PLC interface allows easy adjustment of filling parameters. Ideal for chemical, cosmetic, and food-grade liquid packaging, this machine supports up to 42 bottles/min with ±1% accuracy.
Parameter
- Model: ZS-CL6T
- Filling range: 500–5000ml
- Filling head: Quantity: 6, Size: 8mm
- Filling pump: Magnetic pump, 45L/min, servo motor driven
- Capacity: Max 42 bottles/min (500ml)
- Accuracy: ≤ ±1%
- Applicable bottle: Height ≤ 330mm, Diameter ≤ 110mm
- Lifting: Servo motor driven
- Conveyor: Width: 114mm, Length: 2422mm
- Storage tank: 320L
- Size (L×W×H): 2615×1621×2153mm
- Weight: 752kg
