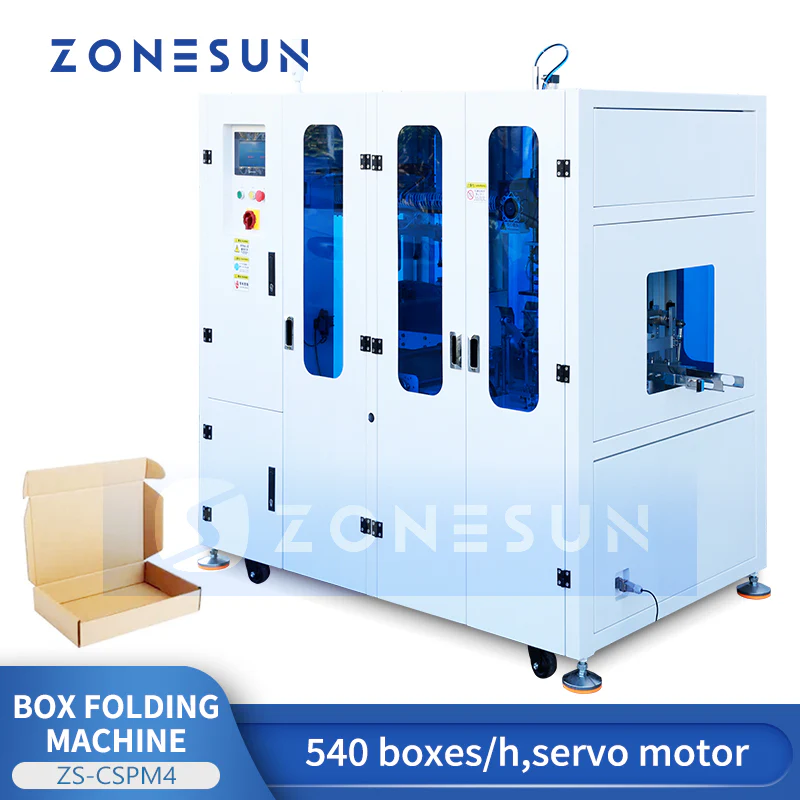

ZONESUN ZS-CSPM4 Fully Automatic Aircraft Box Folding Machine Carton Packaging Equipment
DESCRIPTION
Introducing our fully automatic aircraft box folding machine, designed for efficient and precise box forming. The machine has automatic forming and buckling leaf shaping functions, making it ideal for a variety of carton sizes. Easily adjust different box sizes, the operation is user-friendly, no additional materials are required, labor costs are significantly reduced, and production efficiency is improved.
Parameters
- Model: ZS-CSPM4
- Voltage Power: Single-phase 220V, 50Hz, 1000W
- Control Voltage: DC24V
- Air Pressure: 0.6 MPa
- Air Consumption: 250 NL/min
- Folding Speed: 7–9 boxes/min (depends on carton size)
-
Applicable Carton Size:
– Small: 75 × 125 × 36 mm
– Large: 123 × 125 × 35 mm - Bin Storage Capacity: 300 pieces (based on 1.5 mm cardboard thickness)
-
Machine Dimensions:
– L1800 × W1160 × H1700 mm (table height: 800 mm) - Machine Weight: 450 kg
- Folding Error Range: ±0.2%
- Carton Thickness: Single-layer corrugated paper ≥ 2 mm
- Carton Strength: Bursting strength ≥ 1370 kPa
DESCRIPTION
Introducing our fully automatic aircraft box folding machine, designed for efficient and precise box forming. The machine has automatic forming and buckling leaf shaping functions, making it ideal for a variety of carton sizes. Easily adjust different box sizes, the operation is user-friendly, no additional materials are required, labor costs are significantly reduced, and production efficiency is improved.
Parameters
- Model: ZS-CSPM4
- Voltage Power: Single-phase 220V, 50Hz, 1000W
- Control Voltage: DC24V
- Air Pressure: 0.6 MPa
- Air Consumption: 250 NL/min
- Folding Speed: 7–9 boxes/min (depends on carton size)
-
Applicable Carton Size:
– Small: 75 × 125 × 36 mm
– Large: 123 × 125 × 35 mm - Bin Storage Capacity: 300 pieces (based on 1.5 mm cardboard thickness)
-
Machine Dimensions:
– L1800 × W1160 × H1700 mm (table height: 800 mm) - Machine Weight: 450 kg
- Folding Error Range: ±0.2%
- Carton Thickness: Single-layer corrugated paper ≥ 2 mm
- Carton Strength: Bursting strength ≥ 1370 kPa
Description
DESCRIPTION
Introducing our fully automatic aircraft box folding machine, designed for efficient and precise box forming. The machine has automatic forming and buckling leaf shaping functions, making it ideal for a variety of carton sizes. Easily adjust different box sizes, the operation is user-friendly, no additional materials are required, labor costs are significantly reduced, and production efficiency is improved.
Parameters
- Model: ZS-CSPM4
- Voltage Power: Single-phase 220V, 50Hz, 1000W
- Control Voltage: DC24V
- Air Pressure: 0.6 MPa
- Air Consumption: 250 NL/min
- Folding Speed: 7–9 boxes/min (depends on carton size)
-
Applicable Carton Size:
– Small: 75 × 125 × 36 mm
– Large: 123 × 125 × 35 mm - Bin Storage Capacity: 300 pieces (based on 1.5 mm cardboard thickness)
-
Machine Dimensions:
– L1800 × W1160 × H1700 mm (table height: 800 mm) - Machine Weight: 450 kg
- Folding Error Range: ±0.2%
- Carton Thickness: Single-layer corrugated paper ≥ 2 mm
- Carton Strength: Bursting strength ≥ 1370 kPa
