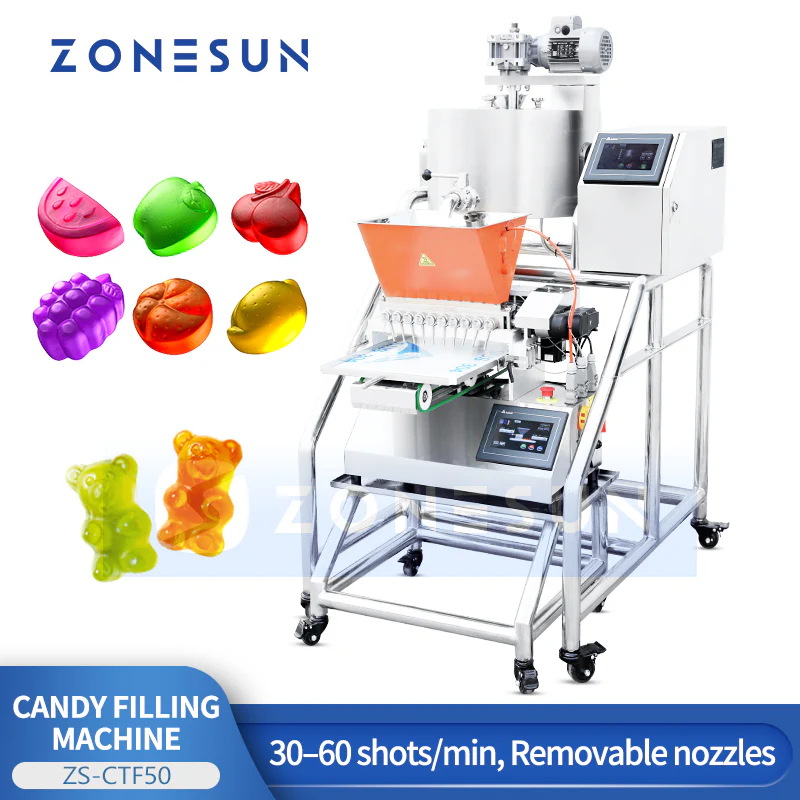

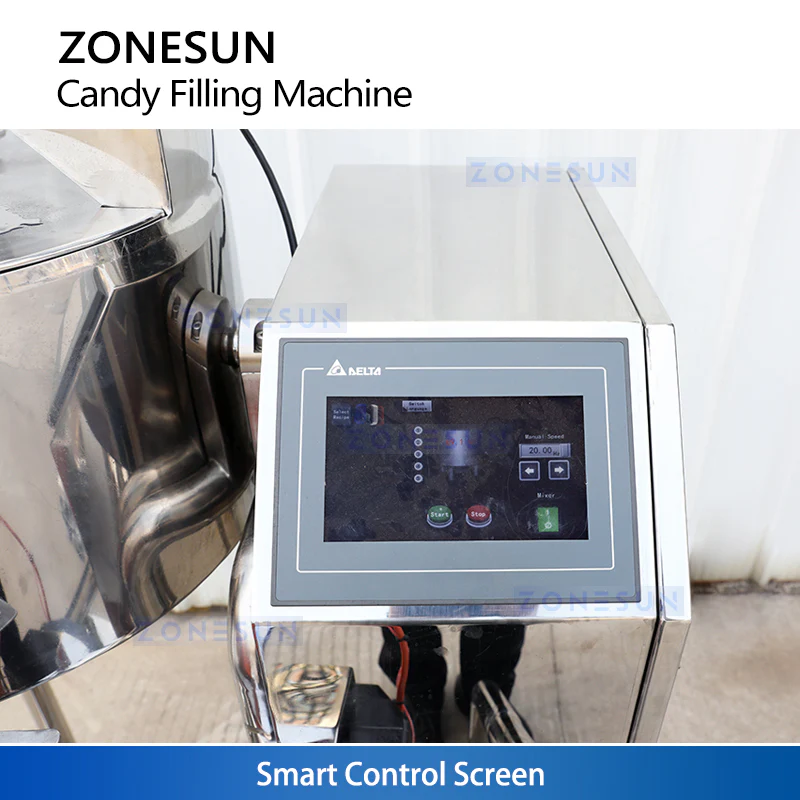

The ZONESUN ZS-CTF50 Gummy Candy Filling Machine is a fully integrated solution for cooking, depositing, and molding gummy candies with precision and efficiency. Featuring a 25L cooker for dissolving and mixing ingredients, it allows seamless syrup transfer via butterfly valves. The servo PLC control system and intuitive touch screen ensure accurate deposit amounts into molds, while 10 adjustable nozzles support diverse candy shapes. Built for high-volume production, this machine handles up to 50kg/hour and operates on 240–480V, making it ideal for commercial candy factories and food-grade automation lines.

Parameter

• Model：ZS-CTF50

• Power Supply：380V, 50Hz

• Mold Size：291.5 × 291.5 × 11.3 mm

• Cavity Size：15.5 × 15.5 × 10 mm

• Cavity Volume：2.4 ml (Gummy:3.2 g, Chocolate:2.8 g)

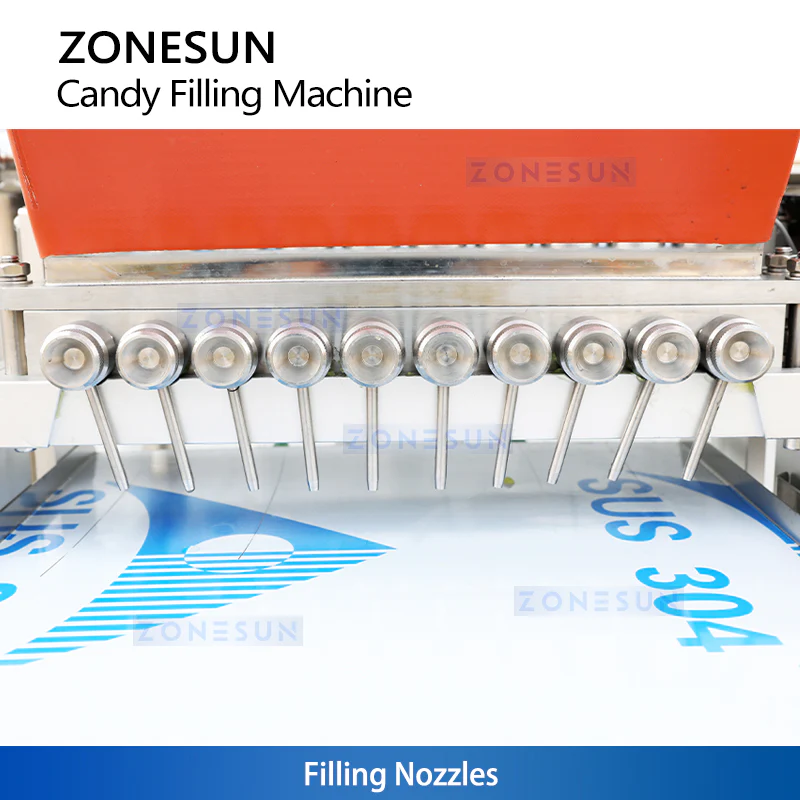

• Pistons：10 pcs, adjustable & removable nozzles

• Depositing Speed：30–60 shots/min

• Depositing Weight：1–4.5 g/shot

• Hopper Capacity：12 L

• Material：Stainless Steel 304

• Max Nozzle Heat：130°C (extra part required)

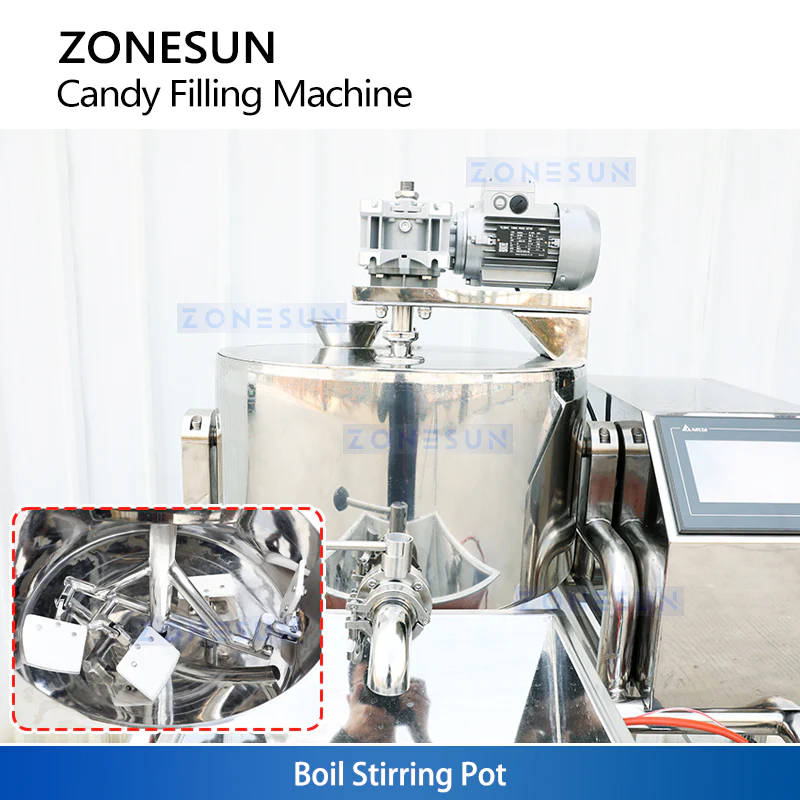

• Cooking Pot Capacity：20 L

• Heating Tubes：2 × 3 kW

• Stirring Motor：0.37/0.55 kW

• Heating Power：6.5 kW / 380V

• Heat Transfer Oil System：With oil level gauge & filling port
