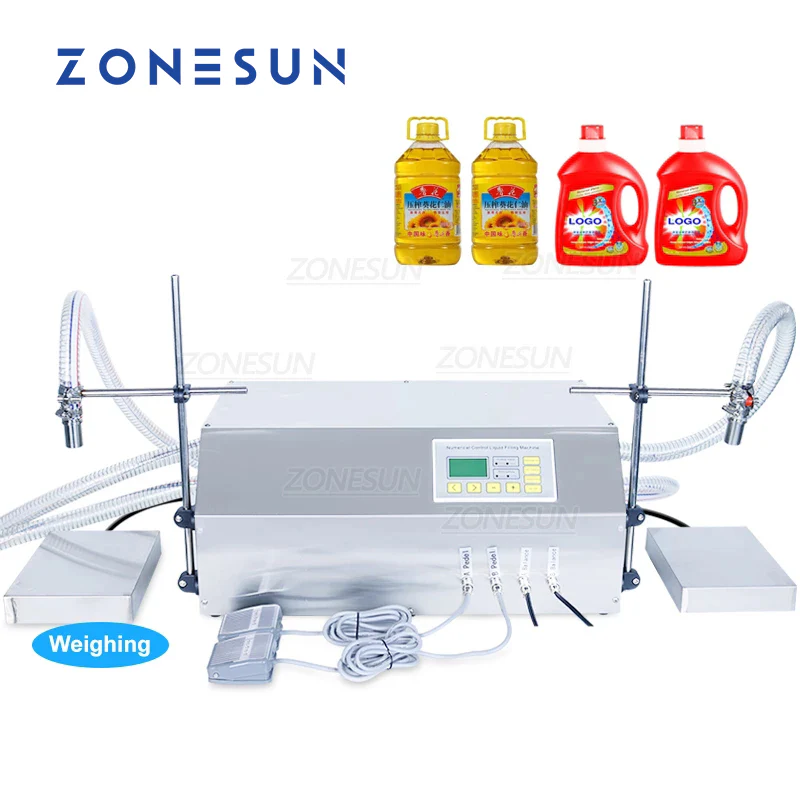

ZONESUN ZS-DP432W Dual-Nozzle Weighing Diaphragm Pump Filling Machine
The ZS-DP432W is a semi-automatic filling machine equipped with dual diaphragm pumps and a precision weighing system. Designed for non-particle liquids such as milk, essential oils, cooking oil, and shampoo, it delivers high-speed filling at up to 35L/min per nozzle. With its built-in memory function and wide weighing range, it ensures accurate, efficient, and repeatable performance across cosmetic, pharmaceutical, beverage, and daily chemical industries.
Parameter
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL – 35L
Weighing Range 150g – 100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature ＜50℃
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250×180×42mm
Machine Size (L×W×H) 600×370×250mm
Machine Weight 28kg
Package Size 700×430×320mm (machine)
300×290×160mm (weighing device)
Package Weight 30kg
The ZS-DP432W is a semi-automatic filling machine equipped with dual diaphragm pumps and a precision weighing system. Designed for non-particle liquids such as milk, essential oils, cooking oil, and shampoo, it delivers high-speed filling at up to 35L/min per nozzle. With its built-in memory function and wide weighing range, it ensures accurate, efficient, and repeatable performance across cosmetic, pharmaceutical, beverage, and daily chemical industries.
Parameter
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL – 35L
Weighing Range 150g – 100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature ＜50℃
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250×180×42mm
Machine Size (L×W×H) 600×370×250mm
Machine Weight 28kg
Package Size 700×430×320mm (machine)
300×290×160mm (weighing device)
Package Weight 30kg
Original: $786.18
-70%$786.18
$235.85Description
The ZS-DP432W is a semi-automatic filling machine equipped with dual diaphragm pumps and a precision weighing system. Designed for non-particle liquids such as milk, essential oils, cooking oil, and shampoo, it delivers high-speed filling at up to 35L/min per nozzle. With its built-in memory function and wide weighing range, it ensures accurate, efficient, and repeatable performance across cosmetic, pharmaceutical, beverage, and daily chemical industries.
Parameter
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL – 35L
Weighing Range 150g – 100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature ＜50℃
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250×180×42mm
Machine Size (L×W×H) 600×370×250mm
Machine Weight 28kg
Package Size 700×430×320mm (machine)
300×290×160mm (weighing device)
Package Weight 30kg
