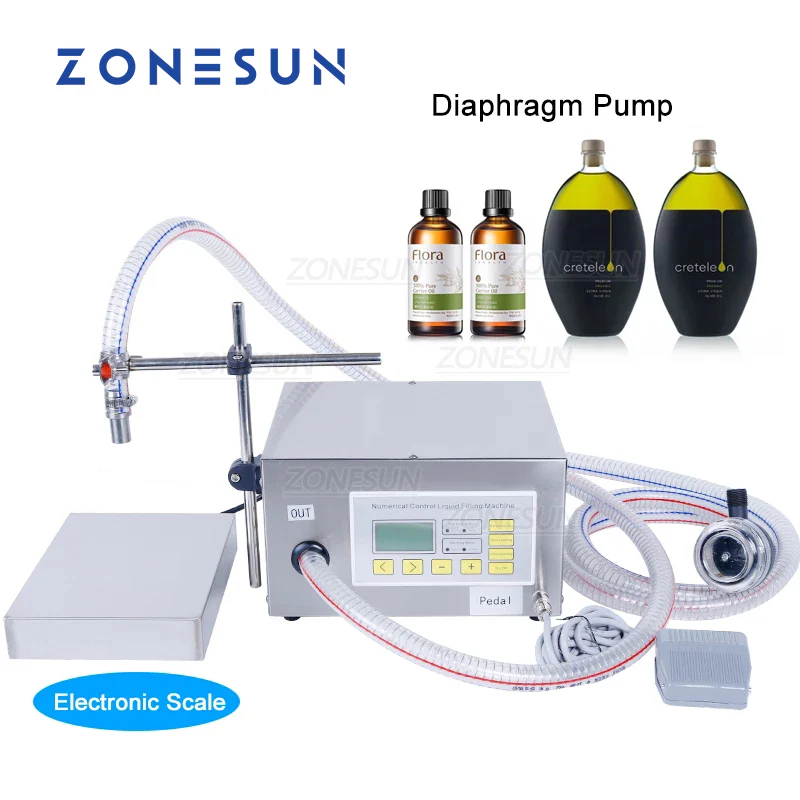

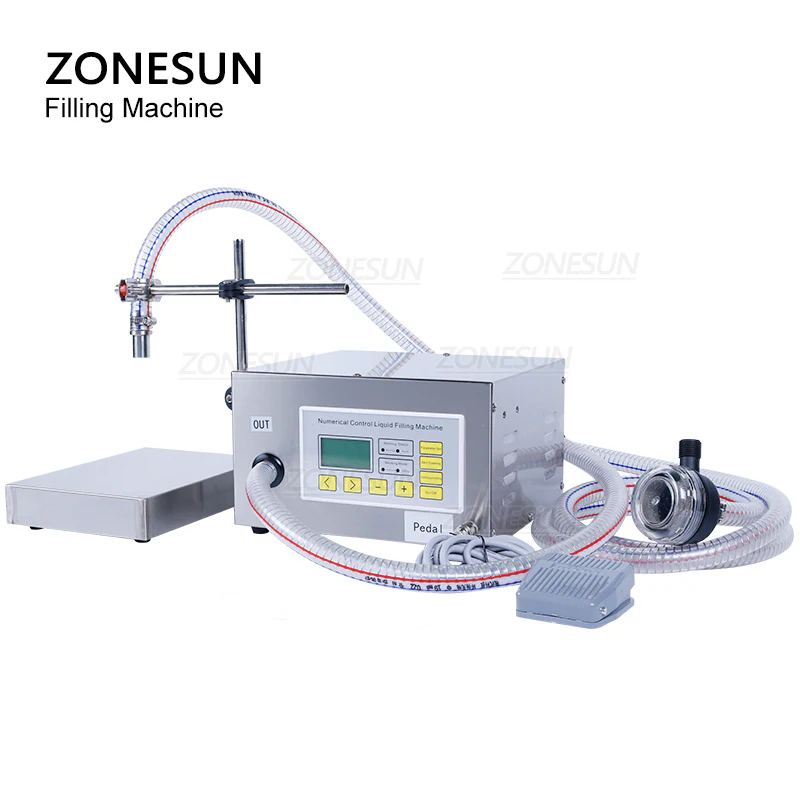

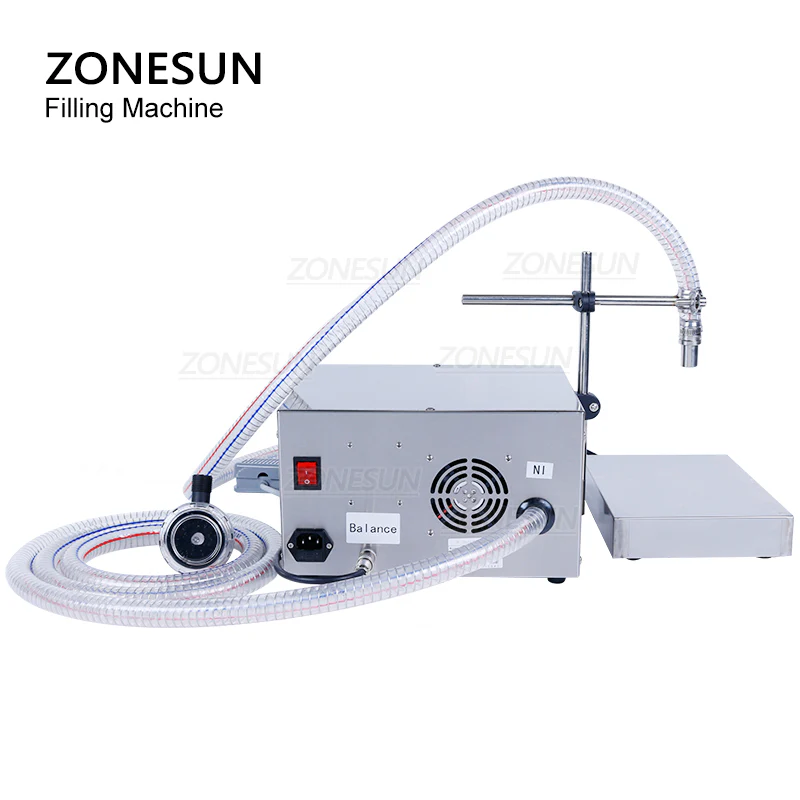

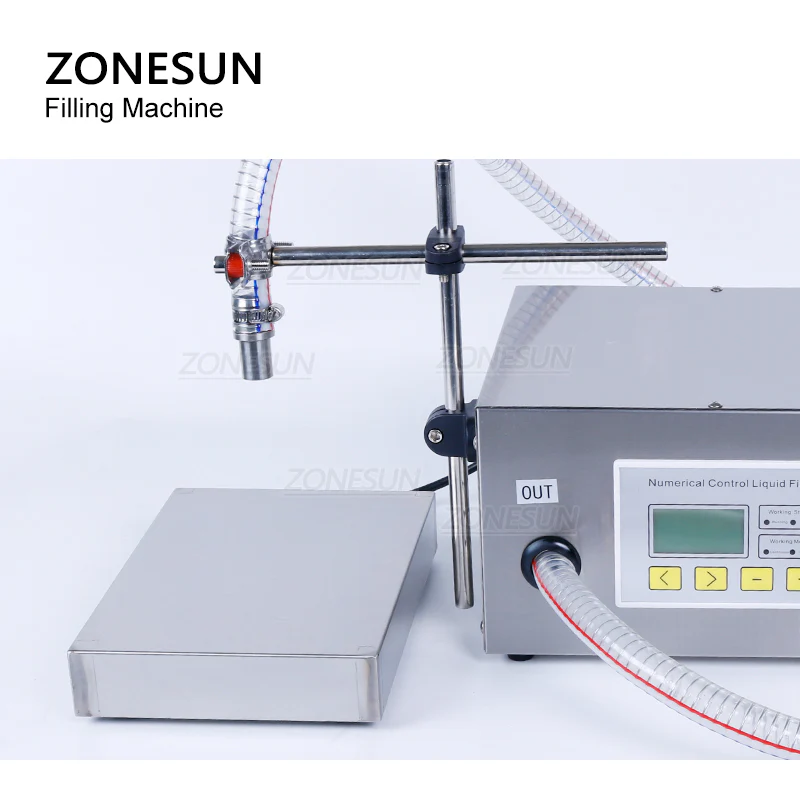

ZONESUN ZS-DP621W Semi-Auto Diaphragm Liquid Weighing Filling Machine 17L
The ZS-DP621W is a semi-automatic diaphragm pump filling machine designed for particle-free liquids such as shower gel, shampoo, perfume, and milk. With a high flow rate of 17L/min and integrated electronic scale, it ensures fast and accurate filling. Ideal for food, cosmetic, and pharmaceutical industries.
Parameter Specification
Machine Model ZS-DP621W
Machine Power 110V / 220V, 50–60Hz, 210W
Machine Pump Diaphragm Pump
Max Flow Rate 17L/min
Filling Range 150mL–17L
Weighing Range 150g–10kg
Filling Error Approx. ±10g

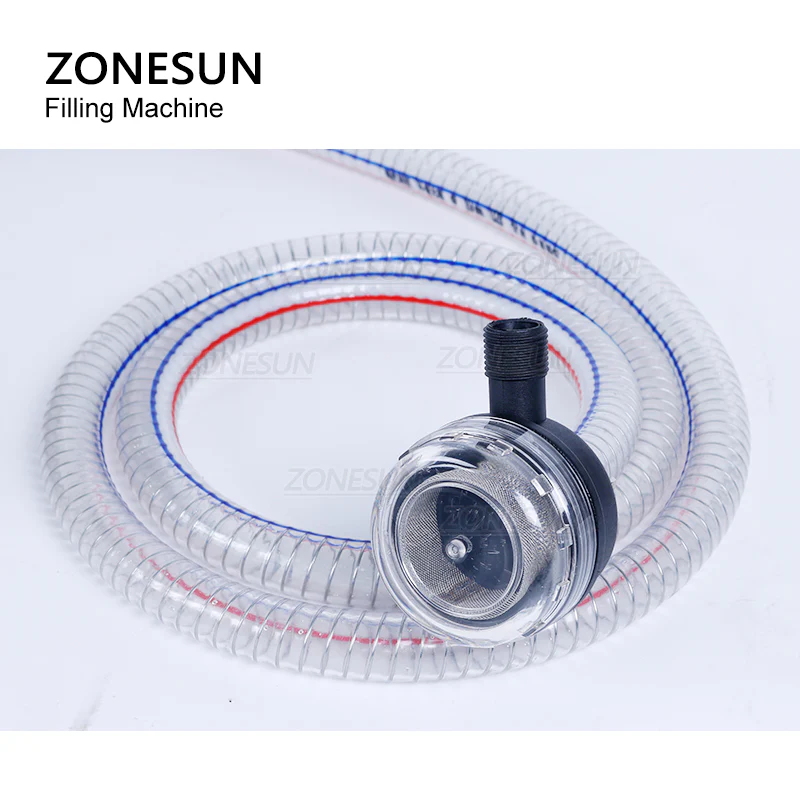

Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 2m (inlet) / 1.5m (outlet)
Filling Nozzle Diameter 12mm / 19mm
Liquid Temperature ＜75℃
Max Suction Distance 3m
Max Head of Delivery 5m
Suitable Liquids Ink, cooking oil, water, juice, perfume
Machine Size (L×W×H) 280mm × 250mm × 170mm
Machine Weight 9.88kg
Package Size (L×W×H) 400mm × 370mm × 240mm
Package Weight 10.5kg
The ZS-DP621W is a semi-automatic diaphragm pump filling machine designed for particle-free liquids such as shower gel, shampoo, perfume, and milk. With a high flow rate of 17L/min and integrated electronic scale, it ensures fast and accurate filling. Ideal for food, cosmetic, and pharmaceutical industries.
Parameter Specification
Machine Model ZS-DP621W
Machine Power 110V / 220V, 50–60Hz, 210W
Machine Pump Diaphragm Pump
Max Flow Rate 17L/min
Filling Range 150mL–17L
Weighing Range 150g–10kg
Filling Error Approx. ±10g
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 2m (inlet) / 1.5m (outlet)
Filling Nozzle Diameter 12mm / 19mm
Liquid Temperature ＜75℃
Max Suction Distance 3m
Max Head of Delivery 5m
Suitable Liquids Ink, cooking oil, water, juice, perfume
Machine Size (L×W×H) 280mm × 250mm × 170mm
Machine Weight 9.88kg
Package Size (L×W×H) 400mm × 370mm × 240mm
Package Weight 10.5kg
Original: $363.64
-70%$363.64
$109.09Description
The ZS-DP621W is a semi-automatic diaphragm pump filling machine designed for particle-free liquids such as shower gel, shampoo, perfume, and milk. With a high flow rate of 17L/min and integrated electronic scale, it ensures fast and accurate filling. Ideal for food, cosmetic, and pharmaceutical industries.
Parameter Specification
Machine Model ZS-DP621W
Machine Power 110V / 220V, 50–60Hz, 210W
Machine Pump Diaphragm Pump
Max Flow Rate 17L/min
Filling Range 150mL–17L
Weighing Range 150g–10kg
Filling Error Approx. ±10g
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 2m (inlet) / 1.5m (outlet)
Filling Nozzle Diameter 12mm / 19mm
Liquid Temperature ＜75℃
Max Suction Distance 3m
Max Head of Delivery 5m
Suitable Liquids Ink, cooking oil, water, juice, perfume
Machine Size (L×W×H) 280mm × 250mm × 170mm
Machine Weight 9.88kg
Package Size (L×W×H) 400mm × 370mm × 240mm
Package Weight 10.5kg
