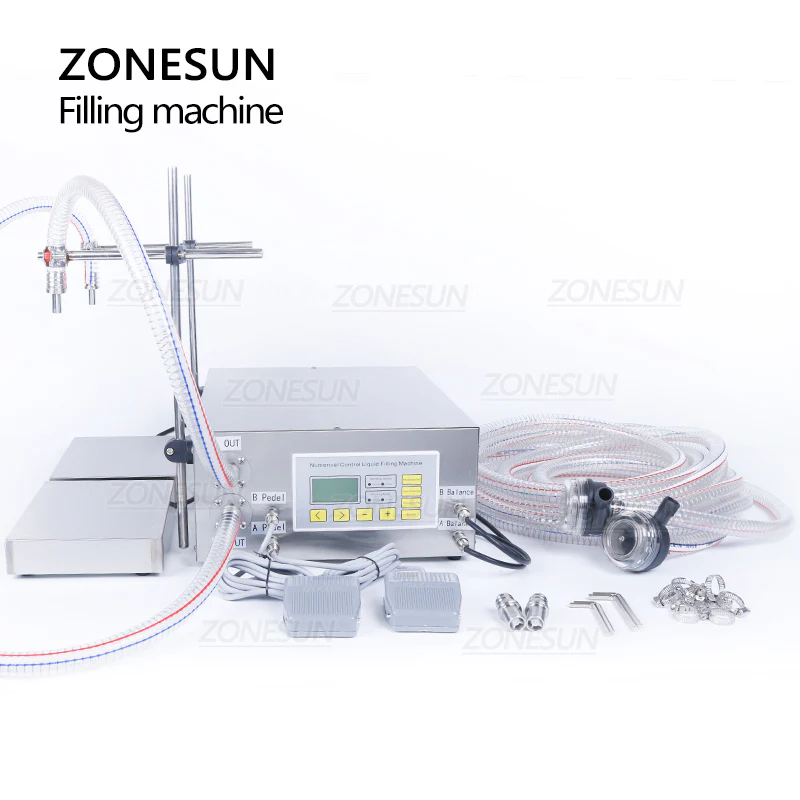

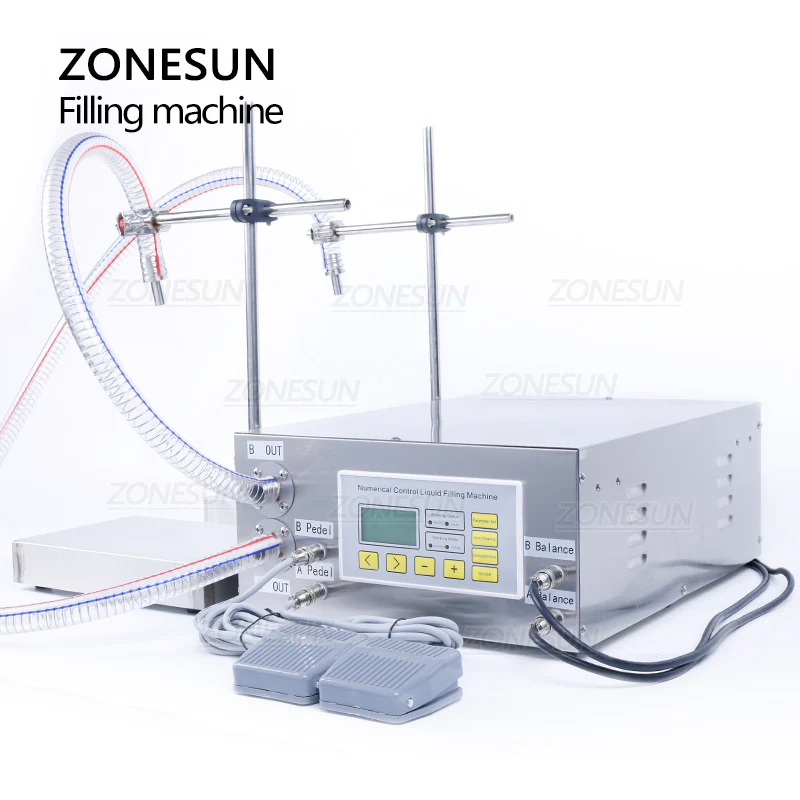

ZONESUN ZS-DP622W Dual-Nozzle Diaphragm Liquid Weighing Filling Machine 20kg

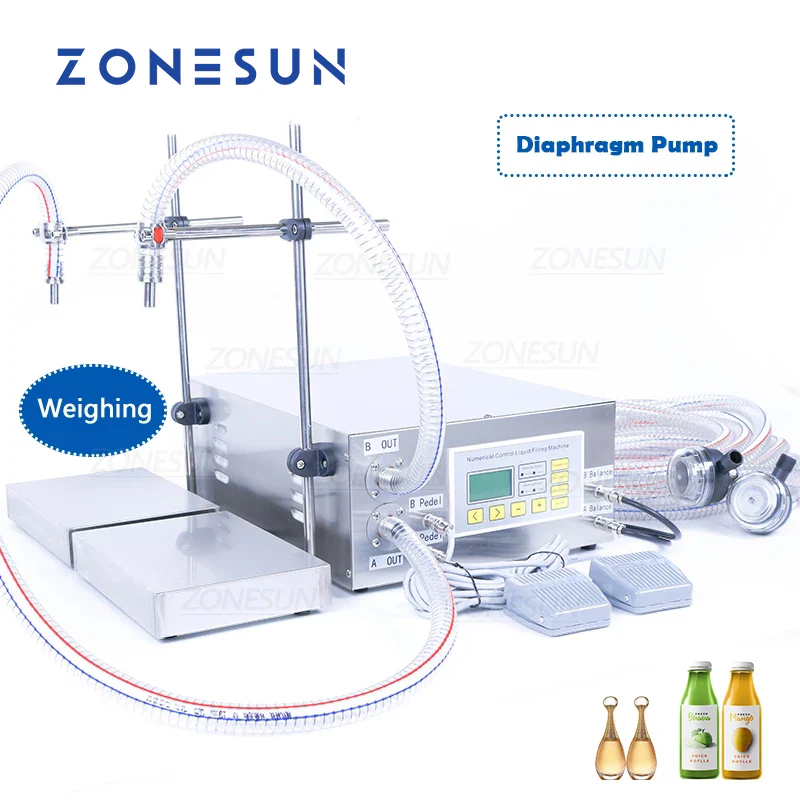

The ZS-DP622W is a semi-automatic filling machine with dual diaphragm pumps and integrated weighing system, designed for precise dispensing of particle-free liquids like hand sanitizer, toner, shampoo, and beverages. Each nozzle delivers up to 17L/min, boosting productivity across food, cosmetic, pharmaceutical, and chemical industries.
PARAMETER
- Machine Model：ZS-DP622W
- Machine Power：220V/110V 50-60Hz 210W*2
- Machine Pump：Diaphragm Pump
- Max Flow Rate：9999g/min*2 | 20kg*2
- Filling Range：150g-9999g | 150g-20kg

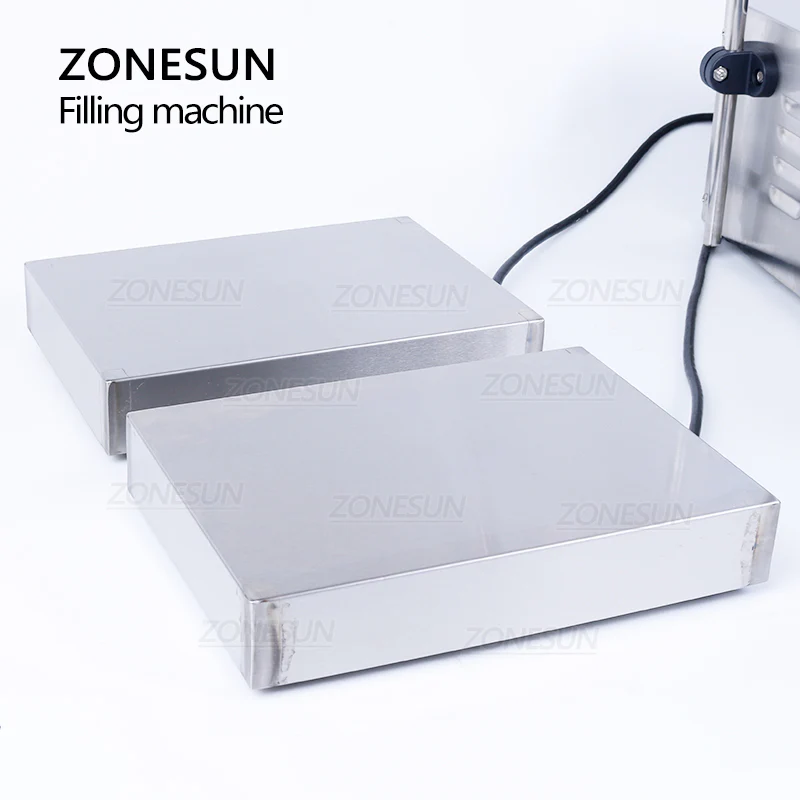

- Weighing Range：50g-100kg
- Filling Error：±5g
- Hose Diameter：19mm(ID)/25mm(OD)
- Hose Length：2m(inlet)/2m(outlet)

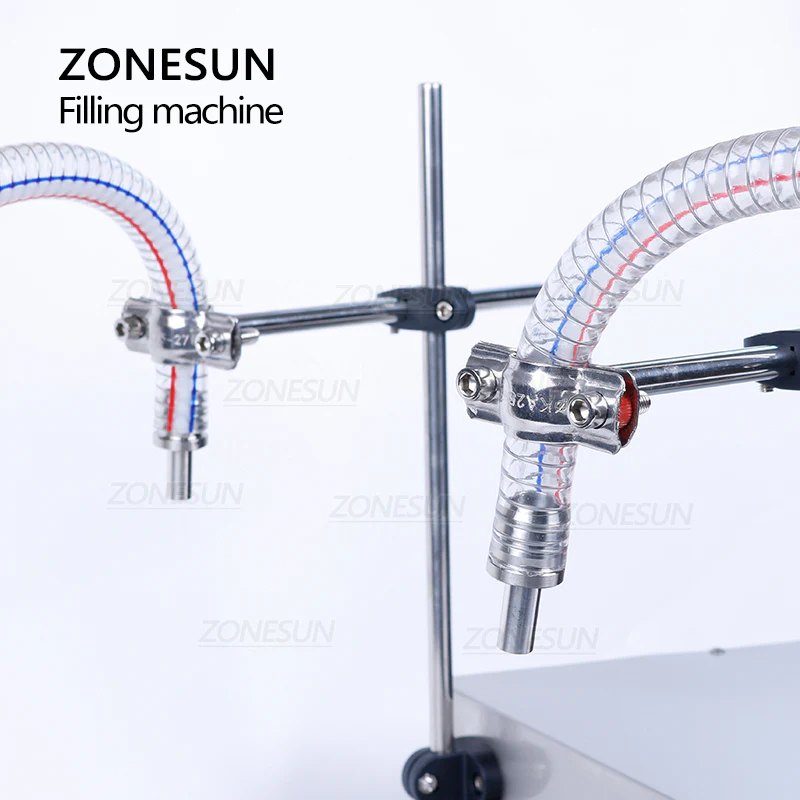

- Filling Nozzle Diameter：12mm/19mm
- Max Suction Distance：4m
- Max Head of Delivery：4m
- Liquid Temperature：＜55℃
- Machine Size：443mm*331mm*153mm
- Machine Weight：12.5kg
- Package Size：560*400*280mm(machine) | 300*300*160mm(electronic scale)
- Package Weight：17kg
The ZS-DP622W is a semi-automatic filling machine with dual diaphragm pumps and integrated weighing system, designed for precise dispensing of particle-free liquids like hand sanitizer, toner, shampoo, and beverages. Each nozzle delivers up to 17L/min, boosting productivity across food, cosmetic, pharmaceutical, and chemical industries.
PARAMETER
- Machine Model：ZS-DP622W
- Machine Power：220V/110V 50-60Hz 210W*2
- Machine Pump：Diaphragm Pump
- Max Flow Rate：9999g/min*2 | 20kg*2
- Filling Range：150g-9999g | 150g-20kg
- Weighing Range：50g-100kg
- Filling Error：±5g
- Hose Diameter：19mm(ID)/25mm(OD)
- Hose Length：2m(inlet)/2m(outlet)
- Filling Nozzle Diameter：12mm/19mm
- Max Suction Distance：4m
- Max Head of Delivery：4m
- Liquid Temperature：＜55℃
- Machine Size：443mm*331mm*153mm
- Machine Weight：12.5kg
- Package Size：560*400*280mm(machine) | 300*300*160mm(electronic scale)
- Package Weight：17kg
Original: $575.77
-70%$575.77
$172.73Description
The ZS-DP622W is a semi-automatic filling machine with dual diaphragm pumps and integrated weighing system, designed for precise dispensing of particle-free liquids like hand sanitizer, toner, shampoo, and beverages. Each nozzle delivers up to 17L/min, boosting productivity across food, cosmetic, pharmaceutical, and chemical industries.
PARAMETER
- Machine Model：ZS-DP622W
- Machine Power：220V/110V 50-60Hz 210W*2
- Machine Pump：Diaphragm Pump
- Max Flow Rate：9999g/min*2 | 20kg*2
- Filling Range：150g-9999g | 150g-20kg
- Weighing Range：50g-100kg
- Filling Error：±5g
- Hose Diameter：19mm(ID)/25mm(OD)
- Hose Length：2m(inlet)/2m(outlet)
- Filling Nozzle Diameter：12mm/19mm
- Max Suction Distance：4m
- Max Head of Delivery：4m
- Liquid Temperature：＜55℃
- Machine Size：443mm*331mm*153mm
- Machine Weight：12.5kg
- Package Size：560*400*280mm(machine) | 300*300*160mm(electronic scale)
- Package Weight：17kg
