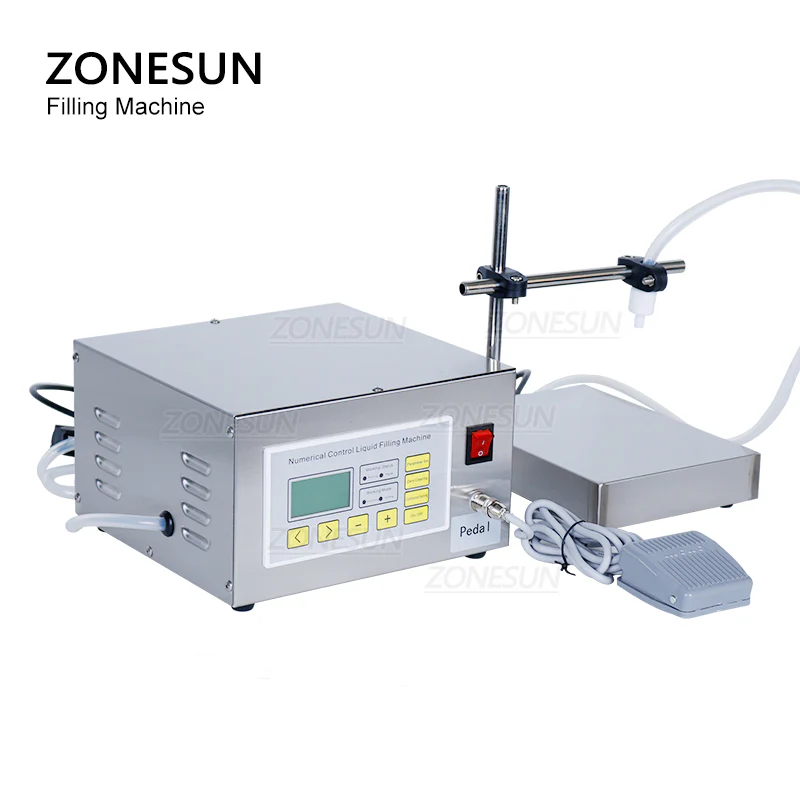

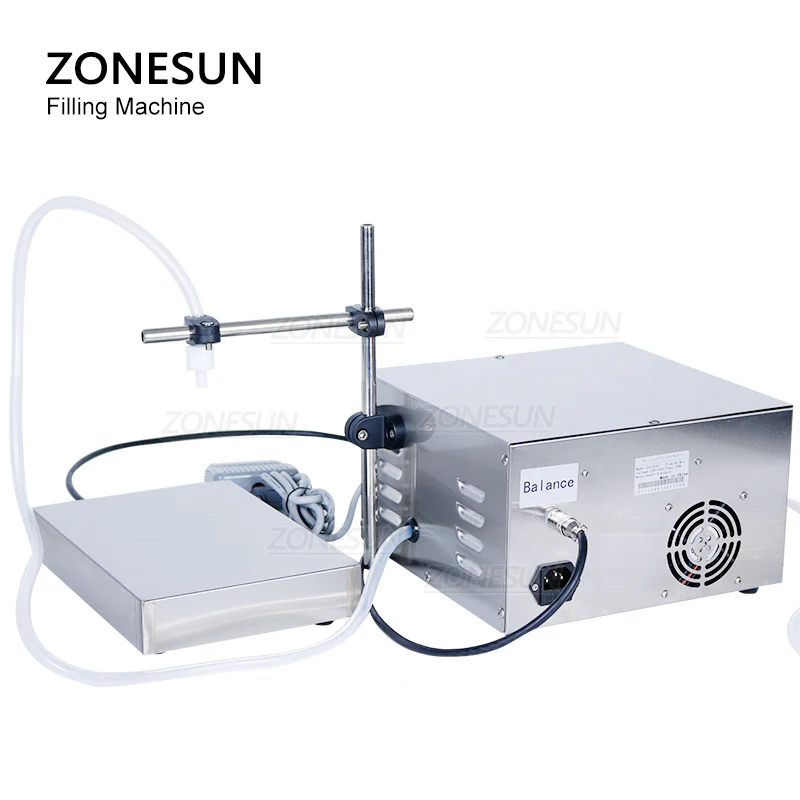

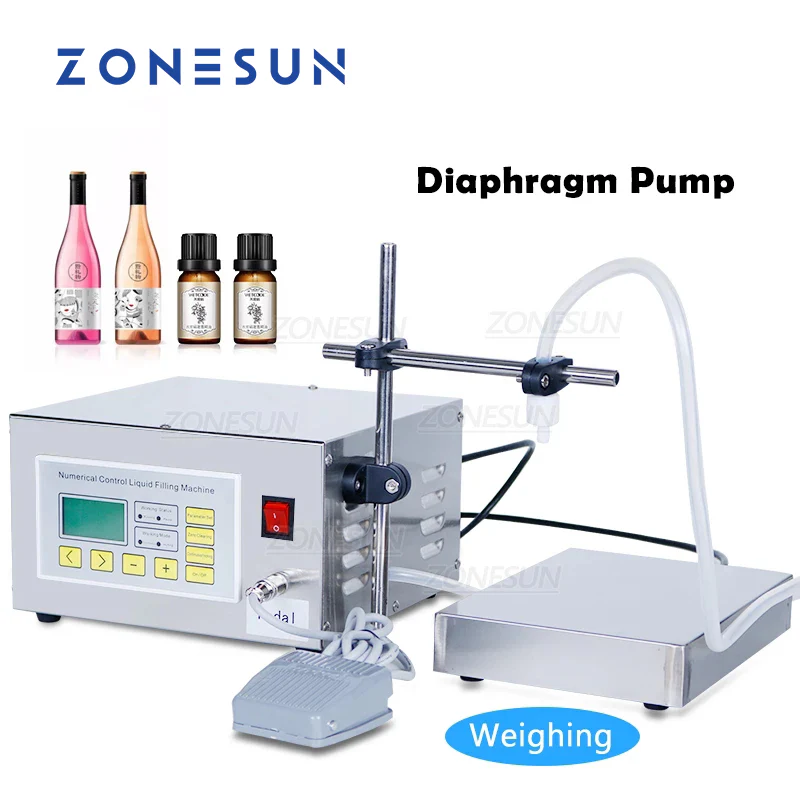

ZONESUN ZS-DP641W Semi-Auto Diaphragm Liquid Weighing Filling Machine 6L
The ZS-DP641W is a semi-automatic liquid filling machine designed for low-viscosity, particle-free liquids such as beverages, perfumes, and essential oils. Featuring a food-grade diaphragm pump and integrated electronic scale, it ensures clean and accurate filling. Ideal for use in pharmaceutical, cosmetic, beverage, and food industries.
Parameter Specification
Machine Model ZS-DP641W
Machine Power 220V / 110V, 80W
Machine Pump Diaphragm Pump
Max Flow Rate 6L/min
Filling Range 30mL–6L
Weighing Range 30g–10kg
Repetitive Error ±5g
Filling Nozzle Diameter 8mm

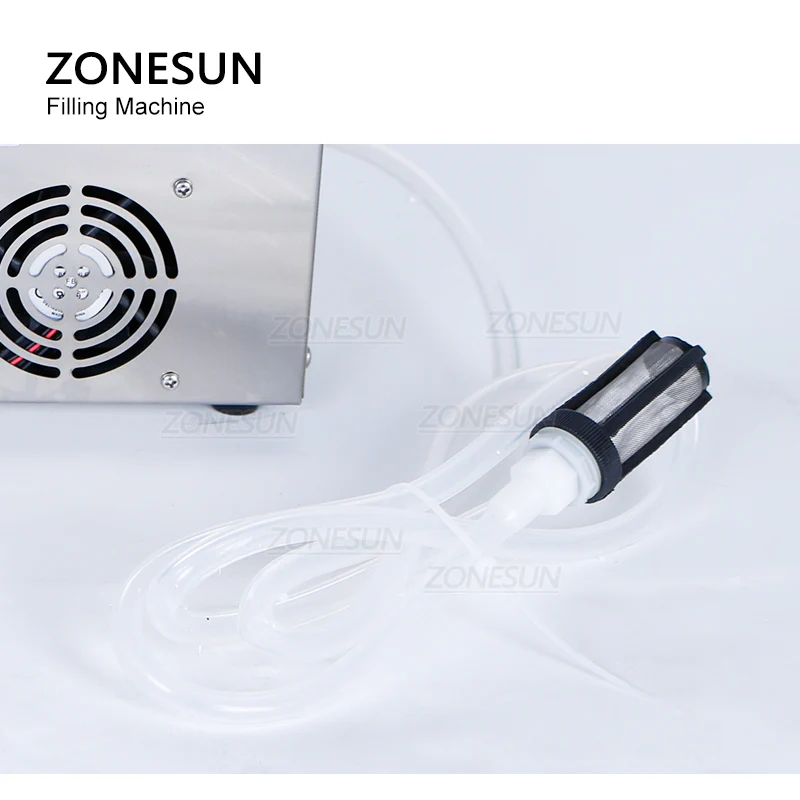

Hose Diameter 7mm (ID) / 11mm (OD)
Hose Length 2m (inlet) / 1.4m (outlet)
Max Suction Distance 3m
Max Head of Delivery 2m
Liquid Temperature ＜55℃
Machine Weight 4.5kg
Machine Size (L×W×H) 300mm × 310mm × 200mm
Package Weight 5.5kg
Package Size (L×W×H) 400mm × 370mm × 200mm
The ZS-DP641W is a semi-automatic liquid filling machine designed for low-viscosity, particle-free liquids such as beverages, perfumes, and essential oils. Featuring a food-grade diaphragm pump and integrated electronic scale, it ensures clean and accurate filling. Ideal for use in pharmaceutical, cosmetic, beverage, and food industries.
Parameter Specification
Machine Model ZS-DP641W
Machine Power 220V / 110V, 80W
Machine Pump Diaphragm Pump
Max Flow Rate 6L/min
Filling Range 30mL–6L
Weighing Range 30g–10kg
Repetitive Error ±5g
Filling Nozzle Diameter 8mm
Hose Diameter 7mm (ID) / 11mm (OD)
Hose Length 2m (inlet) / 1.4m (outlet)
Max Suction Distance 3m
Max Head of Delivery 2m
Liquid Temperature ＜55℃
Machine Weight 4.5kg
Machine Size (L×W×H) 300mm × 310mm × 200mm
Package Weight 5.5kg
Package Size (L×W×H) 400mm × 370mm × 200mm
Original: $240.00
-70%$240.00
$72.00Description
The ZS-DP641W is a semi-automatic liquid filling machine designed for low-viscosity, particle-free liquids such as beverages, perfumes, and essential oils. Featuring a food-grade diaphragm pump and integrated electronic scale, it ensures clean and accurate filling. Ideal for use in pharmaceutical, cosmetic, beverage, and food industries.
Parameter Specification
Machine Model ZS-DP641W
Machine Power 220V / 110V, 80W
Machine Pump Diaphragm Pump
Max Flow Rate 6L/min
Filling Range 30mL–6L
Weighing Range 30g–10kg
Repetitive Error ±5g
Filling Nozzle Diameter 8mm
Hose Diameter 7mm (ID) / 11mm (OD)
Hose Length 2m (inlet) / 1.4m (outlet)
Max Suction Distance 3m
Max Head of Delivery 2m
Liquid Temperature ＜55℃
Machine Weight 4.5kg
Machine Size (L×W×H) 300mm × 310mm × 200mm
Package Weight 5.5kg
Package Size (L×W×H) 400mm × 370mm × 200mm
