ZONESUN ZS-DPCL2/ZSFAL180D5 Tabletop Liquid Filling Capping Labeling Line

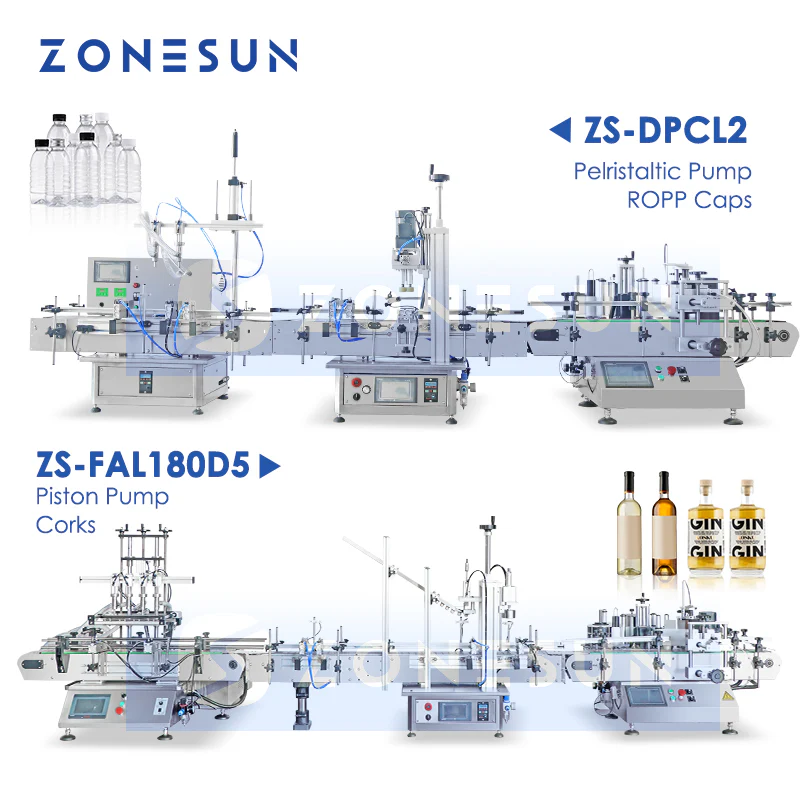

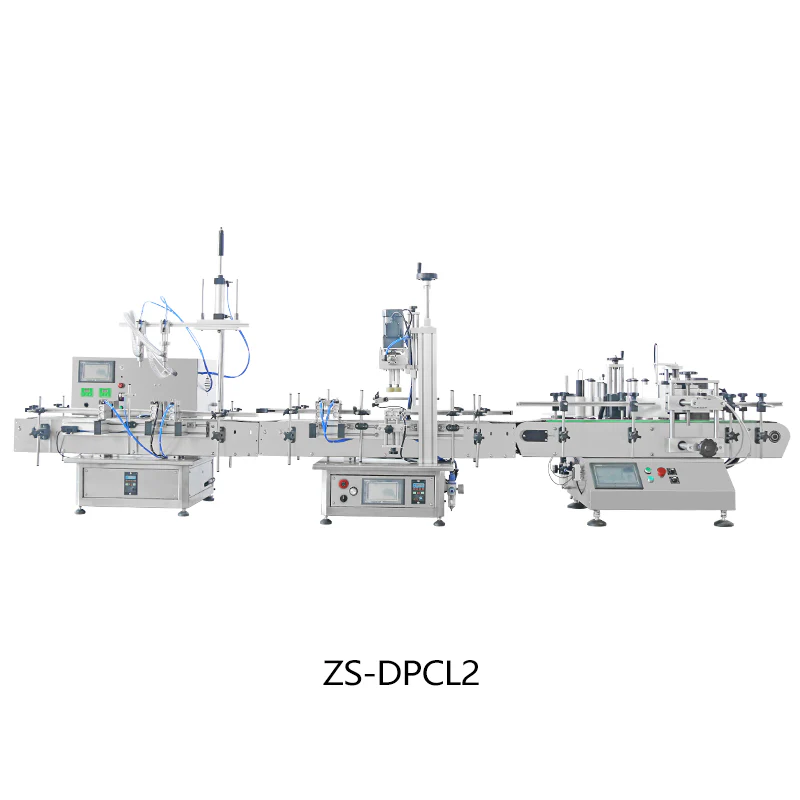

ZONESUN ZS-DPCL2 and ZS-FAL180D5 tabletop production lines offer a complete packaging solution for round bottles. One line is designed for screw caps, the other for corks—both integrating filling, capping, and labeling functions. Featuring diaphragm and pneumatic filling systems, customizable capping heads, and precise label application, these compact lines are ideal for small to medium-scale operations in cosmetics, food, beverage, and chemical industries. With modular design and flexible bottle compatibility, they deliver speed, accuracy, and space-saving efficiency.
Parameter Details

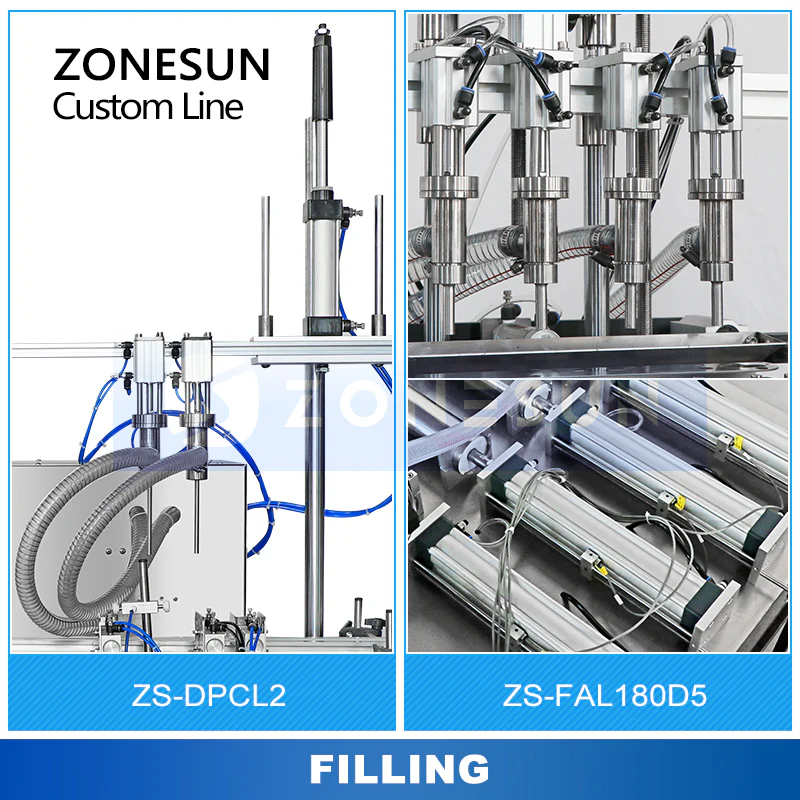

Machine Model ZS-DTDP2C Filling Machine
Voltage 220V / 110V, 50–60Hz
Power 1000 W
Filling Pump Diaphragm Pump
Filling Speed 20–25 bottles/min × 2 (depends on bottle & liquid)
Max Flow Rate 20 L/min × 2 (each pump)
Suitable Bottle Height <220 mm (customizable, max height 300 mm)
Filling Accuracy ≤ ±1% (for water)
Max Suction Distance 2 m
Power-Off Memory Function Available
Machine Model ZS-DTHSP4
Voltage 220V / 110V, 50–60Hz Filling Machine
Power 500 W
Filling Head 4 Heads (customizable)
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
Filling Speed 20–60 bottles/min (depends on bottle & liquid)
Filling Head Diameter OD 10 mm (other sizes optional)
Filling Accuracy ≤ ±1% (for water)
Air Pressure 0.4–0.6 MPa
Packaging Size Approx. 1530 × 1400 × 1350 mm
Gross Weight Approx. 234 kg

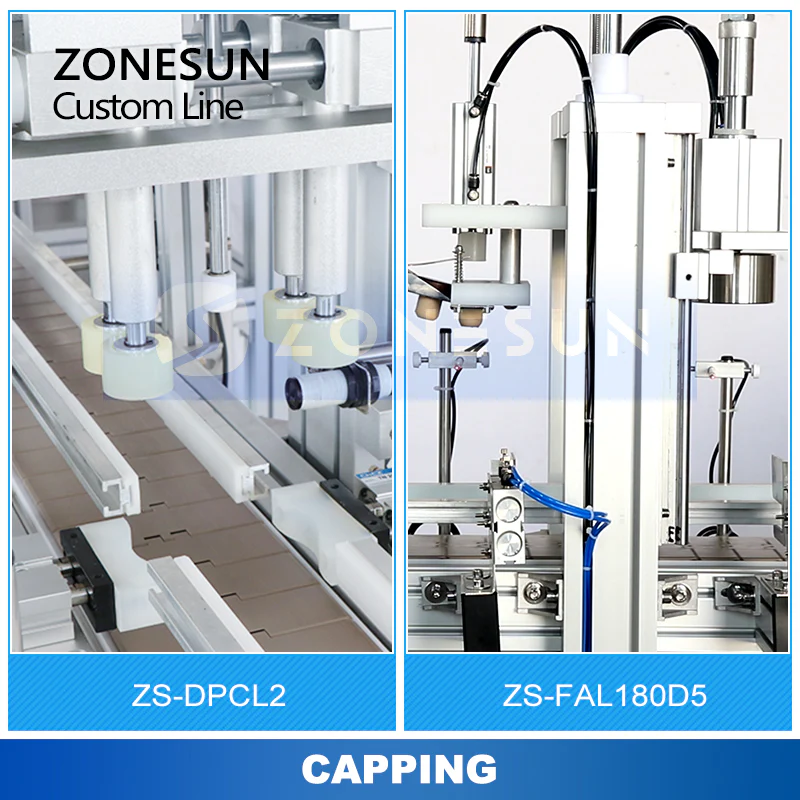

Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap)
Working Voltage AC 220V / 110V, 50–60Hz
Air Pressure 0.4–0.6 MPa
Air Connector Size OD 8 mm
Conveyor Length 1117 mm
Machine Size Approx. 1170 × 580 × 1110 mm
Package Size Approx. 1160 × 610 × 1140 mm
Net/Gross Weight Approx. 65.5 kg / 97.5 kg
Working Voltage AC 220V / 110V, 50–60Hz
Bottle Height 60–270 mm
Cap Diameter Customizable (≤130 mm)
Working Speed 20–40 bottles/min (depends on bottle & cap)
Air Pressure 0.4–0.6 MPa
Air Connector Size OD 8 mm
Conveyor Size 1150 mm (W) × 1200 mm (L)
Package Size Approx. 1150 × 650 × 820 mm
Package Weight Approx. 95 kg

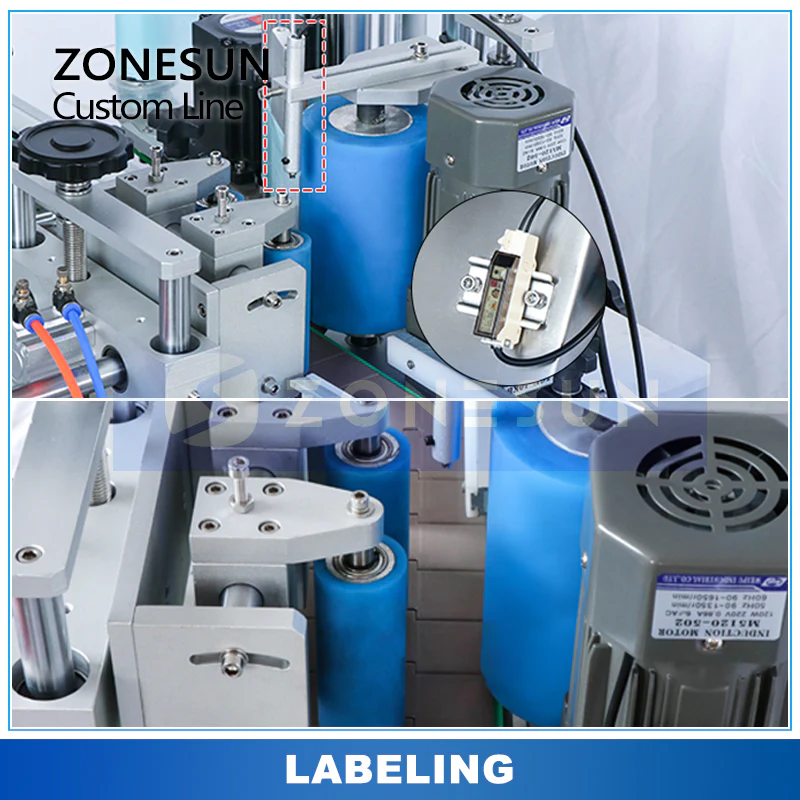

Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–50 bottles/min
Labeling Size Height: 15–140 mm / Length: 25–300 mm
Roll Inside Diameter Ø76 mm
Roll Outside Diameter Ø350 mm
Suitable Bottle Diameter ≤100 mm
Air Compressor Connector OD 8 mm
Package Size Approx. 1290 × 860 × 900 mm
Net/Gross Weight Approx. 95.5 kg / 130 kg
