The ZONESUN ZS‑DPYT3000 Single Head Liquid Filling Machine offers precision, efficiency, and versatility for small‑scale production. Its anti‑drip nozzle ensures clean, accurate fills, while the intelligent eye sensor streamlines operation. Heat‑resistant design allows filling of liquids up to 100 °C, and detachable inlet/outlet tubes make cleaning and maintenance simple. A microcomputer control system provides timing accuracy down to 0.1 second, making it ideal for water, beverages, sauces, juices, soybean milk, toner, and other low‑viscosity, particle‑free, non‑foaming liquids.

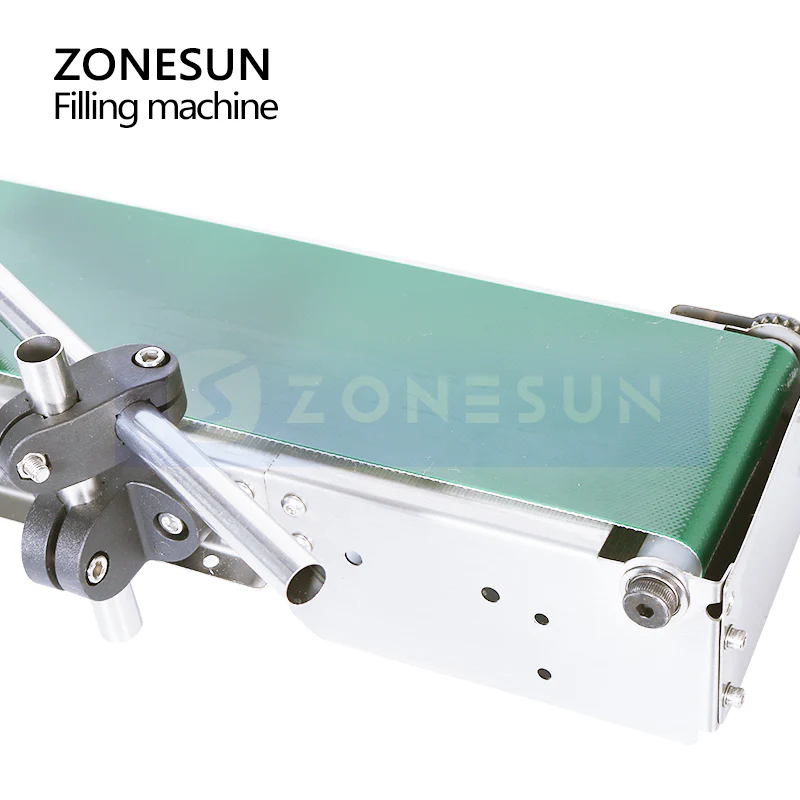

 Conveyor ：600mm

Item	ZS‑DPYT3000	ZS‑DPYT1500
Model	ZS‑DPYT3000	ZS‑DPYT1500
Pump Type	Diaphragm pump	Diaphragm pump
Max. Temp.	5 – 50 °C	5 – 100 °C
Min. Fill Rate	10 ml	5 ml
Recommended Fill Rate	10 – 500 ml	5 – 250 ml
Max. Flow Rate	3000 ml/min	1500 ml/min
Nozzle Diameter	9 mm	9 mm
Machine Size	636 × 166 × 179 mm	636 × 166 × 179 mm
Voltage	AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V	AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V
Filling Speed	Adjustable	Adjustable
Filling Counter	Counting range: 1‑9999	Counting range: 1‑9999
Inlet/Outlet Tube	Inlet: 1.5 m / Outlet: 0.8 m	Inlet: 1.5 m / Outlet: 0.8 m
Working Mode	Manual, automatic, intelligent induction	Manual, automatic, intelligent induction
Memory Function	Available	Available
Package Size	650 × 170 × 180 mm	650 × 170 × 180 mm
