ZONESUN ZS-DTDP-4P Automatic 4-Nozzle Diaphragm Pump Liquid Filler

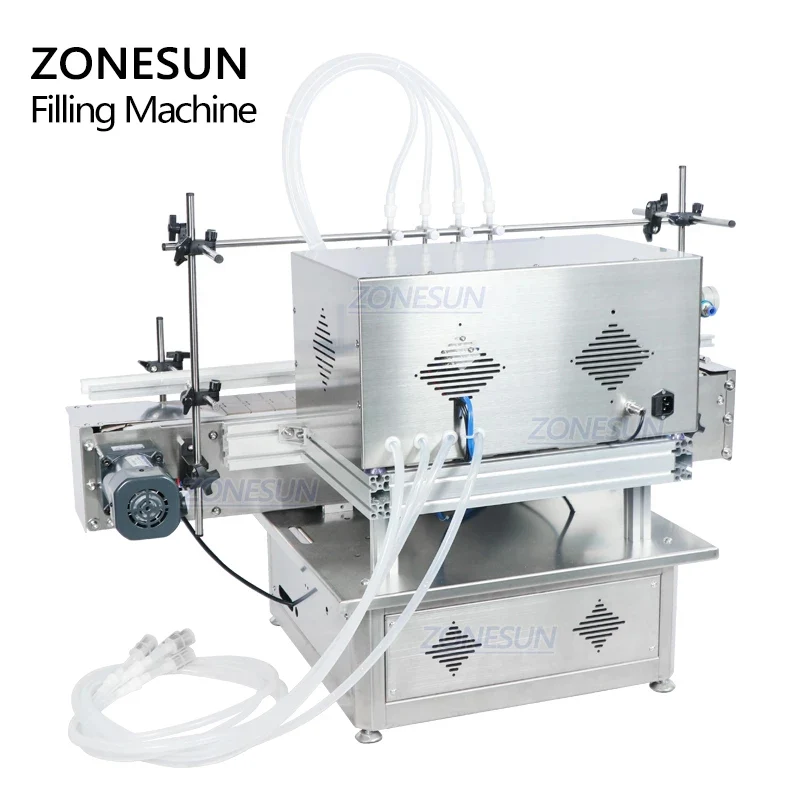

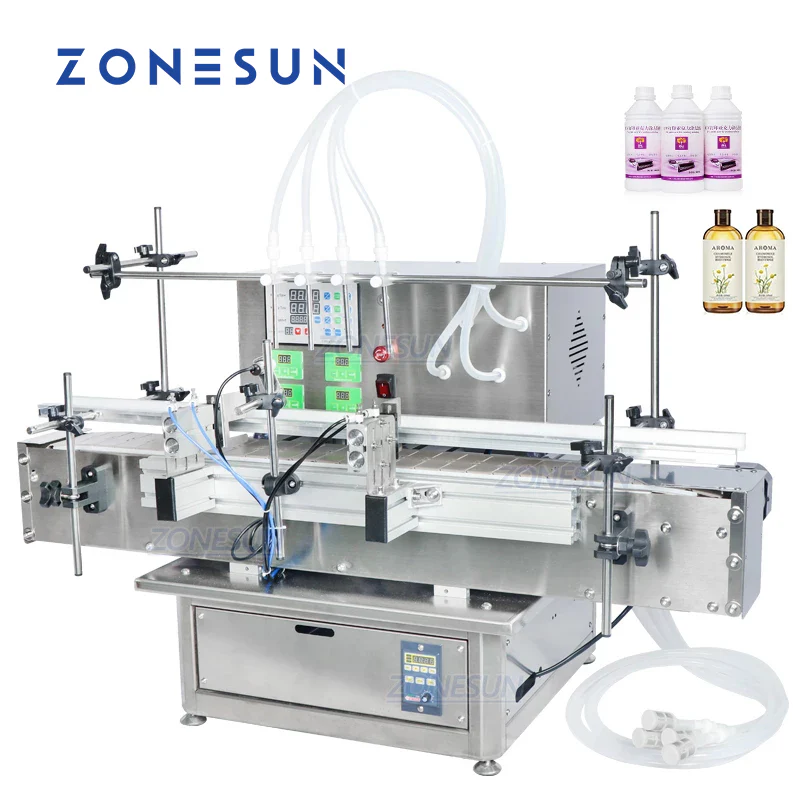

The ZS-DTDP-4P is an automatic liquid filling machine designed for non-particle liquids such as shampoo, juice, perfume, and essential oils. Equipped with a durable chain conveyor, it ensures stable transport of heavy bottles during filling. With four diaphragm pump nozzles, it delivers consistent and accurate performance, making it ideal for cosmetics, pharmaceuticals, beverages, and daily chemical production.
Parameter
- Machine model:ZS-DTDP-4P
- Voltage:110/220V 50-60HZ
- Power:250W
- Maximum flow velocity:4000ml/min(Each nozzle and base on water)
- Working speed:1500-3000 bottles/hour(depends on bottle size and liquid)
- Air pressure:0.3-0.4MPa
- Filling accuracy:≤+1% (For water)
- Bottle height:＜220mm(Can be customized,max height 300mm)
- Diameter of filling nozzle:6/8mm
- Conveyor size:1030*115mm(L*W)
- Size of air compressor connector:OD 8mm
- Machine size:1114*650*765mm
- Machine weight:52kg
- Package size:1145*605*795mm
- Gross weight:78kg

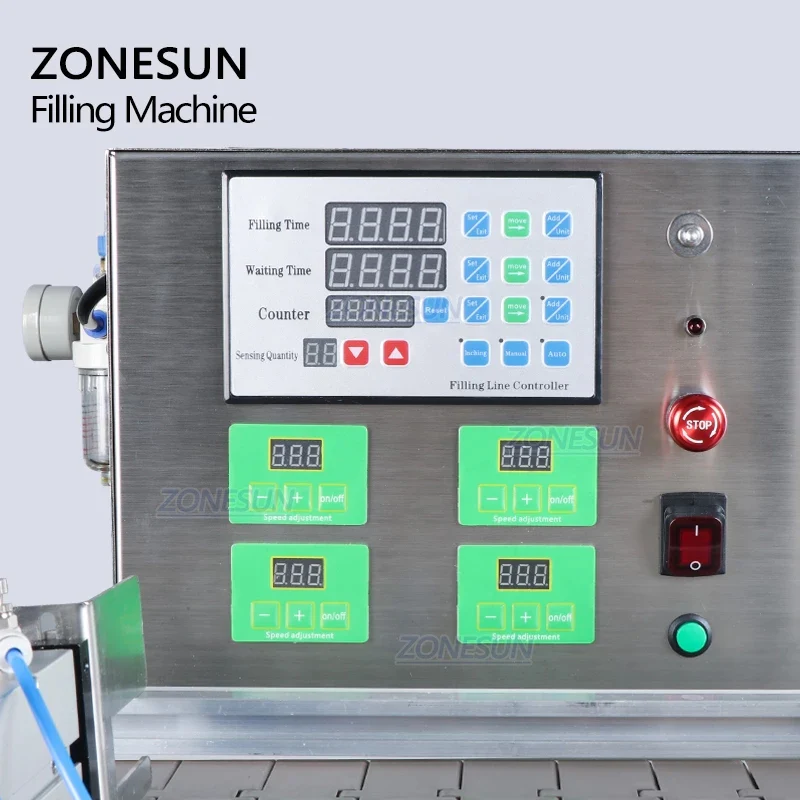

Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.

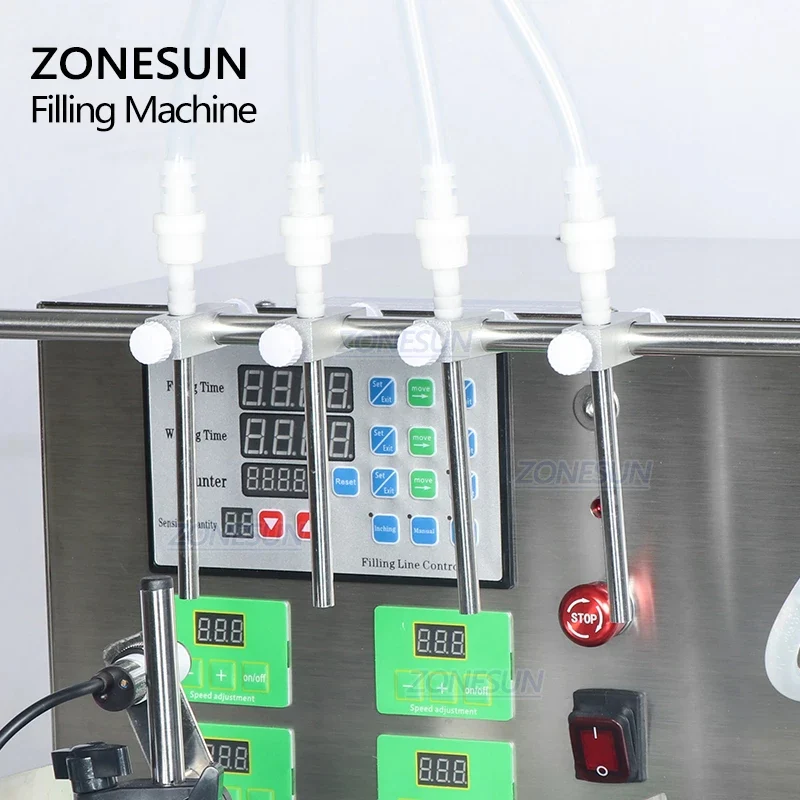

This machine is designed with 4 filling nozzles,the filling speed and time of each nozzle can be controlled separately. We can customize 6 filling nozzle of this machine to achieve efficient production,if you need this please contact us.
The electric eye will detect passing by containers and send the signal to the system which will control the machine to fill liquid,and achieve automated production.This can reduce the production error.

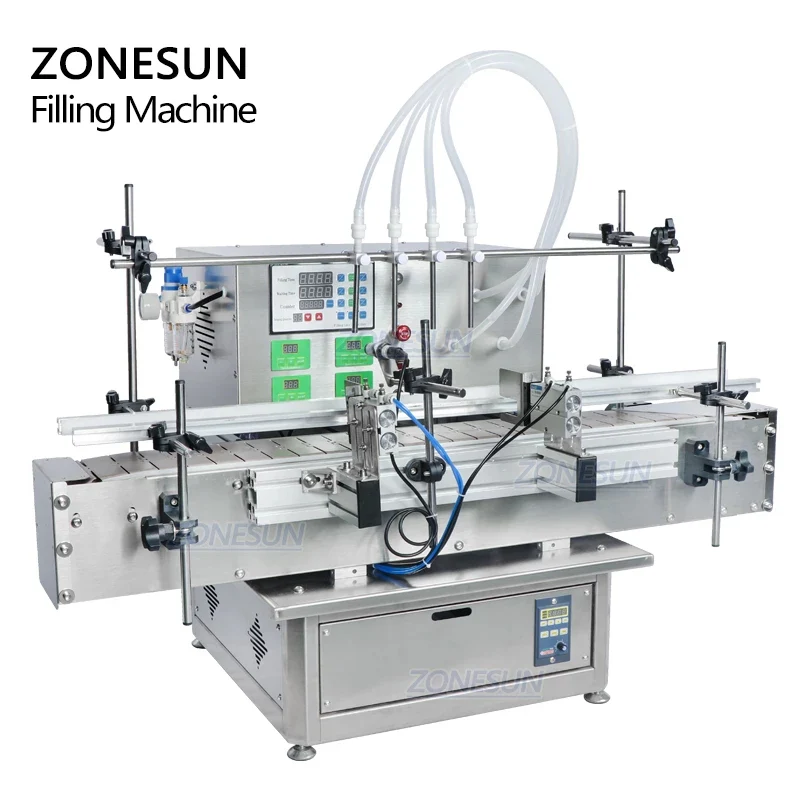

The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately by the below operation panel.
