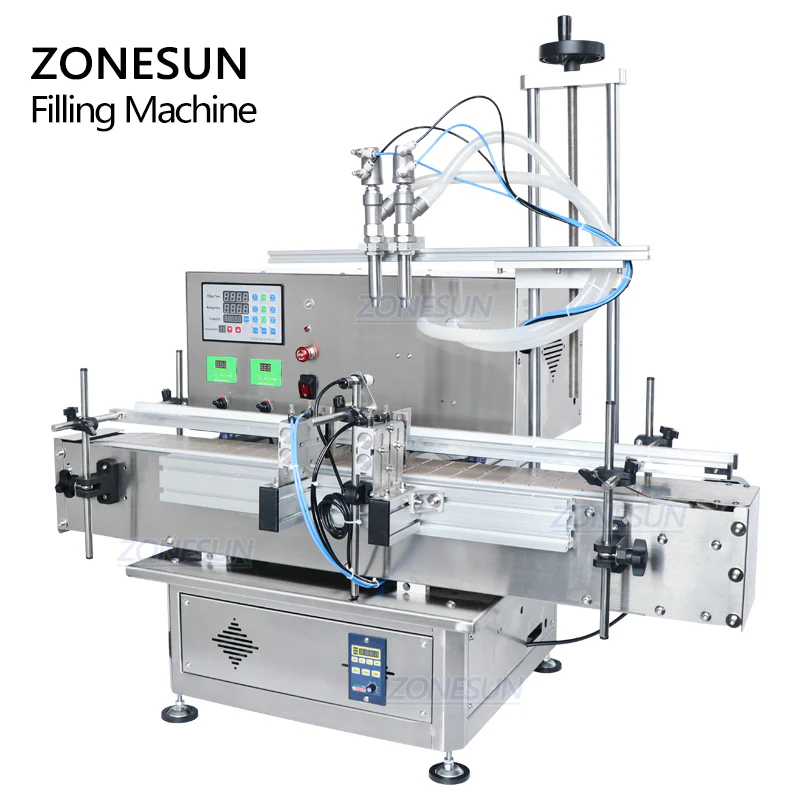

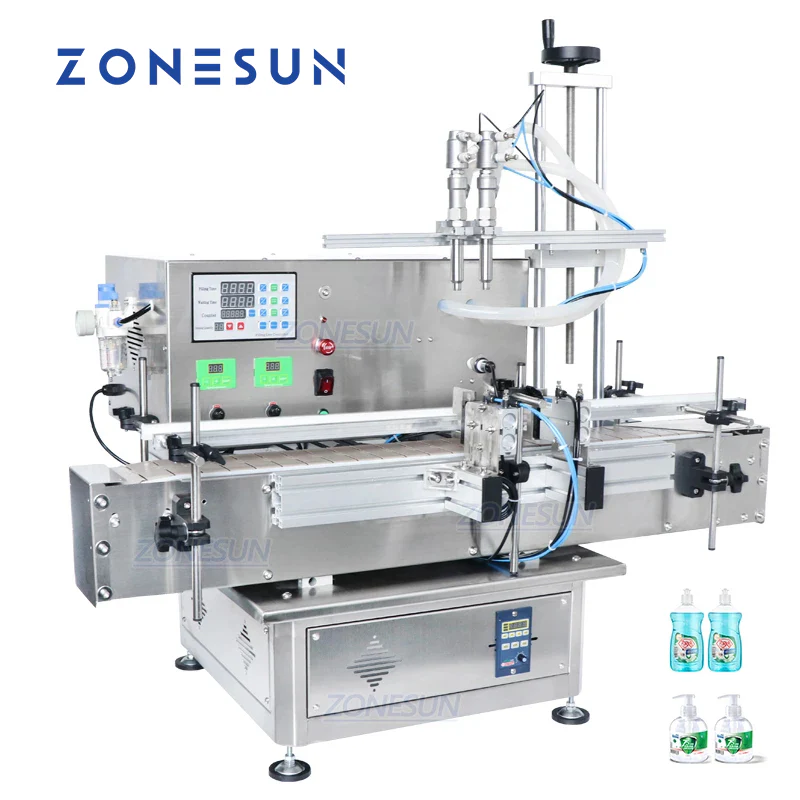

ZONESUN ZS-DTDP20-2 Dual Head Desktop Liquid Filling Machine for Viscous Fluids

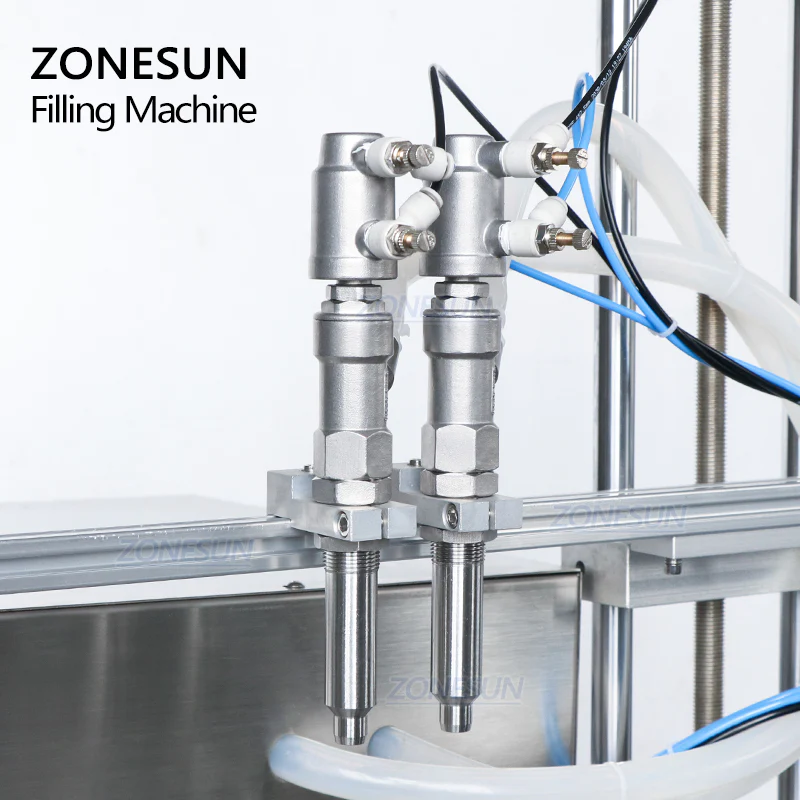

The ZONESUN ZS-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice, perfume, milk, gel, and shampoo. Each pneumatic nozzle delivers up to 20L/min, ensuring high-speed performance for small to medium-scale production. Its chain conveyor system supports stable transport of heavier containers, while the adjustable bottle height and nozzle diameter offer flexibility across product types. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this machine can be integrated with capping and labeling units for a complete automated packaging line.
ZS-DTDP20-2 Dual Nozzle Liquid Filling Machine Specifications
Specification Details
Machine Model ZS-DTDP20-2
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Max Flow Velocity 20 L/min per nozzle (based on water)
Working Speed 20–25 bottles/min × 2 (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)

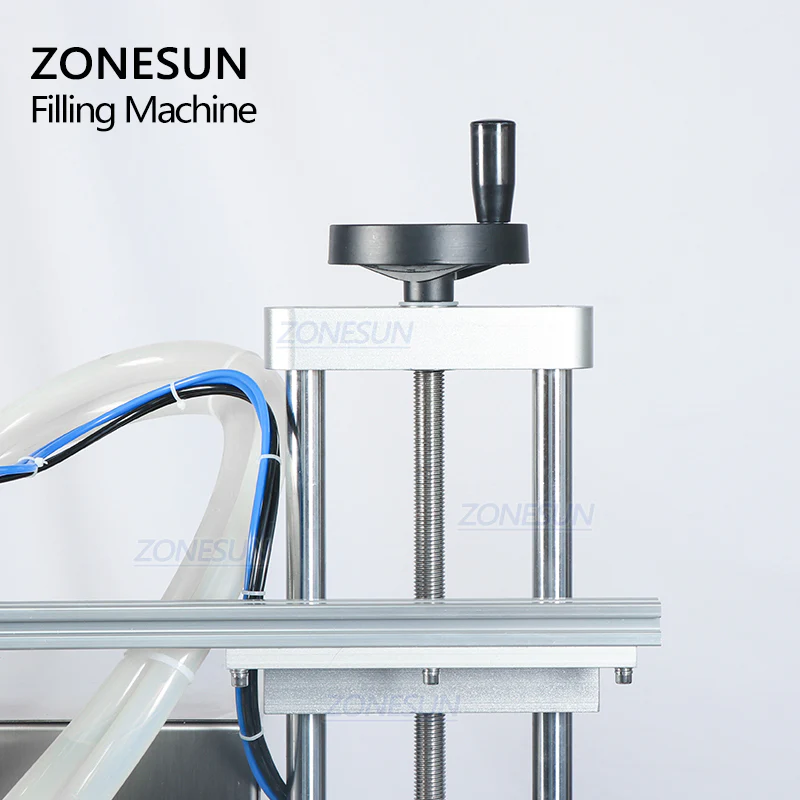

Bottle Height <220 mm (customizable, max 300 mm)
Filling Nozzle Diameter 10 mm
Conveyor Size 1130 × 115 mm (L × W)
Air Compressor Connector Outer Diameter 8 mm
Machine Size Approx. 1130 × 710 × 1070 mm
Package Size Approx. 1150 × 730 × 830 mm
Net/Gross Weight Approx. 74 kg / 103.5 kg
The ZONESUN ZS-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice, perfume, milk, gel, and shampoo. Each pneumatic nozzle delivers up to 20L/min, ensuring high-speed performance for small to medium-scale production. Its chain conveyor system supports stable transport of heavier containers, while the adjustable bottle height and nozzle diameter offer flexibility across product types. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this machine can be integrated with capping and labeling units for a complete automated packaging line.
ZS-DTDP20-2 Dual Nozzle Liquid Filling Machine Specifications
Specification Details
Machine Model ZS-DTDP20-2
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Max Flow Velocity 20 L/min per nozzle (based on water)
Working Speed 20–25 bottles/min × 2 (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Bottle Height <220 mm (customizable, max 300 mm)
Filling Nozzle Diameter 10 mm
Conveyor Size 1130 × 115 mm (L × W)
Air Compressor Connector Outer Diameter 8 mm
Machine Size Approx. 1130 × 710 × 1070 mm
Package Size Approx. 1150 × 730 × 830 mm
Net/Gross Weight Approx. 74 kg / 103.5 kg
Original: $2,299.00
-70%$2,299.00
$689.70Description
The ZONESUN ZS-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice, perfume, milk, gel, and shampoo. Each pneumatic nozzle delivers up to 20L/min, ensuring high-speed performance for small to medium-scale production. Its chain conveyor system supports stable transport of heavier containers, while the adjustable bottle height and nozzle diameter offer flexibility across product types. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this machine can be integrated with capping and labeling units for a complete automated packaging line.
ZS-DTDP20-2 Dual Nozzle Liquid Filling Machine Specifications
Specification Details
Machine Model ZS-DTDP20-2
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Max Flow Velocity 20 L/min per nozzle (based on water)
Working Speed 20–25 bottles/min × 2 (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Bottle Height <220 mm (customizable, max 300 mm)
Filling Nozzle Diameter 10 mm
Conveyor Size 1130 × 115 mm (L × W)
Air Compressor Connector Outer Diameter 8 mm
Machine Size Approx. 1130 × 710 × 1070 mm
Package Size Approx. 1150 × 730 × 830 mm
Net/Gross Weight Approx. 74 kg / 103.5 kg
