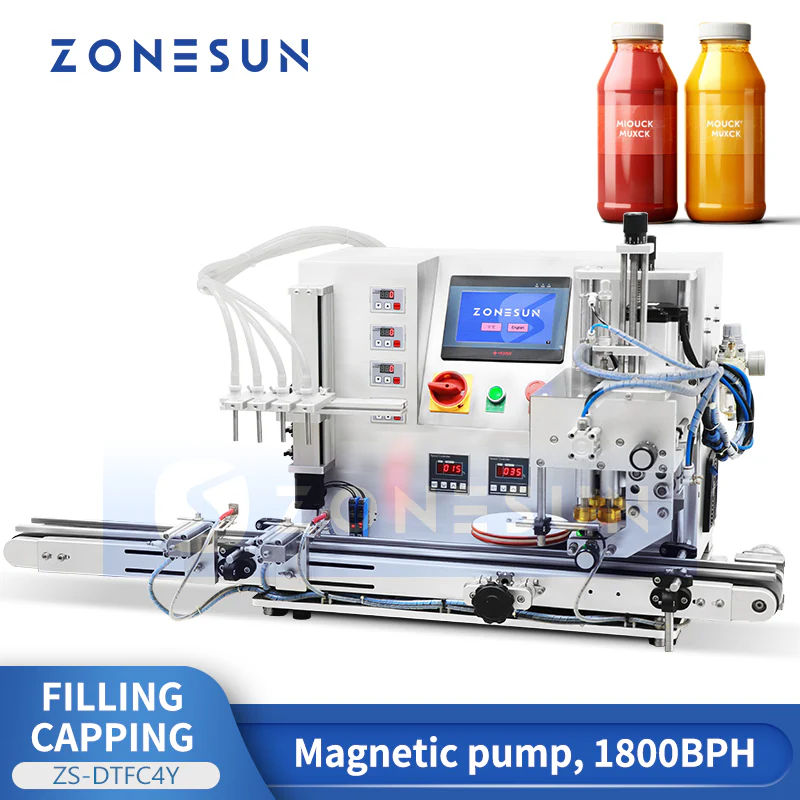

ZONESUN ZS-DTFC4Y Tabletop Liquid Filler & Capper for Cosmetics, Oils & Pharma Bottles

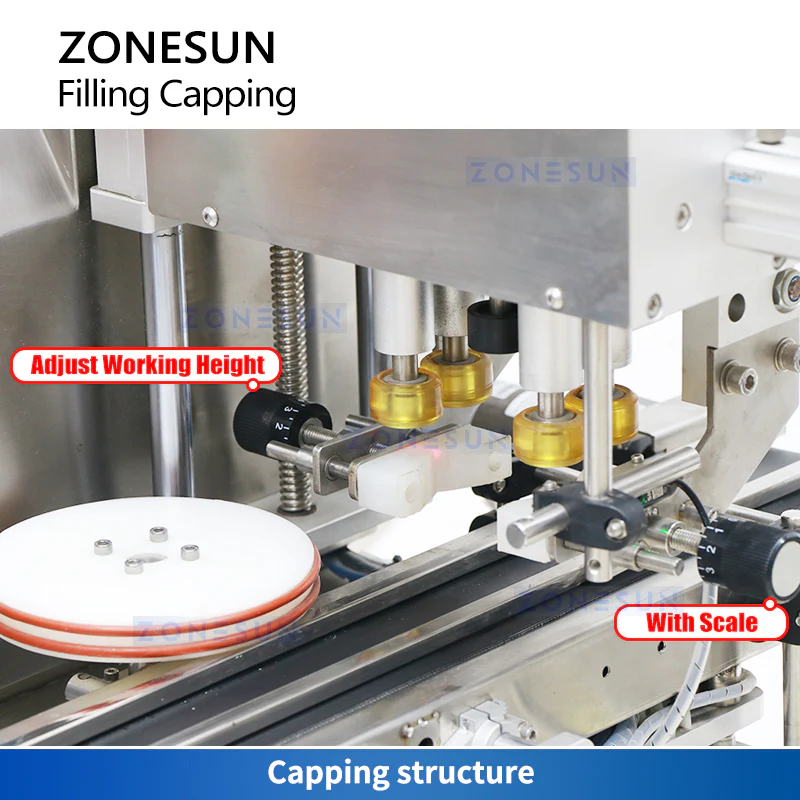

The ZONESUN ZS-DTFC4Y is a compact tabletop monoblock filling and capping machine designed for small-scale liquid bottling. It features a conveyor system that guides bottles through a four-head magnetic pump filling station, followed by a bottle separation roller for manual lid placement. The four-wheel capping system then automatically seals each bottle with precision. Ideal for cosmetics, pharmaceuticals, and essential oils, this machine offers reliable performance, high throughput, and easy integration into small production lines.
Parameter
- Model: ZS-DTFC4Y
- Machine voltage: 110/220V, 50–60Hz, 2kW
- Filling range: 10–100ml (customizable for <10ml)
- Air pressure: 0.6–0.8MPa
- Working capacity: 1500–1800 BPH (based on 100ml)
- Suitable bottle size: Φ = 30–70mm, H = 50–200mm
- Suitable cap size: Φ = 30–65mm
- Filling nozzle quantity: 4

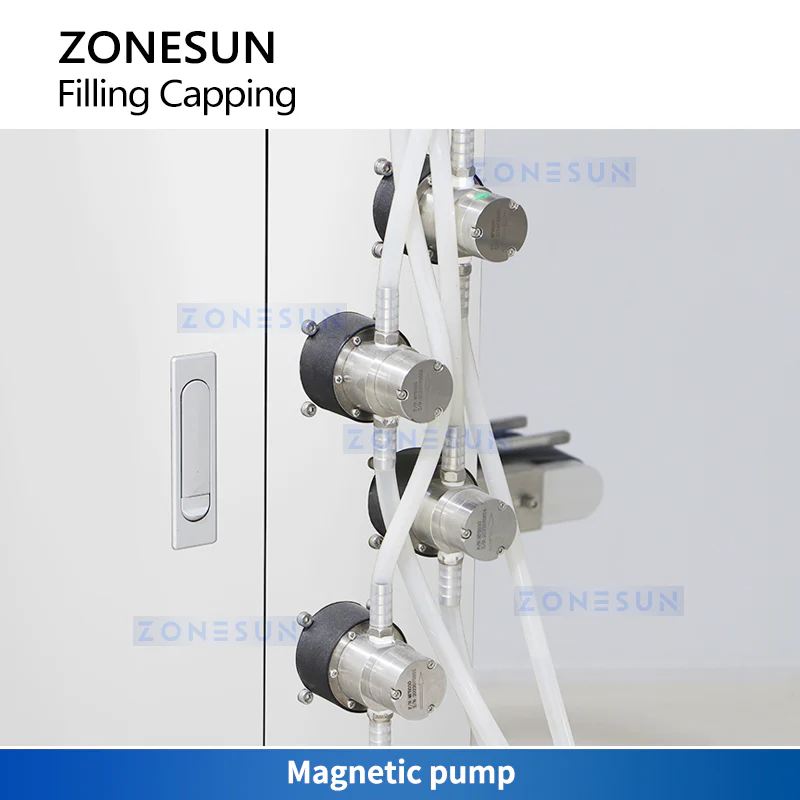

- Filling pump: Magnetic pump
- Machine size (L×W×H): About 1200×720×620mm
The ZONESUN ZS-DTFC4Y is a compact tabletop monoblock filling and capping machine designed for small-scale liquid bottling. It features a conveyor system that guides bottles through a four-head magnetic pump filling station, followed by a bottle separation roller for manual lid placement. The four-wheel capping system then automatically seals each bottle with precision. Ideal for cosmetics, pharmaceuticals, and essential oils, this machine offers reliable performance, high throughput, and easy integration into small production lines.
Parameter
- Model: ZS-DTFC4Y
- Machine voltage: 110/220V, 50–60Hz, 2kW
- Filling range: 10–100ml (customizable for <10ml)
- Air pressure: 0.6–0.8MPa
- Working capacity: 1500–1800 BPH (based on 100ml)
- Suitable bottle size: Φ = 30–70mm, H = 50–200mm
- Suitable cap size: Φ = 30–65mm
- Filling nozzle quantity: 4
- Filling pump: Magnetic pump
- Machine size (L×W×H): About 1200×720×620mm
Description
The ZONESUN ZS-DTFC4Y is a compact tabletop monoblock filling and capping machine designed for small-scale liquid bottling. It features a conveyor system that guides bottles through a four-head magnetic pump filling station, followed by a bottle separation roller for manual lid placement. The four-wheel capping system then automatically seals each bottle with precision. Ideal for cosmetics, pharmaceuticals, and essential oils, this machine offers reliable performance, high throughput, and easy integration into small production lines.
Parameter
- Model: ZS-DTFC4Y
- Machine voltage: 110/220V, 50–60Hz, 2kW
- Filling range: 10–100ml (customizable for <10ml)
- Air pressure: 0.6–0.8MPa
- Working capacity: 1500–1800 BPH (based on 100ml)
- Suitable bottle size: Φ = 30–70mm, H = 50–200mm
- Suitable cap size: Φ = 30–65mm
- Filling nozzle quantity: 4
- Filling pump: Magnetic pump
- Machine size (L×W×H): About 1200×720×620mm
