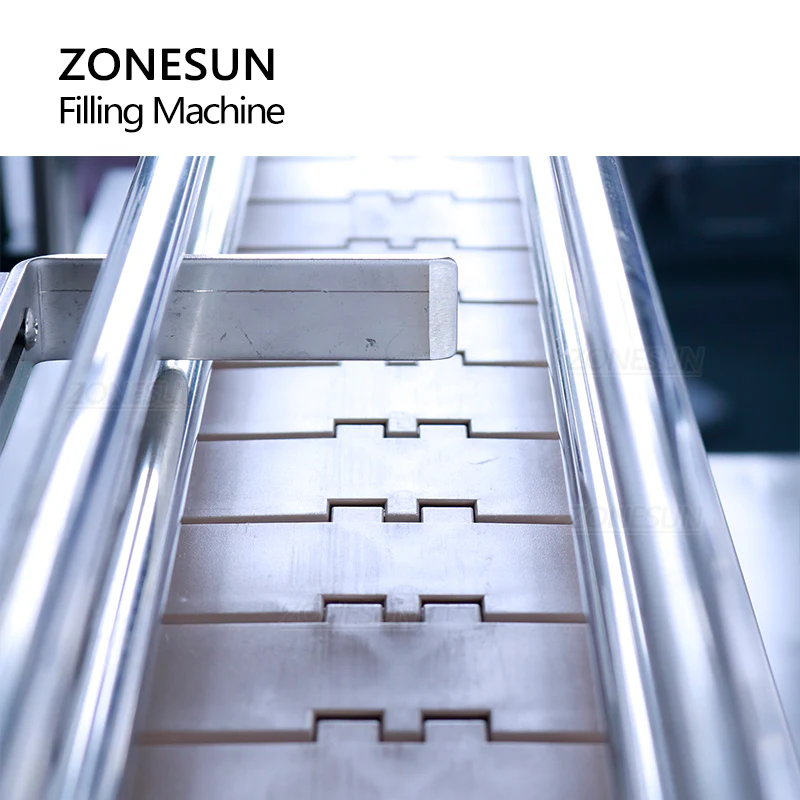

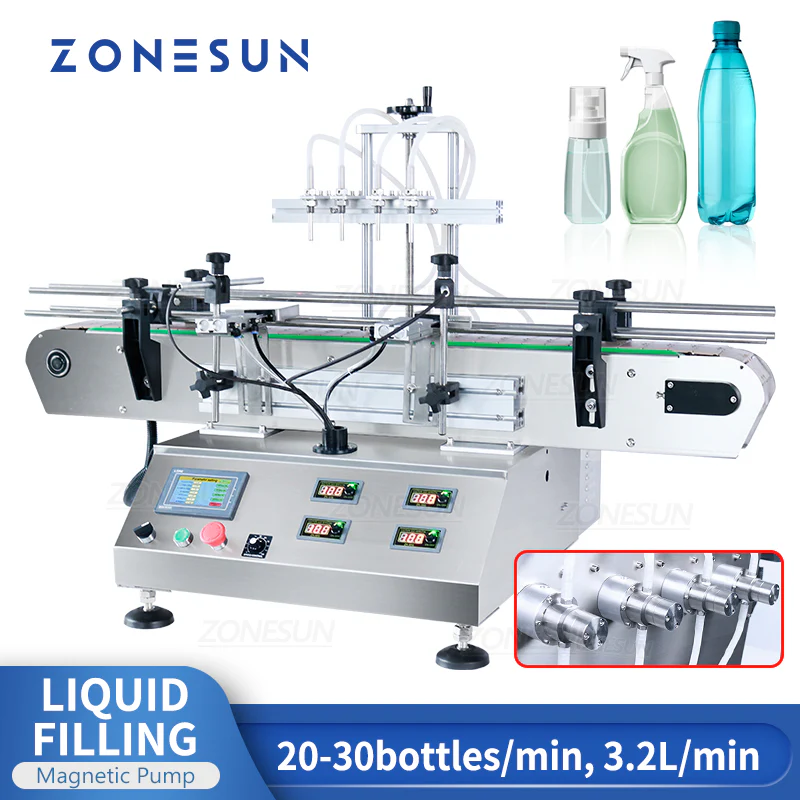

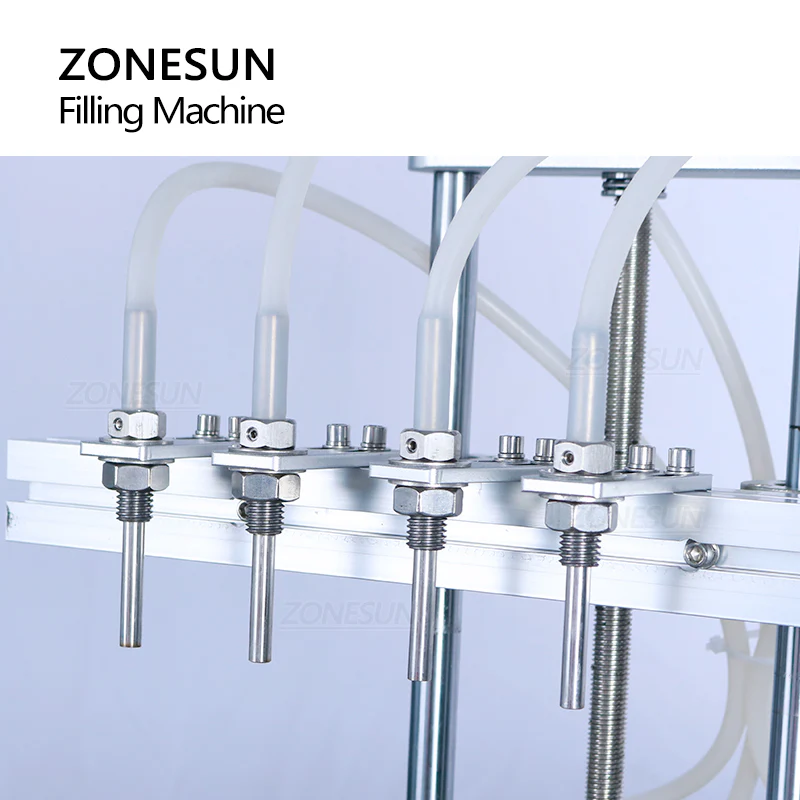

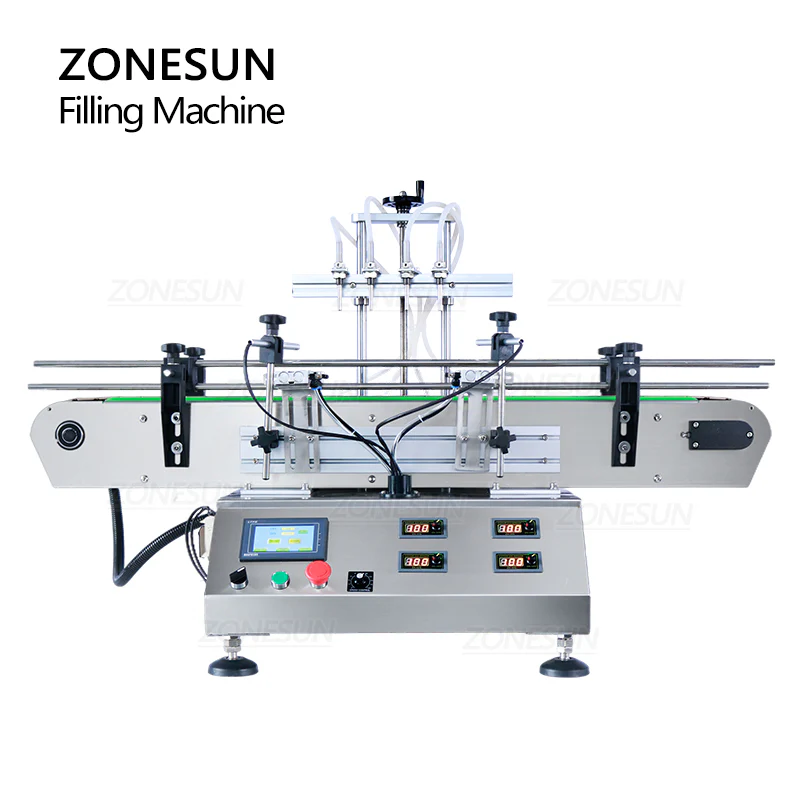

The ZONESUN ZS-DTMP4C is a high-performance desktop liquid filling machine equipped with four magnetic pump nozzles. Designed for precision and durability, it features corrosion-resistant 316L stainless steel pumps and a robust chain conveyor belt for smooth bottle transport. Each nozzle’s speed can be independently controlled via the PLC panel, while the electric eye ensures accurate bottle detection for intelligent filling. Ideal for low-viscosity liquids such as juice, essential oils, ink, and lotion, this machine integrates seamlessly into small-scale production lines and can be paired with capping and labeling machines. Widely used in cosmetics, pharmaceuticals, and beverage industries.

ZS-DTMP4C Technical Specification Table
Item Specification
Machine Model ZS-DTMP4C
Power Supply 220V/110V, 50–60Hz, 400W

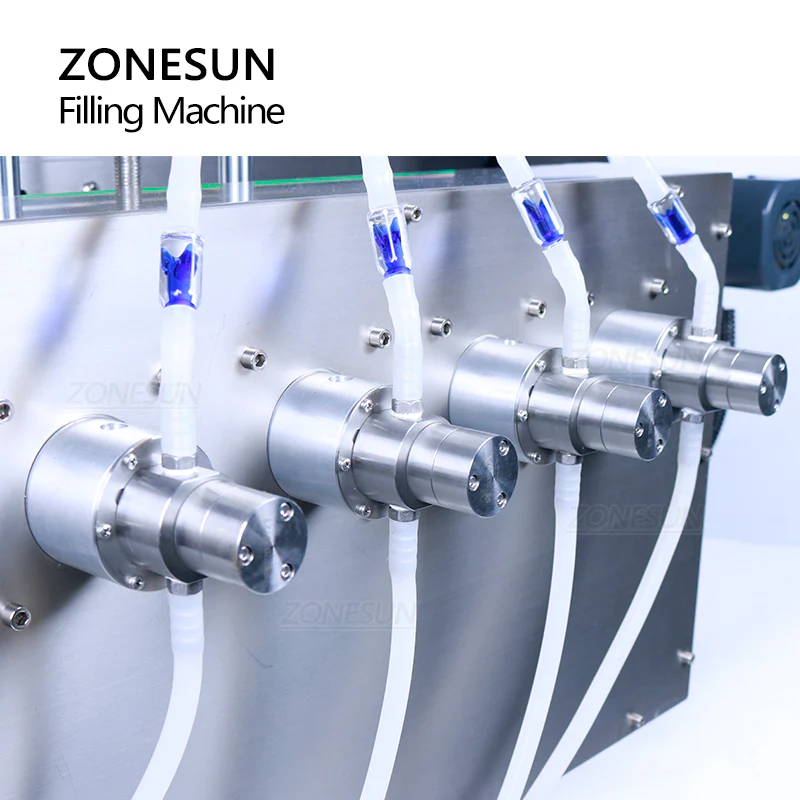

Pump Type 316L Stainless Steel Magnetic Pump
Recommended Filling Range 5–1000mL
Filling Speed 20–30 bottles/min (depends on material and bottle size)
Filling Flow 3200mL/min (per nozzle, based on water)
Suitable Bottle Height 10–200mm
Conveyor Size 1200mm × 100mm (L × W)
Filling Nozzle Diameter OD 6/8mm
Filling Time Range 0.01–999.9s
Filling Accuracy ±0.5%
Air Compressor Connector Size OD 8mm
Machine Dimensions 1200mm × 700mm × 850mm
Package Dimensions 1400mm × 900mm × 950mm
Net Weight 65kg
Gross Weight 100.5kg
