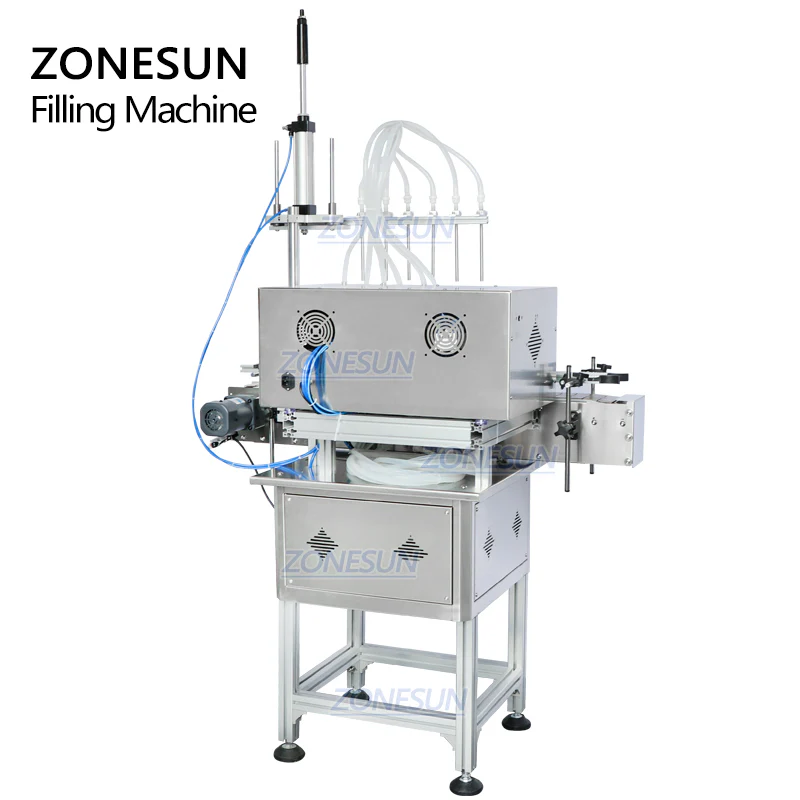

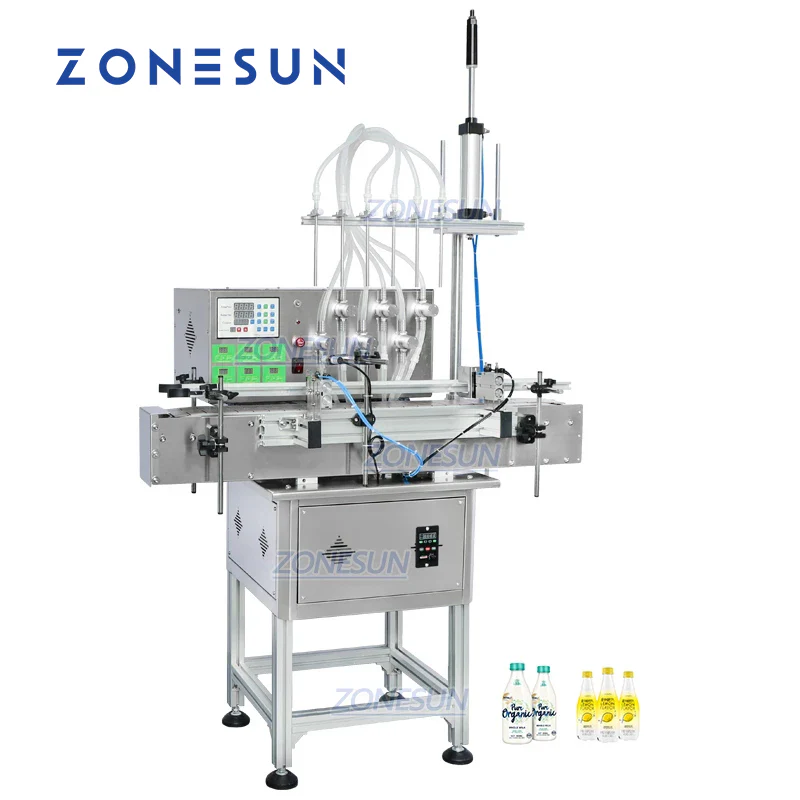

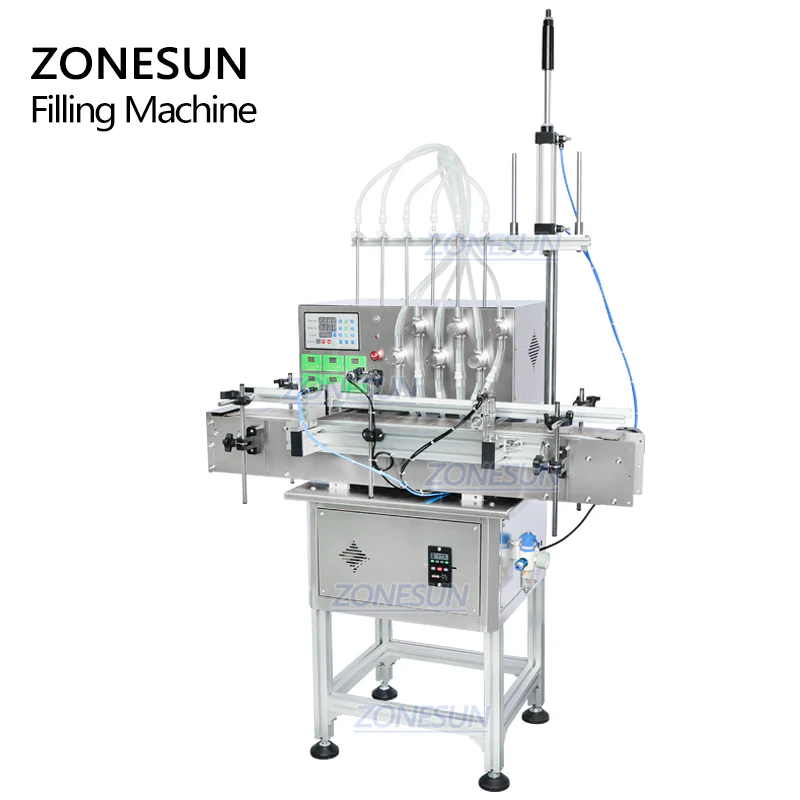

ZONESUN ZS-DTMP6M 6-Nozzle Magnetic Pump Liquid Filling Machine

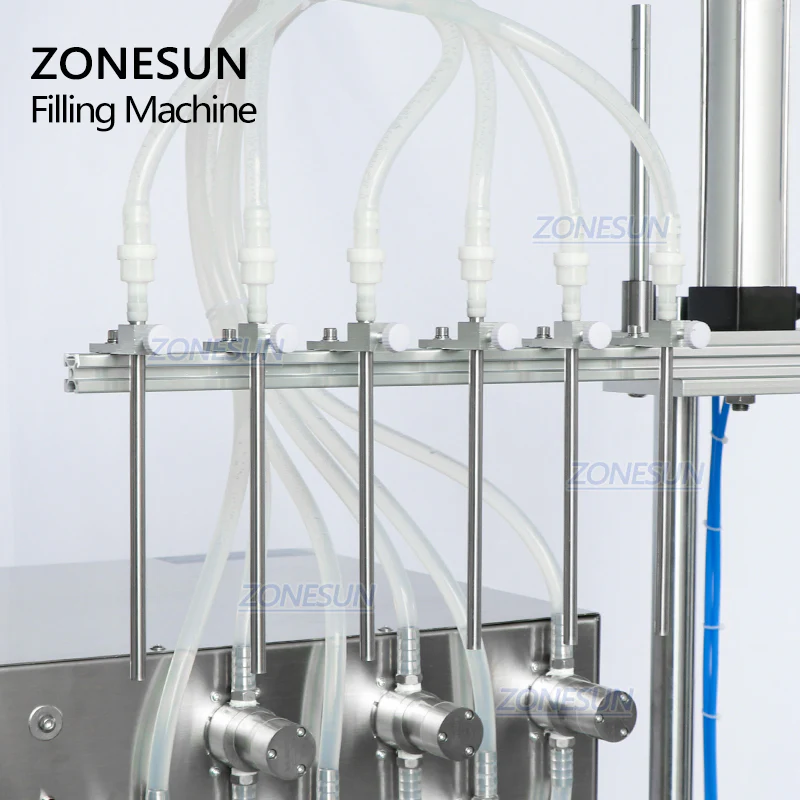

The ZONESUN ZS-DTMP6M is a high-speed magnetic pump filling machine equipped with six diving nozzles for precise, splash-free filling of low-viscosity liquids. Designed for automated production lines, it handles essential oils, soy sauce, juice, vinegar, and similar products with exceptional accuracy (≤±1%). Operating at up to 50 bottles per minute, it integrates seamlessly with capping and labeling machines. With programmable delay and count settings, adjustable filling volumes from 3–1000ml, and a durable bracket-mounted design, it's ideal for cosmetics, beverages, pharmaceuticals, and daily chemical industries.
Machine Parameters – ZS-DTMP6M
Item Specification
Machine Model ZS-DTMP6M
Power Supply 110V / 220V, 50–60Hz, 300W
Max Flow Velocity 7500ml/min (based on 250ml water)
Working Speed 40–50 bottles/min (based on 250ml water)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 6mm / 8mm

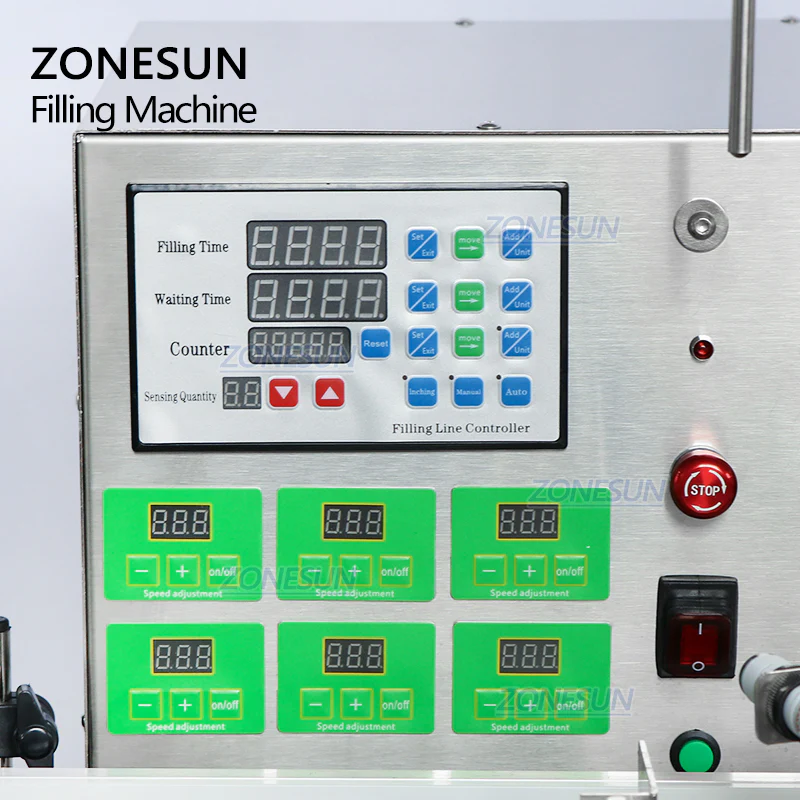

Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD8mm
Package Size Approx. 860 × 720 × 1330mm
Package Weight Approx. 118kg
The ZONESUN ZS-DTMP6M is a high-speed magnetic pump filling machine equipped with six diving nozzles for precise, splash-free filling of low-viscosity liquids. Designed for automated production lines, it handles essential oils, soy sauce, juice, vinegar, and similar products with exceptional accuracy (≤±1%). Operating at up to 50 bottles per minute, it integrates seamlessly with capping and labeling machines. With programmable delay and count settings, adjustable filling volumes from 3–1000ml, and a durable bracket-mounted design, it's ideal for cosmetics, beverages, pharmaceuticals, and daily chemical industries.
Machine Parameters – ZS-DTMP6M
Item Specification
Machine Model ZS-DTMP6M
Power Supply 110V / 220V, 50–60Hz, 300W
Max Flow Velocity 7500ml/min (based on 250ml water)
Working Speed 40–50 bottles/min (based on 250ml water)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD8mm
Package Size Approx. 860 × 720 × 1330mm
Package Weight Approx. 118kg
Description
The ZONESUN ZS-DTMP6M is a high-speed magnetic pump filling machine equipped with six diving nozzles for precise, splash-free filling of low-viscosity liquids. Designed for automated production lines, it handles essential oils, soy sauce, juice, vinegar, and similar products with exceptional accuracy (≤±1%). Operating at up to 50 bottles per minute, it integrates seamlessly with capping and labeling machines. With programmable delay and count settings, adjustable filling volumes from 3–1000ml, and a durable bracket-mounted design, it's ideal for cosmetics, beverages, pharmaceuticals, and daily chemical industries.
Machine Parameters – ZS-DTMP6M
Item Specification
Machine Model ZS-DTMP6M
Power Supply 110V / 220V, 50–60Hz, 300W
Max Flow Velocity 7500ml/min (based on 250ml water)
Working Speed 40–50 bottles/min (based on 250ml water)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD8mm
Package Size Approx. 860 × 720 × 1330mm
Package Weight Approx. 118kg
