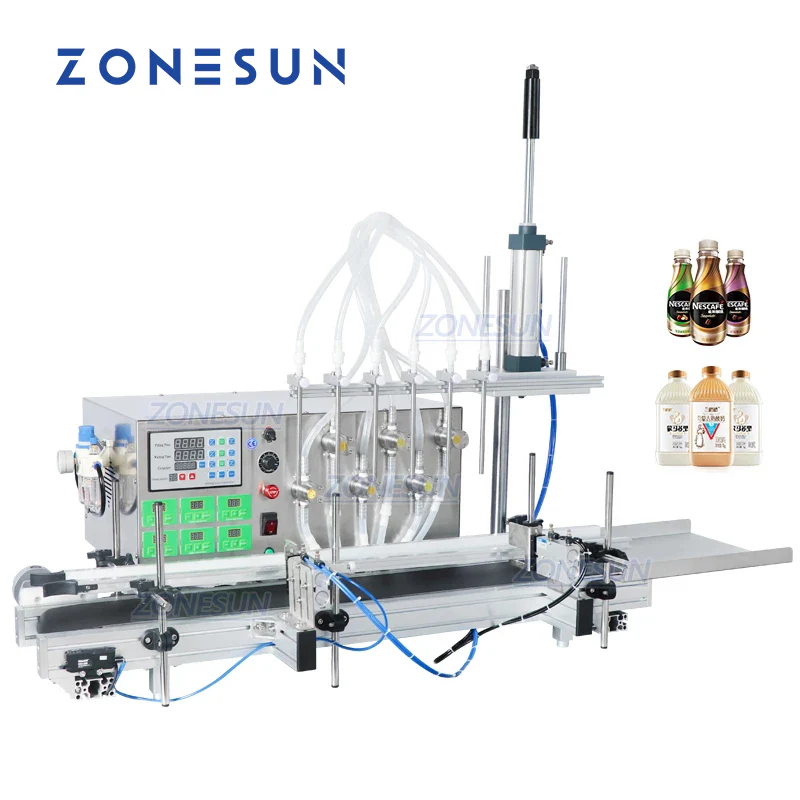

ZONESUN ZS-DTMP6 6-Nozzle Magnetic Pump Liquid Filling Machine
The ZONESUN ZS-DTMP6 is a precision desktop filling machine designed for low-viscosity and foamy liquids such as juice, perfume, and cooking oil. With six independently controlled diving nozzles and a magnetic pump system, it ensures accurate, efficient, and hygienic filling. Ideal for cosmetics, pharmaceuticals, and daily chemical production, this compact unit offers reliable automation for small to medium-scale bottling operations.
Parameter
|
Machine model |
ZS-DTMP6A |
ZS-DTMP6B |
|
Power supply |
110/220V 50-60HZ |
|
|
Maximum flow velocity |
5500ml/min (Each nozzle and base on water)
|
9000ml/min (Each nozzle and base on water）
|
|
Working speed |
30-40 bottles/min (based on 50-1000ml filing volume)
|
40-55 bottles/min (based on 50-1000ml filling volume)
|
|
Air pressure |
0.3-0.4MPa |
|
|
Filling accuracy |
≤±1% (For water) |
|
|
Diameter of Filling Nozzle |
6/8mm |
|
|
Delay Range |
0.01-999.9s |
|
|
Count Range |
1-99999 Times |
|
|
Filling Volume |
3-1000ml(220V)3- 500ml(110V) |
|
|
Size of air compressor connector |
OD8mm |
|
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
|
Package Size |
About 1120*740*460mm |
|
|
Gross weight |
About 68kg |
About 70kg |
The ZONESUN ZS-DTMP6 is a precision desktop filling machine designed for low-viscosity and foamy liquids such as juice, perfume, and cooking oil. With six independently controlled diving nozzles and a magnetic pump system, it ensures accurate, efficient, and hygienic filling. Ideal for cosmetics, pharmaceuticals, and daily chemical production, this compact unit offers reliable automation for small to medium-scale bottling operations.
Parameter
|
Machine model |
ZS-DTMP6A |
ZS-DTMP6B |
|
Power supply |
110/220V 50-60HZ |
|
|
Maximum flow velocity |
5500ml/min (Each nozzle and base on water)
|
9000ml/min (Each nozzle and base on water）
|
|
Working speed |
30-40 bottles/min (based on 50-1000ml filing volume)
|
40-55 bottles/min (based on 50-1000ml filling volume)
|
|
Air pressure |
0.3-0.4MPa |
|
|
Filling accuracy |
≤±1% (For water) |
|
|
Diameter of Filling Nozzle |
6/8mm |
|
|
Delay Range |
0.01-999.9s |
|
|
Count Range |
1-99999 Times |
|
|
Filling Volume |
3-1000ml(220V)3- 500ml(110V) |
|
|
Size of air compressor connector |
OD8mm |
|
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
|
Package Size |
About 1120*740*460mm |
|
|
Gross weight |
About 68kg |
About 70kg |
Description
The ZONESUN ZS-DTMP6 is a precision desktop filling machine designed for low-viscosity and foamy liquids such as juice, perfume, and cooking oil. With six independently controlled diving nozzles and a magnetic pump system, it ensures accurate, efficient, and hygienic filling. Ideal for cosmetics, pharmaceuticals, and daily chemical production, this compact unit offers reliable automation for small to medium-scale bottling operations.
Parameter
|
Machine model |
ZS-DTMP6A |
ZS-DTMP6B |
|
Power supply |
110/220V 50-60HZ |
|
|
Maximum flow velocity |
5500ml/min (Each nozzle and base on water)
|
9000ml/min (Each nozzle and base on water）
|
|
Working speed |
30-40 bottles/min (based on 50-1000ml filing volume)
|
40-55 bottles/min (based on 50-1000ml filling volume)
|
|
Air pressure |
0.3-0.4MPa |
|
|
Filling accuracy |
≤±1% (For water) |
|
|
Diameter of Filling Nozzle |
6/8mm |
|
|
Delay Range |
0.01-999.9s |
|
|
Count Range |
1-99999 Times |
|
|
Filling Volume |
3-1000ml(220V)3- 500ml(110V) |
|
|
Size of air compressor connector |
OD8mm |
|
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
|
Package Size |
About 1120*740*460mm |
|
|
Gross weight |
About 68kg |
About 70kg |
