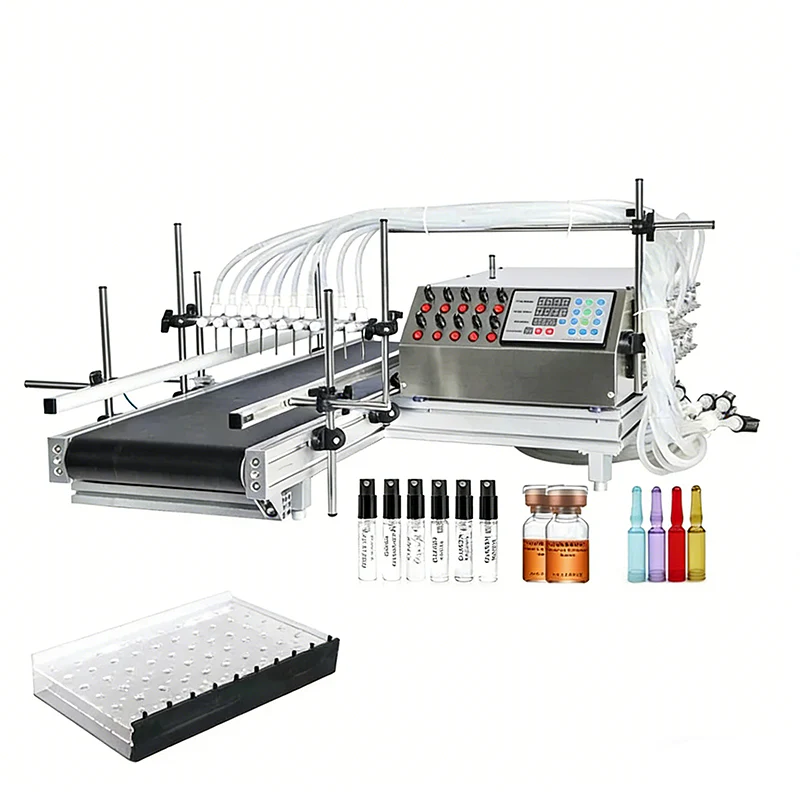

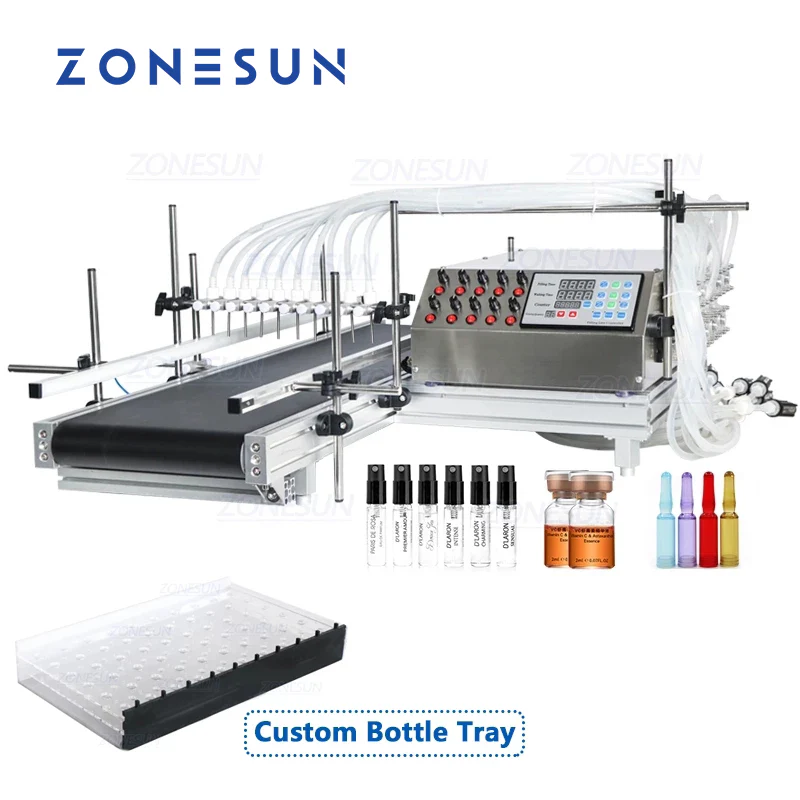

ZONESUN ZS-DTPP10B 10-Head Peristaltic Pump Liquid Filling Machine

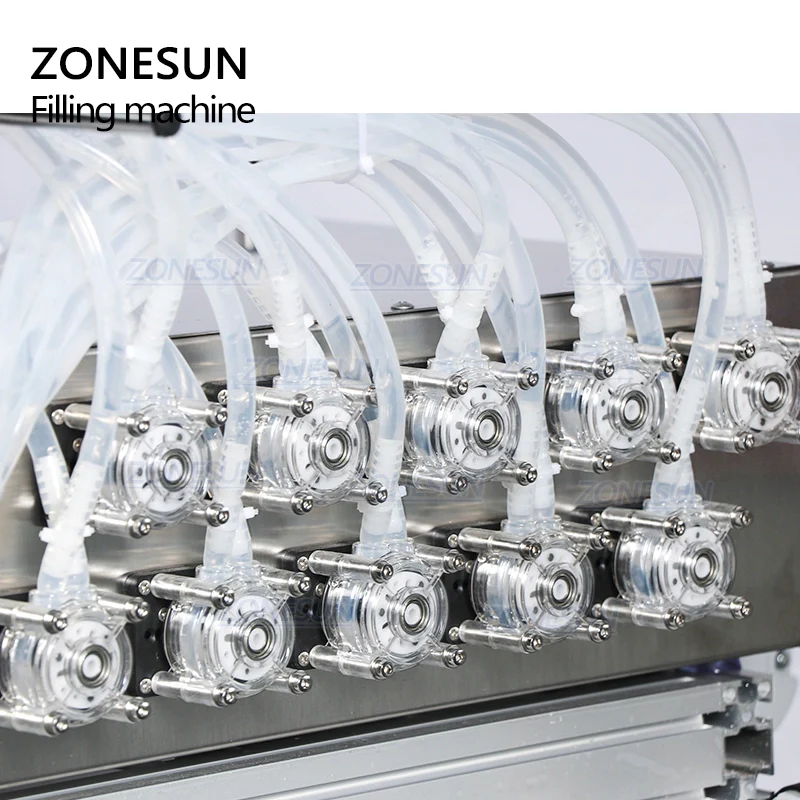

The ZONESUN ZS-DTPP10B is a compact desktop liquid filling machine equipped with 10 independently controlled peristaltic pump nozzles. Designed for high-speed, hygienic filling of small-volume liquids such as eye drops, essential oils, and perfumes, it ensures the liquid never contacts the pump interior—preserving purity and preventing contamination. With adjustable filling ranges (5–50ml default or optional 0.3–5ml), it’s ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries. The system includes a conveyor for streamlined operation and can be customized to meet specific production needs.
Product Specifications: ZS-DTPP10B Liquid Filling Machine
Parameter Specification
Machine Model ZS-DTPP10B
Power Supply AC110V / 220V, 50Hz–60Hz, 60W × 4
Filling Range A: 5–50ml (default)<br>B: 0.3–5ml
Max Flow Rate 650ml/min per nozzle (based on water)
Filling Nozzles 10 (customizable based on user requirements)
Working Speed 70–90 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080mm (L) × 350mm (W)
Machine Size Approx. 380 × 490 × 390mm (without conveyor)
Net Weight Approx. 38kg
The ZONESUN ZS-DTPP10B is a compact desktop liquid filling machine equipped with 10 independently controlled peristaltic pump nozzles. Designed for high-speed, hygienic filling of small-volume liquids such as eye drops, essential oils, and perfumes, it ensures the liquid never contacts the pump interior—preserving purity and preventing contamination. With adjustable filling ranges (5–50ml default or optional 0.3–5ml), it’s ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries. The system includes a conveyor for streamlined operation and can be customized to meet specific production needs.
Product Specifications: ZS-DTPP10B Liquid Filling Machine
Parameter Specification
Machine Model ZS-DTPP10B
Power Supply AC110V / 220V, 50Hz–60Hz, 60W × 4
Filling Range A: 5–50ml (default)<br>B: 0.3–5ml
Max Flow Rate 650ml/min per nozzle (based on water)
Filling Nozzles 10 (customizable based on user requirements)
Working Speed 70–90 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080mm (L) × 350mm (W)
Machine Size Approx. 380 × 490 × 390mm (without conveyor)
Net Weight Approx. 38kg
