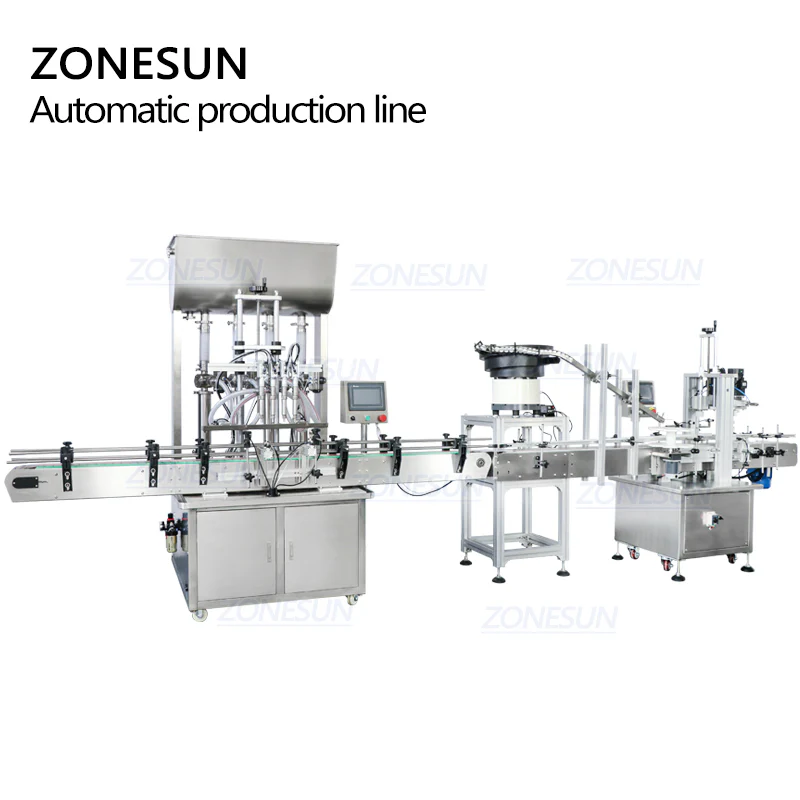

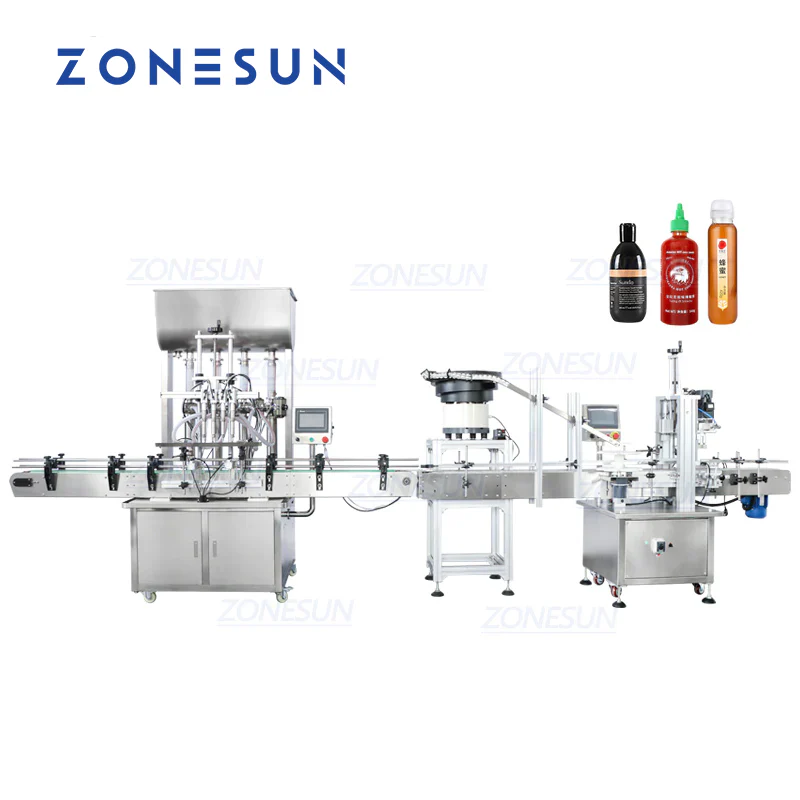

ZONESUN ZS-FAL180A7 Paste Liquid Filling Capping Line with Cap Feeder

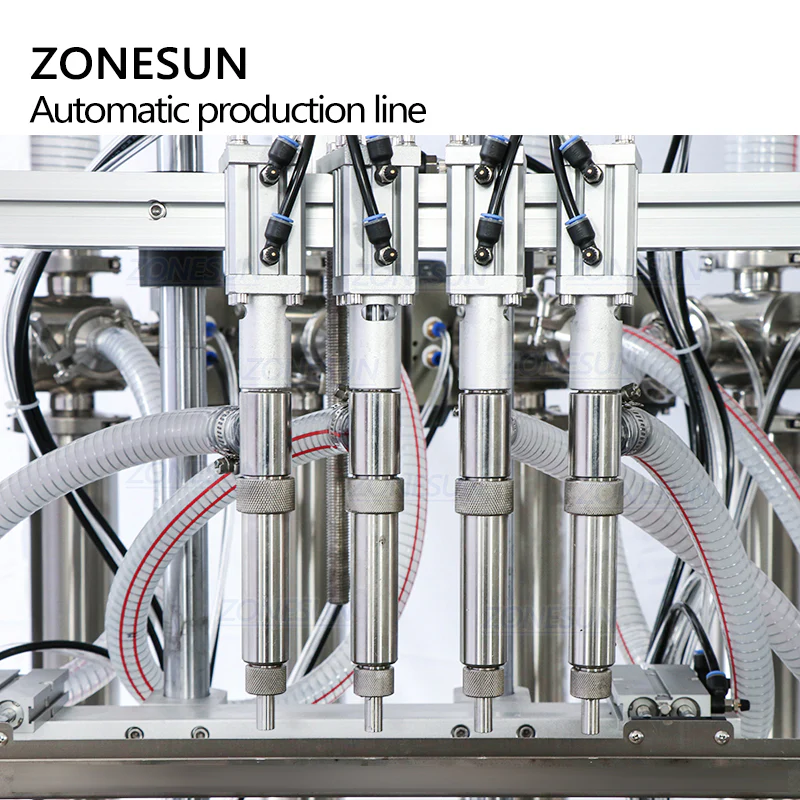

The ZONESUN ZS-FAL180A7 is a high-efficiency automatic production line designed for filling and capping viscous liquids such as honey, cream, shampoo, and gel. Equipped with pneumatic filling heads and a PLC control panel, it allows precise adjustment of parameters for smooth operation. The vibratory cap feeder organizes and delivers caps automatically, while the intelligent electric eye ensures accurate bottle detection and synchronized workflow. Its robust chain conveyor supports large-volume containers, and the system can be expanded with a labeling machine for fully automated, labor-free production. Ideal for cosmetic, pharmaceutical, beverage, and daily chemical industries.
ZS-YT4T-4P Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-YT4T-4P
Voltage 110V/220V, 50–60Hz, 800W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 300–2500ml / 1000–5000ml
Working Speed Approx. 30–70 bottles/min (based on water)
Filling Accuracy ≤±1%
Filling Nozzle Size φ10mm
Air Compressor Connector Size φ10mm
Conveyor Size Approx. 2500mm × 100mm (L × W)
Machine Dimensions Approx. 2500mm × 980mm × 1970mm
Package Dimensions Approx. 1393mm × 1216mm × 2130mm
Net/Gross Weight Approx. 291kg / 335kg
ZS-XG16V Automatic Capping Machine – Technical Specification
Item Specification
Machine Model ZS-XG16V
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Working Voltage AC 220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 1930mm × 740mm × 1600mm
Package Dimensions Approx. 2000mm × 820mm × 1760mm
Machine Weight Approx. 150kg
The ZONESUN ZS-FAL180A7 is a high-efficiency automatic production line designed for filling and capping viscous liquids such as honey, cream, shampoo, and gel. Equipped with pneumatic filling heads and a PLC control panel, it allows precise adjustment of parameters for smooth operation. The vibratory cap feeder organizes and delivers caps automatically, while the intelligent electric eye ensures accurate bottle detection and synchronized workflow. Its robust chain conveyor supports large-volume containers, and the system can be expanded with a labeling machine for fully automated, labor-free production. Ideal for cosmetic, pharmaceutical, beverage, and daily chemical industries.
ZS-YT4T-4P Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-YT4T-4P
Voltage 110V/220V, 50–60Hz, 800W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 300–2500ml / 1000–5000ml
Working Speed Approx. 30–70 bottles/min (based on water)
Filling Accuracy ≤±1%
Filling Nozzle Size φ10mm
Air Compressor Connector Size φ10mm
Conveyor Size Approx. 2500mm × 100mm (L × W)
Machine Dimensions Approx. 2500mm × 980mm × 1970mm
Package Dimensions Approx. 1393mm × 1216mm × 2130mm
Net/Gross Weight Approx. 291kg / 335kg
ZS-XG16V Automatic Capping Machine – Technical Specification
Item Specification
Machine Model ZS-XG16V
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Working Voltage AC 220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 1930mm × 740mm × 1600mm
Package Dimensions Approx. 2000mm × 820mm × 1760mm
Machine Weight Approx. 150kg
Original: $10,867.49
-70%$10,867.49
$3,260.25Description
The ZONESUN ZS-FAL180A7 is a high-efficiency automatic production line designed for filling and capping viscous liquids such as honey, cream, shampoo, and gel. Equipped with pneumatic filling heads and a PLC control panel, it allows precise adjustment of parameters for smooth operation. The vibratory cap feeder organizes and delivers caps automatically, while the intelligent electric eye ensures accurate bottle detection and synchronized workflow. Its robust chain conveyor supports large-volume containers, and the system can be expanded with a labeling machine for fully automated, labor-free production. Ideal for cosmetic, pharmaceutical, beverage, and daily chemical industries.
ZS-YT4T-4P Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-YT4T-4P
Voltage 110V/220V, 50–60Hz, 800W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 300–2500ml / 1000–5000ml
Working Speed Approx. 30–70 bottles/min (based on water)
Filling Accuracy ≤±1%
Filling Nozzle Size φ10mm
Air Compressor Connector Size φ10mm
Conveyor Size Approx. 2500mm × 100mm (L × W)
Machine Dimensions Approx. 2500mm × 980mm × 1970mm
Package Dimensions Approx. 1393mm × 1216mm × 2130mm
Net/Gross Weight Approx. 291kg / 335kg
ZS-XG16V Automatic Capping Machine – Technical Specification
Item Specification
Machine Model ZS-XG16V
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Working Voltage AC 220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 1930mm × 740mm × 1600mm
Package Dimensions Approx. 2000mm × 820mm × 1760mm
Machine Weight Approx. 150kg
