DESCRIPTION

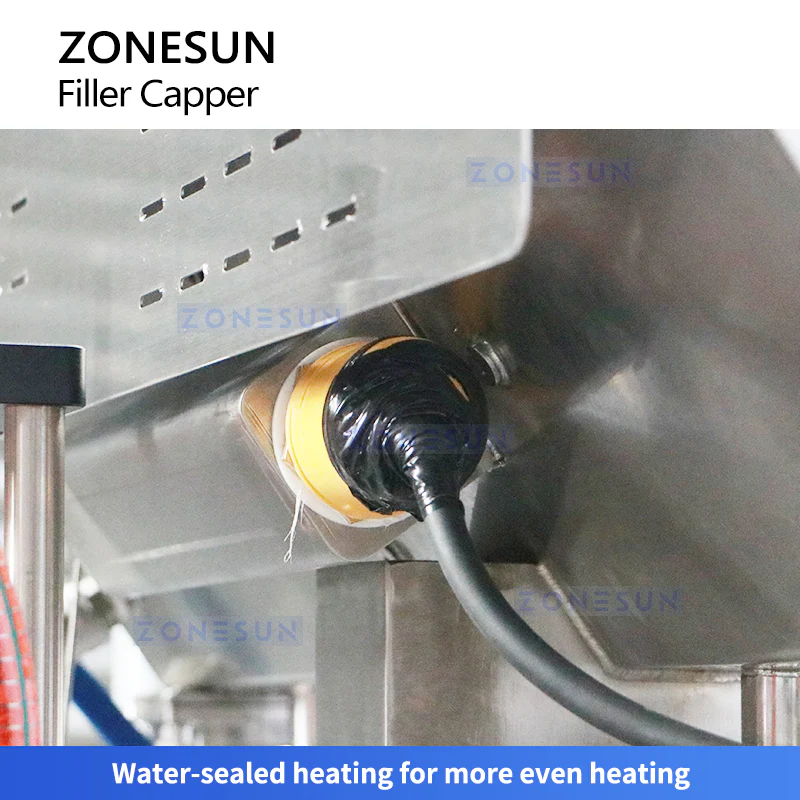

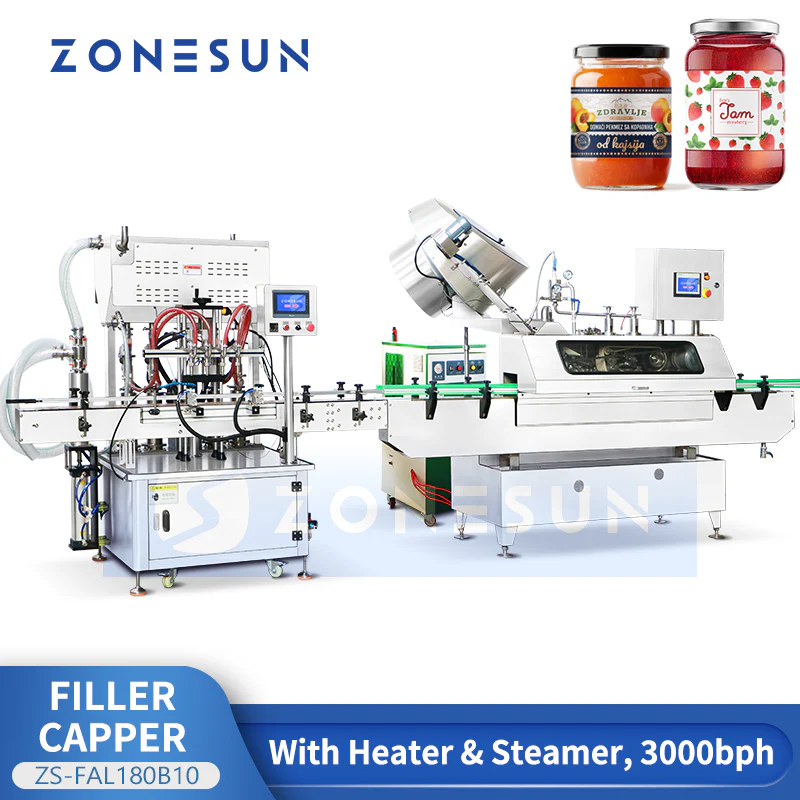

This dynamic duo combines a 4-head piston pump filling machine with a steam vacuum sealing machine, streamlining your packaging process. The filling machine features a heated material hopper, ensuring optimal viscosity for smooth dispensing. An integrated material pump automatically replenishes the hopper, preventing interruptions. The 4-head design allows for efficient filling of multiple containers simultaneously. The sealing machine utilizes a steam generator and negative pressure to create a secure, airtight seal on your bottles. This rapid and reliable system is ideal for packaging viscous liquids.

Parameter - ZS-YT4T-4PH

• Model: ZS-YT4T-4PH
• Voltage: 110/220V 50-60Hz 1KW
• Filling range: 10-180ml / 30-500ml / 100-1000ml
• Working speed: About 30-50 bottle/min
• Filling pump: Piston pump
• Air pressure: 0.6-0.8MPa
• Suitable temperature range: 30≤T≤90°C
• Filling accuracy: ±1%

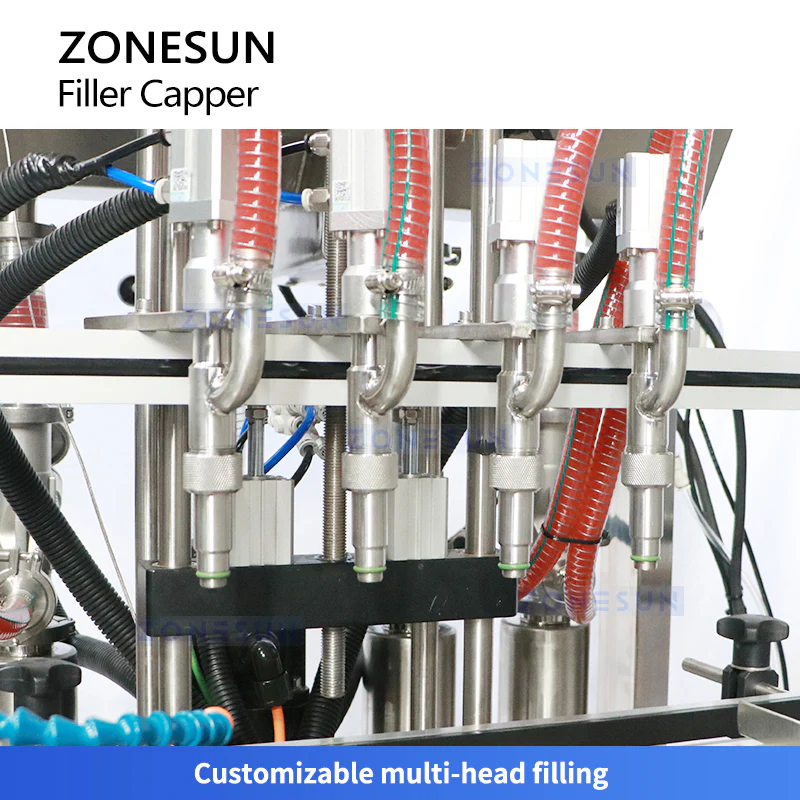

• Filling nozzle: 4 (can be customized)
• Machine size: About 2000×800×1800mm
• Machine weight: About 200kg
• Packaging size: About 2070×960×2010mm (100-1000ml)
• Packaging weight: About 392kg (100-1000ml)

Parameter - ZS-XG01

• Model: ZS-XG01
• Power supply: 220V/380V, 3.12KW
• Working capacity: 80-150 bottles/min
• Suitable cap diameter: 30-85mm (Customizable)
• Suitable bottle diameter: 30-85mm (Customizable)
• Suitable bottle height: 65-260mm (Customizable)
• Steam consumption: 182-227kg/h
• Steam pressure: ≤0.4MPa
• Vacuum degree: 34-67KPa

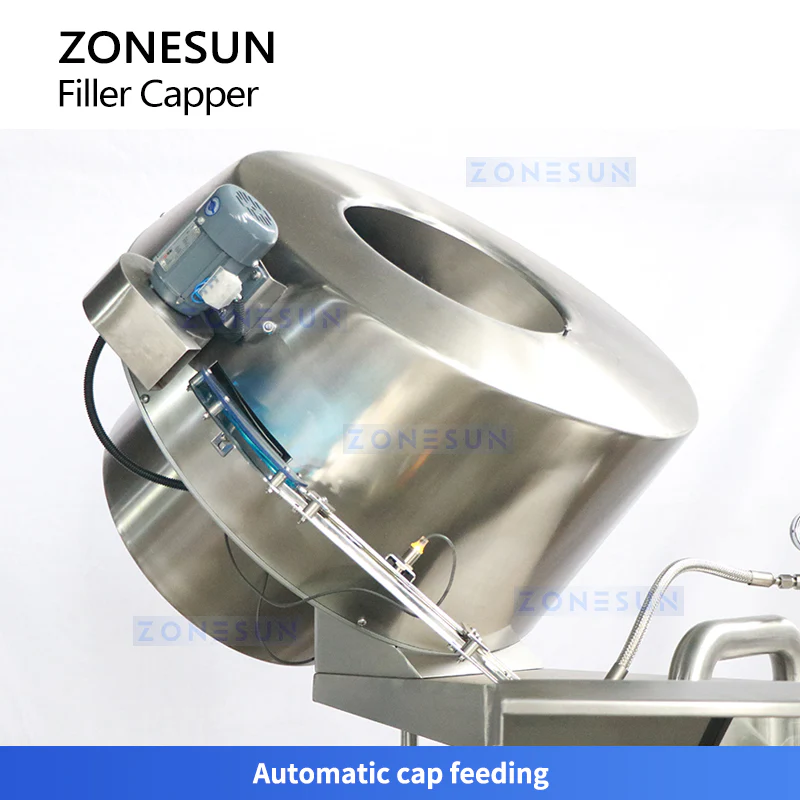

• Cap feeder payload: 1000-2000pcs
• Machine size: About 3250×1050×2010mm
• Machine weight: About 500kg
