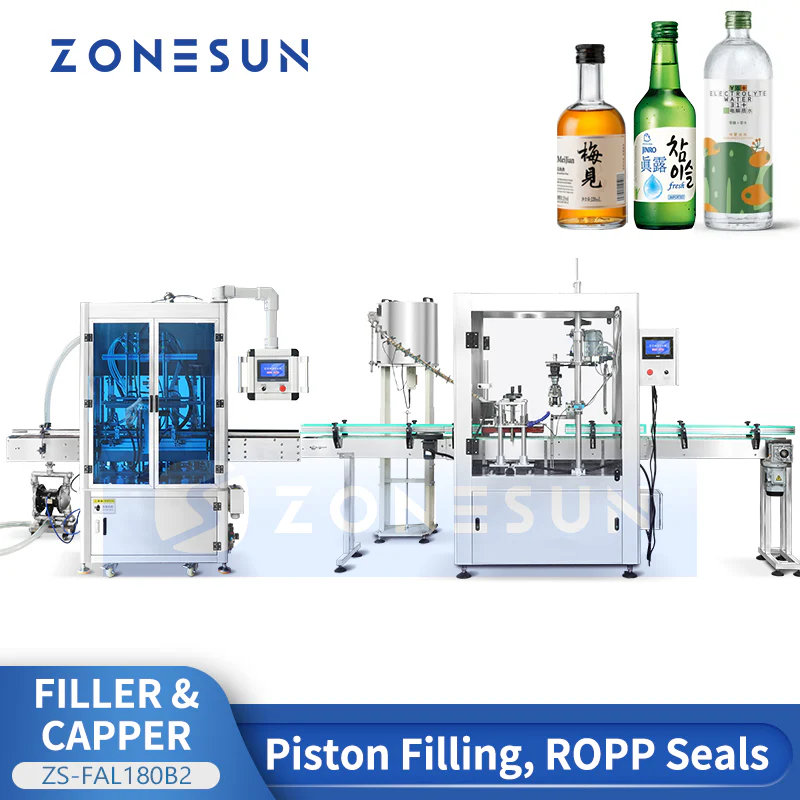

ZONESUN ZS-FAL180B2 Piston Filling and ROPP Capping Line 1000ml
The ZS-FAL180B2 combines piston filling and ROPP capping into one streamlined solution for liquid packaging. Designed for precision and speed, this production line ensures consistent fill volumes and secure seals across a wide range of bottle sizes. Ideal for food, cosmetic, and pharmaceutical industries, it boosts efficiency while maintaining packaging integrity.

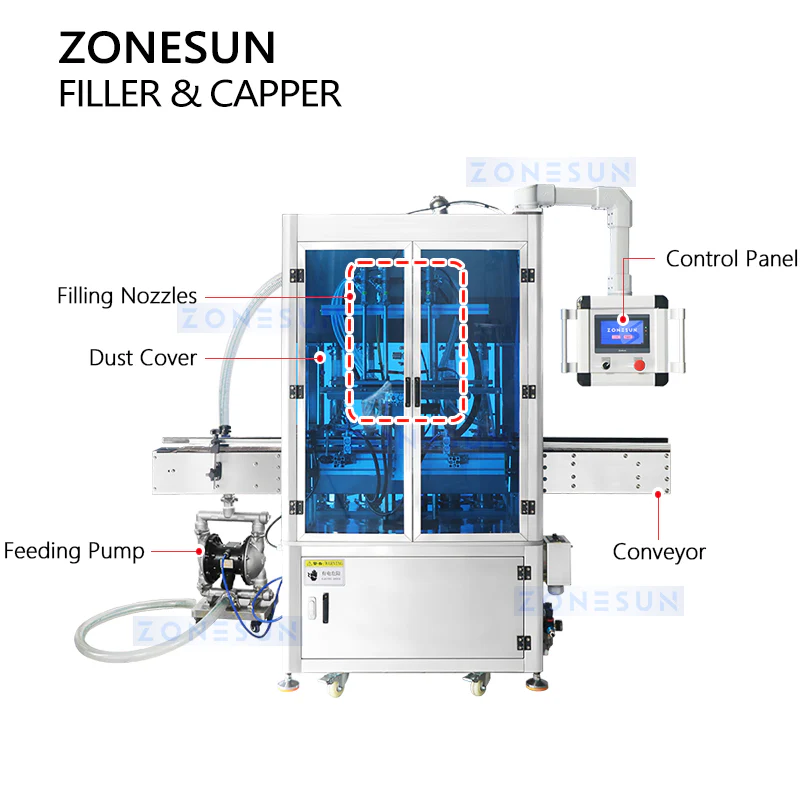

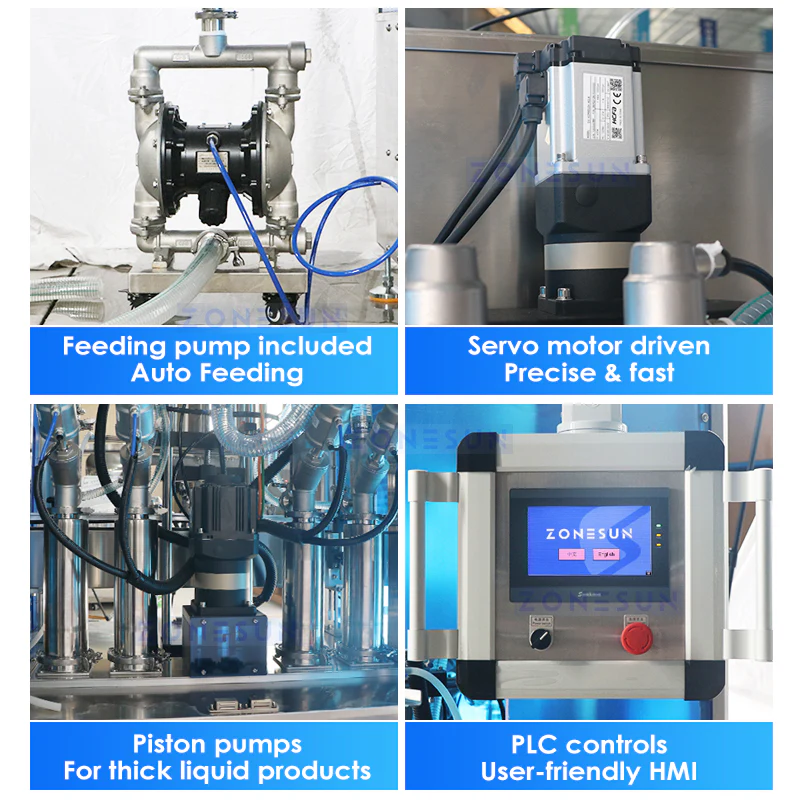

ZS-YT4T-4PXD Liquid Filling Machine Specifications
Parameter Specification
Model ZS-YT4T-4PXD
Voltage 110/220V, 50–60Hz, 1KW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed Approx. 30–100 bottles/min
Air Pressure 0.6–0.8 MPa
Filling Accuracy ±1%
Filling Nozzles 4 (customizable)
Machine Dimensions Approx. 2550 × 1000 × 1950 mm
Package Dimensions Approx. 1720 × 960 × 2090 mm
Package Weight Approx. 441 kg

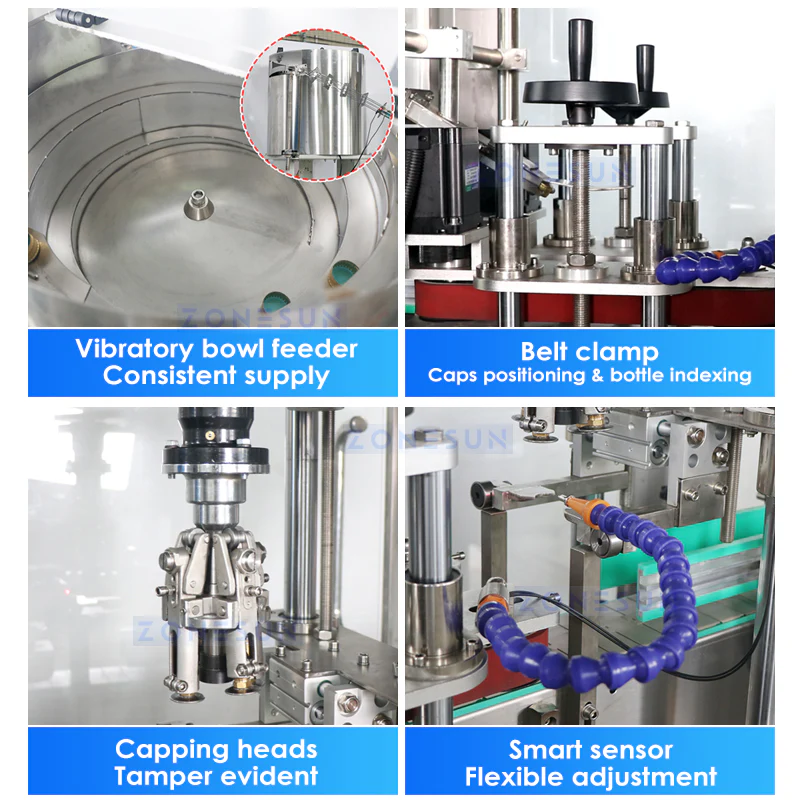

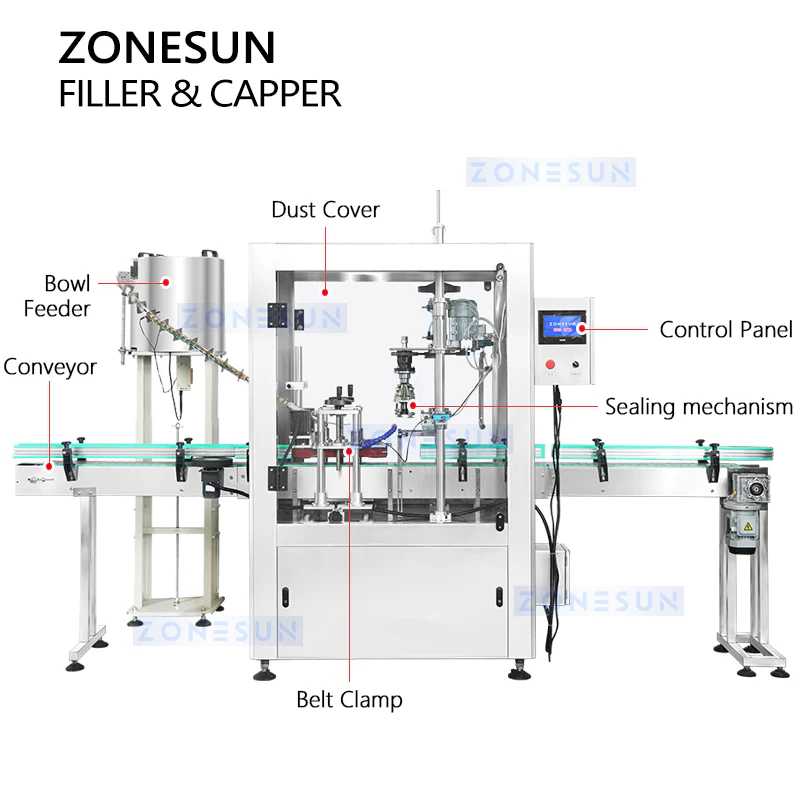

ZS-XG440Z Automatic Capping Machine Specifications
Parameter Specification
Model ZS-XG440Z
Voltage 110/220V, 50–60Hz, 1KW
Capacity 1000 bottles/hour
Suitable Cap Size Φ25–38 mm
Suitable Bottle Height Approx. 150–320 mm
Machine Dimensions Approx. 3550 × 1700 × 2250 mm
Package Dimensions Main Machine: Approx. 1720 × 1600 × 2380 mm
Vibratory Bowl: Approx. 550 × 640 × 1780 mm
Package Weight Main Machine: Approx. 640 kg
Vibratory Bowl: Approx. 123 kg
The ZS-FAL180B2 combines piston filling and ROPP capping into one streamlined solution for liquid packaging. Designed for precision and speed, this production line ensures consistent fill volumes and secure seals across a wide range of bottle sizes. Ideal for food, cosmetic, and pharmaceutical industries, it boosts efficiency while maintaining packaging integrity.
ZS-YT4T-4PXD Liquid Filling Machine Specifications
Parameter Specification
Model ZS-YT4T-4PXD
Voltage 110/220V, 50–60Hz, 1KW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed Approx. 30–100 bottles/min
Air Pressure 0.6–0.8 MPa
Filling Accuracy ±1%
Filling Nozzles 4 (customizable)
Machine Dimensions Approx. 2550 × 1000 × 1950 mm
Package Dimensions Approx. 1720 × 960 × 2090 mm
Package Weight Approx. 441 kg
ZS-XG440Z Automatic Capping Machine Specifications
Parameter Specification
Model ZS-XG440Z
Voltage 110/220V, 50–60Hz, 1KW
Capacity 1000 bottles/hour
Suitable Cap Size Φ25–38 mm
Suitable Bottle Height Approx. 150–320 mm
Machine Dimensions Approx. 3550 × 1700 × 2250 mm
Package Dimensions Main Machine: Approx. 1720 × 1600 × 2380 mm
Vibratory Bowl: Approx. 550 × 640 × 1780 mm
Package Weight Main Machine: Approx. 640 kg
Vibratory Bowl: Approx. 123 kg
Original: $15,199.00
-70%$15,199.00
$4,559.70Description
The ZS-FAL180B2 combines piston filling and ROPP capping into one streamlined solution for liquid packaging. Designed for precision and speed, this production line ensures consistent fill volumes and secure seals across a wide range of bottle sizes. Ideal for food, cosmetic, and pharmaceutical industries, it boosts efficiency while maintaining packaging integrity.
ZS-YT4T-4PXD Liquid Filling Machine Specifications
Parameter Specification
Model ZS-YT4T-4PXD
Voltage 110/220V, 50–60Hz, 1KW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed Approx. 30–100 bottles/min
Air Pressure 0.6–0.8 MPa
Filling Accuracy ±1%
Filling Nozzles 4 (customizable)
Machine Dimensions Approx. 2550 × 1000 × 1950 mm
Package Dimensions Approx. 1720 × 960 × 2090 mm
Package Weight Approx. 441 kg
ZS-XG440Z Automatic Capping Machine Specifications
Parameter Specification
Model ZS-XG440Z
Voltage 110/220V, 50–60Hz, 1KW
Capacity 1000 bottles/hour
Suitable Cap Size Φ25–38 mm
Suitable Bottle Height Approx. 150–320 mm
Machine Dimensions Approx. 3550 × 1700 × 2250 mm
Package Dimensions Main Machine: Approx. 1720 × 1600 × 2380 mm
Vibratory Bowl: Approx. 550 × 640 × 1780 mm
Package Weight Main Machine: Approx. 640 kg
Vibratory Bowl: Approx. 123 kg
