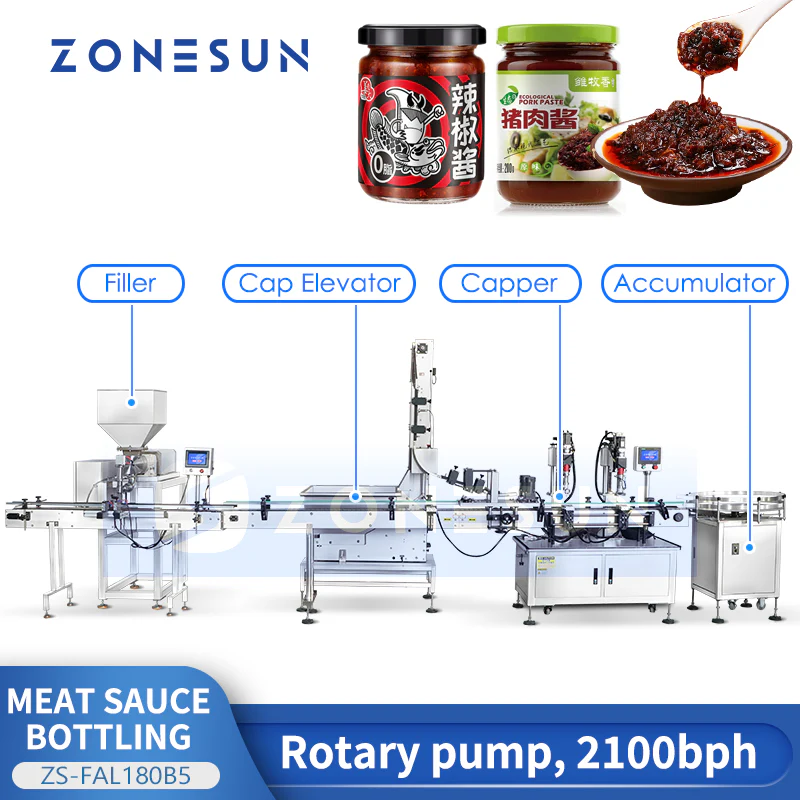

ZONESUN ZS-FAL180B5 Automatic Meat Sauce Paste Filling Capping Production Line
The ZS-FAL180B5 is a fully automated bottling line engineered for thick sauces and pastes such as meat sauce. It integrates filling, capping, and bottle feeding systems to deliver consistent, high-speed performance. With rotor pump precision and customizable components, it’s ideal for food manufacturers seeking reliable, hygienic, and scalable packaging solutions.
Parameter - ZS-GTRP1
- Machine Model: ZS-GTRP1
- Machine Voltage: 110/220V 50–60Hz
- Filling Range: 20ML–300L
- Recommend Filling Volume: 50ML–100L
- Filling Pump: Rotor pump
- Filling Nozzle Size: Customized
- Suitable Bottle Size: Customized
- Working Speed: About 15–35 bottles/min
- Machine Size: About 1950 × 1700 × 2000mm
Parameter - ZS-XG440T2
- Machine Model: ZS-XG440T2
- Power Voltage: 110/220V 50–60Hz 2kW
- Suitable Cap Size: OD30–80mm (Can be customized)
- Air Pressure: 0.7MPa
- Working Speed: 30–40 bottles/min (based on bottle & caps)
-
Package Size:
- Capping Machine: About 2080 × 780 × 1730mm
- Feeding Machine: About 2340 × 860 × 1380mm
-
Package Weight:
- Capping Machine: About 355kg
- Feeding Machine: About 252kg

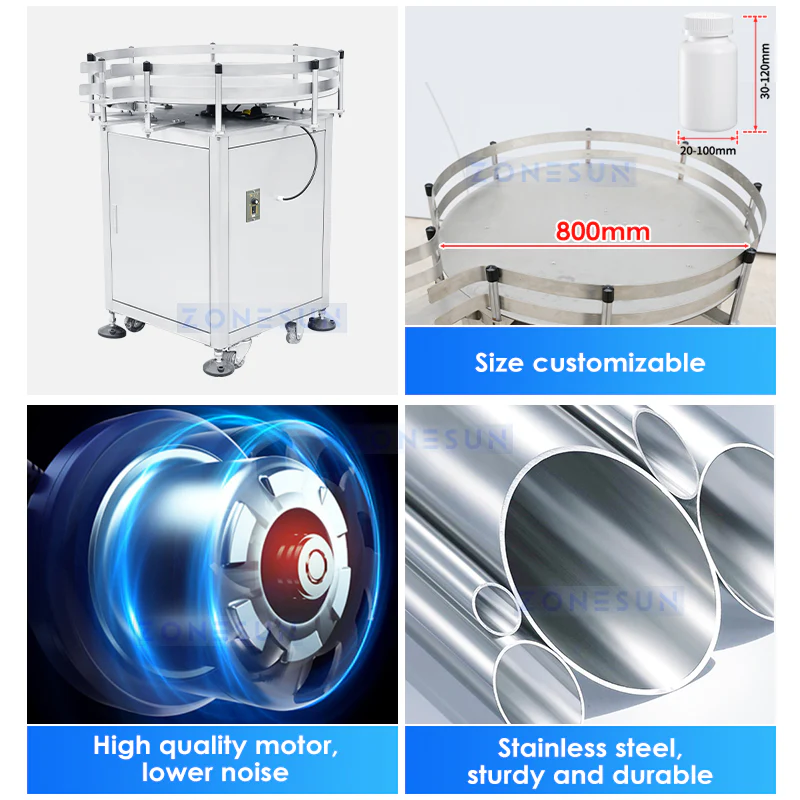

Parameter - ZS-SP800
- Model: ZS-SP800
- Turntable: 800mm, 10rpm
- Capacity: 2400–3600 bph
-
Suitable Bottles:
- Diameter: 20–100mm
- Height: 30–120mm
- Motor: 120W
- Size: 850 × 850 × 1500mm
- Weight:50kg
The ZS-FAL180B5 is a fully automated bottling line engineered for thick sauces and pastes such as meat sauce. It integrates filling, capping, and bottle feeding systems to deliver consistent, high-speed performance. With rotor pump precision and customizable components, it’s ideal for food manufacturers seeking reliable, hygienic, and scalable packaging solutions.
Parameter - ZS-GTRP1
- Machine Model: ZS-GTRP1
- Machine Voltage: 110/220V 50–60Hz
- Filling Range: 20ML–300L
- Recommend Filling Volume: 50ML–100L
- Filling Pump: Rotor pump
- Filling Nozzle Size: Customized
- Suitable Bottle Size: Customized
- Working Speed: About 15–35 bottles/min
- Machine Size: About 1950 × 1700 × 2000mm
Parameter - ZS-XG440T2
- Machine Model: ZS-XG440T2
- Power Voltage: 110/220V 50–60Hz 2kW
- Suitable Cap Size: OD30–80mm (Can be customized)
- Air Pressure: 0.7MPa
- Working Speed: 30–40 bottles/min (based on bottle & caps)
-
Package Size:
- Capping Machine: About 2080 × 780 × 1730mm
- Feeding Machine: About 2340 × 860 × 1380mm
-
Package Weight:
- Capping Machine: About 355kg
- Feeding Machine: About 252kg
Parameter - ZS-SP800
- Model: ZS-SP800
- Turntable: 800mm, 10rpm
- Capacity: 2400–3600 bph
-
Suitable Bottles:
- Diameter: 20–100mm
- Height: 30–120mm
- Motor: 120W
- Size: 850 × 850 × 1500mm
- Weight:50kg
Description
The ZS-FAL180B5 is a fully automated bottling line engineered for thick sauces and pastes such as meat sauce. It integrates filling, capping, and bottle feeding systems to deliver consistent, high-speed performance. With rotor pump precision and customizable components, it’s ideal for food manufacturers seeking reliable, hygienic, and scalable packaging solutions.
Parameter - ZS-GTRP1
- Machine Model: ZS-GTRP1
- Machine Voltage: 110/220V 50–60Hz
- Filling Range: 20ML–300L
- Recommend Filling Volume: 50ML–100L
- Filling Pump: Rotor pump
- Filling Nozzle Size: Customized
- Suitable Bottle Size: Customized
- Working Speed: About 15–35 bottles/min
- Machine Size: About 1950 × 1700 × 2000mm
Parameter - ZS-XG440T2
- Machine Model: ZS-XG440T2
- Power Voltage: 110/220V 50–60Hz 2kW
- Suitable Cap Size: OD30–80mm (Can be customized)
- Air Pressure: 0.7MPa
- Working Speed: 30–40 bottles/min (based on bottle & caps)
-
Package Size:
- Capping Machine: About 2080 × 780 × 1730mm
- Feeding Machine: About 2340 × 860 × 1380mm
-
Package Weight:
- Capping Machine: About 355kg
- Feeding Machine: About 252kg
Parameter - ZS-SP800
- Model: ZS-SP800
- Turntable: 800mm, 10rpm
- Capacity: 2400–3600 bph
-
Suitable Bottles:
- Diameter: 20–100mm
- Height: 30–120mm
- Motor: 120W
- Size: 850 × 850 × 1500mm
- Weight:50kg
