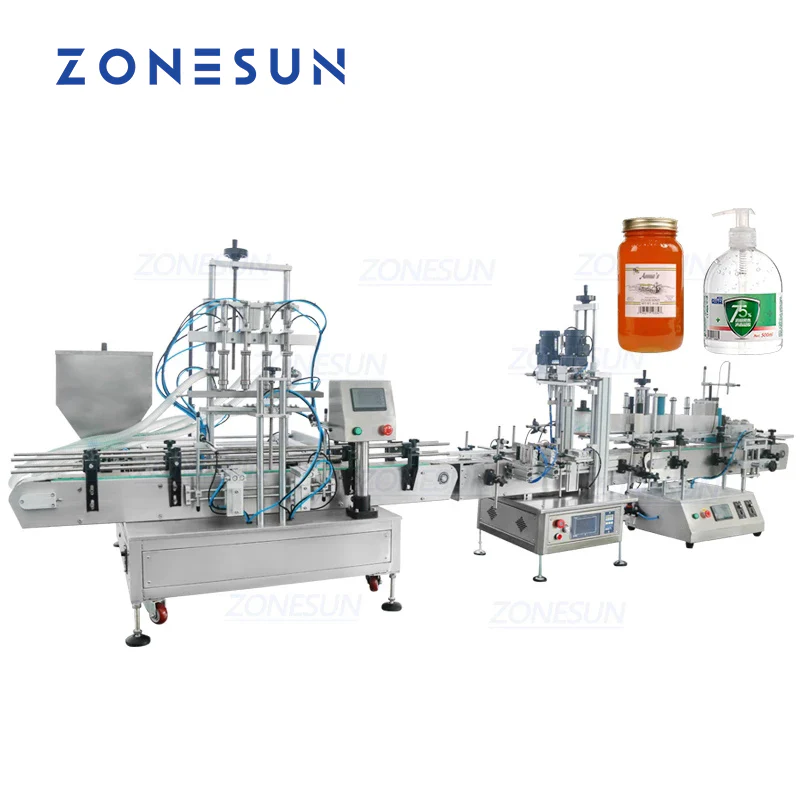

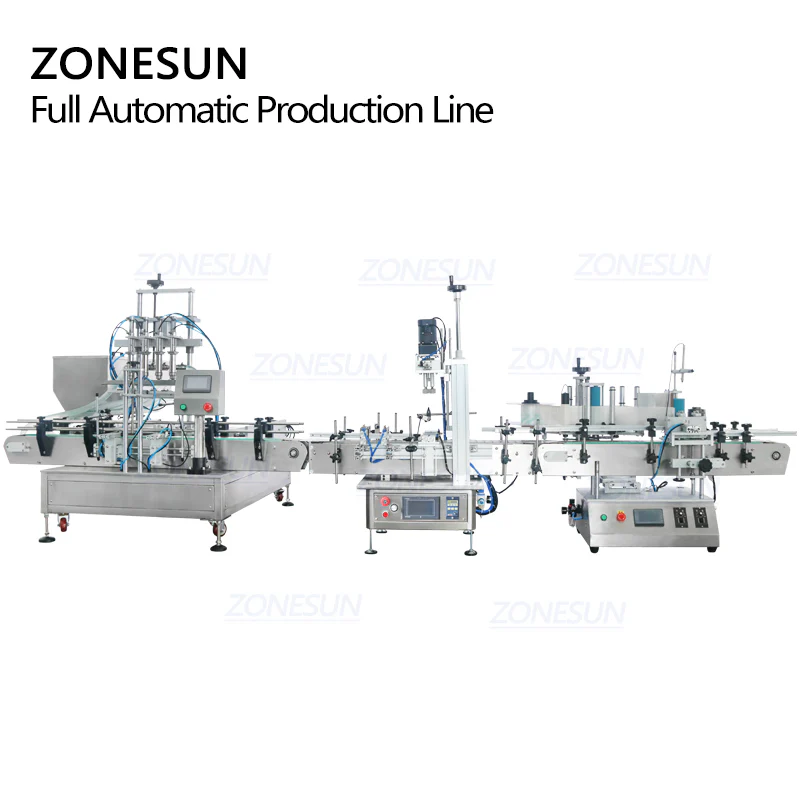

This compact production line integrates filling, capping, and labeling functions, ideal for small-scale automation. The four-head filler allows independent speed control for each nozzle, while the versatile capping unit handles various cap shapes. The labeling system uses precise positioning for accurate application, with adjustable label structure for optimal results. Equipped with a PLC control panel and intelligent sensors, it ensures efficient, labor-saving operation. The heavy-duty conveyor supports stable bottle transport, making it perfect for cosmetics, food, and pharmaceutical industries.

Item Details
Model ZS-DTGT4A Filling Machine
Power 110V / 220V, 50–60Hz, About 150W
Filling Range 5–30ml / 10–100ml / 30–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
Working Speed 1200–2200 bottles/hour
Storage Size 100L
Filling Accuracy ≤ ±1%
Machine Size About 965 × 1330 × 1350 mm
Machine Weight About 213.5 kg
Package Size About 1780 × 1430 × 1130 mm
Package Weight About 301.5 kg

Product Specification – Capping Machine
Item Details
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depending on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size OD 8 mm

Machine Model ZS-TB500A  Labeling Machine
Voltage 110V–60Hz / 220V–50Hz
Working Speed 20–60 bottles/min
Suitable Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inside Diameter Φ75 mm
Roll Outside Diameter Φ250 mm
Suitable Bottle Diameter About 30–100 mm
Conveyor Size About 1310 mm
Package Size About 1460 × 700 × 960 mm
Package Weight About 125.5 kg

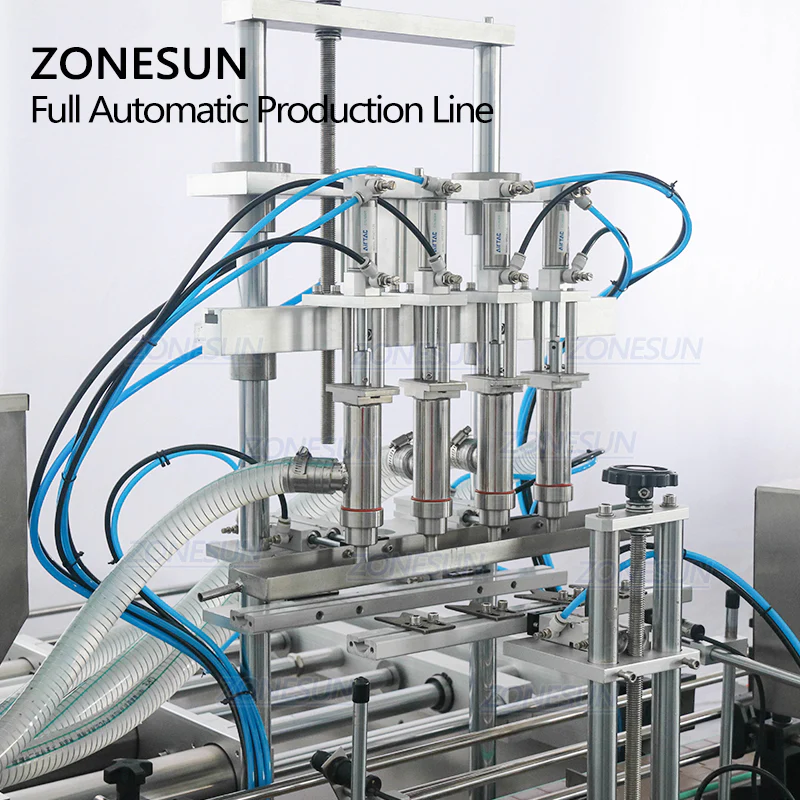

Equipped with the pneumatic filling nozzle, which has larger power when fill thicker liquid, they can improve filling speed. There is a anti-dripping device, it can ensure the production cleanliness. The bottle clamping plate will fixed bottles ,this prevent that bottles fall down during filling.

The filling speed of four nozzles can be adjusted by the A screw, while the B screw can be used to adjust the interval time. Four larger screws are used to adjust filling range slightly when the filling range of four nozzles are different.

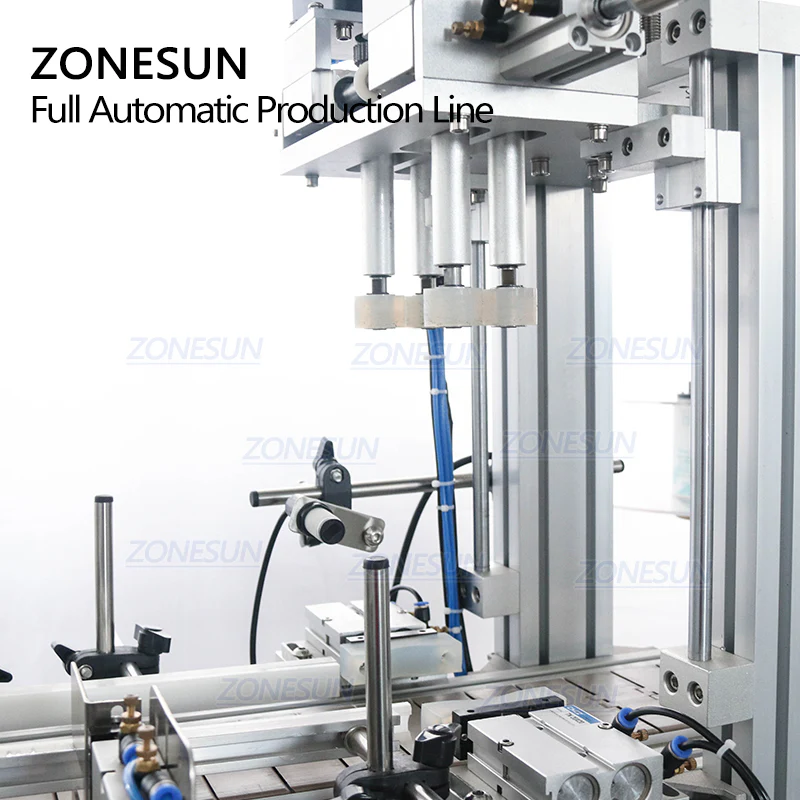

Designed for various shapes of bottle caps, like dropper bottles, spray bottles, beverage bottle caps. It will press the bottle caps and tight it automatically. Improve working efficiency greatly.

This machine is with electric eyes, can prevent from missing bottles, reduce the working error, the sensitivity of the electric eye can be adjusted by the black machine part during working.

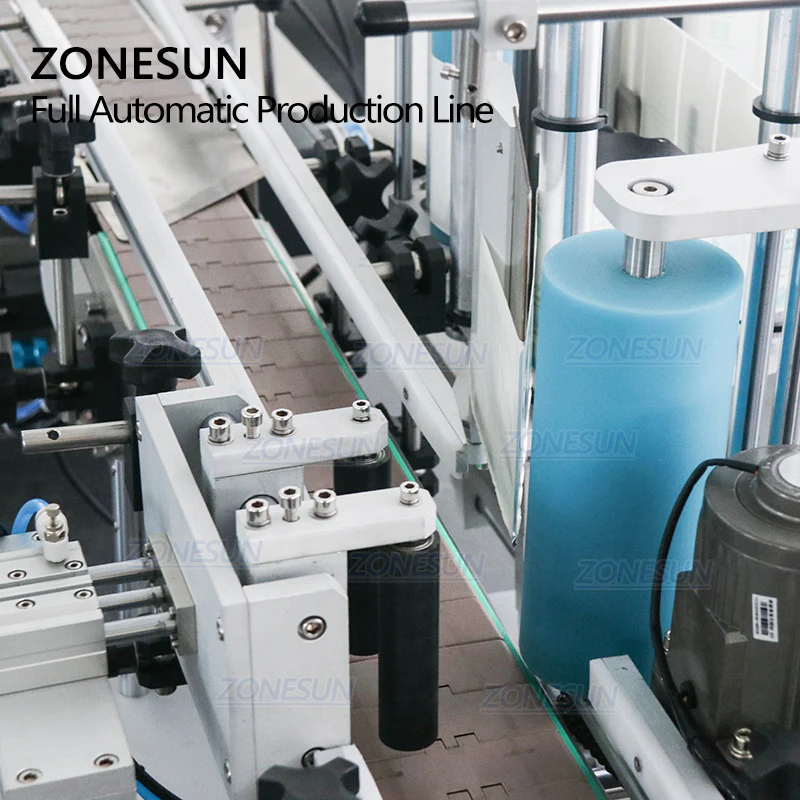

These three labeling wheels make bottles rotating and then finish labeling, ensure that there is no bubbles under labels .Ensure the labeling effect. This is suitable for double side labeling.

The feeding inlet can be adjusted according to bottle diameter. This machine is suitable forφ≤100mm bottles. The working speed of
the conveyor can be adjusted as operators' need. This help to improve working efficiency.
