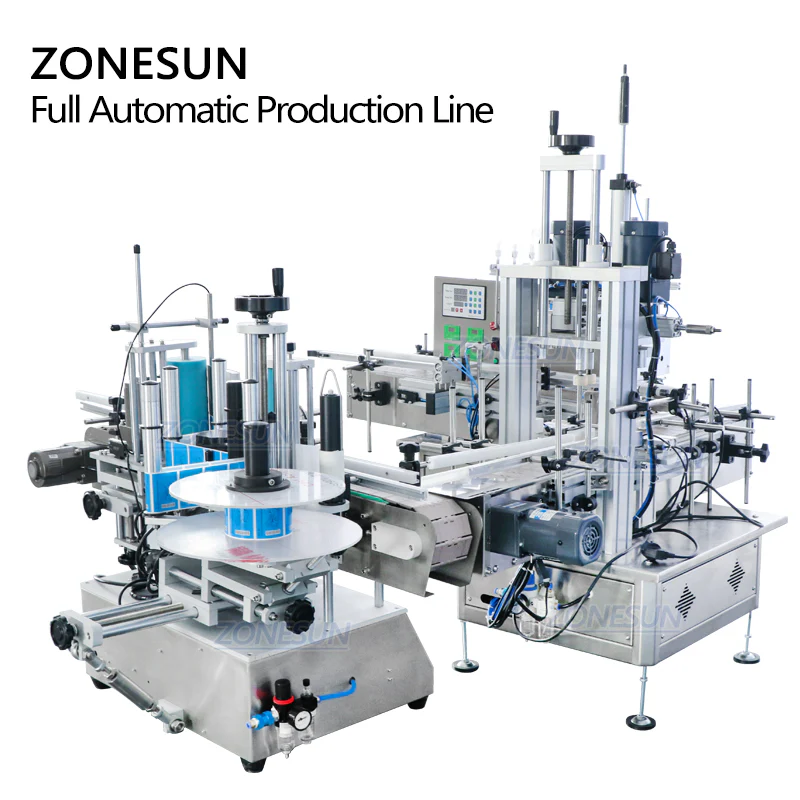

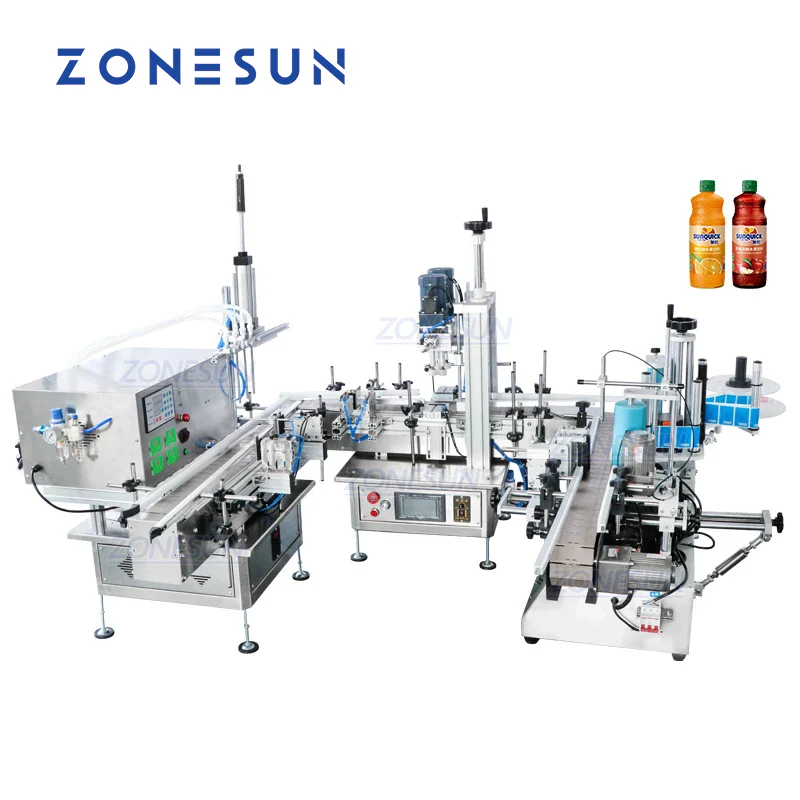

ZONESUN ZS-FAL180C7 U Shape Liquid Filling Capping Labeling Line

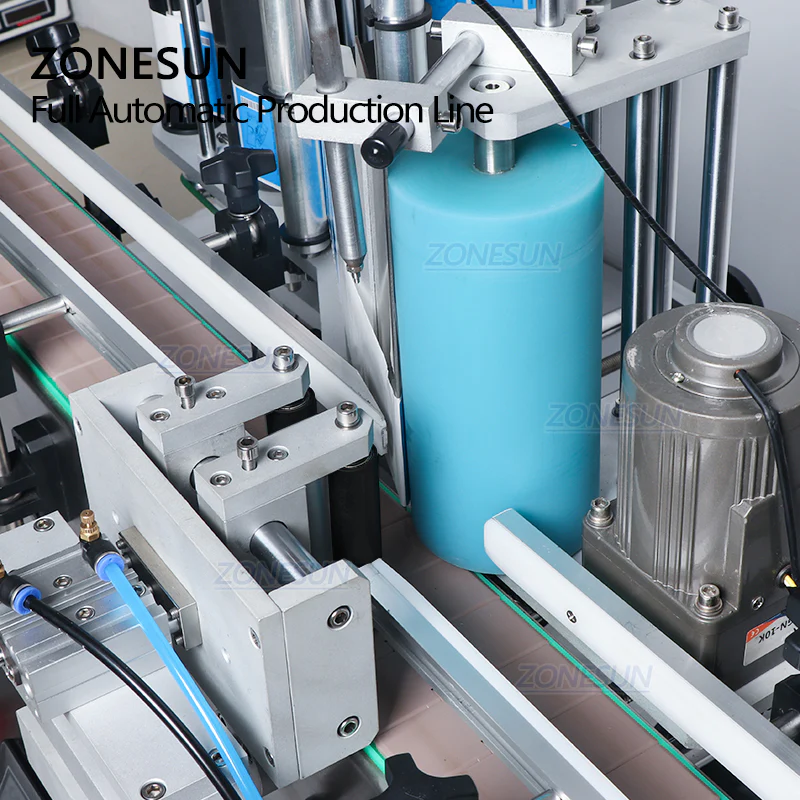

The ZONESUN ZS-FAL180C7 is a compact U-shaped automatic production line that integrates liquid filling, bottle capping, and labeling into one efficient system. Designed with space-saving layout and peristaltic pump technology, it ensures hygienic filling without liquid contact inside the pump—ideal for sensitive products like eye drops, essential oils, and milk. The four diving nozzles allow adjustable filling speeds and are perfect for foamy liquids. The capping unit accommodates various cap shapes, while the labeling machine supports single or double-sided labeling on round bottles with precise positioning. Optional bottle unscrambling and sorting modules enable fully automated, labor-free operation. Widely used in cosmetics, pharmaceuticals, beverages, and catering industries.

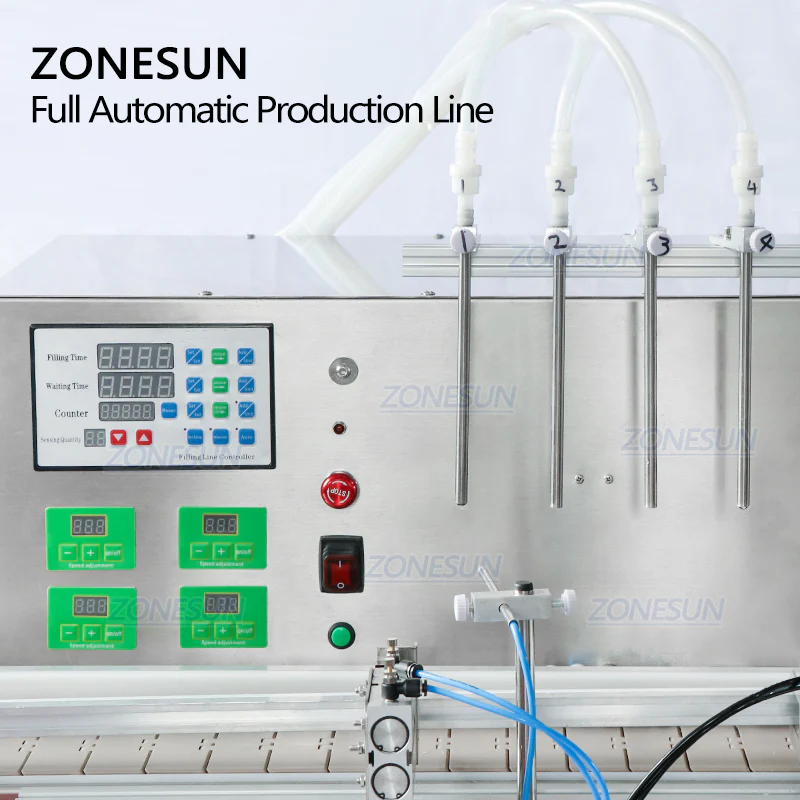

ZS-DTPP4D Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-DTPP4D
Power Supply AC 110V/220V, 50–60Hz, 60W (per pump)
Filling Range Up to 2500mL/min
Max Flow (per pump) 2500mL/min
Filling Nozzles 4 (customizable based on user requirements)
Working Speed 30–50 bottles/min (depends on bottle & liquid type)
Air Pressure 0.3–0.4MPa
Filling Accuracy ±1% (based on water)
Filling Nozzle Diameter 6mm / 8mm
Delay Range 0.01–999.9s
Conveyor Belt Length 1.1m
Air Compressor Connector Size OD 8mm
Package Dimensions Approx. 1150mm × 770mm × 840mm
Package Weight Approx. 110kg

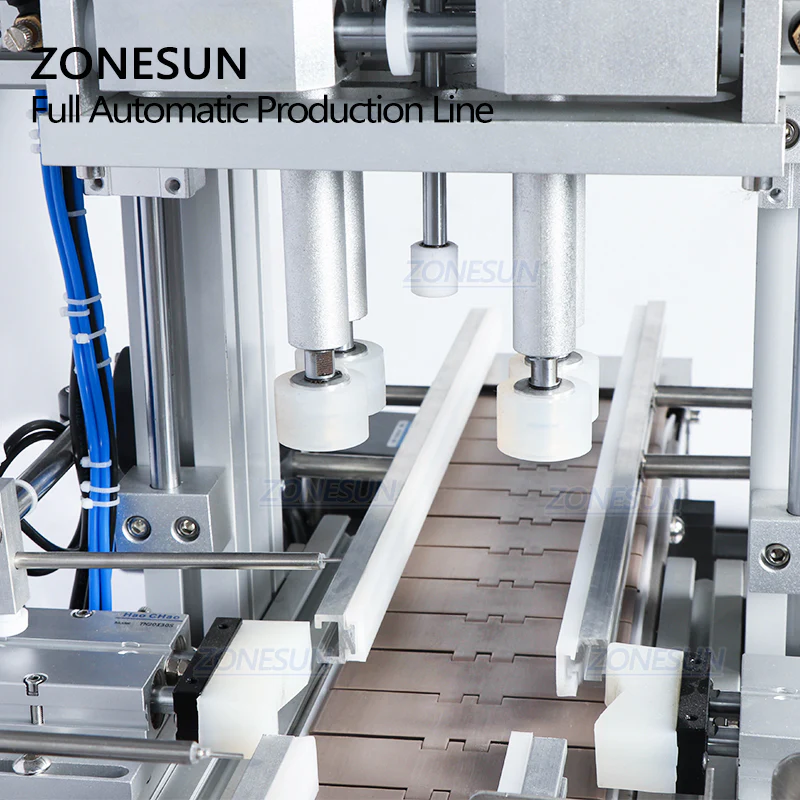

Bottle Capping Machine – Technical Specification
Item Specification
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depends on bottle & cap size)
Working Voltage AC 220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8mm
Conveyor Length 1177mm
Machine Dimensions Approx. 1200mm × 610mm × 900mm
Package Dimensions Approx. 1150mm × 640mm × 1120mm
Net/Gross Weight Approx. 69kg / 100kg
ZS-TB50A Labeling Machine – Technical Specification
Item Specification
Machine Model ZS-TB50A
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–60 bottles/min
Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inner Diameter φ75mm
Roll Outer Diameter φ250mm
Suitable Bottle Diameter Approx. 30–100mm
Conveyor Size Approx. 1310mm × 100mm
Package Dimensions Approx. 1460mm × 700mm × 800mm
Package Weight Approx. 125kg
