DESCRIPTION

This is a desktop turnkey solution for bottle packaging, such as essential oil. It integrates unscrambling, filling, capping, and labeling. Whatever your packaging needs are, you can rely on ZONESUN.

Parameter - ZS-DTMP4AL

• Machine Model: ZS-DTMP4AL
• Power Supply: 110/220V 50-60HZ 300W
• Machine Pump: Magnetic Pump
• Filling Volume: 3–1000ml
• Maximum Flow Velocity: 6L/min (Each nozzle and base on water)
• Working Speed: 20–30 bottles/min (depend on bottle size and liquid)
• Air Pressure: 0.3–0.4MPa
• Filling Accuracy: ≤ ±1% (For water)
• Diameter of Filling Nozzle: 6/8mm
• Delay Range: 0.01–99.9s
• Count Range: 1–99999 Times
• Size of Air Compressor Connector: OD8mm
• Machine Size: About 1115*650*1090mm
• Package Size: About 1150*640*830mm
• Net Weight/Gross Weight: About 55kg/84kg

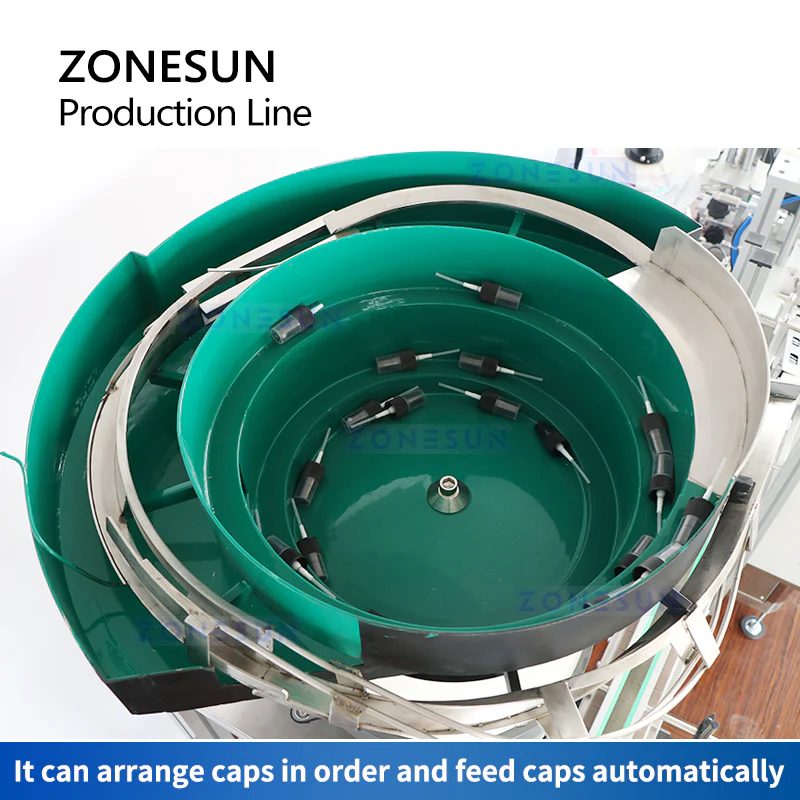

Parameter - Cap Feeder

• Model: Cap Feeder
• Voltage: 110/220V 50-60HZ
• Material: Stainless Steel
• Suitable Caps Diameter: (not specified)
• Working Speed: Customized
• Machine Size: (not specified)

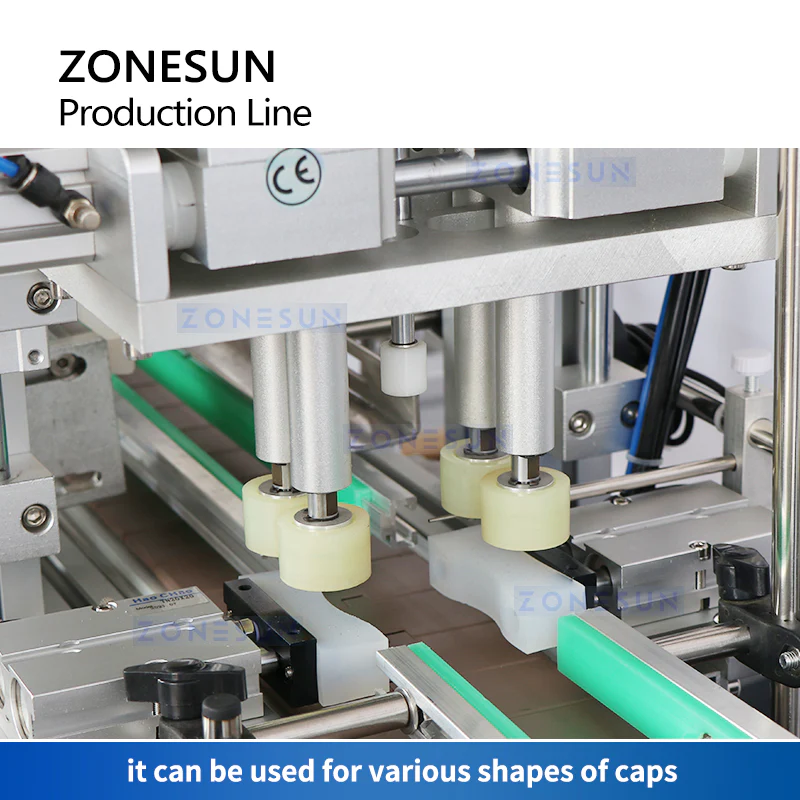

Parameter -Capping Machine

• Model: Capping Machine
• Bottle Height: 60–270mm
• Voltage: AC220V/110V 50–60HZ
• Bottle Caps Diameter: 18–70mm
• Working Speed: 20–40 bottles/minute (depending on bottle and caps)
• Working Pressure: 0.4–0.6 MPa
• Size of Air Compressor Connector: OD 8mm

Machine Size

• About 500*500*1300mm (Vibratory Bow)
• About 2100*580*1150mm (Capping Machine)

Package Size

• About 1140*780*660mm (Vibratory Bow)
• About 2200*650*1250mm (Capping Machine)

Net Weight/Gross Weight

• About 91kg/125kg (Vibratory Bow)
• About 87kg/127kg (Capping Machine)

Parameter - ZS-TB500A

• Machine Model: ZS-TB500A
• Voltage: 110V-60HZ / 220V-50HZ
• Working Speed: About 20–60 bottles/min
• Suitable Labeling Size: 15–140mm(W) * 25–300mm(L)
• Roll Inside Diameter (mm): Φ75mm
• Roll Outside Diameter (mm): Φ250mm
• Suitable Bottle Diameter: About 30–100mm
• Conveyor Size: About 1310*100mm
• Machine Size: About 1240*680*890mm
• Package Size: About 1390*690*910mm
