ZONESUN ZS-FAL180D9 Creamy Products Packaging Line
DESCRIPTION

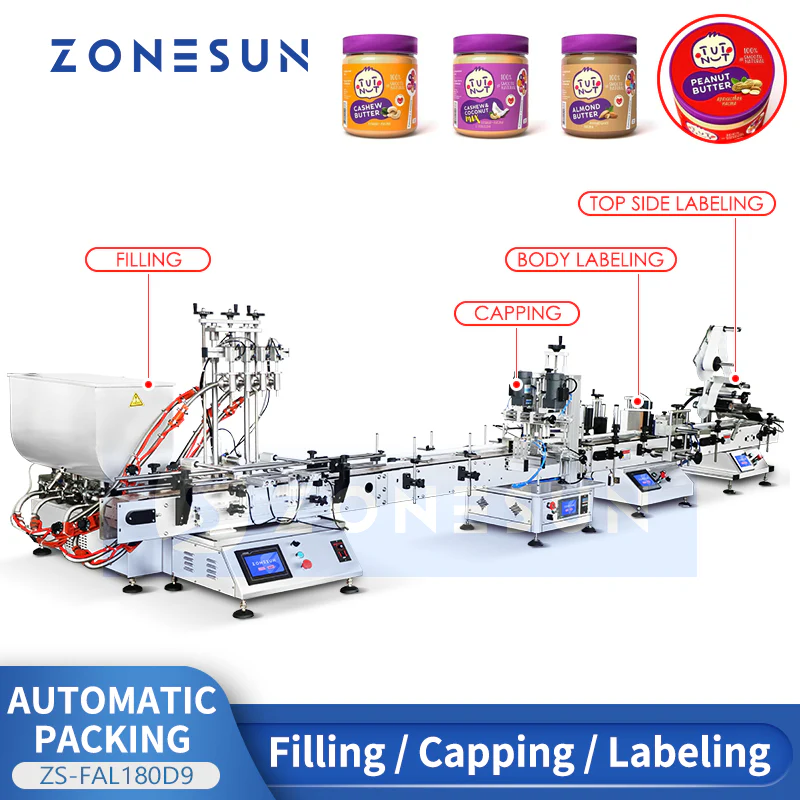

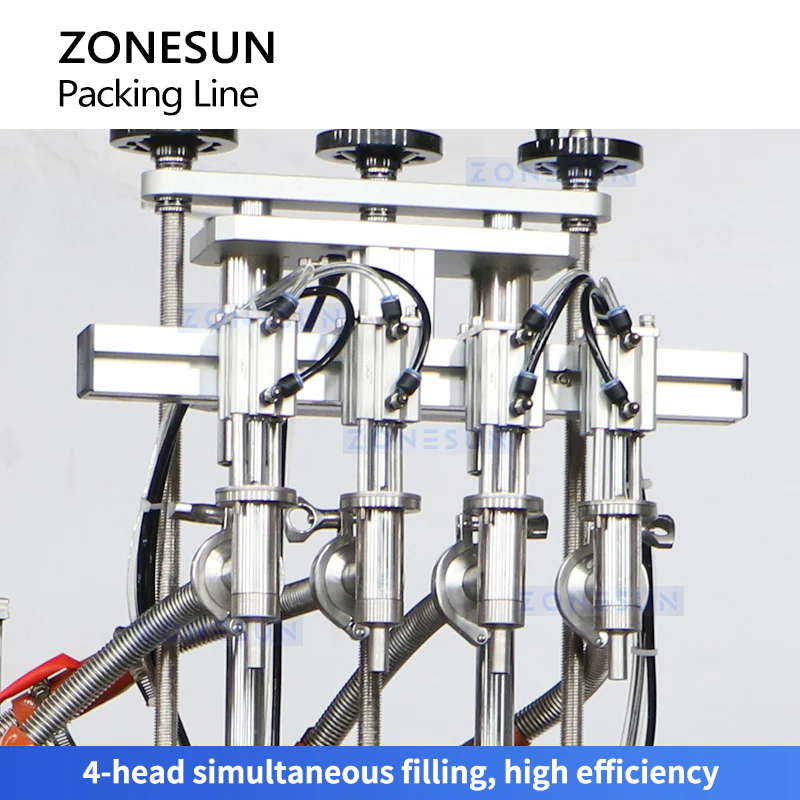

Streamline your packaging process with our Complete Packaging Line. Featuring a Piston Filler, 4 Wheel Capper, and Wrap Around Labeler, this efficient line is designed for creamy products. Fill 4 products simultaneously, cap securely with 4 wheel technology, and apply precise labels.
Parameter - ZS-DTGT4T
- Machine model: ZS-DTGT4T
- Machine power: 110/220V 50-60Hz About 300W
- Filling range: 10-100ml / 30-300ml / 50-500ml / 100-1000ml / 500-2500ml / 1000-5000ml
- Working speed: 20-30 bottles/min (based on liquid & filling volume)

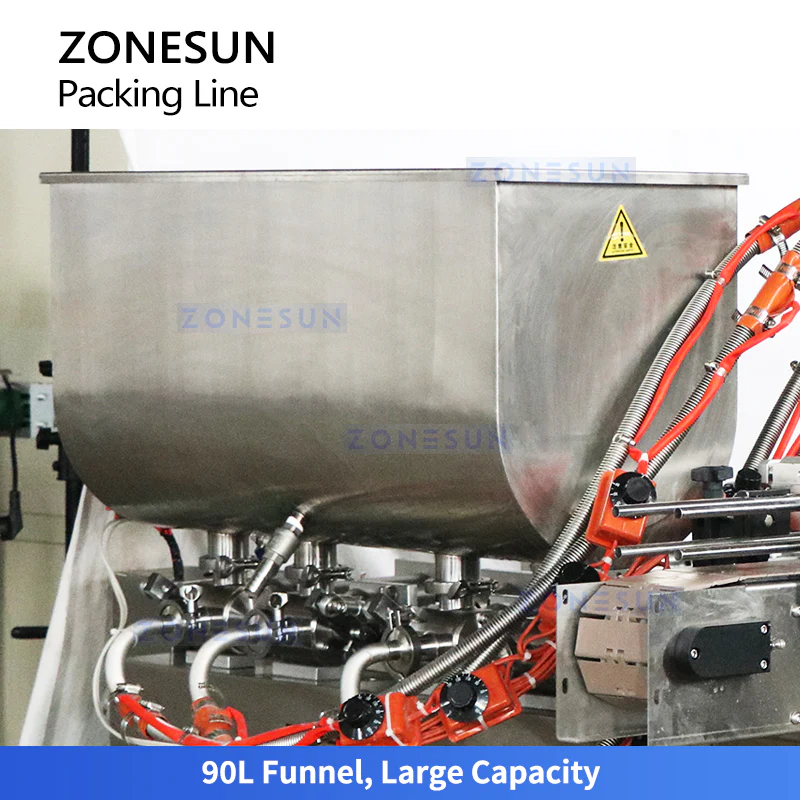

- Hopper size: 90L
- Conveyor size: About 1300 × 100mm
- Filling nozzle size: OD 10mm (can choose other size)
- Filling accuracy: ≤ ±1%
- Machine size: About 1300 × 1440 × 1200mm
- Package size: About 1550 × 1400 × 1330mm
- Package weight: About 237kg
Parameter - ZS-XG1870
- Machine model: ZS-XG1870
- Bottle height: 60-270mm
- Bottle caps diameter: 18-70mm
- Working speed: 20-40 bottle/minute (depending on bottle and caps)
- Working voltage: AC220V/110V 50-60Hz
- Working pressure: 0.4-0.6 MPa
- Machine size: 1120 × 580 × 1110mm
- Conveyor length: 1117mm
- Size or air compressor connector: OD 8mm
- Package size: About 1160 × 610 × 1140mm
- Package weight: About 97.5kg
Parameter - ZS-TB500
- Machine model: ZS-TB500
- Voltage: 110V-60Hz / 220V-50Hz
- Working speed: About 20-50 bottles/min
- Suitable Labeling Size: 15-140mm(W) × 25-300mm(L)
- Roll inside diameter(mm): Φ76mm
- Roll outside diameter(mm): Φ350mm
- Suitable bottle diameter: ≤100mm
- Package size: About 1290 × 860 × 900mm
- Package weight: About 130kg
Parameter - ZS-TB150P
- Machine model: ZS-TB150P
- Wroking speed(pcs/min): 20-200pcs/min
- Labeling accuracy(mm): +1.0mm
- Label size(mm): (L)25-300mm (H)15-150mm
- Labeling material size: Φ30-Φ120mm (H)20-200mm
- Roll inside diameter(mm): Φ75mm
- Roll outside diameter(mm): Φ275mm
- Voltage: 220/110V 50-60Hz
- Power: 1.5kW
- Package size: 1280 × 730 × 980mm
- Packge weight: 109kg
DESCRIPTION
Streamline your packaging process with our Complete Packaging Line. Featuring a Piston Filler, 4 Wheel Capper, and Wrap Around Labeler, this efficient line is designed for creamy products. Fill 4 products simultaneously, cap securely with 4 wheel technology, and apply precise labels.
Parameter - ZS-DTGT4T
- Machine model: ZS-DTGT4T
- Machine power: 110/220V 50-60Hz About 300W
- Filling range: 10-100ml / 30-300ml / 50-500ml / 100-1000ml / 500-2500ml / 1000-5000ml
- Working speed: 20-30 bottles/min (based on liquid & filling volume)
- Hopper size: 90L
- Conveyor size: About 1300 × 100mm
- Filling nozzle size: OD 10mm (can choose other size)
- Filling accuracy: ≤ ±1%
- Machine size: About 1300 × 1440 × 1200mm
- Package size: About 1550 × 1400 × 1330mm
- Package weight: About 237kg
Parameter - ZS-XG1870
- Machine model: ZS-XG1870
- Bottle height: 60-270mm
- Bottle caps diameter: 18-70mm
- Working speed: 20-40 bottle/minute (depending on bottle and caps)
- Working voltage: AC220V/110V 50-60Hz
- Working pressure: 0.4-0.6 MPa
- Machine size: 1120 × 580 × 1110mm
- Conveyor length: 1117mm
- Size or air compressor connector: OD 8mm
- Package size: About 1160 × 610 × 1140mm
- Package weight: About 97.5kg
Parameter - ZS-TB500
- Machine model: ZS-TB500
- Voltage: 110V-60Hz / 220V-50Hz
- Working speed: About 20-50 bottles/min
- Suitable Labeling Size: 15-140mm(W) × 25-300mm(L)
- Roll inside diameter(mm): Φ76mm
- Roll outside diameter(mm): Φ350mm
- Suitable bottle diameter: ≤100mm
- Package size: About 1290 × 860 × 900mm
- Package weight: About 130kg
Parameter - ZS-TB150P
- Machine model: ZS-TB150P
- Wroking speed(pcs/min): 20-200pcs/min
- Labeling accuracy(mm): +1.0mm
- Label size(mm): (L)25-300mm (H)15-150mm
- Labeling material size: Φ30-Φ120mm (H)20-200mm
- Roll inside diameter(mm): Φ75mm
- Roll outside diameter(mm): Φ275mm
- Voltage: 220/110V 50-60Hz
- Power: 1.5kW
- Package size: 1280 × 730 × 980mm
- Packge weight: 109kg
