ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line

DECSRIPTION

This complete system seamlessly combines a robust bottle conveyor, a precision filling machine, a reliable capping system, and a high-speed labeling machine. Engineered for optimal performance and minimal downtime, our line ensures consistent, high-quality output, maximizing your production capacity and reducing labor costs. Built with durable, food-grade materials, it meets the highest industry standards for safety and hygiene. Increase your production efficiency and profitability with this comprehensive solution.

TECHNICAL SPECIFICATIONS – ZS-CB190

  • Machine Model: ZS-CB190
  • Machine Power: 1.5KW

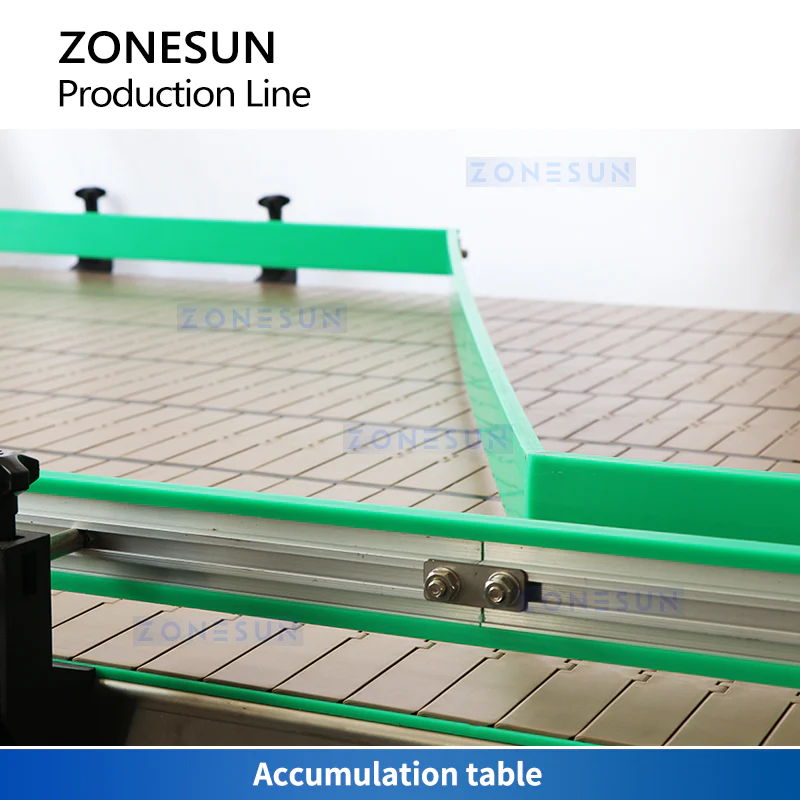

  • Conveyor Size: 1760 × 1425mm + 960 × 190.5mm
  • Conveyor Width: 190.5mm (Single)
  • Working Speed: 0–20m/min
  • Package Size: Approx. 2050 × 1720 × 720mm
  • Package Weight: Approx. 276kg

TECHNICAL SPECIFICATIONS – ZS-SV4HS

  • Model: ZS-SV4HS
  • Machine voltage: 110/220V 50-60HZ
  • Power: About 6KW
  • Filling Range: 100-1000ml (Can be customized)
  • Filling Speed: About 30-70 bottles/min (depending on bottle size and filling material)
  • Filling Error: About ±0.5%
  • Air Pressure: 0.5-0.8Mpa
  • Conveyor belt size: About 1142000mm (WL)
  • Machine Weight: About 130kg
  • Package Size: About 20707601670mm
  • Package Weight: About 275kg

TECHNICAL SPECIFICATIONS - ZS-XG445A

  • Machine model: ZS-XG445A
  • Voltage: 110/220V
  • Power: 900W
  • Capacity: 5-23 Bottle/min (based on bottle and cap size)
  • Material: 304 SUS
  • Air pressure: 0.6-0.8Mpa
  • Suitable bottles: Customize according to sample
  • Cap feeding way: Pneumatic fetch
  • Capping way: Servo drive screw capping
  • Machine size: About 4520×1480×2400mm

TECHNICAL SPECIFICATIONS - ZS-TB260R

  • Model: ZS-TB260R
  • Power supply: AC220V 50Hz/60Hz 1000W
  • Labeling capacity (bottles/min): 25-50 bottles/min (depends on bottle size)
  • Labeling accuracy (mm): ±1.0mm
  • Suitable bottle Diameter: Φ12-100mm
  • Label size (mm): (L)20-300mm (H)15-150mm (Can be customized)
  • Roll inside diameter (mm): Φ76mm
  • Roll outside diameter (mm): Φ350mm
  • Conveyor size: 112*2000mm(W)
  • Machine size: About (L)2000(W)820(H)1380(mm)
  • Machine weight: About 180kg
  • Packing size: About (L)2100(W)890(H)1520(mm)
  • Package weight: About 250kg
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line

DECSRIPTION

This complete system seamlessly combines a robust bottle conveyor, a precision filling machine, a reliable capping system, and a high-speed labeling machine. Engineered for optimal performance and minimal downtime, our line ensures consistent, high-quality output, maximizing your production capacity and reducing labor costs. Built with durable, food-grade materials, it meets the highest industry standards for safety and hygiene. Increase your production efficiency and profitability with this comprehensive solution.

TECHNICAL SPECIFICATIONS – ZS-CB190

  • Machine Model: ZS-CB190
  • Machine Power: 1.5KW
  • Conveyor Size: 1760 × 1425mm + 960 × 190.5mm
  • Conveyor Width: 190.5mm (Single)
  • Working Speed: 0–20m/min
  • Package Size: Approx. 2050 × 1720 × 720mm
  • Package Weight: Approx. 276kg

TECHNICAL SPECIFICATIONS – ZS-SV4HS

  • Model: ZS-SV4HS
  • Machine voltage: 110/220V 50-60HZ
  • Power: About 6KW
  • Filling Range: 100-1000ml (Can be customized)
  • Filling Speed: About 30-70 bottles/min (depending on bottle size and filling material)
  • Filling Error: About ±0.5%
  • Air Pressure: 0.5-0.8Mpa
  • Conveyor belt size: About 1142000mm (WL)
  • Machine Weight: About 130kg
  • Package Size: About 20707601670mm
  • Package Weight: About 275kg

TECHNICAL SPECIFICATIONS - ZS-XG445A

  • Machine model: ZS-XG445A
  • Voltage: 110/220V
  • Power: 900W
  • Capacity: 5-23 Bottle/min (based on bottle and cap size)
  • Material: 304 SUS
  • Air pressure: 0.6-0.8Mpa
  • Suitable bottles: Customize according to sample
  • Cap feeding way: Pneumatic fetch
  • Capping way: Servo drive screw capping
  • Machine size: About 4520×1480×2400mm

TECHNICAL SPECIFICATIONS - ZS-TB260R

  • Model: ZS-TB260R
  • Power supply: AC220V 50Hz/60Hz 1000W
  • Labeling capacity (bottles/min): 25-50 bottles/min (depends on bottle size)
  • Labeling accuracy (mm): ±1.0mm
  • Suitable bottle Diameter: Φ12-100mm
  • Label size (mm): (L)20-300mm (H)15-150mm (Can be customized)
  • Roll inside diameter (mm): Φ76mm
  • Roll outside diameter (mm): Φ350mm
  • Conveyor size: 112*2000mm(W)
  • Machine size: About (L)2000(W)820(H)1380(mm)
  • Machine weight: About 180kg
  • Packing size: About (L)2100(W)890(H)1520(mm)
  • Package weight: About 250kg
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line
$9,119.70

Original: $30,399.00

-70%
ZONESUN ZS-FAL180F10 Trigger Spray Bottling Production Line—

$30,399.00

$9,119.70
