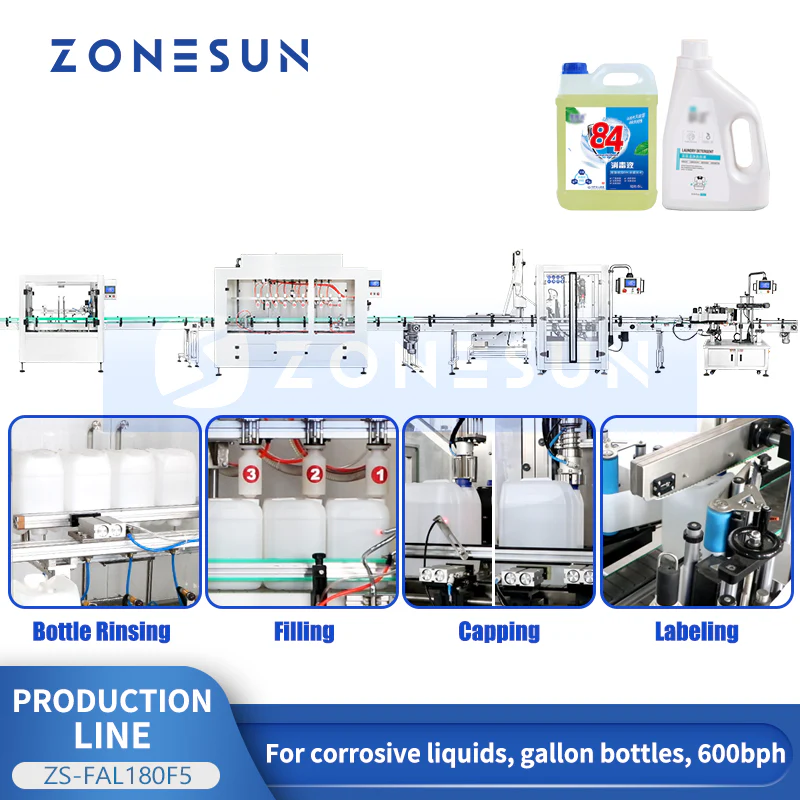

The ZONESUN ZS-FAL180F5 Corrosive Liquid Packaging Line is a fully integrated solution for safely and efficiently packaging corrosive liquids in gallon-sized bottles. This advanced system includes four core machines: a ZS-WB4 negative ion air bottle washer for residue-free cleaning, a ZS-YTCR10A ten-head anti-corrosion filling machine for high-precision dosing, a ZS-XG440F servo capping machine for secure sealing, and a ZS-TB300R double-sided labeling machine for professional product presentation. Designed for chemical, industrial, and cleaning product manufacturers, this line delivers consistent throughput, accurate filling, and robust corrosion resistance across every stage of production.

Parameter-ZS-WB4

• Model: ZS-WB4
• Voltage: 380V, 750W
• Suitable bottle size: Customize
• Working capacity: About 2000 BPH
• Machine size (L×W×H): About 5820×1900×1180mm
• Machine weight: About 350kg

Parameter-ZS-YTCR10A

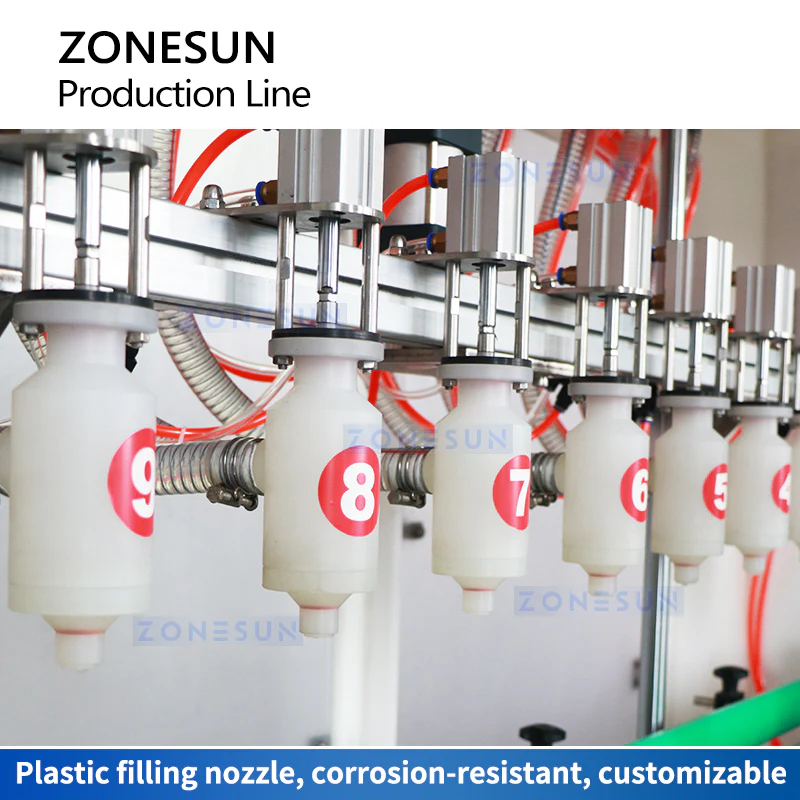

• Model: ZS-YTCR10A
• Voltage: 110/220V, 50–60Hz, 1.5kW
• Air pressure: 0.4–0.7MPa
• Suitable bottle diameter: Φ30–Φ120mm
• Suitable bottle height: 40–350mm
• Hopper size (L×W×H): About 2000×350×300mm (customized)
• Filling range: 100–3000ml
• Filling speed: 600 BPH (based on filling volume)
• Machine size (L×W×H): About 4365×991×2298mm

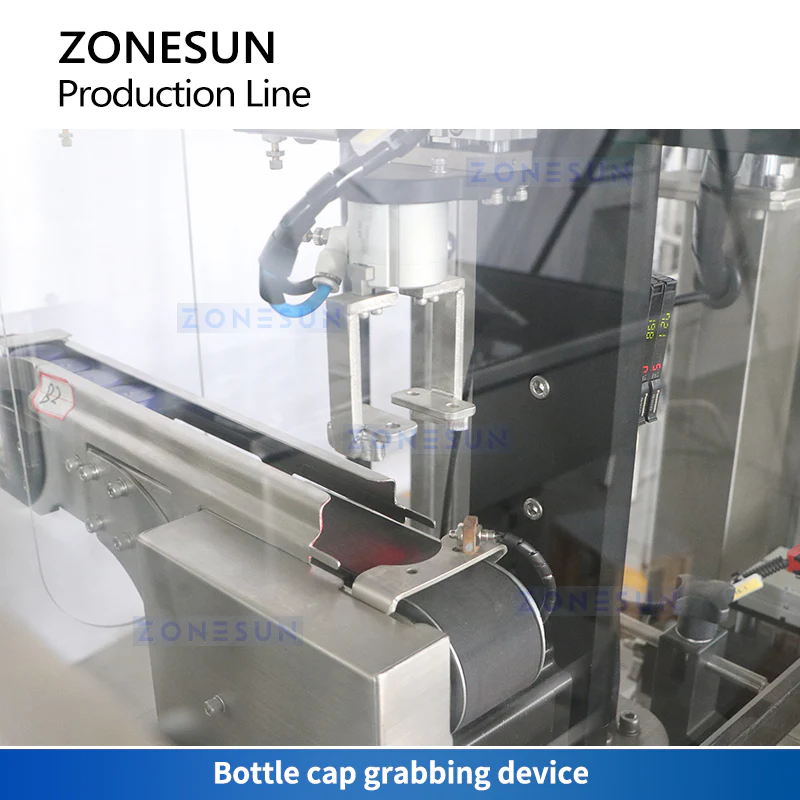

Parameter-ZS-XG441F

• Model: ZS-XG441F
• Voltage: 110/220V, 50–60Hz, 2kW
• Suitable cap size: 30–120mm (can be customized)
• Suitable bottle height: Customized
• Air pressure: 0.7MPa
• Working capacity: 5–15 BPM
• Machine size (L×W×H): About 2000×700×1600mm
• Machine weight: About 350kg

Parameter-ZS-TB300R

• Model: ZS-TB300R
• Voltage: 220V/110V, 50–60Hz
• Power: About 2500W
• Labeling speed: About 10–60 bottles/min (depends on bottle and label size)
• Suitable product size (H×W): About 150–310mm × 150–250mm
• Label size (W×H): 15–300mm × 15–200mm
• Label roll inner diameter: Φ75mm
• Label roll outer diameter: Φ350mm
• Machine size (L×W×H): About 3018×1422×1859mm
