DESCRIPTION

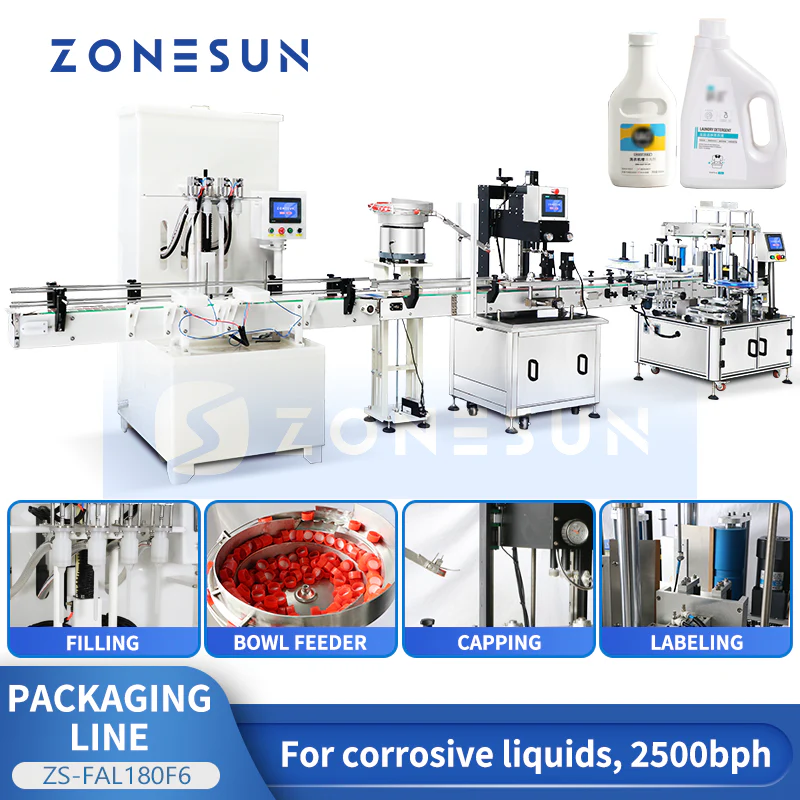

This complete packaging line includes a filling machine, vibratory bowl, capping machine, and labeling machine, providing a comprehensive solution for your packaging needs.

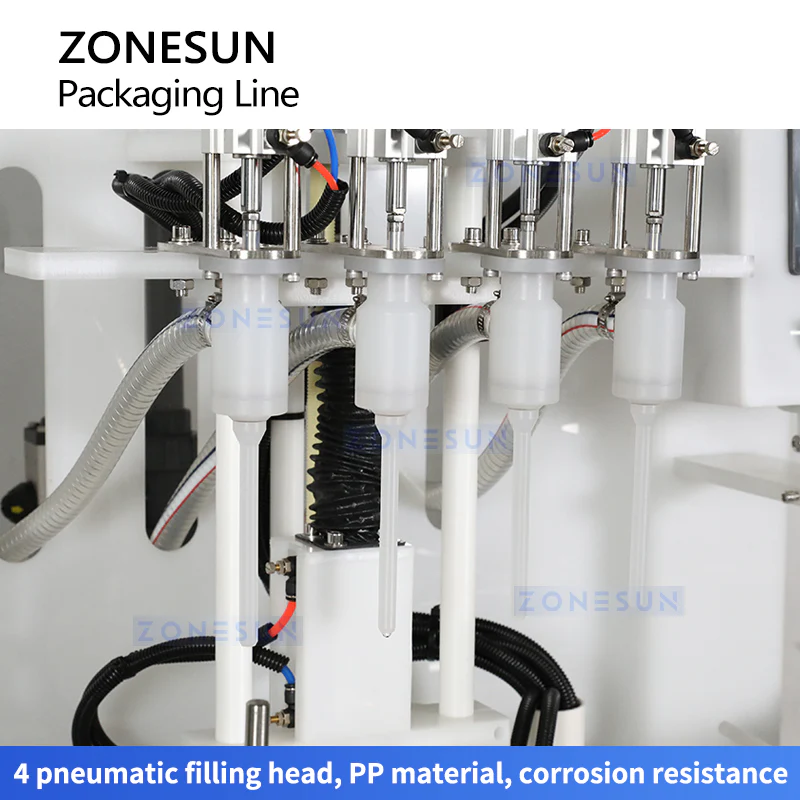

Parameter -ZS-YTCR4A

• Machine model: ZS-YTCR4A
• Voltage: 110/220V, 50/60HZ, 550W
• Air pressure: 0.4-0.7MPa
• Suitable bottle diameter: φ60mm--φ110mm
• Suitable bottle height: 100mm--290mm
• Hopper size: About 90L
• Filling range: 100ml--3000ml
• Filling speed: 200-2500 BPH (based on filling volume)
• Conveyor: 1900*114mm
• Machine dimension: 2000mm*1207mm*1887mm
• Machine weight: About 200kg

Parameter - Virbaration Bowl

• Machine Power: 110/220V, 50/60HZ
• Material: Stainless Steel
• Suitable Caps Diameter: Customized
• Working Speed: Customized
• Machine Size: Customized

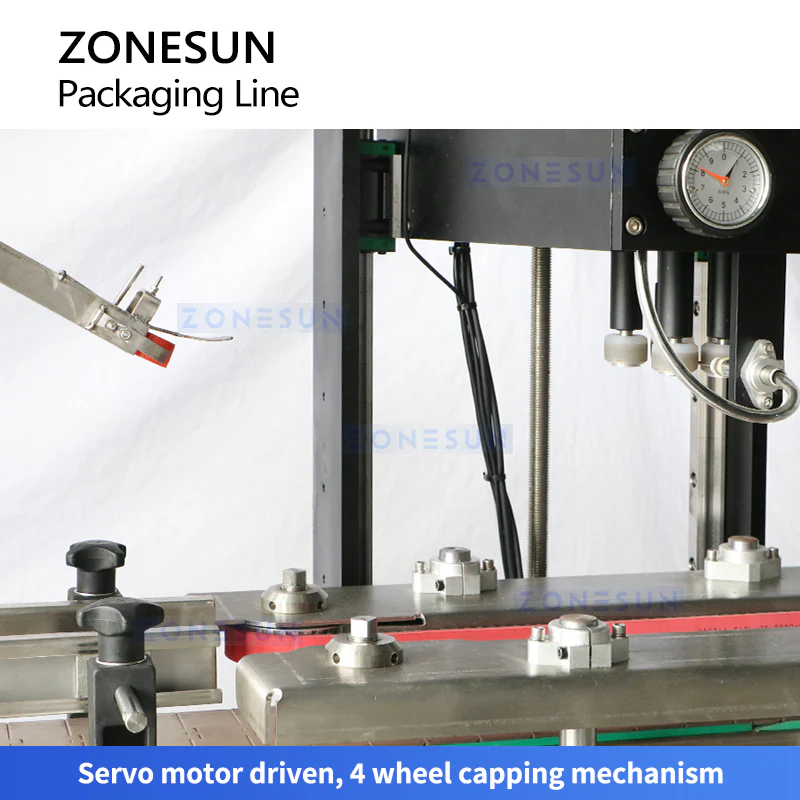

Parameter - Servo Capping Machine

• Machine Model: ZS-XG440S
• Voltage: 110/220V, 50/60HZ
• Machine Power: About 2.8KW
• Suitable Bottle Size: H=50-300mm, Φ30-120mm
• Suitable Cap Size: Φ=20-60mm
• Working Speed: About 30-100 bottle/min
• Machine Size: About 2000 × 750 × 1650mm
• Machine Weight: About 300kg
• Package Size: About 2070 × 830 × 1730mm
• Package Weight: About 321kg

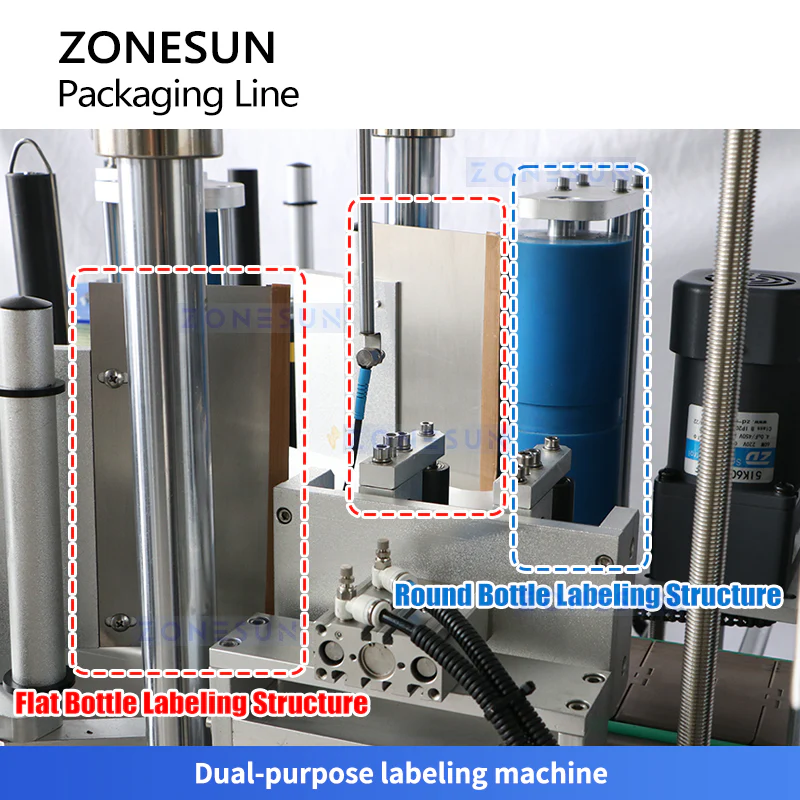

Parameter - ZS-TB300Z

• Machine model: ZS-TB300Z
• Machine Power: 110/220V 2500W
• Working Speed: 30-150 bottle/min (based on bottle size)
• Labeling Accuracy: ±1mm
• Suitable Labeling Object: 30-300mm(L) × 30-100mm(W) × 50-350mm(H)
• Suitable Label Size: 15-300mm(L) × 15-150mm(W)
• Label Roll OD: Φ280mm
• Label Roll ID: Φ76mm
• Machine Size: About 2710 × 1450 × 1540mm (L × W × H)
• Package Size: About 1900 × 970 × 1690mm
