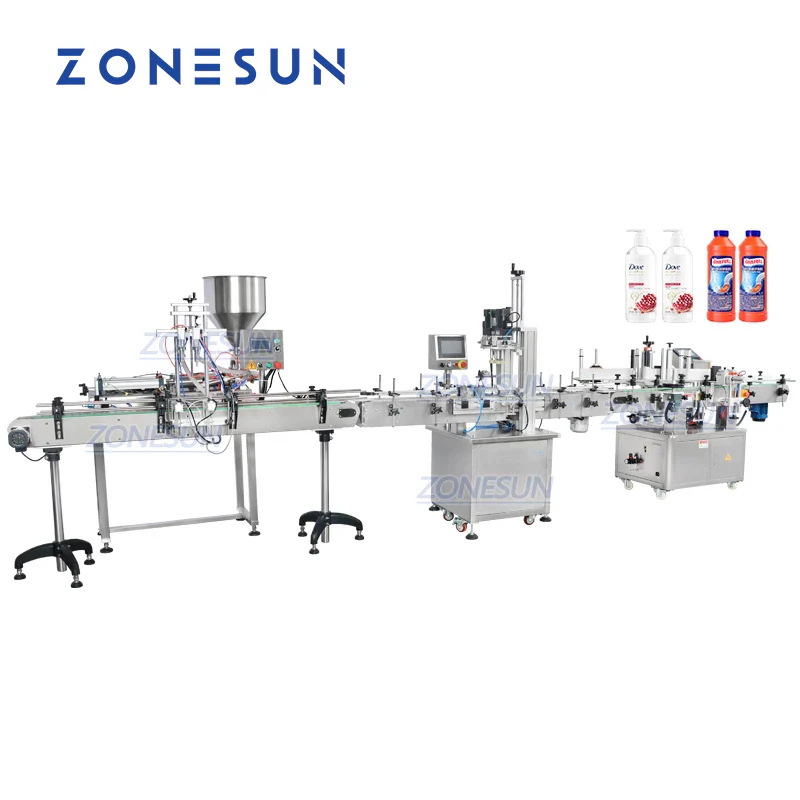

ZONESUN ZS-FAL180R10 Automatic Paste Filling Capping Labeling Line

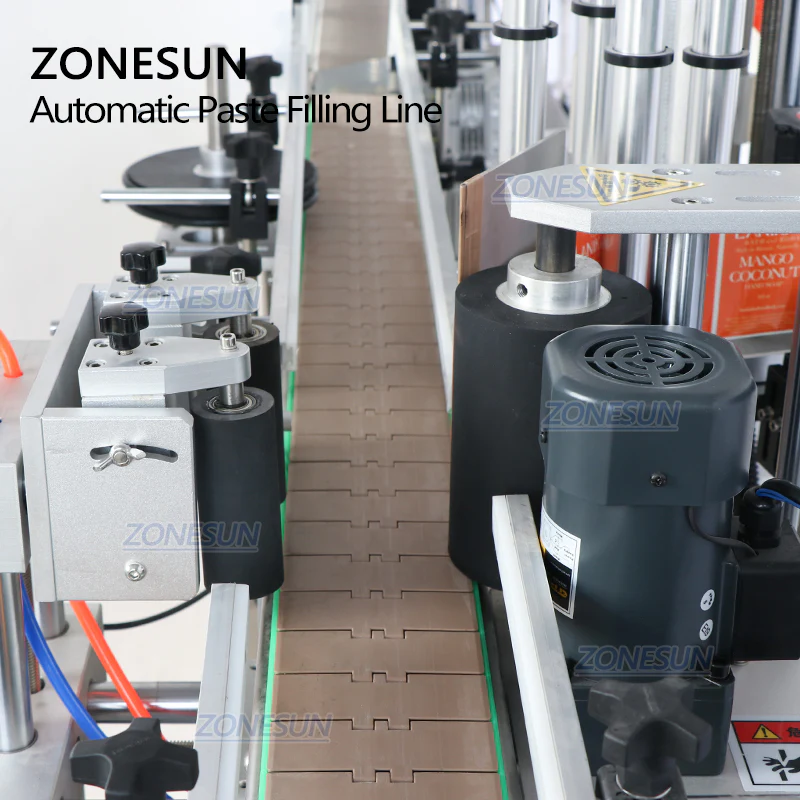

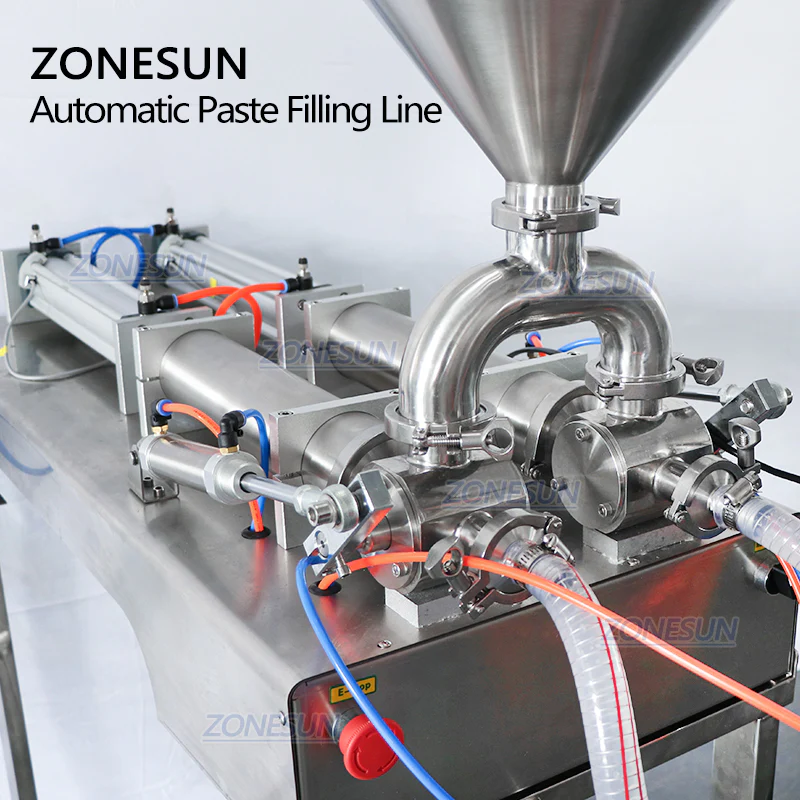

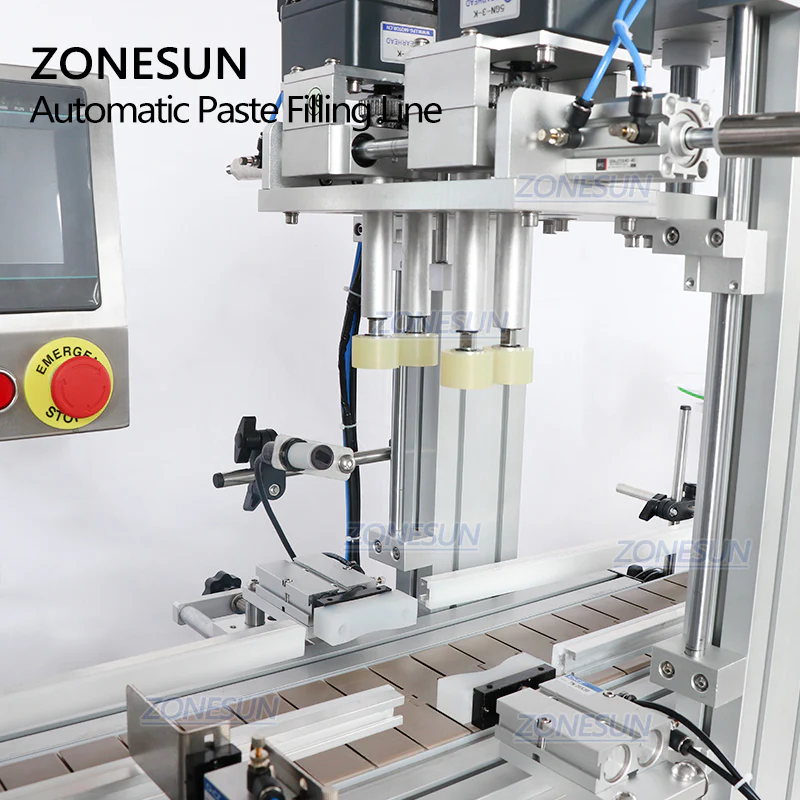

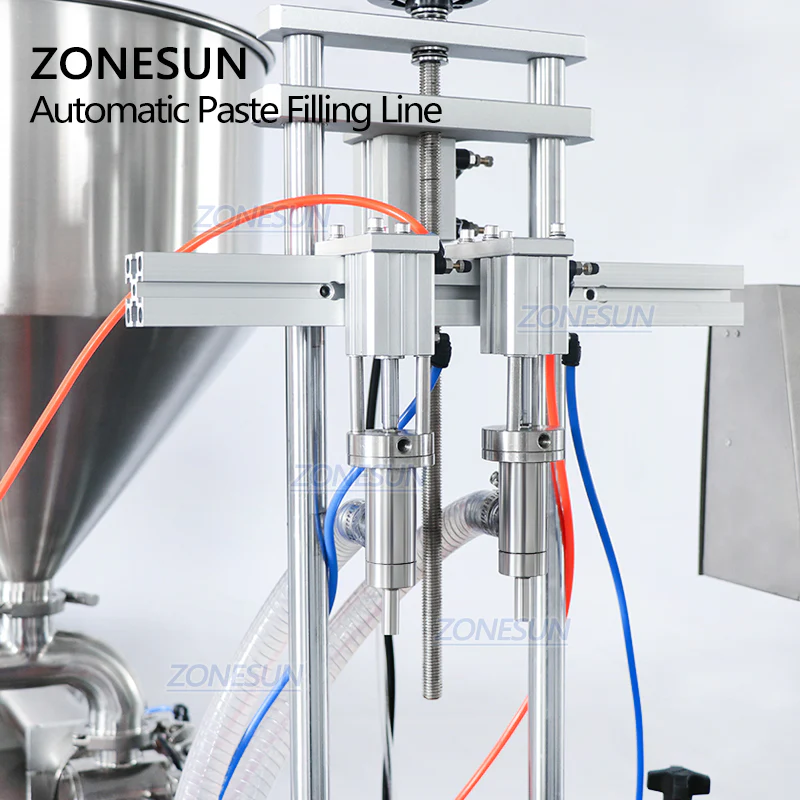

The ZONESUN ZS-FAL180R10 is a fully automatic production line designed for filling, capping, and labeling round bottles with viscous liquids such as honey, gel, cream, and glue. Equipped with two pneumatic filling heads, each nozzle’s speed and volume can be independently controlled for precise dosing. The system features intelligent electric eye detection for accurate bottle positioning, a high-quality capping head compatible with various cap shapes, and a labeling unit that supports single or double-sided labeling. Ideal for pharmaceutical, cosmetic, and daily chemical industries, this compact line boosts efficiency while maintaining high accuracy and flexibility.
Semi-Automatic Liquid Filling Machine Specifications – Model ZS-GY2C
Specification Details
Model ZS-GY2C
Voltage Supply 220V / 110V, 50/60Hz
Power 130W
Filling Accuracy ±0.5%
Filling Speed 10–20 bottles/min
Filling Volume Options 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (select as needed)
Conveyor Size (L×W) 2000 × 100 mm
Filling Nozzle Diameter Φ10 mm
Working Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥0.1 m³/min
Automatic Capping Machine Specifications – Model ZS-XG16
Specification Details
Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector OD 8 mm
Machine Size (L×W×H) Approx. 1930 × 740 × 1850 mm
Packing Size (L×W×H) Approx. 2000 × 820 × 1700 mm
Net Weight / Gross Weight Approx. 113 kg / 132 kg
Round Bottle Labeling Machine Specifications – Model ZS-TB260
Specification Details
Model ZS-TB260
Power Supply AC 220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm<br>Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Size (L×W) 1950 × 100 mm
Machine Size (L×W×H) Approx. 2000 × 1400 × 1300 mm
Packing Size (L×W×H) Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
The ZONESUN ZS-FAL180R10 is a fully automatic production line designed for filling, capping, and labeling round bottles with viscous liquids such as honey, gel, cream, and glue. Equipped with two pneumatic filling heads, each nozzle’s speed and volume can be independently controlled for precise dosing. The system features intelligent electric eye detection for accurate bottle positioning, a high-quality capping head compatible with various cap shapes, and a labeling unit that supports single or double-sided labeling. Ideal for pharmaceutical, cosmetic, and daily chemical industries, this compact line boosts efficiency while maintaining high accuracy and flexibility.
Semi-Automatic Liquid Filling Machine Specifications – Model ZS-GY2C
Specification Details
Model ZS-GY2C
Voltage Supply 220V / 110V, 50/60Hz
Power 130W
Filling Accuracy ±0.5%
Filling Speed 10–20 bottles/min
Filling Volume Options 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (select as needed)
Conveyor Size (L×W) 2000 × 100 mm
Filling Nozzle Diameter Φ10 mm
Working Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥0.1 m³/min
Automatic Capping Machine Specifications – Model ZS-XG16
Specification Details
Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector OD 8 mm
Machine Size (L×W×H) Approx. 1930 × 740 × 1850 mm
Packing Size (L×W×H) Approx. 2000 × 820 × 1700 mm
Net Weight / Gross Weight Approx. 113 kg / 132 kg
Round Bottle Labeling Machine Specifications – Model ZS-TB260
Specification Details
Model ZS-TB260
Power Supply AC 220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm<br>Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Size (L×W) 1950 × 100 mm
Machine Size (L×W×H) Approx. 2000 × 1400 × 1300 mm
Packing Size (L×W×H) Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
Original: $11,489.00
-70%$11,489.00
$3,446.70Description
The ZONESUN ZS-FAL180R10 is a fully automatic production line designed for filling, capping, and labeling round bottles with viscous liquids such as honey, gel, cream, and glue. Equipped with two pneumatic filling heads, each nozzle’s speed and volume can be independently controlled for precise dosing. The system features intelligent electric eye detection for accurate bottle positioning, a high-quality capping head compatible with various cap shapes, and a labeling unit that supports single or double-sided labeling. Ideal for pharmaceutical, cosmetic, and daily chemical industries, this compact line boosts efficiency while maintaining high accuracy and flexibility.
Semi-Automatic Liquid Filling Machine Specifications – Model ZS-GY2C
Specification Details
Model ZS-GY2C
Voltage Supply 220V / 110V, 50/60Hz
Power 130W
Filling Accuracy ±0.5%
Filling Speed 10–20 bottles/min
Filling Volume Options 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (select as needed)
Conveyor Size (L×W) 2000 × 100 mm
Filling Nozzle Diameter Φ10 mm
Working Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥0.1 m³/min
Automatic Capping Machine Specifications – Model ZS-XG16
Specification Details
Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depends on bottle & cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector OD 8 mm
Machine Size (L×W×H) Approx. 1930 × 740 × 1850 mm
Packing Size (L×W×H) Approx. 2000 × 820 × 1700 mm
Net Weight / Gross Weight Approx. 113 kg / 132 kg
Round Bottle Labeling Machine Specifications – Model ZS-TB260
Specification Details
Model ZS-TB260
Power Supply AC 220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm<br>Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Size (L×W) 1950 × 100 mm
Machine Size (L×W×H) Approx. 2000 × 1400 × 1300 mm
Packing Size (L×W×H) Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
