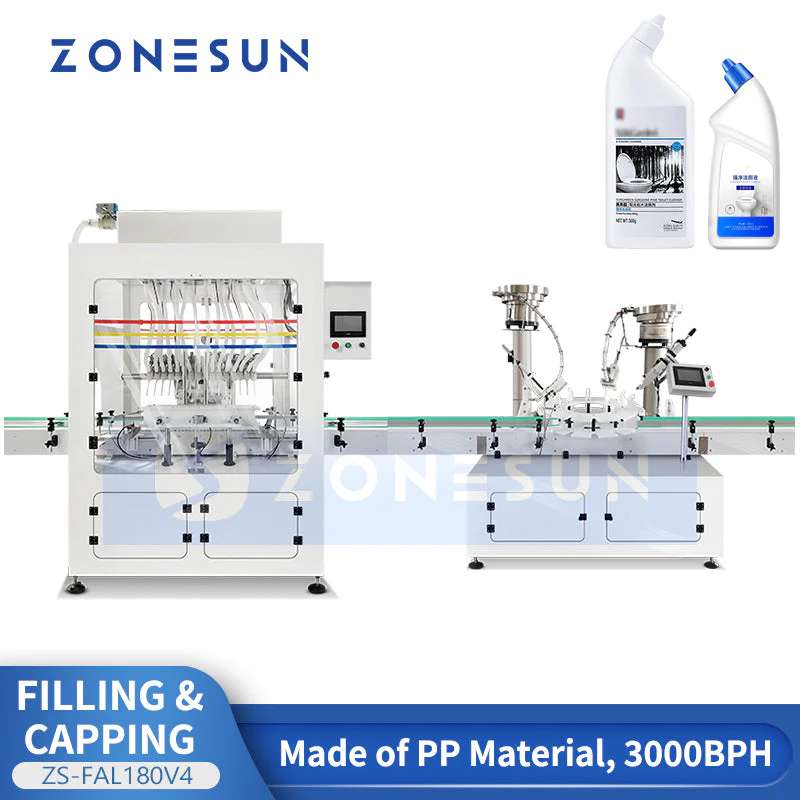

ZONESUN ZS-FAL180V4 Automatic Corrosive Liquid Filling and Capping Machine High Speed Angle Neck Bottles Production Line
Description
This packaging system is consist of 16 heads liquid filling machine and angle neck bottle capping machine, it is designed for packaging corrosive liquid like toilet cleaner. This packaging system can reach 3000 BPH, suits small & medium scale production.
Filling Machine Parameters
- Machine model: ZS-YTCR16C
- Machine voltage: 220/380V 50-60HZ 2.4 KW
- Filling volume: 10 ml-5 L(customizable)
- Suitable bottle size: Customizable
- Suitable bottle neck: φ30 mm+
- Filling nozzle quantity: 4/6/8/10/12/14/16(customizable)
- Working capacity: 3200 BPH(based on 500 ml)
- Filling accuracy: ±0.3%
- Machine main material: PP
- Air pressure: 0.6-0.8 MPa
- Machine size: About 2100*1100*800 mm
- Machine weight: About 800 kg
Capping Machine Parameters
- Machine model: ZS-XG25V
- Machine voltage: 220/380V 50-60HZ 2.4 KW
- Suitable bottle size: customizable
- Working capacity: 50-80 BPH
- Suitable bottle neck: φ30 mm+
- Machine main material: PP
- Air pressure: 0.6-0.8MPa
- Machine size: About 1700*1300*1650 mm
- Machine weight: About 500 kg

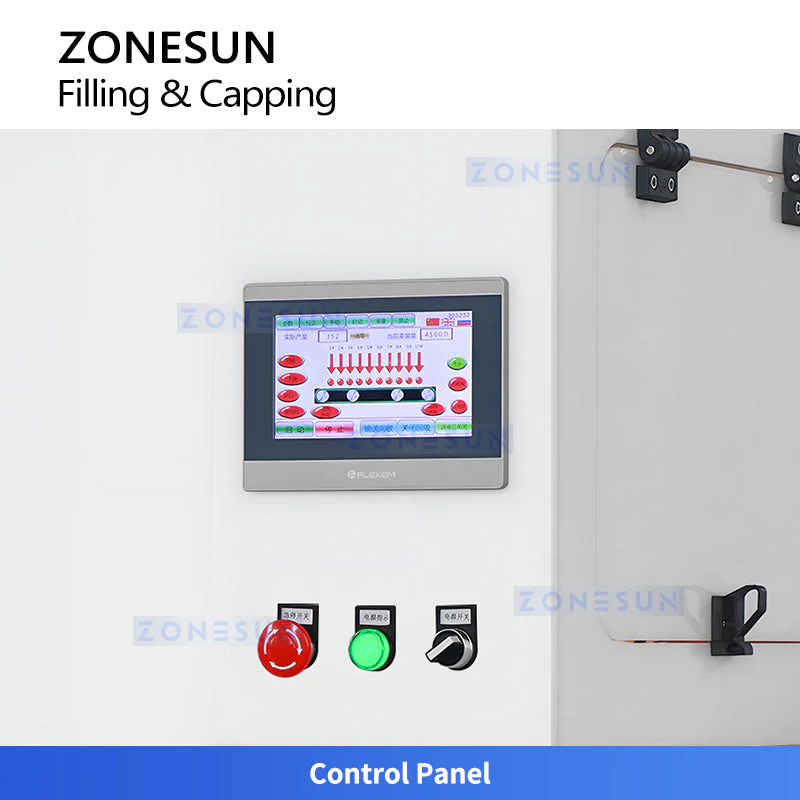

Control Panel

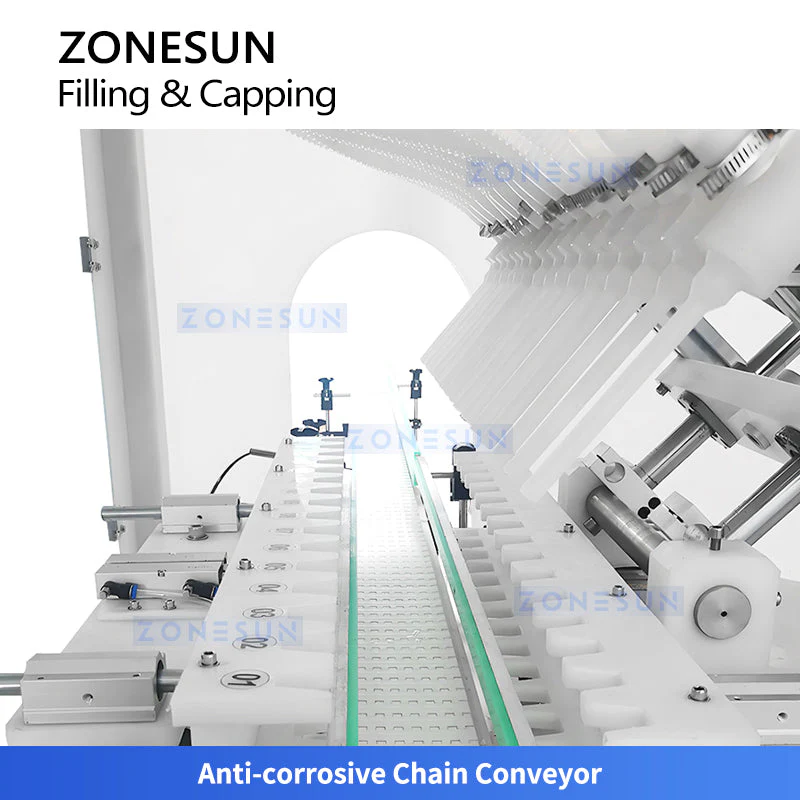

Anti-corrosiver Chain Conveyor

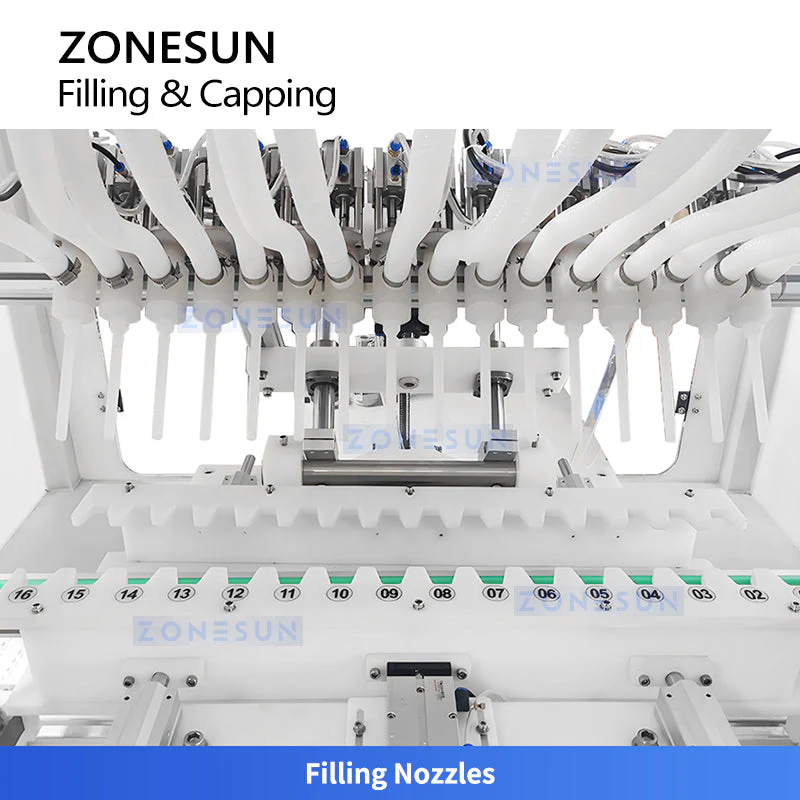

Filling Nozzles
Description
This packaging system is consist of 16 heads liquid filling machine and angle neck bottle capping machine, it is designed for packaging corrosive liquid like toilet cleaner. This packaging system can reach 3000 BPH, suits small & medium scale production.
Filling Machine Parameters
- Machine model: ZS-YTCR16C
- Machine voltage: 220/380V 50-60HZ 2.4 KW
- Filling volume: 10 ml-5 L(customizable)
- Suitable bottle size: Customizable
- Suitable bottle neck: φ30 mm+
- Filling nozzle quantity: 4/6/8/10/12/14/16(customizable)
- Working capacity: 3200 BPH(based on 500 ml)
- Filling accuracy: ±0.3%
- Machine main material: PP
- Air pressure: 0.6-0.8 MPa
- Machine size: About 2100*1100*800 mm
- Machine weight: About 800 kg
Capping Machine Parameters
- Machine model: ZS-XG25V
- Machine voltage: 220/380V 50-60HZ 2.4 KW
- Suitable bottle size: customizable
- Working capacity: 50-80 BPH
- Suitable bottle neck: φ30 mm+
- Machine main material: PP
- Air pressure: 0.6-0.8MPa
- Machine size: About 1700*1300*1650 mm
- Machine weight: About 500 kg
Control Panel
Anti-corrosiver Chain Conveyor
Filling Nozzles
Original: $37,999.00
-70%$37,999.00
$11,399.70Description
Description
This packaging system is consist of 16 heads liquid filling machine and angle neck bottle capping machine, it is designed for packaging corrosive liquid like toilet cleaner. This packaging system can reach 3000 BPH, suits small & medium scale production.
Filling Machine Parameters
- Machine model: ZS-YTCR16C
- Machine voltage: 220/380V 50-60HZ 2.4 KW
- Filling volume: 10 ml-5 L(customizable)
- Suitable bottle size: Customizable
- Suitable bottle neck: φ30 mm+
- Filling nozzle quantity: 4/6/8/10/12/14/16(customizable)
- Working capacity: 3200 BPH(based on 500 ml)
- Filling accuracy: ±0.3%
- Machine main material: PP
- Air pressure: 0.6-0.8 MPa
- Machine size: About 2100*1100*800 mm
- Machine weight: About 800 kg
Capping Machine Parameters
- Machine model: ZS-XG25V
- Machine voltage: 220/380V 50-60HZ 2.4 KW
- Suitable bottle size: customizable
- Working capacity: 50-80 BPH
- Suitable bottle neck: φ30 mm+
- Machine main material: PP
- Air pressure: 0.6-0.8MPa
- Machine size: About 1700*1300*1650 mm
- Machine weight: About 500 kg
Control Panel
Anti-corrosiver Chain Conveyor
Filling Nozzles
