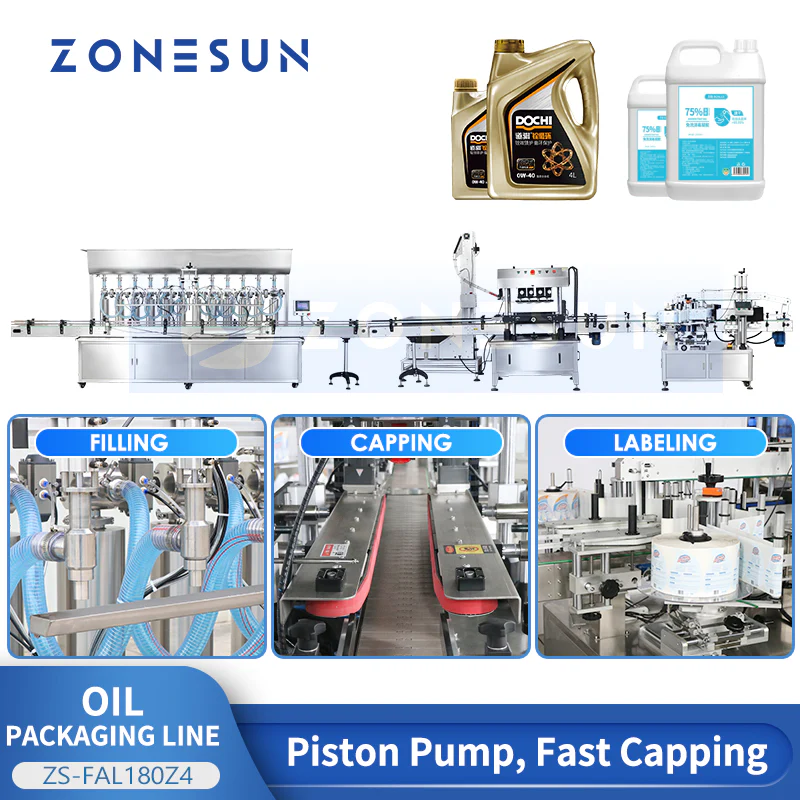

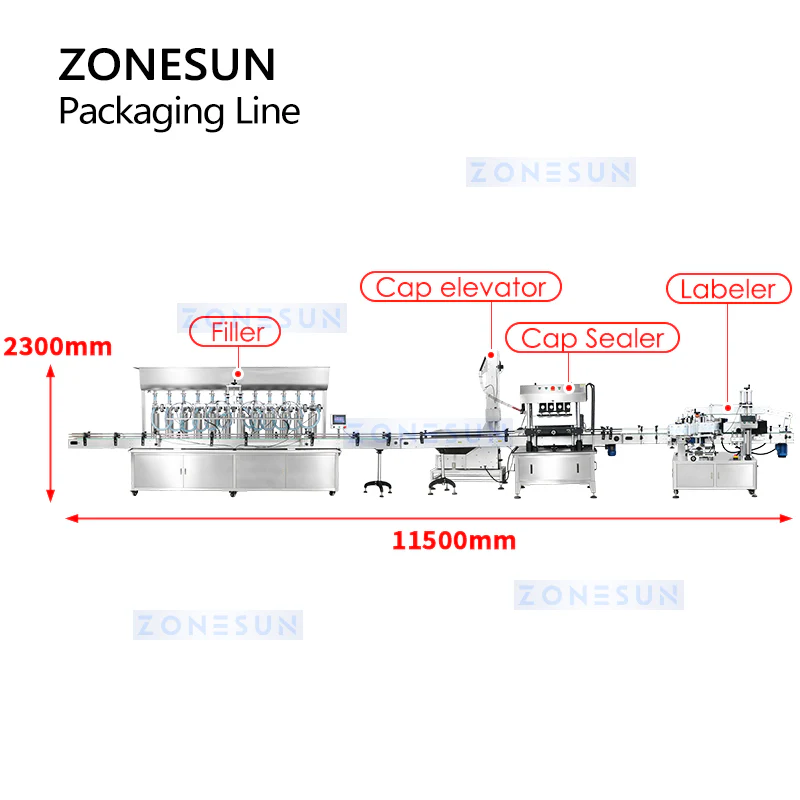

The ZS-FAL180Z4 is a complete oil packaging line tailored for 5-liter bottles. It features piston pump filling, automatic cap feeding via elevator, and high-speed capping with 8 rubber wheels. Designed for both round and flat bottles, it supports single or double labeling for versatile presentation. Ideal for edible oil, lubricants, and other viscous liquids, this system ensures precision, speed, and adaptability in industrial packaging.

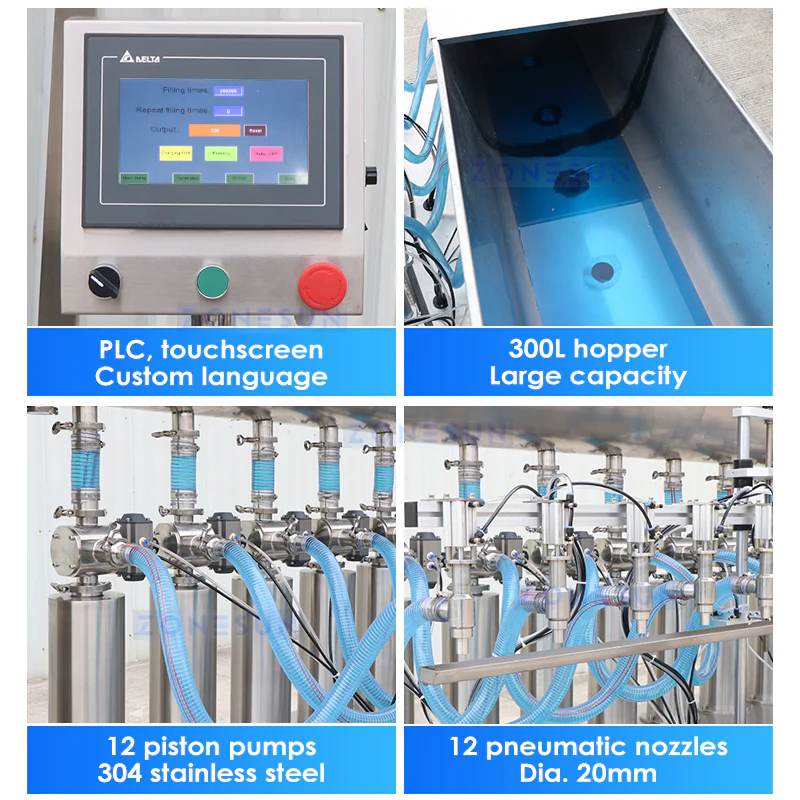

Filling Machine

• Machine model：ZS-YT12T-12PX

• Voltage：110/220V 50-60HZ 1KW

• Filling range：1000-5000ml (Customizable)

• Working speed：24-36 bottles/min (based on 5000ml)

• Hopper：Approx. 300L

• Air pressure：0.6-0.8MPa

• Filling Nozzle：12 pneumatic nozzles, dia. 20mm

• Pump：12 Piston pumps, 304 stainless steel

• Conveyor：Length: 4m, Width: 152mm

• Machine size：Approx. 5300*2100*1480mm(L*W*H)

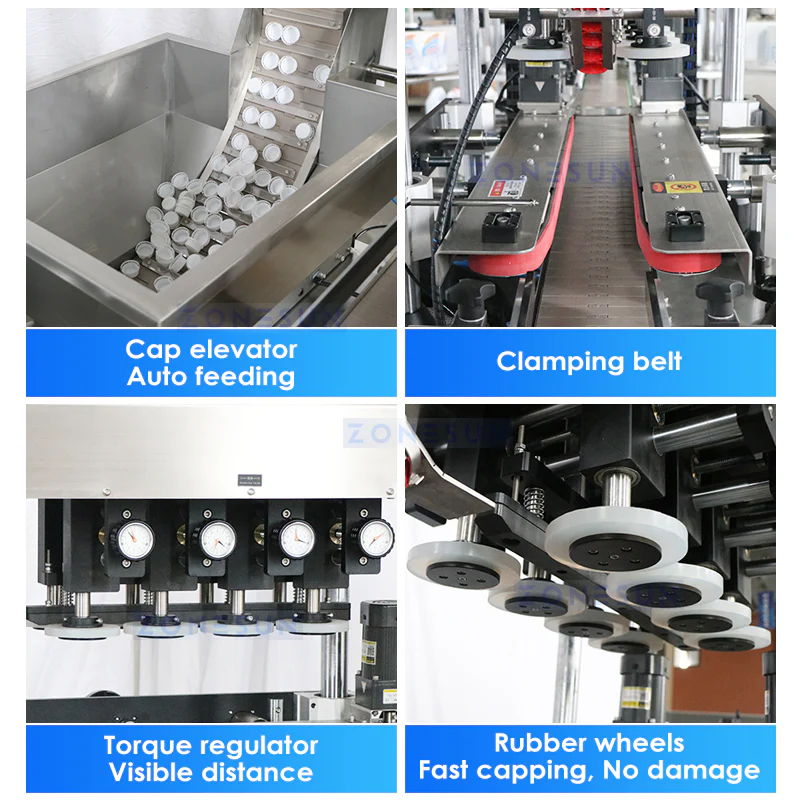

Capping Machine

• Machine Model：ZS-XG440B
• Voltage：220V/110V 50-60Hz

• Power：2KW

• Production Capacity：3000-5000bottles/h (Depending on bottle and cap size)

• Suitable Bottle Diameter：35-120mm (Customizable)

• Suitable Bottle Height：60-200mm (Customizable)

• Machine Size：Approx. 2000*900*1600mm

• Package Size：Approx. 2100*1100*1800mm

• Machine Weight：Approx. 300kg

Labeling Machine

• Machine Model：ZS-TB300B

• Labeling capacity：60-350 bottles/min (Depending on the bottle size)

• Labeling material thickness：20-120mm

• Labeling material height：30-350mm

• Label size：(L)25- 300mm (H)15-200mm

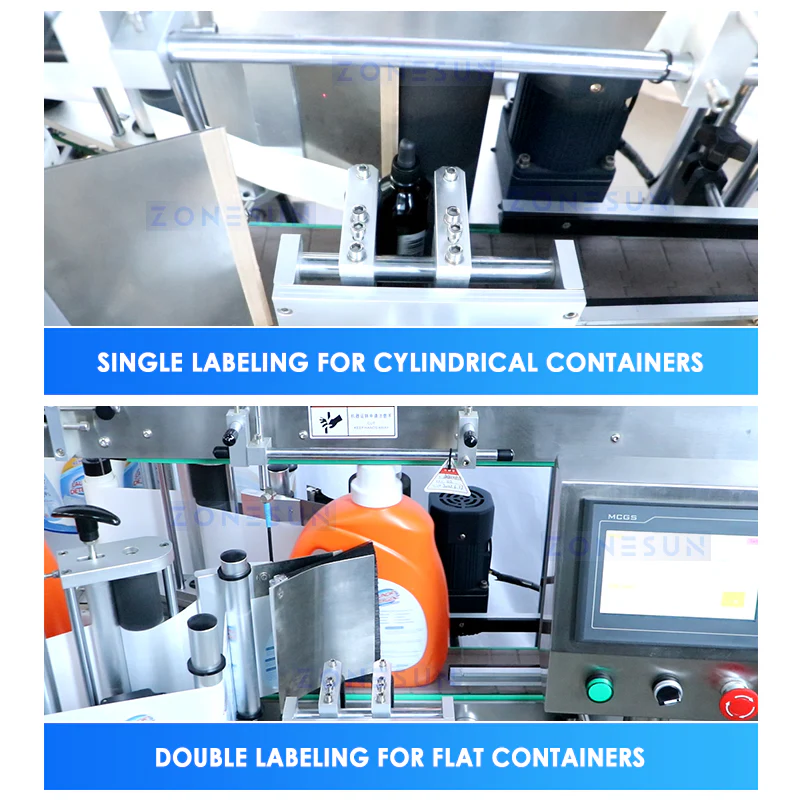

• Round Bottle：Single & Double Side

• Flat Bottle：Double Side

• Roll inside：Φ76mm

• Roll outside diameter：Φ350mm

• Machine size：Approx. 2120*940*1500mm
