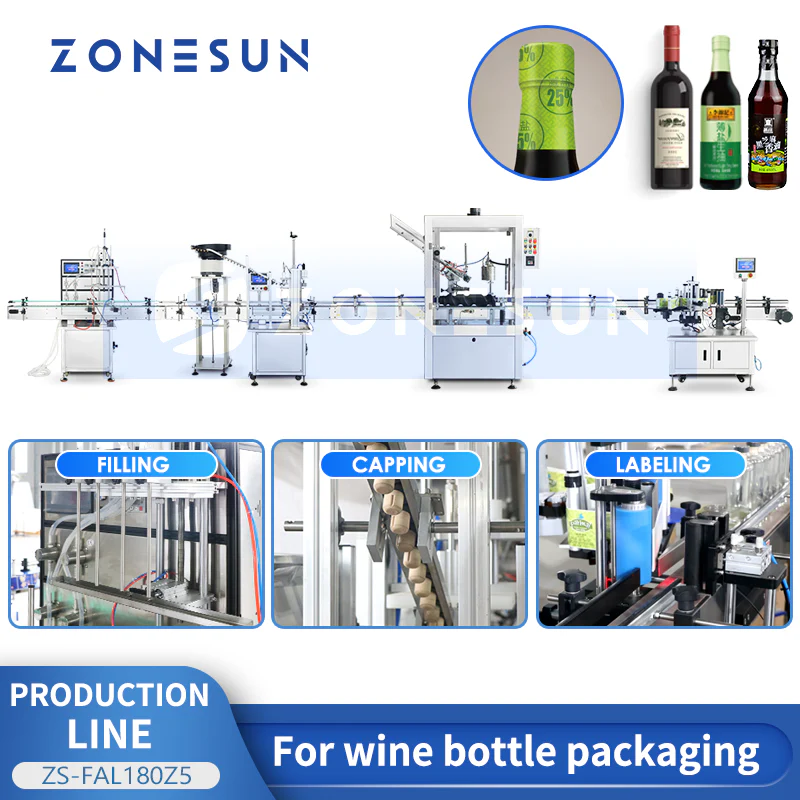

ZONESUN ZS-FAL180Z5 Wine Bottle Filling Capping Shrinking Labeling Line

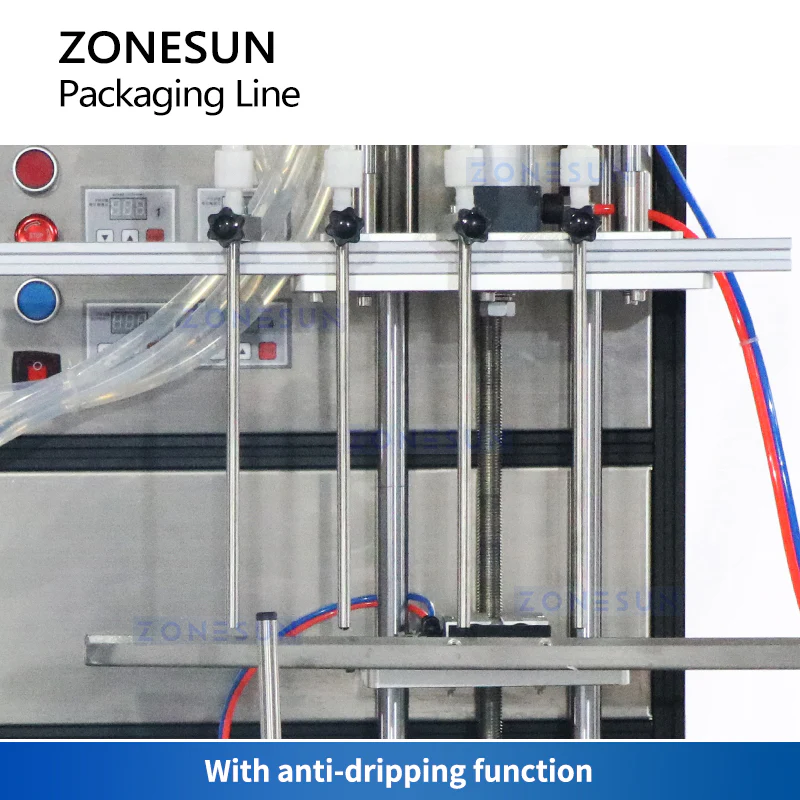

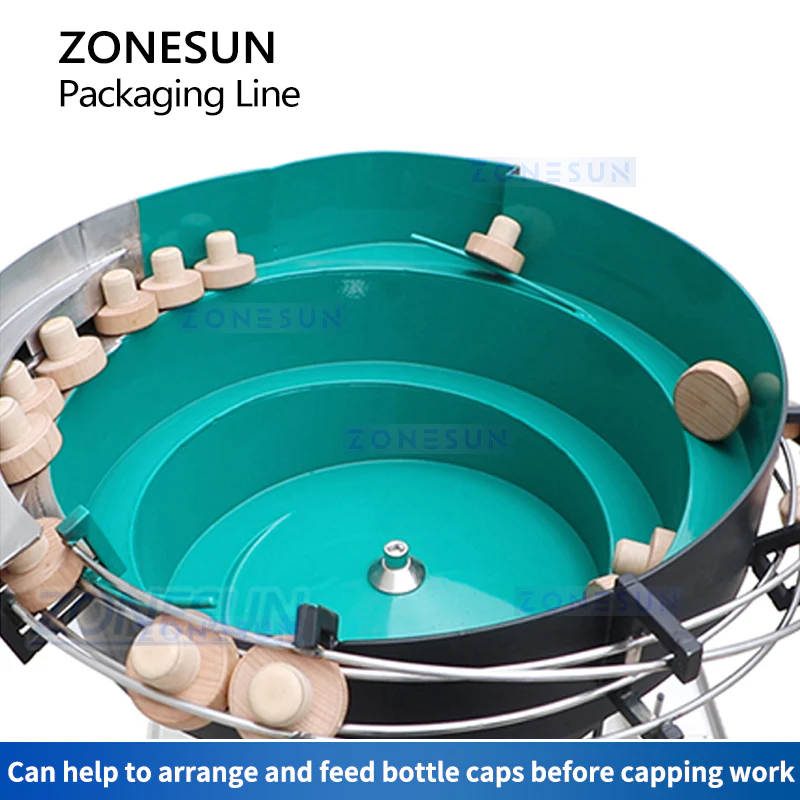

The ZS-FAL180Z5 is a fully automatic wine bottle packaging line designed for precision, efficiency, and elegance. Featuring diving nozzles to reduce foam, a vibratory bowl for cap sorting, and automated capsule shrinking, this system ensures smooth operation from start to finish. The labeling unit applies wrinkle-free labels with high accuracy, delivering a premium look for every bottle. Ideal for wineries and beverage manufacturers seeking a complete, labor-saving solution.
PARAMETER
|
FILLING MACHINE |
|||
|
Machine model |
ZS-VTMP80C |
||
|
Power supply |
110/220V 50-60HZ 2000W |
||
|
Container size |
φ20-160mm H30-300mm |
||
|
Max flow rate |
6000ml/min |
7500ml/min |
12000ml/min |
|
Material of pump |

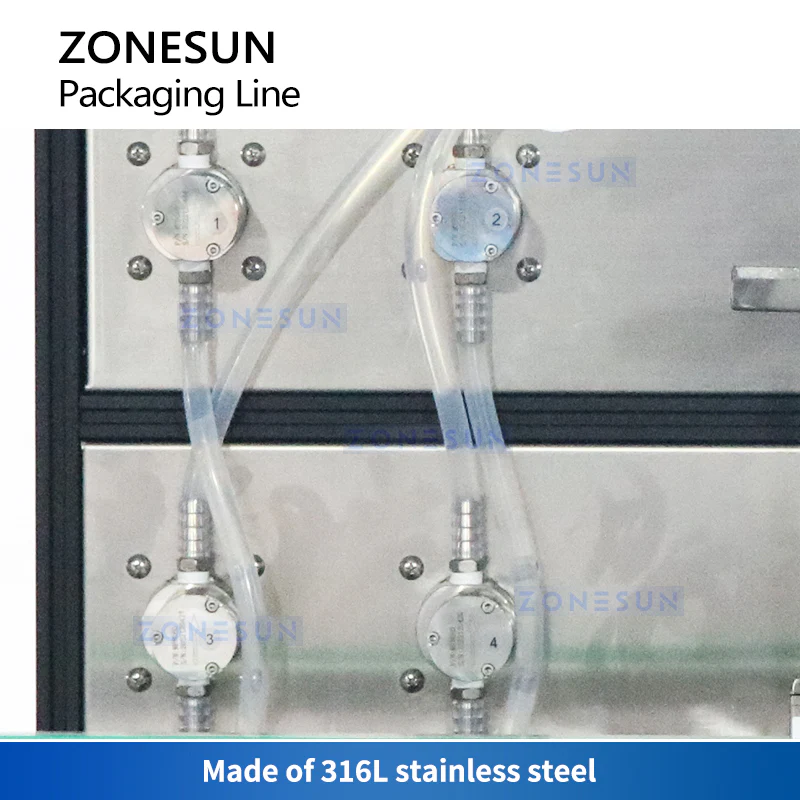

316stainless steel magnetic pump |
||
|
Filling accuracy |
≤100ml deviation≤±1ml |
||
|
Filling speed |
20-50pcs/min |
25-60pcs/min |
40-65pcs/min |
|
|
(depending on bottles and filling liquid) |
||
|
Power supply |
220V-50HZ/110V-60HZ |
||
|
Size of air compressor connector |
OD8mm |
||
|
Packing weight |
About 150kg |
||
|
Packing size |
About 2000*820*1580mm |
||
|
CAPPING MACHINE |
|
|
Machine Model |
ZS-XG16D3 |
|
Working Voltage |
AC220V/110V 50-60HZ |
|
Bottle Height |
30-300mm |
|
Bottle Caps Diameter |
18-70mm |
|
Bottle Diameter |
30-100mm |
|
Working Speed |
20-30 bottles/minute(depending on bottle and caps) |
|
Working Pressure |
0.4-0.6 MPa |
|
Size Of Air Compressor Connector |
OD 8mm |
|
Conveyor Length |
115mm(W)*1020mm(L) |
|
Machine Size |
About 2190*950*1860mm |
|
HEAT SHRINKING MACHINE |
|
|
Machine Model |
ZS-SXRS1 |
|
Power Supply |
110/220/380V 50-60HZ 4KW |
|
Bottle Height |
180-350mm |
|
Wine Capsule Size |
L=30-70mm D=30-50mm |
|
Bottle Diameter |
60-100mm |
|
Working Capacity |
2000BPH |
|
Temperature Range |
0-300℃ |
|
Size Of Air Compressor Connector |
OD 8mm |
|
Machine Size |
About 2190*950*1860mm |
|
Package Size |
About 1850*1120*2180mm |
|
Package Weight |
About 483kg |
|
LABELING MACHINE |
|
|
Model |
ZS-TB260R |
|
Power supply |
AC220V 50Hz/60Hz 1000W |
|
Labeling capacity(bottles/min) |
25-50 bottles/min(depends on bottle size) |
|
Labeling accuracy(mm) |
±1.0mm |
|
Suitable bottle Diameter |
Φ12-100mm |
|
Label size(mm) |
(L)20-300mm (H)15-150mm(Can be customized) |
|
Roll inside diameter(mm) |
Φ76mm |
|
Roll outside diameter(mm) |
Φ350mm |
|
Conveyor size |
112*2000mm(W) |
|
Machine size |
About (L)2000*(W)820*(H)1380(mm) |
|
Machine weight |
About 180kg |
|
Packing size |
About (L)2100*(W)890*(H)1520(mm) |
|
Package weight |
About 250kg |
The ZS-FAL180Z5 is a fully automatic wine bottle packaging line designed for precision, efficiency, and elegance. Featuring diving nozzles to reduce foam, a vibratory bowl for cap sorting, and automated capsule shrinking, this system ensures smooth operation from start to finish. The labeling unit applies wrinkle-free labels with high accuracy, delivering a premium look for every bottle. Ideal for wineries and beverage manufacturers seeking a complete, labor-saving solution.
