ZONESUN ZS-FAL180Z9 Automatic Granule Packaging Production Line
DESCRIPTION

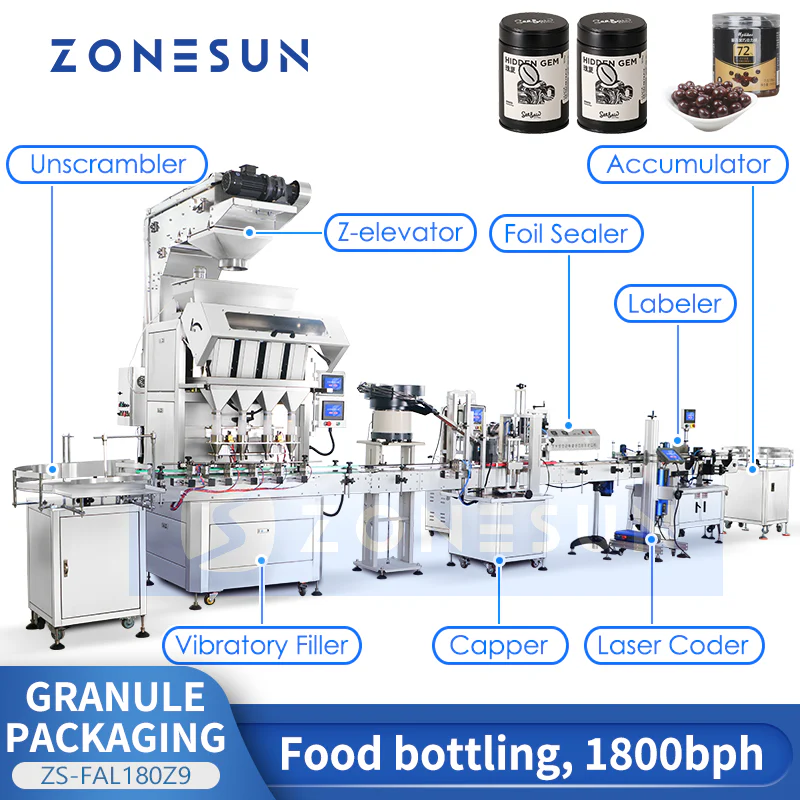

This is an automatic packaging line for granular products, integrating bottle unscrambling, material feeding, filling, capping, laser coding, foiling sealing, labeling, and accumulating processes.
Whatever your packaging needs are, you can rely on Zonesun.
Parameter - ZS-LP800
- Model: ZS-LP800
- Turntable Diameter: 800mm 10rpm
- Capacity: 2400–3600 bph
-
Suitable Bottle Size:
- Diameter: 20–100mm
- Height: 30–120mm
- Motor Power: 0.2kW
- Machine Size: 850 × 850 × 1500mm
- Machine Weight: 50kg

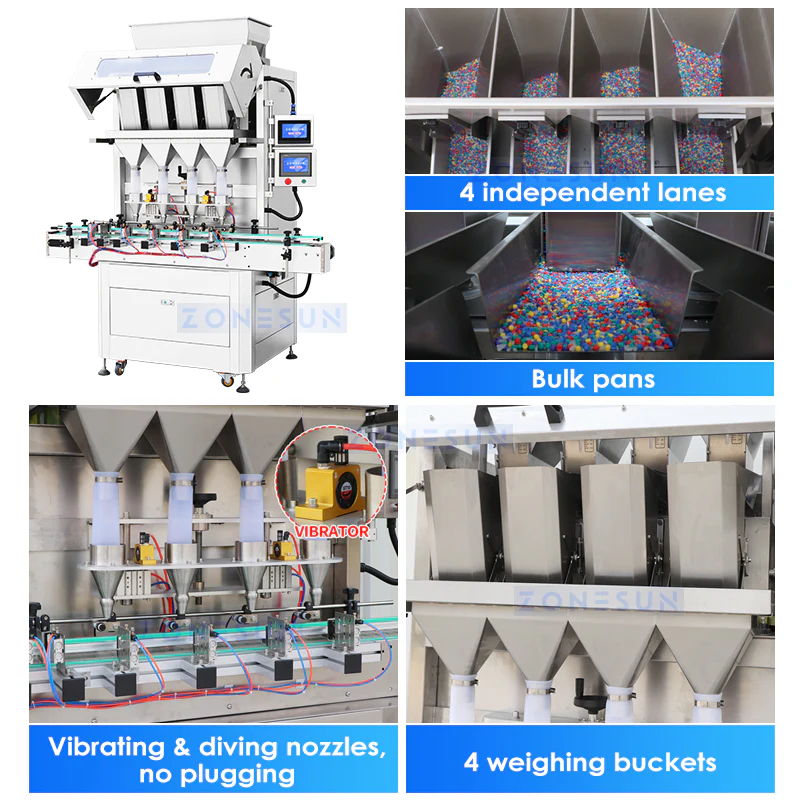

Parameter - ZS-GW5
- Model: ZS-GW5
- Voltage: 110V / 220V 50–60Hz
- Power: Approx. 3kW
- Working Speed: Approx. 20–30 bottles/min (depends on bottle size and filling material)
-
Weighing Range:
- 2–50g
- 10–100g
- 10–200g
- 10–300g
- 100–1000g (Other ranges optional)
- Weighing Error: ±1–2g (depends on filling range)
- Air Pressure: 0.4–0.6MPa
- Machine Size: Approx. 1950 × 1100 × 2270mm

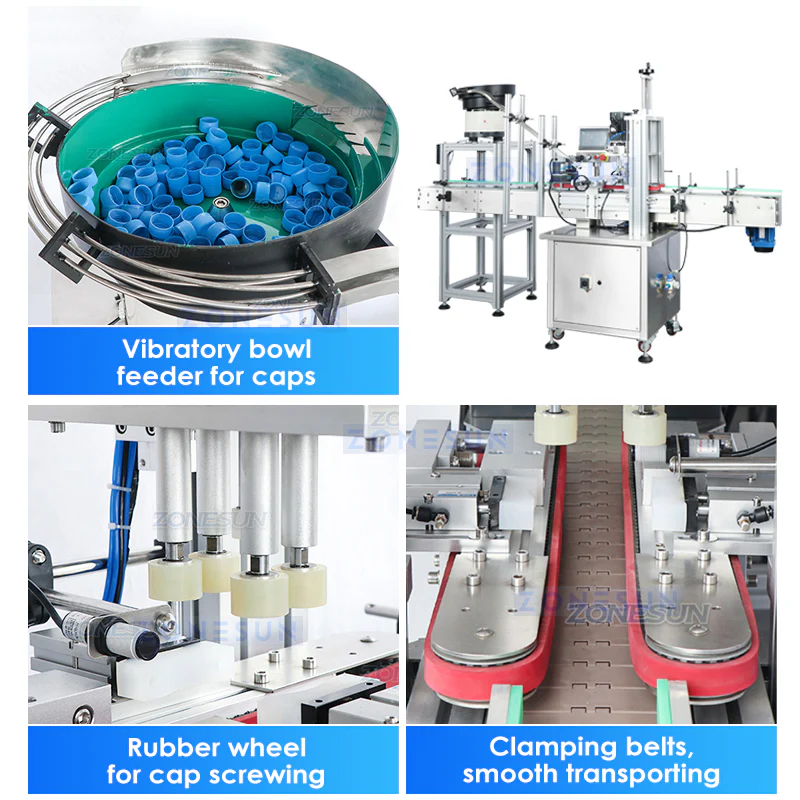

Parameter - ZS-XG16P
- Model: ZS-XG16P
- Bottle Height: 30–300mm
- Cap Diameter: 18–70mm
- Bottle Diameter: 20–160mm
- Working Speed: 20–60 bottles/min
- Voltage: AC220V / 110V 50–60Hz (depends on bottle and cap size/shape)
- Air Pressure: 0.4–0.6MPa
-
Machine Size:
- Main Machine: 2420 × 680 × 1700mm
- Vibratory Sorter: 500 × 500 × 1640mm
-
Machine Weight:
- Main Machine: 138kg
- Vibratory Sorter: 75kg
- Package Size: 1970 × 770 × 1790mm
- Gross Weight: 213kg

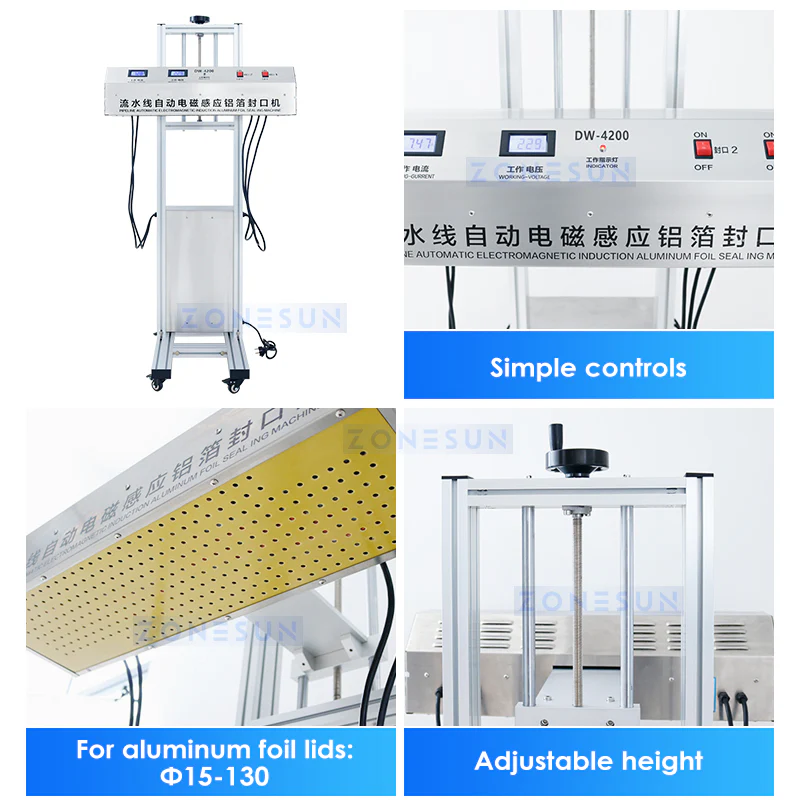

Parameter - ZS-FK4200V
- Model: ZS-FK4200V
- Power Supply: 220V 50Hz 4200W
-
Sealing Diameter Options:
- 15–60mm
- 20–70mm
- 35–85mm
- 50–120mm
- 60–130mm
- Sealing Speed: 0–260 bottles/min (depends on bottles and caps)
- Suitable Bottle Height: 10–380mm
- Machine Size: 700 × 690 × 1450mm
- Machine Weight: 43kg
- Package Size: 850 × 650 × 1590mm
- Package Weight: 92kg
