DESCRIPTION

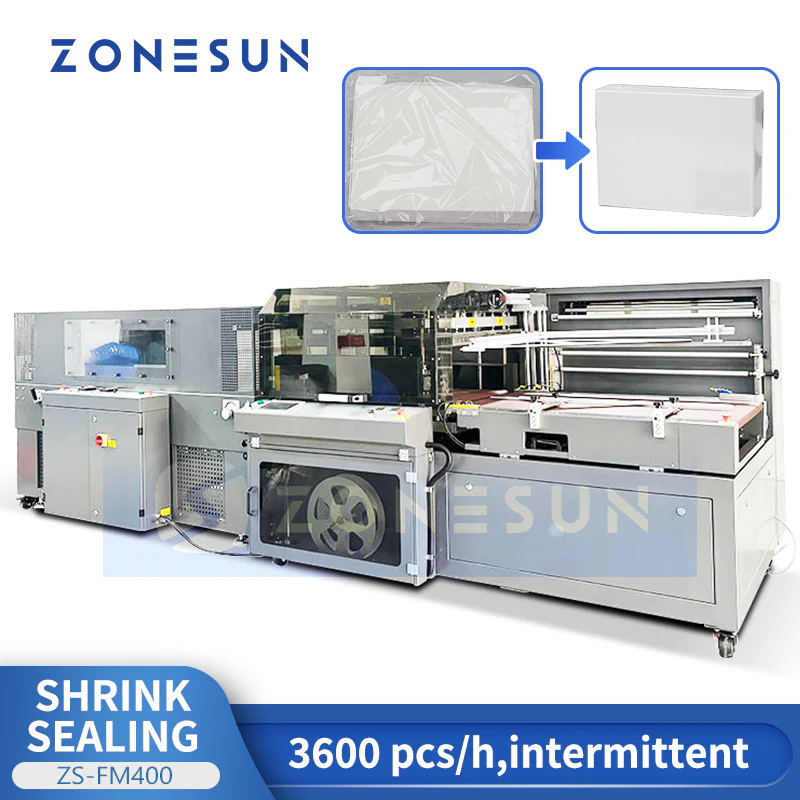

The ZONESUN ZS-FM400 is a high-speed automatic shrink wrap machine designed to streamline packaging operations with precision and reliability. It integrates product conveying, film wrapping, sealing, and cutting into a unified process, followed by a shrink tunnel that delivers a clean, secure finish. With a production capacity of up to 3600 pieces per hour, this system is ideal for businesses aiming to enhance packaging efficiency and scale up output without compromising quality.

 ZS-FM400 Parameter

• Model: ZS-FM400
• Packaging Speed: 3600 pcs/h
• Working Pressure: 80 psi / 6 kg/cm²
• Sealing Knife Size: 400 mm
• Packaging Product Range: ≥100(L) × 50–320(W) × 5–120(H) mm
• Power & Power Type: 1P / 220V / 50Hz / 1.3KW
• Net Weight: 530 kg
• Machine Size: 1800 × 940 × 1670 mm
• Maximum Film Width: 320 mm
• Packaging Film Material: POF

ZS-FM500 Parameter

• Model: ZS-FM500
• Packaging Speed: 3600 pcs/h
• Working Pressure: 80 psi / 6 kg/cm²
• Sealing Knife Size: 530 mm
• Packaging Product Range: ≥100(L) × 50–420(W) × 5–220(H) mm
• Power & Power Type: 1P / 220V / 50Hz / 2.5KW
• Net Weight: 880 kg
• Machine Size: 1810 × 1652 × 1343 mm
• Maximum Film Width: 420 mm
• Packaging Film Material: POF

ZS-FM800 Parameter

• Model: ZS-FM800
• Packaging Speed: 3600 pcs/h
• Working Pressure: 80 psi / 6 kg/cm²
• Sealing Knife Size: 840 mm
• Packaging Product Range: ≥100(L) × 300–700(W) × 5–220(H) mm
• Power & Power Type: 1P / 220V / 50Hz / 3.8KW
• Net Weight: 1200 kg
• Machine Size: 2245 × 2185 × 1483 mm
• Maximum Film Width: 700 mm
• Packaging Film Material: POF

ZS-FM1100 Parameter

• Model: ZS-FM1100
• Packaging Speed: 7200 pcs/h
• Working Pressure: 80 psi / 6 kg/cm²
• Sealing Knife Size: 1140 mm
• Packaging Product Range: ≥300(L) × 500–1020(W) × 5–220(H) mm
• Power & Power Type: 1P / 220V / 50Hz / 3.8KW
• Net Weight: 1500 kg
• Machine Size: 2530 × 2765 × 1490 mm
• Maximum Film Width: 1020 mm
• Packaging Film Material: POF
