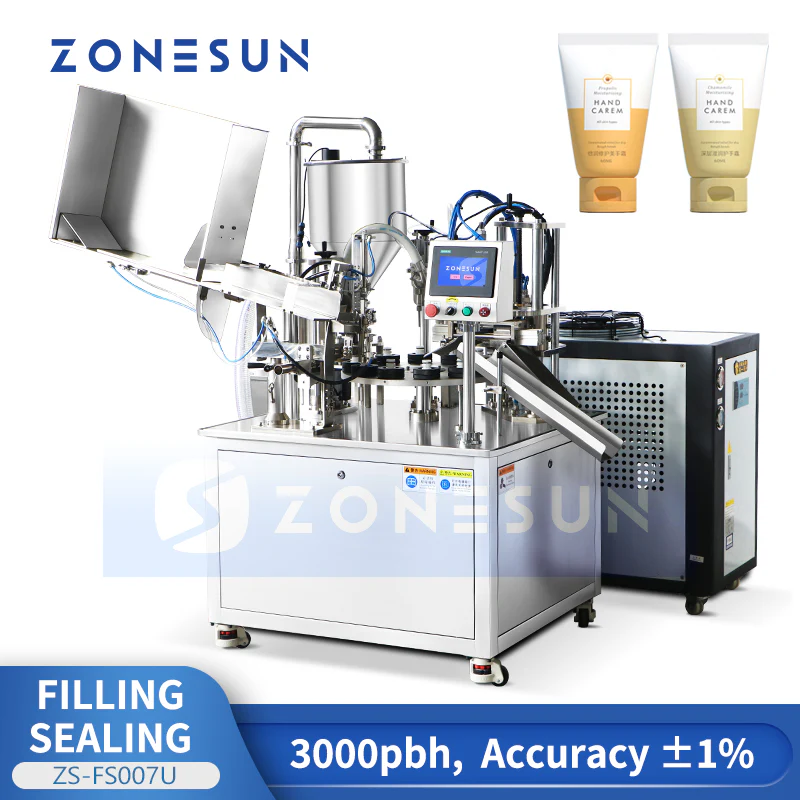

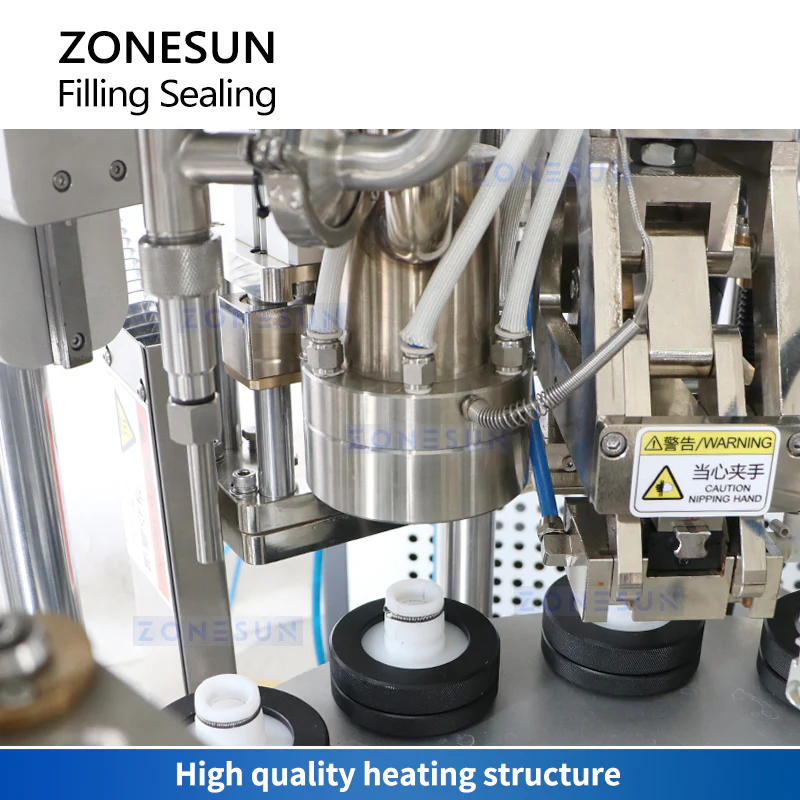

The ZONESUN ZS-FS007U Automatic Tube Filling and Sealing Machine is designed for high-precision, high-speed packaging of cosmetic creams, gels, and other semi-viscous products. Compatible with plastic and composite soft tubes ranging from Φ16–Φ50mm in diameter and up to 220mm in length, it offers adjustable filling capacities from 4ml to 300ml. The servo piston filling system ensures ±1% accuracy, while the integrated heat sealing unit delivers clean, secure seals. With a production rate of 20–50 tubes per minute, this machine boosts efficiency and consistency for manufacturers of hand creams, lotions, and pharmaceutical pastes. Compact, powerful, and reliable—perfect for scaling up your tube packaging line.

TECHNICAL SPECIFICATIONS

• Model: ZS-FS007U
• Voltage: 110/220V, 50–60Hz, 4.5KW
• Tube Material: Plastic soft tube, Composite soft tube
• Tube Diameter: Φ16–Φ50mm
• Tube Length: 80–220mm (Customizable)
• Filling Capacity:
• 4–30ml / 30–150ml / 50–300ml (Optional, adjustable)

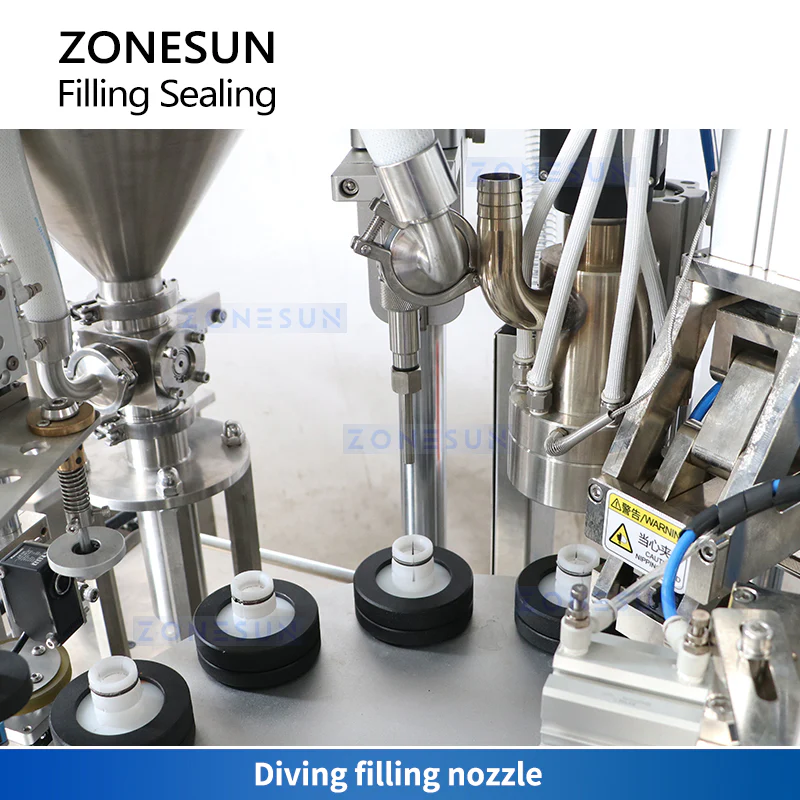

• Filling Method: Servo piston filling
• Filling Accuracy: ±1%
• Production Efficiency: 20–50 pieces/min (varies by volume and material)
• Working Air Pressure: 0.6–0.8MPa
• Heat Sealing Power: 3.3KW
• Machine Size (L×W×H): Approx. 1050 × 550 × 1070mm
• Package Size:
• Main Machine: Approx. 1720 × 1110 × 2030mm
• Cooling Machine: Approx. 460 × 440 × 1230mm
• Package Weight:
• Main Machine: Approx. 760kg
• Cooling Machine: Approx. 37kg
