ZONESUN ZS-FS009U Automatic Soft Tube Paste Filling Ultrasonic Sealing Machine
DESCRIPTION

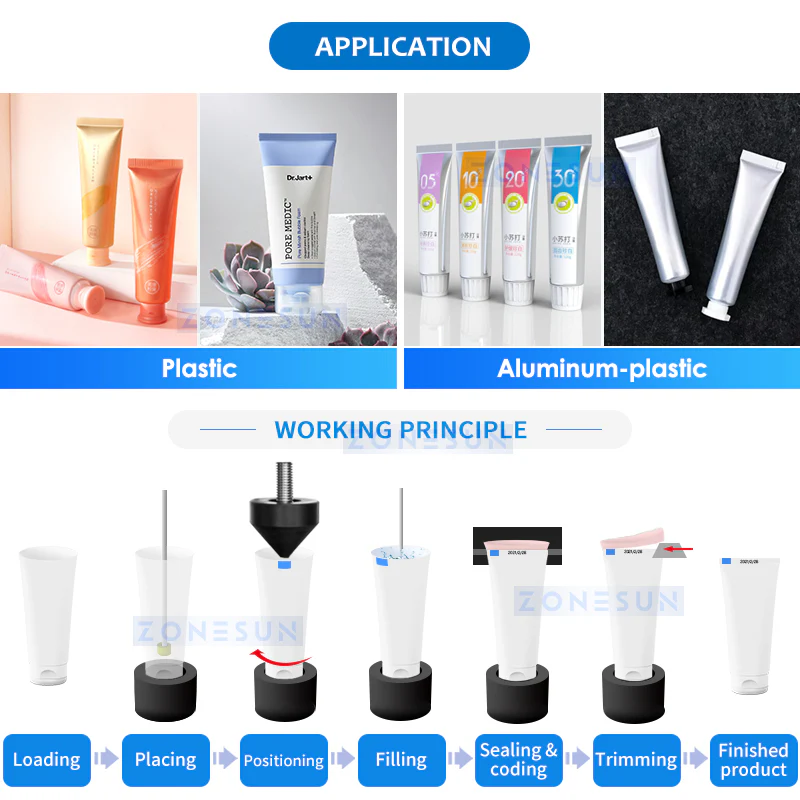

Introducing our new automatic tube filling and sealing machine! Equipped with a tube loading station and pick and place station, the machine efficiently transfers tubes to the tube orient station where color-coded identification ensures accurate positioning. The filling station features a piston pump and material hopper, while the sealing station uses ultrasonic technology to cut and code each tube with a unique production date. Then the pneumatic trim station is where the top of the tube is trimmed to create a clean and professional finish. Finally, the unload station releases finished tubes from the star wheel. Save time and increase productivity with our reliable and user-friendly machine.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model：ZS-FS009U
- Voltage：220V/110V, 50/60Hz
- Power：2.6kW
- Hopper Capacity：30L
- Filling Range：6-60ml/10-120ml/25-250ml
- Filling Accuracy：±1-2%
- Capacity：18-28pcs/min
- Tube Diameter：16-50mm
- Tube Height：70-210mm
- Cutting Method：Ultrasonic, 20kHz
- Air Pressure：0.6Mpa
- Application：Aluminum-plastic soft tube, plastic soft tube
- Machine Material：Stainless Steel
- Net Weight/Gross Weight：About 450kg/555kg
- Machine Size：About 1615*1400*1590mm
- Package Size：About 1610*1760*1860mm
DESCRIPTION
Introducing our new automatic tube filling and sealing machine! Equipped with a tube loading station and pick and place station, the machine efficiently transfers tubes to the tube orient station where color-coded identification ensures accurate positioning. The filling station features a piston pump and material hopper, while the sealing station uses ultrasonic technology to cut and code each tube with a unique production date. Then the pneumatic trim station is where the top of the tube is trimmed to create a clean and professional finish. Finally, the unload station releases finished tubes from the star wheel. Save time and increase productivity with our reliable and user-friendly machine.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model：ZS-FS009U
- Voltage：220V/110V, 50/60Hz
- Power：2.6kW
- Hopper Capacity：30L
- Filling Range：6-60ml/10-120ml/25-250ml
- Filling Accuracy：±1-2%
- Capacity：18-28pcs/min
- Tube Diameter：16-50mm
- Tube Height：70-210mm
- Cutting Method：Ultrasonic, 20kHz
- Air Pressure：0.6Mpa
- Application：Aluminum-plastic soft tube, plastic soft tube
- Machine Material：Stainless Steel
- Net Weight/Gross Weight：About 450kg/555kg
- Machine Size：About 1615*1400*1590mm
- Package Size：About 1610*1760*1860mm
Original: $14,300.00
-70%$14,300.00
$4,290.00Description
DESCRIPTION
Introducing our new automatic tube filling and sealing machine! Equipped with a tube loading station and pick and place station, the machine efficiently transfers tubes to the tube orient station where color-coded identification ensures accurate positioning. The filling station features a piston pump and material hopper, while the sealing station uses ultrasonic technology to cut and code each tube with a unique production date. Then the pneumatic trim station is where the top of the tube is trimmed to create a clean and professional finish. Finally, the unload station releases finished tubes from the star wheel. Save time and increase productivity with our reliable and user-friendly machine.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model：ZS-FS009U
- Voltage：220V/110V, 50/60Hz
- Power：2.6kW
- Hopper Capacity：30L
- Filling Range：6-60ml/10-120ml/25-250ml
- Filling Accuracy：±1-2%
- Capacity：18-28pcs/min
- Tube Diameter：16-50mm
- Tube Height：70-210mm
- Cutting Method：Ultrasonic, 20kHz
- Air Pressure：0.6Mpa
- Application：Aluminum-plastic soft tube, plastic soft tube
- Machine Material：Stainless Steel
- Net Weight/Gross Weight：About 450kg/555kg
- Machine Size：About 1615*1400*1590mm
- Package Size：About 1610*1760*1860mm
