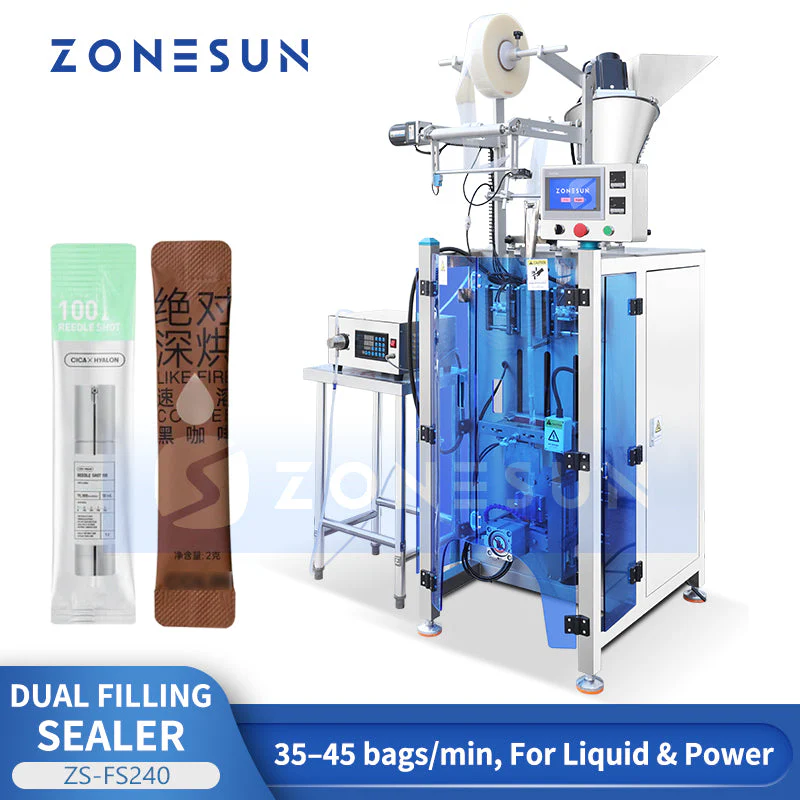

ZONESUN ZS-FS240 Servo Powder & Liquid VFFS Dual Filling Sealing Machine
Description
The ZONESUN ZS-FS240 is a servo dual powder and liquid filling sealing machine using back‑seal corner bags, with servo motors ensuring accurate film pulling and tight seals; running at 35–45 bags per minute, it suits pharmaceuticals, food, daily chemicals, pesticides, and specialty products, handling powders like additives, protein and milk powder as well as liquids such as sauces, beverages, and chemical solutions, while automatically completing filling, weighing, bag forming, sealing, cutting, and coding with PLC control, adjustable heating, flexible cutters, and optional coding.
Parameter
- Model: ZS-FS240
- Weighing Method: Screw weighing
- Sealing Type: Back-seal corner bag
- Weighing Range: 1–50 g (customizable)
-
Bag Size:
- Length: 50–160 mm
- Width: 20–110 mm
-
Packing Speed: 35–45 bags/min
(depends on material fluidity & characteristics) - Control System: PLC control system
- Power Supply: AC 220 V / 50 Hz
- Power Consumption: 2 kW
- Machine Weight: 230 kg
- Machine Dimensions (L×W×H): 800 × 960 × 1800 mm
