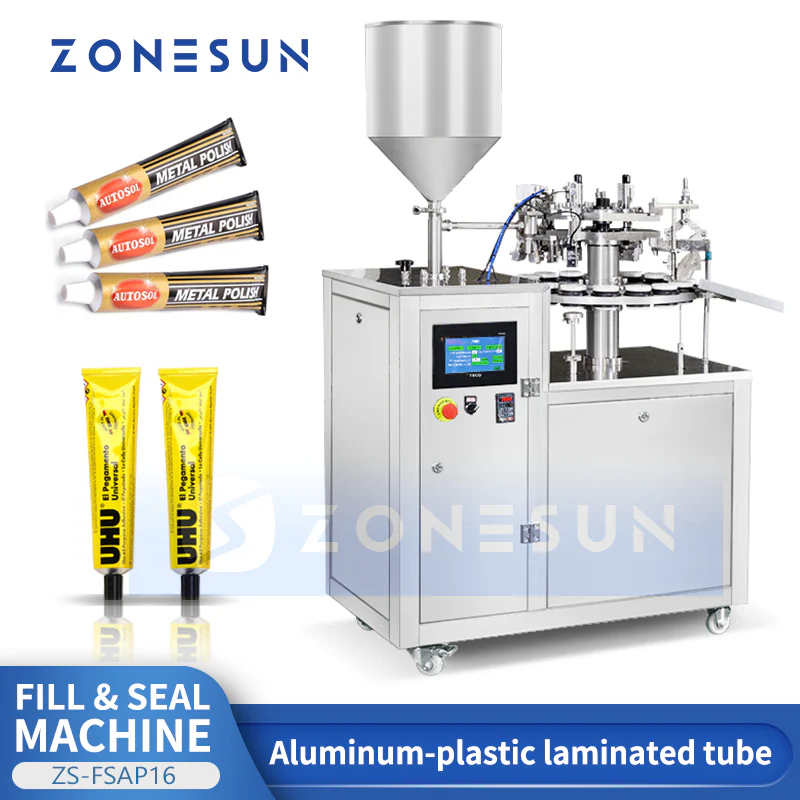

ZONESUN ZS-FSAP16 Automatic Tube Filling & Sealing Machine

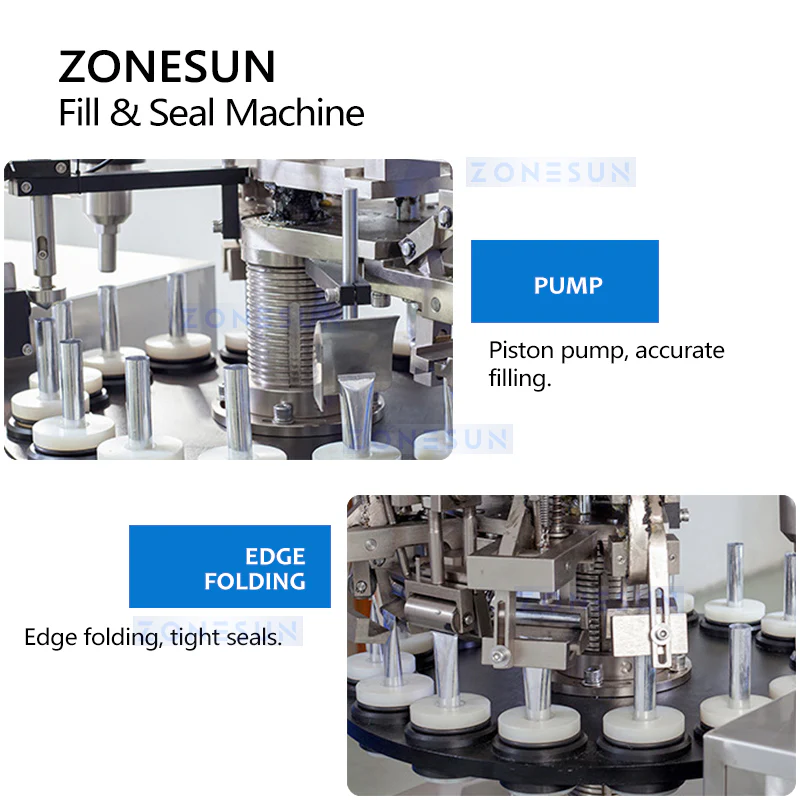

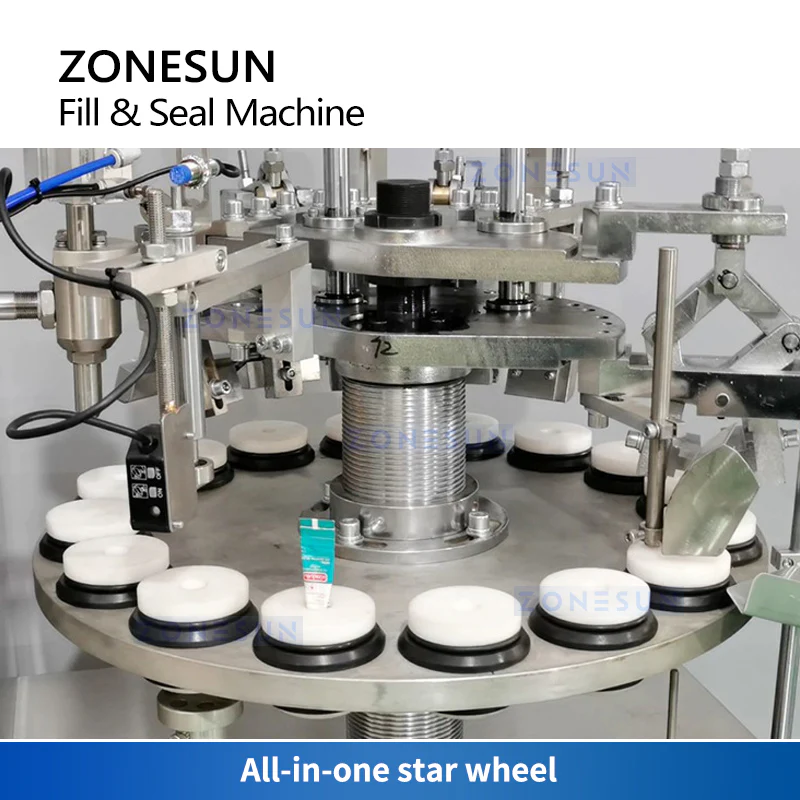

The ZONESUN ZS-FSAP16 is a compact, high-precision tube filling and sealing machine designed for small to medium-scale production. Its monoblock system integrates tube orientation, filling, edge folding, and sealing into a streamlined process. Tubes are manually placed into the star wheel, automatically rotated to align the mark point, then filled using a piston pump for accurate dosing. The edge folding and sealing station ensures a clean, professional finish before discharge.
Equipped with advanced PLC controls, this machine offers intuitive operation and consistent performance. Its customizable tube size range and hygienic SUS 304 stainless steel construction make it ideal for cosmetics, pharmaceuticals, and personal care products.
ZS-FSAP16 Tube Filling and Sealing Machine – Technical Specifications
Parameter Specification
Model ZS-FSAP16
Production Capacity 10–45 pcs/min
Tube Diameter Φ10mm–Φ50mm (customizable)
Tube Height 20mm–250mm (customizable)
Control System PLC
Power Supply 220V, 50Hz
Air Consumption 0.3m³/min
Machine Dimensions 1000 × 600 × 1700mm (Length × Width × Height)
Material SUS 304 Stainless Steel
Hopper Capacity 30L
Machine Weight 400kg
The ZONESUN ZS-FSAP16 is a compact, high-precision tube filling and sealing machine designed for small to medium-scale production. Its monoblock system integrates tube orientation, filling, edge folding, and sealing into a streamlined process. Tubes are manually placed into the star wheel, automatically rotated to align the mark point, then filled using a piston pump for accurate dosing. The edge folding and sealing station ensures a clean, professional finish before discharge.
Equipped with advanced PLC controls, this machine offers intuitive operation and consistent performance. Its customizable tube size range and hygienic SUS 304 stainless steel construction make it ideal for cosmetics, pharmaceuticals, and personal care products.
ZS-FSAP16 Tube Filling and Sealing Machine – Technical Specifications
Parameter Specification
Model ZS-FSAP16
Production Capacity 10–45 pcs/min
Tube Diameter Φ10mm–Φ50mm (customizable)
Tube Height 20mm–250mm (customizable)
Control System PLC
Power Supply 220V, 50Hz
Air Consumption 0.3m³/min
Machine Dimensions 1000 × 600 × 1700mm (Length × Width × Height)
Material SUS 304 Stainless Steel
Hopper Capacity 30L
Machine Weight 400kg
Original: $9,200.00
-70%$9,200.00
$2,760.00Description
The ZONESUN ZS-FSAP16 is a compact, high-precision tube filling and sealing machine designed for small to medium-scale production. Its monoblock system integrates tube orientation, filling, edge folding, and sealing into a streamlined process. Tubes are manually placed into the star wheel, automatically rotated to align the mark point, then filled using a piston pump for accurate dosing. The edge folding and sealing station ensures a clean, professional finish before discharge.
Equipped with advanced PLC controls, this machine offers intuitive operation and consistent performance. Its customizable tube size range and hygienic SUS 304 stainless steel construction make it ideal for cosmetics, pharmaceuticals, and personal care products.
ZS-FSAP16 Tube Filling and Sealing Machine – Technical Specifications
Parameter Specification
Model ZS-FSAP16
Production Capacity 10–45 pcs/min
Tube Diameter Φ10mm–Φ50mm (customizable)
Tube Height 20mm–250mm (customizable)
Control System PLC
Power Supply 220V, 50Hz
Air Consumption 0.3m³/min
Machine Dimensions 1000 × 600 × 1700mm (Length × Width × Height)
Material SUS 304 Stainless Steel
Hopper Capacity 30L
Machine Weight 400kg
