DESCRIPTION

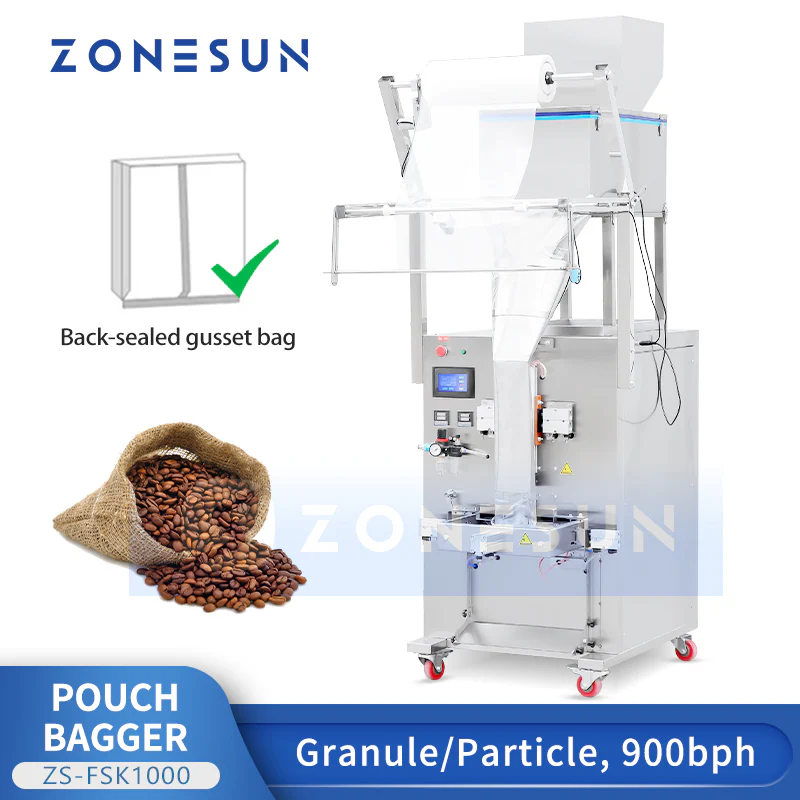

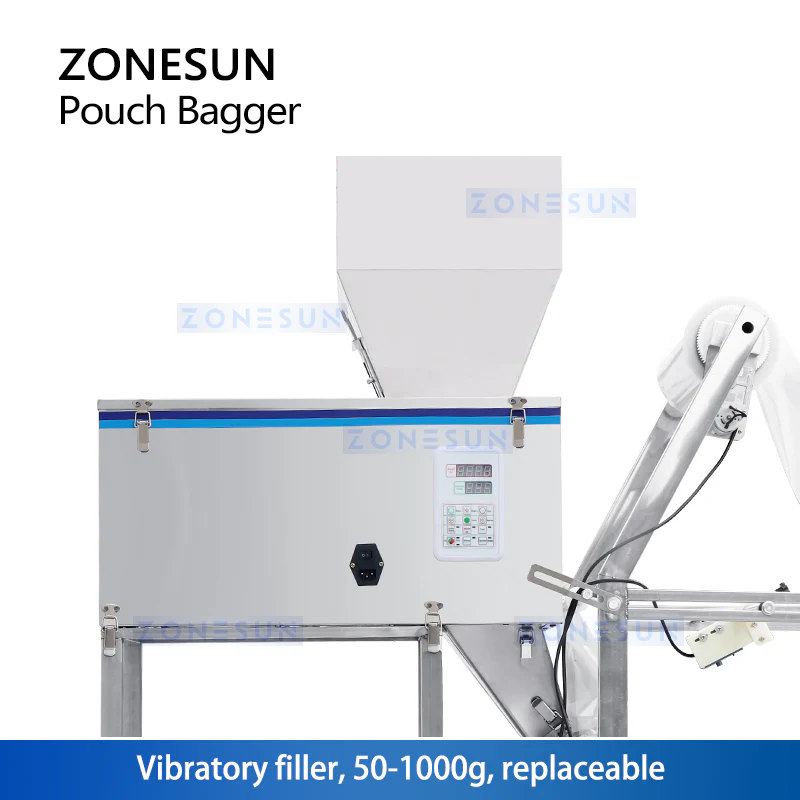

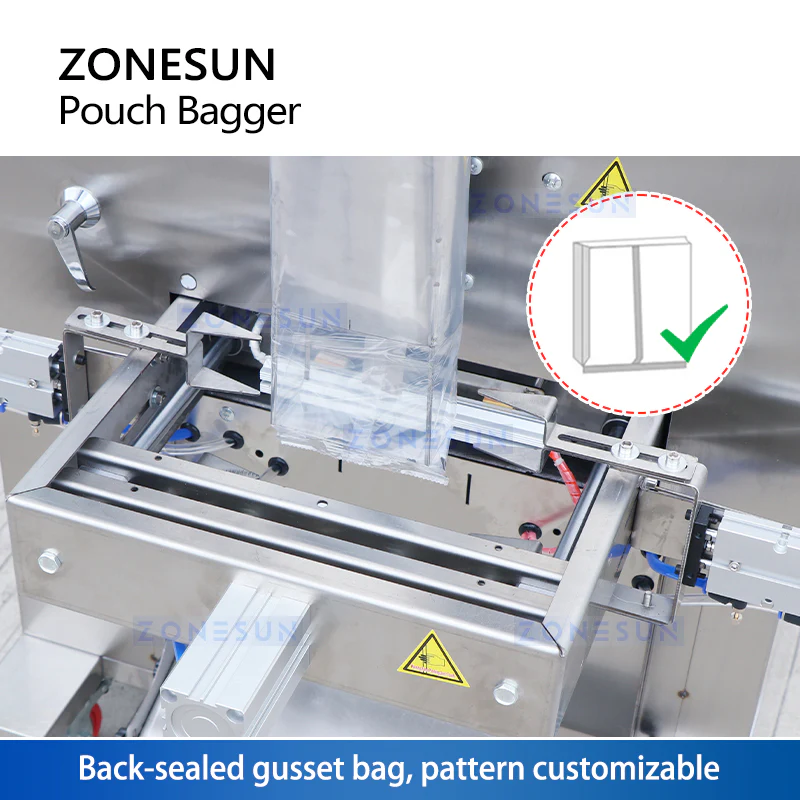

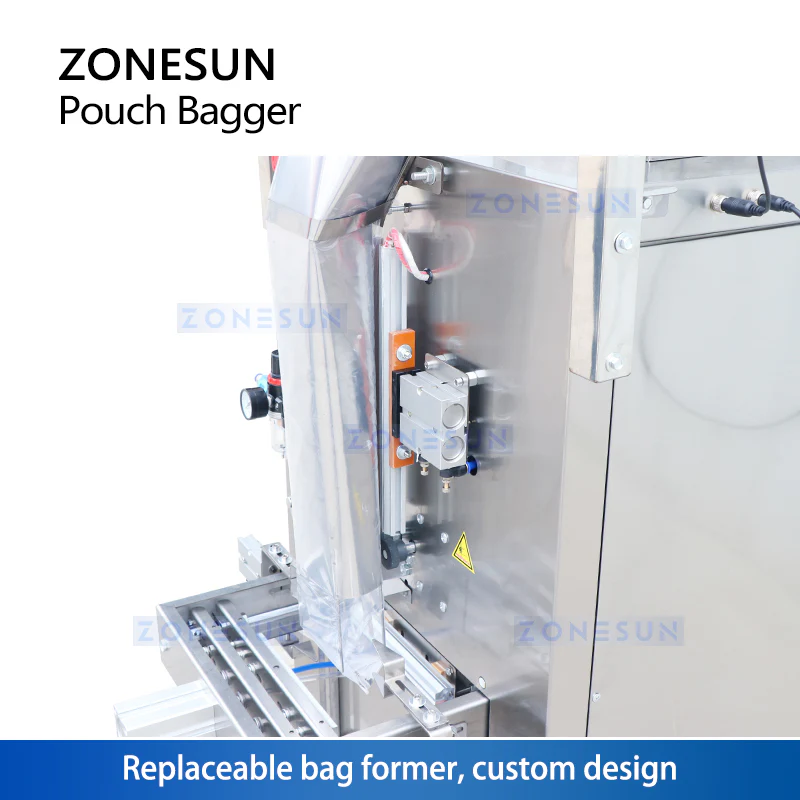

Introducing our innovative Back-Sealed Gusset Bag Packaging Machine, designed to streamline your packaging process. This versatile machine features a top-mounted vibratory weigh filler with a range of 50-1000g, offering precise measurements. The user-friendly interface allows for easy control via physical buttons. The machine is equipped with a customizable bag forming mechanism that accommodates a maximum film width of 420mm. The bag forming molds can be tailored to fit various bag sizes and are interchangeable for versatility. The back-sealing structure ensures a secure seal with adjustable temperature settings, while the end-sealing mechanism provides additional sealing options.

Whatever your packaging needs are, you can rely on ZONESUN.

Parameter

• Model: ZS-FSK1000
• Voltage: 220V/110V 50–60Hz
• Power: 1000W
• Package Speed: 5–15 bags/min
• Filling Range: 50–1000g (Customizable)
• Filling Error: ±1g
• Suitable Film Material: OPP / CPP / PE / PET
• Sealing Method: Gusset Bag (Customizable)

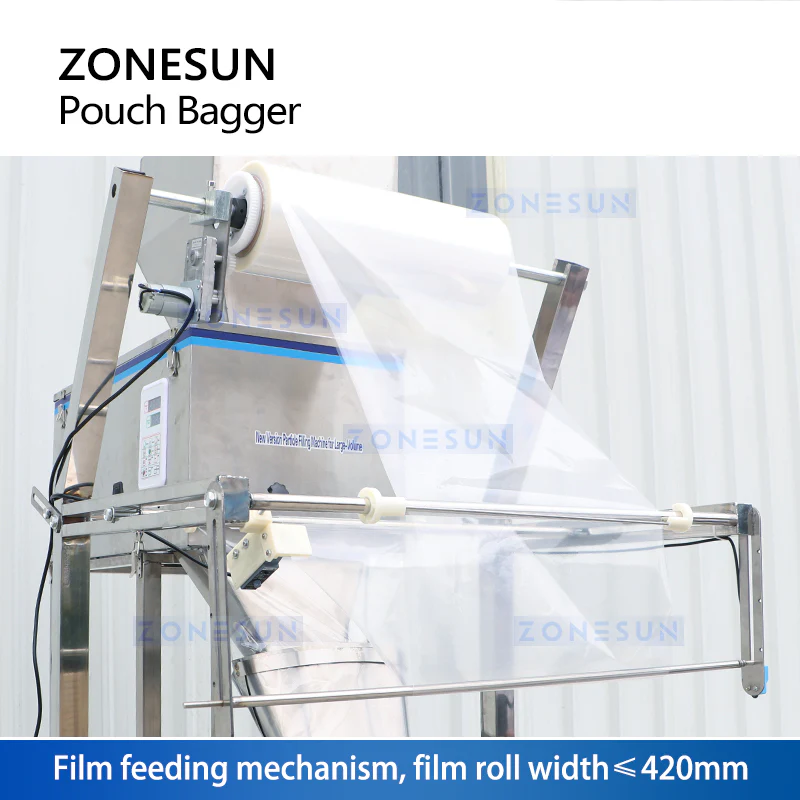

• Film Roll Width: ≤420mm (Customizable)
• Bagging Length: ≤280mm (Customizable)
• Machine Size: Approx. 1300 × 770 × 2150mm
• Package Size:
  • Filling Machine: Approx. 720 × 440 × 830mm
  • Main Part: Approx. 760 × 1130 × 1130mm
• Gross Weight:
  • Filling Machine: Approx. 43kg
  • Main Part: Approx. 122kg
