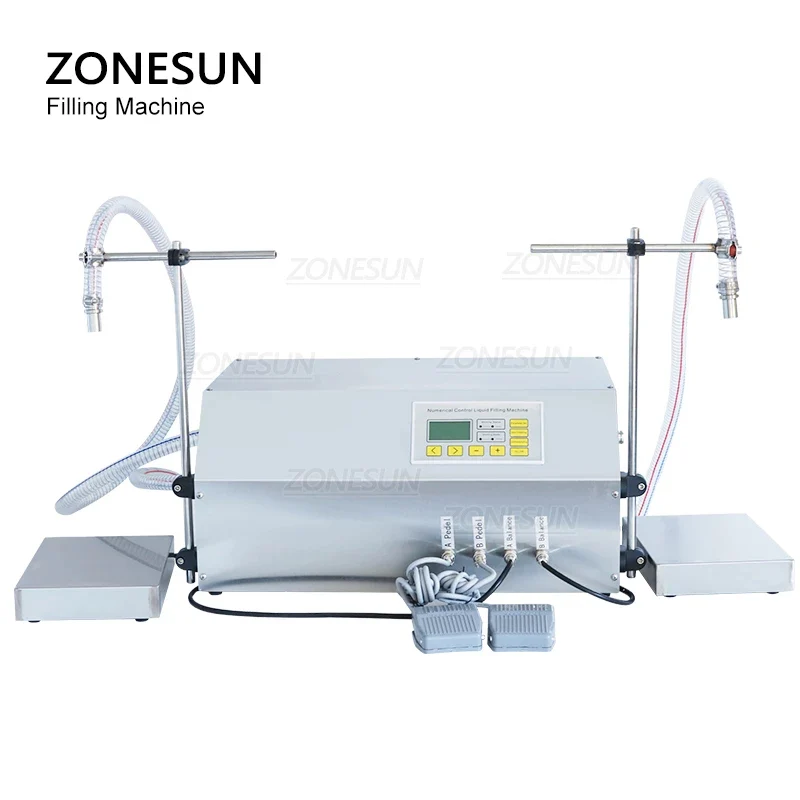

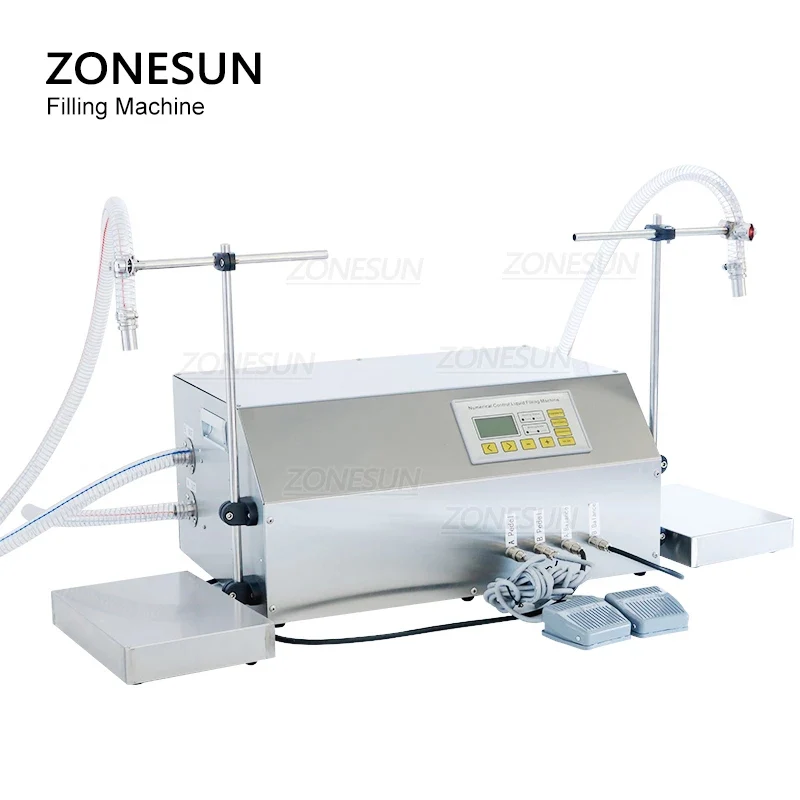

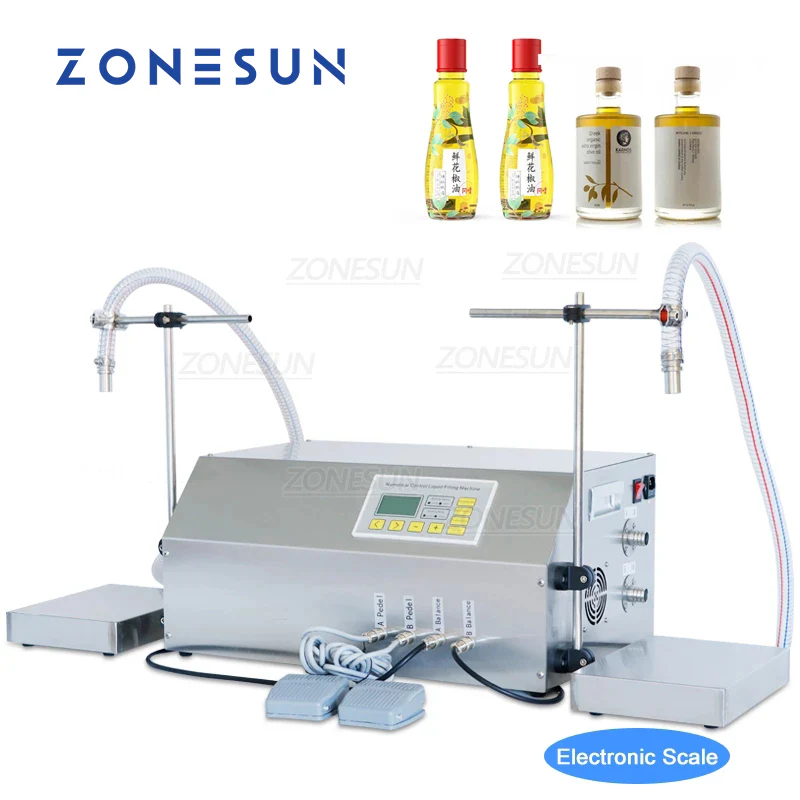

The ZS-GP262W is a precision liquid filling machine designed for oils and viscous fluids. With dual independently controlled nozzles and integrated electronic weighing, it ensures accurate, efficient filling for industrial and commercial use. Ideal for food, chemical, and pharmaceutical applications, this gear pump system offers reliable performance and user-friendly operation.

Parameter Specification
Machine Model ZS-GP262W
Machine Power 110/220V, 50–60Hz, 550W × 2
Machine Pump Gear Pump
Max Flow Rate 18L/min × 2
Filling Range 150ml – 18L
Weighing Range 150g – 100kg
Filling Error About ±10g
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 3m (inlet) / 1m (outlet)

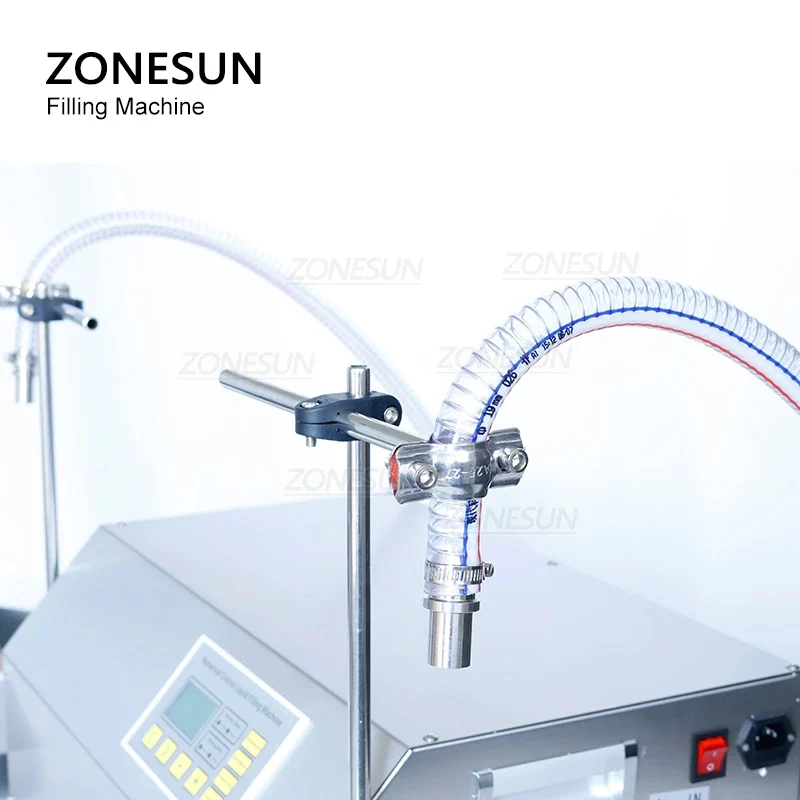

Filling Nozzle Diameter 12mm / 19mm
Max Suction Distance 4m
Max Head of Delivery 4m
Suitable Liquid Engine oil, cooking oil (not suitable for water)
Liquid Temperature ＜90℃
Machine Size (L×W×H) 550×370×252mm
Machine Weight 25.5kg
Package Size 700×430×320mm (machine)
400×370×260mm (electronic scale)
Package Weight 27kg

Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
