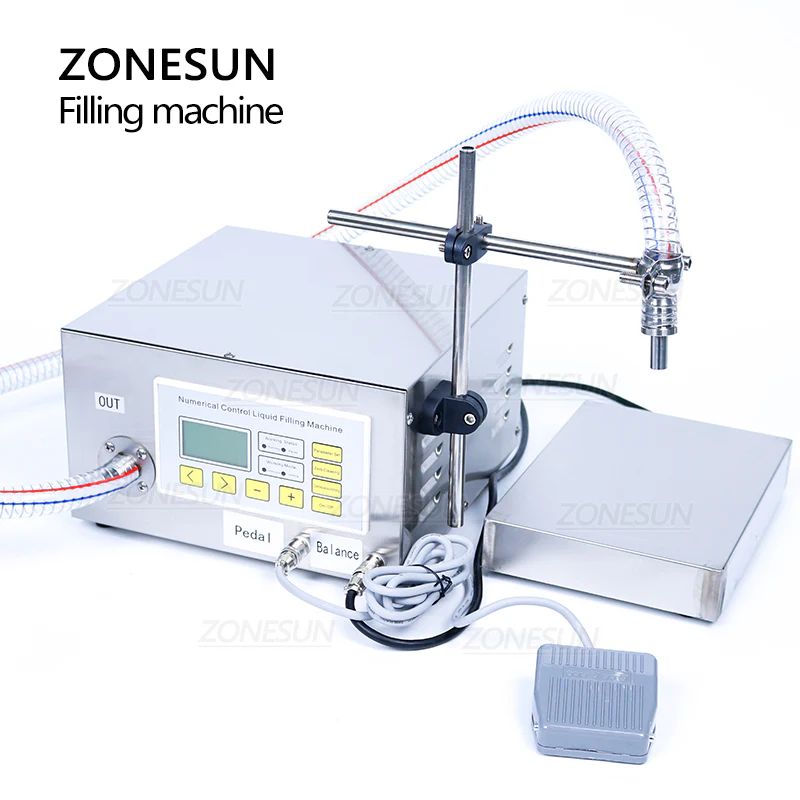

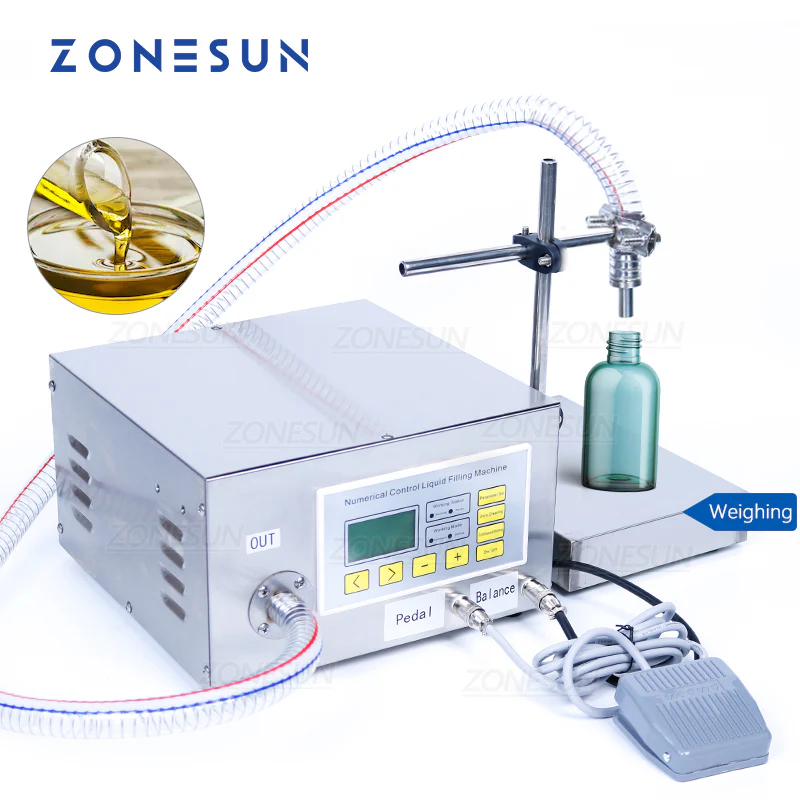

The ZS-GP631 is a semi-automatic gear pump filling machine designed for precise oil dispensing. It supports edible oil, lubricants, engine oil, and hydraulic oil, but is not suitable for water. With an integrated weighing system, it ensures accurate filling and is widely used in food, cosmetic, and chemical industries.

Parameter Specification
Machine Model ZS-GP631
Machine Power 220V / 110V, 50–60Hz, 210W
Machine Pump Gear Pump
Max Flow Rate 8L/min
Filling Range 50mL–8L
Weighing Range 50g–10kg
Suitable Liquid Temperature ＜90℃
Repetitive Error ±10g

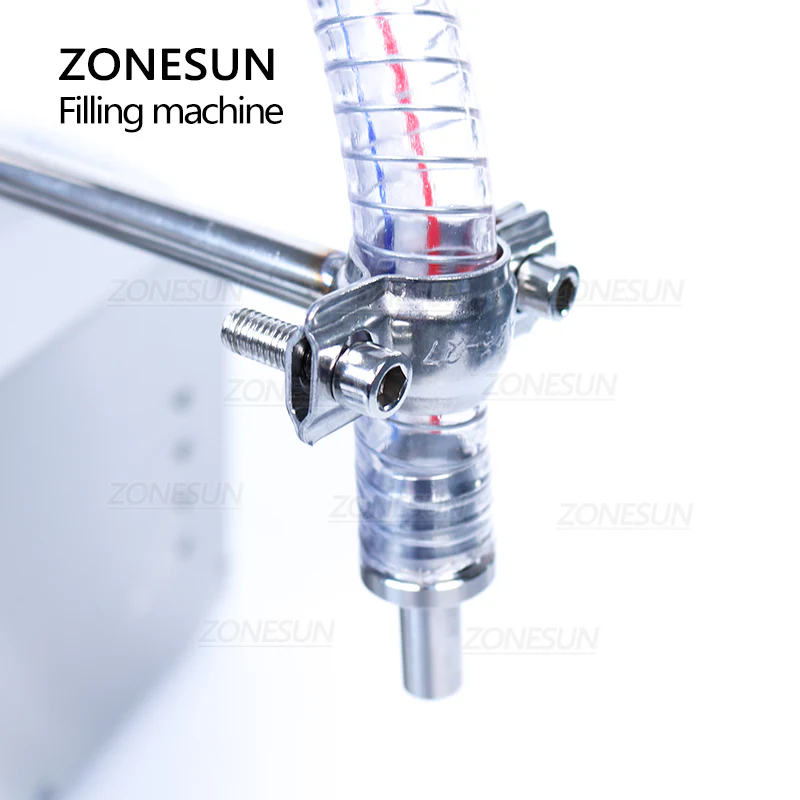

Filling Nozzle Diameter Φ12mm & Φ19mm
Hose Diameter 12mm (ID) / 16mm (OD)
Hose Length 2m (inlet) / 2m (outlet)
Max Suction Distance 4m
Weighing Device Size (L×W×H) 180mm × 250mm × 42mm
Machine Size (L×W×H) 280mm × 275mm × 160mm
Machine Weight 9kg
Package Weight 9.5kg
Package Size (L×W×H) 400mm × 365mm × 240mm

Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
