ZONESUN ZS-GP632 Dual-Nozzle Gear Pump Liquid Weighing Filling Machine 8L

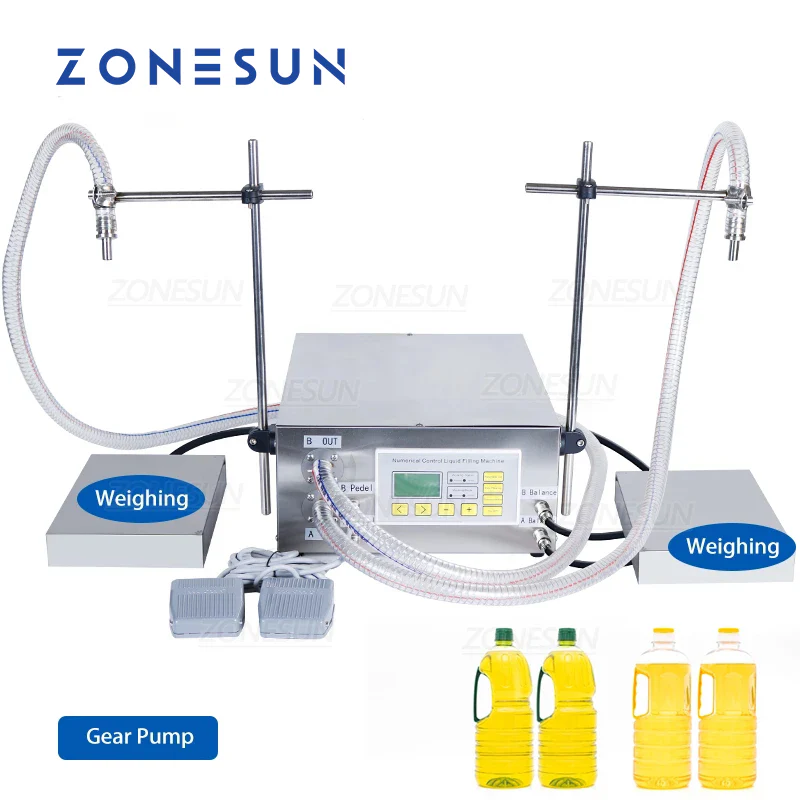

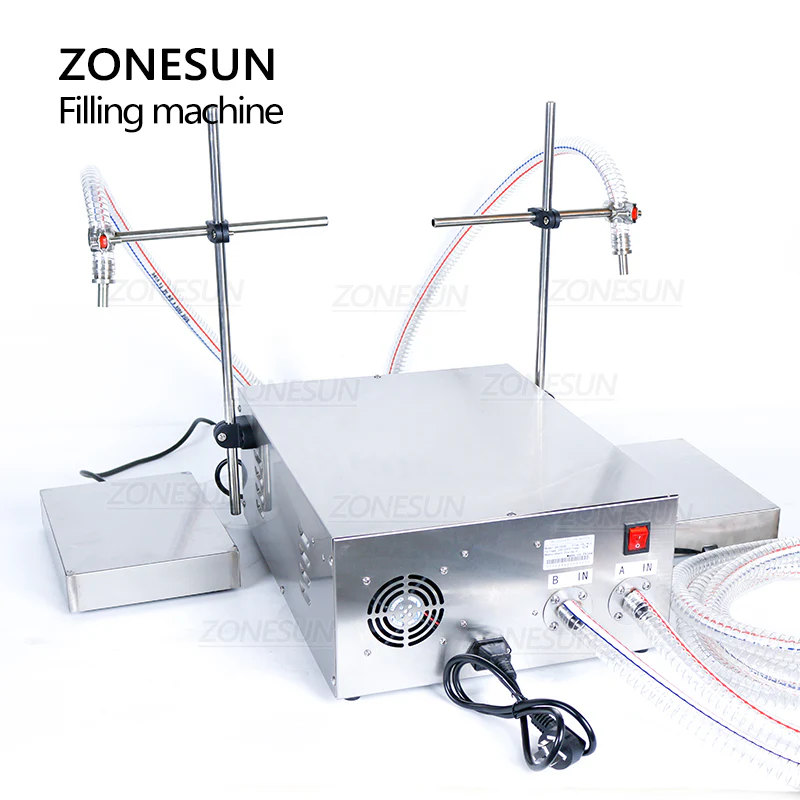

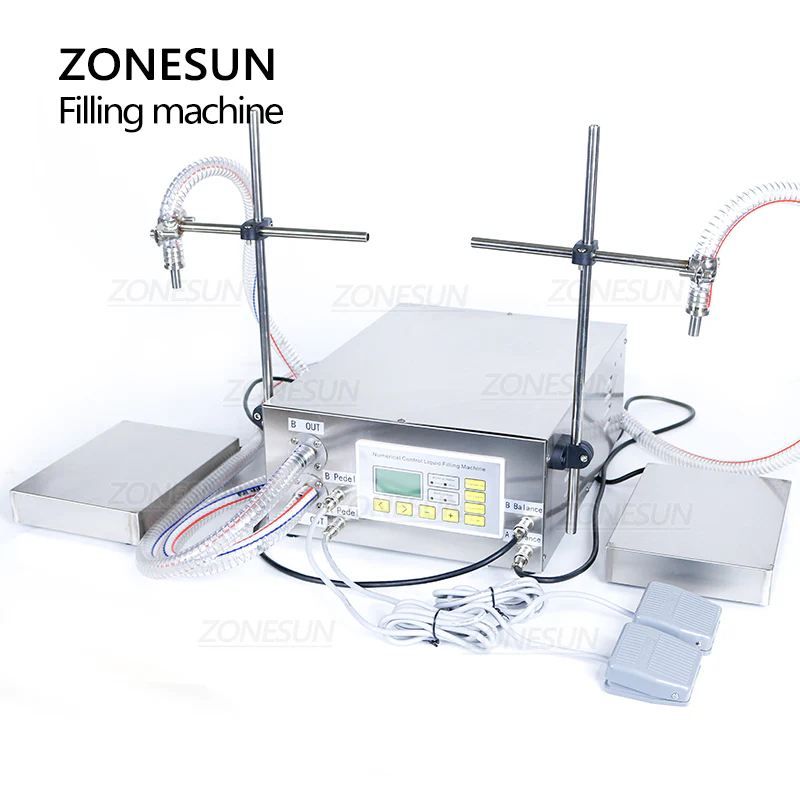

The ZS-GP632 is a high-capacity gear pump filling machine designed for precise oil dispensing. With dual nozzles and a built-in weighing system, it supports both inching and automatic modes for flexible operation. Ideal for edible oil, engine oil, and lubricants, this machine is widely used in food, cosmetic, and chemical industries.
Parameter Specification
Machine Model ZS-GP632
Machine Power 220V / 110V, 50–60Hz, 420W
Machine Pump Gear Pump
Max Flow Rate 8L/min × 2
Filling Range 50mL–8L
Weighing Range 50g–100kg

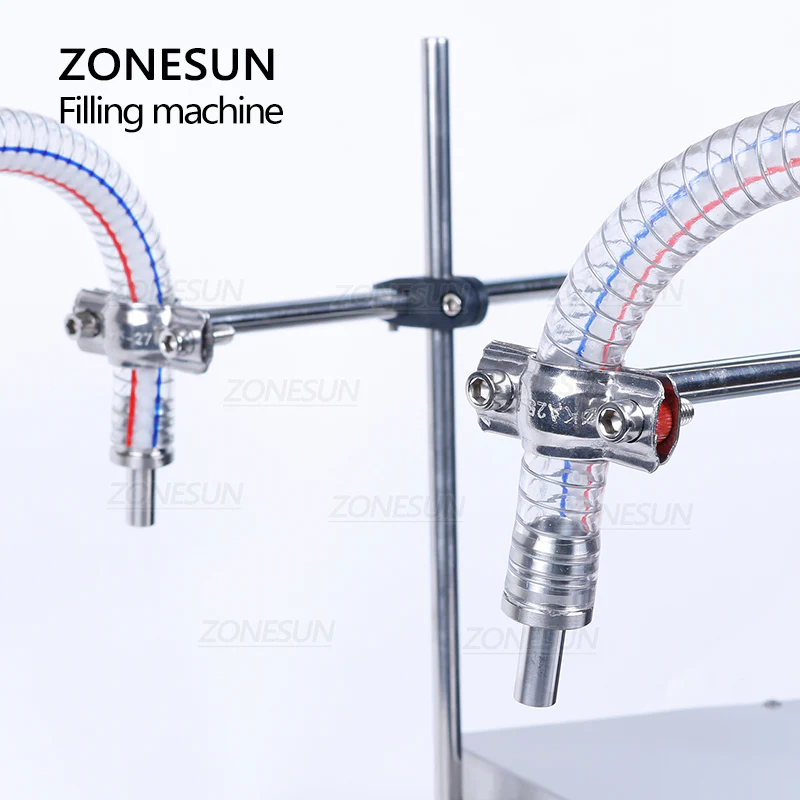

Filling Head Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 2.2m (inlet) / 1.6m (outlet)
Repetitive Error ±10g
Memory Function (Power-Off) Available

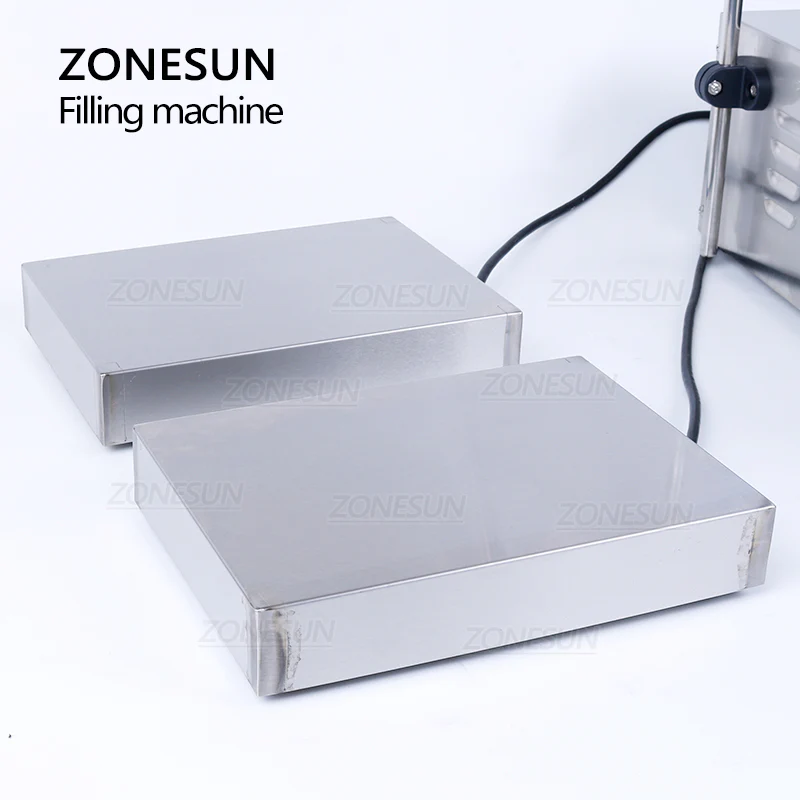

Weighing Device Size (L×W×H) 250mm × 180mm × 42mm
Machine Size (L×W×H) 335mm × 450mm × 170mm
Machine Weight 16kg
Package Weight 18.5kg
Package Size (Machine) 560mm × 400mm × 280mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
The ZS-GP632 is a high-capacity gear pump filling machine designed for precise oil dispensing. With dual nozzles and a built-in weighing system, it supports both inching and automatic modes for flexible operation. Ideal for edible oil, engine oil, and lubricants, this machine is widely used in food, cosmetic, and chemical industries.
Parameter Specification
Machine Model ZS-GP632
Machine Power 220V / 110V, 50–60Hz, 420W
Machine Pump Gear Pump
Max Flow Rate 8L/min × 2
Filling Range 50mL–8L
Weighing Range 50g–100kg
Filling Head Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 2.2m (inlet) / 1.6m (outlet)
Repetitive Error ±10g
Memory Function (Power-Off) Available
Weighing Device Size (L×W×H) 250mm × 180mm × 42mm
Machine Size (L×W×H) 335mm × 450mm × 170mm
Machine Weight 16kg
Package Weight 18.5kg
Package Size (Machine) 560mm × 400mm × 280mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
Original: $575.77
-70%$575.77
$172.73Description
The ZS-GP632 is a high-capacity gear pump filling machine designed for precise oil dispensing. With dual nozzles and a built-in weighing system, it supports both inching and automatic modes for flexible operation. Ideal for edible oil, engine oil, and lubricants, this machine is widely used in food, cosmetic, and chemical industries.
Parameter Specification
Machine Model ZS-GP632
Machine Power 220V / 110V, 50–60Hz, 420W
Machine Pump Gear Pump
Max Flow Rate 8L/min × 2
Filling Range 50mL–8L
Weighing Range 50g–100kg
Filling Head Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 2.2m (inlet) / 1.6m (outlet)
Repetitive Error ±10g
Memory Function (Power-Off) Available
Weighing Device Size (L×W×H) 250mm × 180mm × 42mm
Machine Size (L×W×H) 335mm × 450mm × 170mm
Machine Weight 16kg
Package Weight 18.5kg
Package Size (Machine) 560mm × 400mm × 280mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
