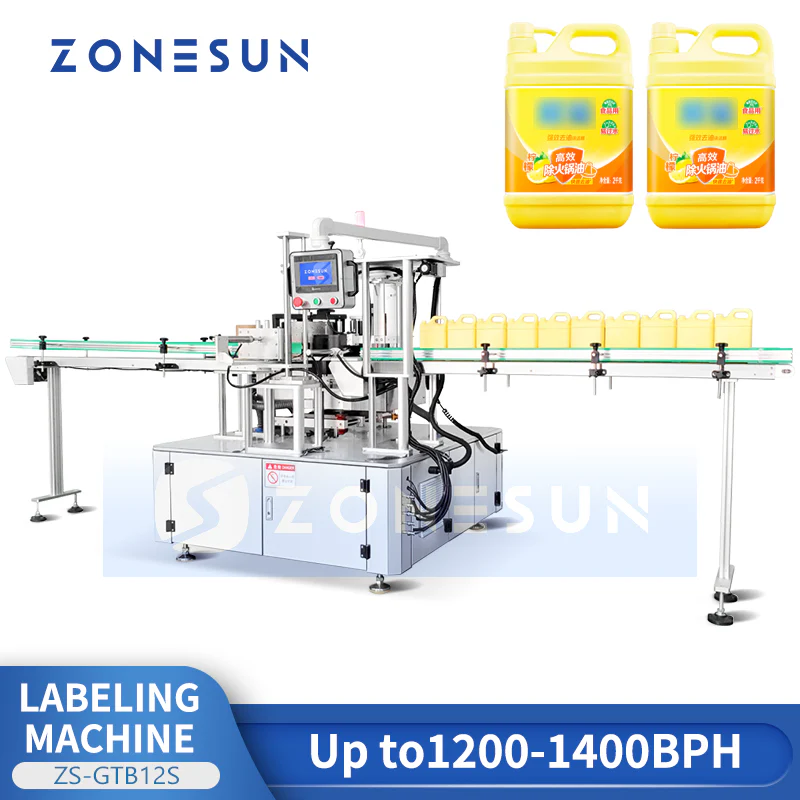

ZONESUN ZS-GTB12S Hot Melt Glue Labeling Machine for Bottles
The ZS-GTB12S is a high-speed automatic labeling machine designed for square and oblong bottles. Equipped with a PLC system and hot melt glue technology, it ensures precise label placement and consistent performance. Supporting various label types including OPP film and paper composites, this machine is ideal for large-scale packaging operations. With customizable settings and a user-friendly interface, ZONESUN helps you label smarter and faster.
ZONESUN ZS-GTB12S Automatic Hot Melt Glue Labeling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-GTB12S
Power Supply Three-phase 380V, 50Hz, 8000W
Maximum Labeling Speed Approx. 1200–1400 pcs/hour
Labeling Accuracy ±1mm
Max Label Width (Height) 180mm (customizable)
Max Label Length 750mm
Max Label Outer Diameter 600mm
Min Label Inner Diameter 152mm
Glue Type Hot melt adhesive (applied only at both ends of label)
Gluing Temperature 120–160°C
Label Types OPP film, paper-plastic composite film, paper label
Applicable Product Type Square bottles
Machine Dimensions (L × W × H) Approx. 4650 × 1650 × 1650 mm
Machine Weight Approx. 1500 kg
The ZS-GTB12S is a high-speed automatic labeling machine designed for square and oblong bottles. Equipped with a PLC system and hot melt glue technology, it ensures precise label placement and consistent performance. Supporting various label types including OPP film and paper composites, this machine is ideal for large-scale packaging operations. With customizable settings and a user-friendly interface, ZONESUN helps you label smarter and faster.
ZONESUN ZS-GTB12S Automatic Hot Melt Glue Labeling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-GTB12S
Power Supply Three-phase 380V, 50Hz, 8000W
Maximum Labeling Speed Approx. 1200–1400 pcs/hour
Labeling Accuracy ±1mm
Max Label Width (Height) 180mm (customizable)
Max Label Length 750mm
Max Label Outer Diameter 600mm
Min Label Inner Diameter 152mm
Glue Type Hot melt adhesive (applied only at both ends of label)
Gluing Temperature 120–160°C
Label Types OPP film, paper-plastic composite film, paper label
Applicable Product Type Square bottles
Machine Dimensions (L × W × H) Approx. 4650 × 1650 × 1650 mm
Machine Weight Approx. 1500 kg
Original: $26,999.00
-70%$26,999.00
$8,099.70Description
The ZS-GTB12S is a high-speed automatic labeling machine designed for square and oblong bottles. Equipped with a PLC system and hot melt glue technology, it ensures precise label placement and consistent performance. Supporting various label types including OPP film and paper composites, this machine is ideal for large-scale packaging operations. With customizable settings and a user-friendly interface, ZONESUN helps you label smarter and faster.
ZONESUN ZS-GTB12S Automatic Hot Melt Glue Labeling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-GTB12S
Power Supply Three-phase 380V, 50Hz, 8000W
Maximum Labeling Speed Approx. 1200–1400 pcs/hour
Labeling Accuracy ±1mm
Max Label Width (Height) 180mm (customizable)
Max Label Length 750mm
Max Label Outer Diameter 600mm
Min Label Inner Diameter 152mm
Glue Type Hot melt adhesive (applied only at both ends of label)
Gluing Temperature 120–160°C
Label Types OPP film, paper-plastic composite film, paper label
Applicable Product Type Square bottles
Machine Dimensions (L × W × H) Approx. 4650 × 1650 × 1650 mm
Machine Weight Approx. 1500 kg
