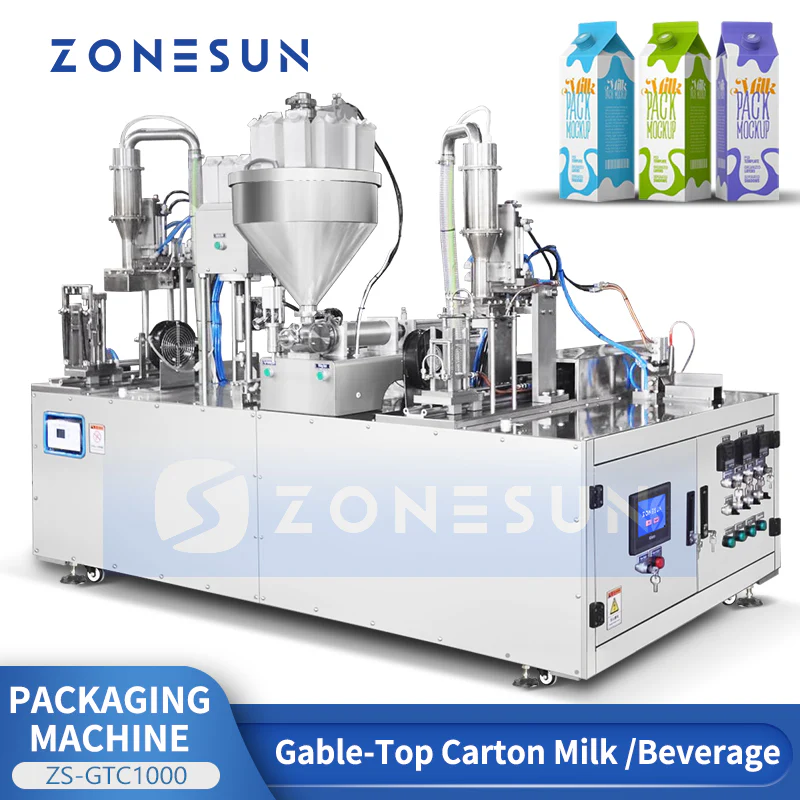

The ZS-GTC1000 is a fully automatic gable-top carton packaging machine built with food-grade stainless steel. It integrates carton forming, sealing, filling, capping, and date printing into one streamlined system. Ideal for dairy and juice production, this machine offers a cost-effective, labor-saving solution for hygienic and efficient packaging. ZONESUN delivers automation tailored for the beverage industry.

Specifications:

• Model: ZS-GTC1000
• Voltage: 110V / 220V
• Power: 15kW
• Filling Capacity:
  • 200–1000ml
  • 1000–2000ml
• Packing Material: Cardboard carton / Aluminum foil carton
• Filling Temperature:
  • Cold Filling: 2–50°C
  • Hot Filling: 80–92°C
• Carton Packing Size: Customized
• Cap: Without cap (optional)
• Compressed Air Pressure: 1.0–10.8MPa
• Flow Volume: ≥20L/min
• Machine Size (L × W × H): 160 × 120 × 180mm (Note: dimensions may need verification — unusually small for this category)
• Machine Weight: 500kg
