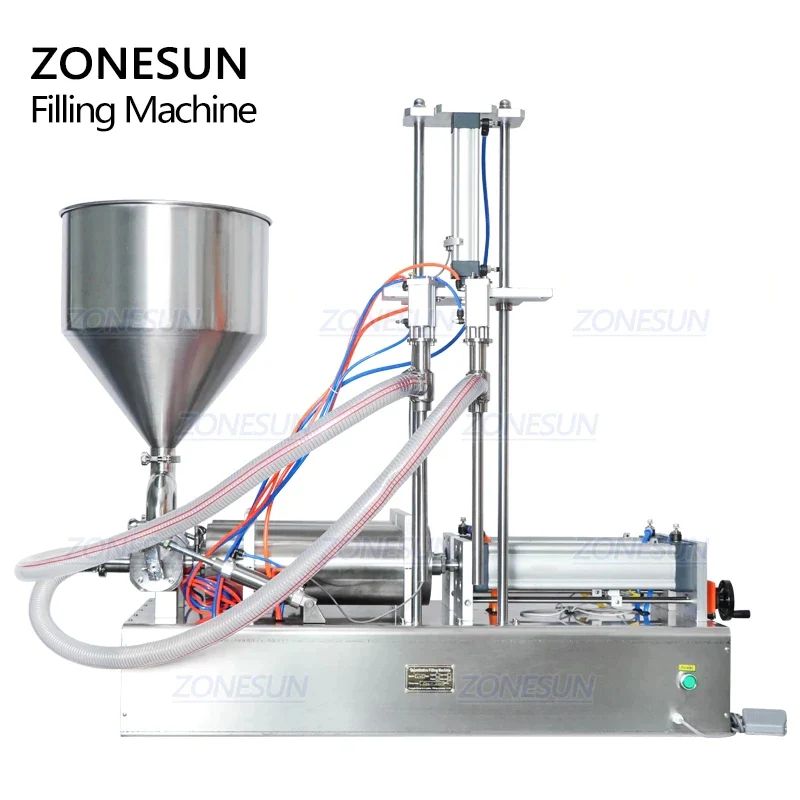

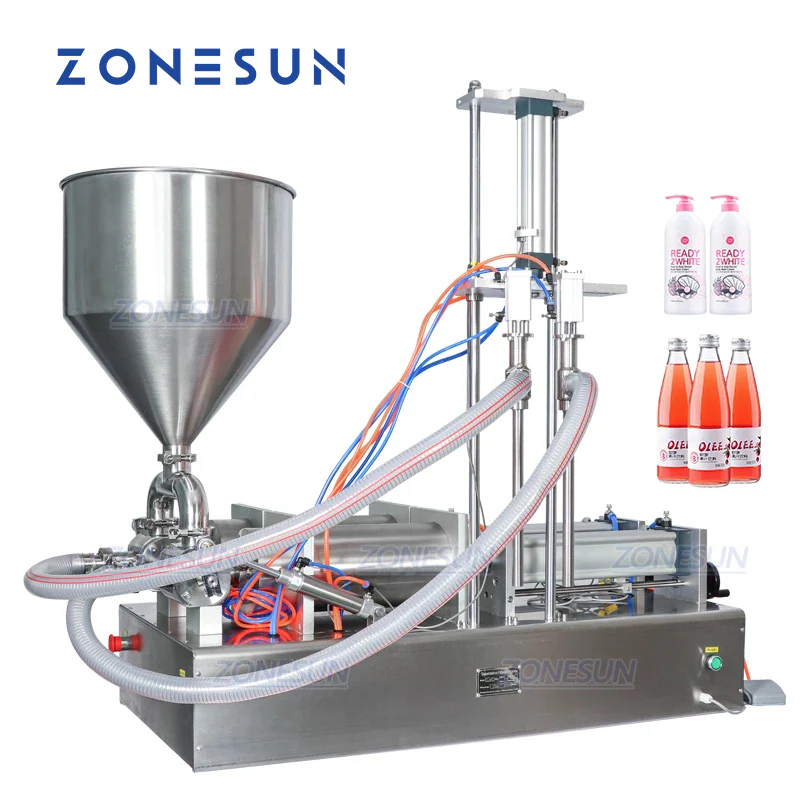

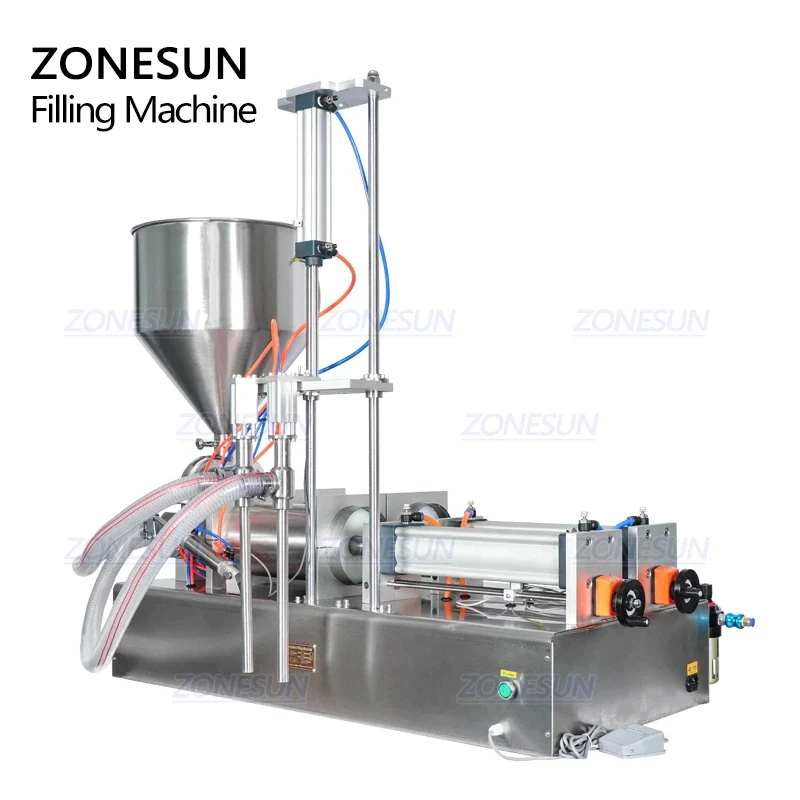

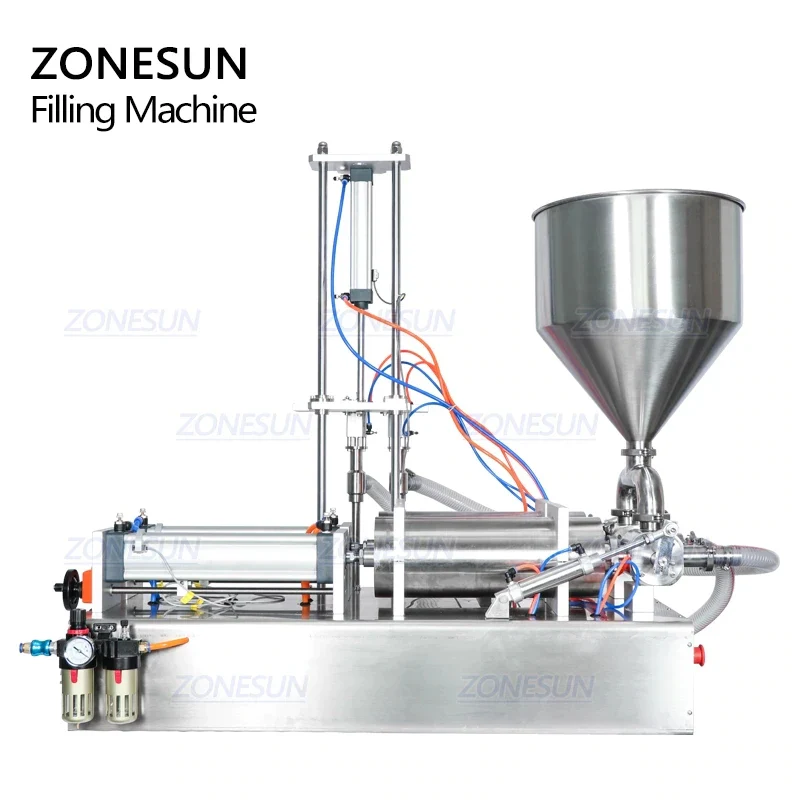

ZONESUN ZS-GTD2 2-Nozzle Pneumatic Paste Filling Machine 1000–5000ml
The ZONESUN ZS-GTD2 is a pneumatic piston filling machine equipped with two diving nozzles, ideal for foamy or viscous liquids such as car shampoo, body wash, and hand soap. The nozzles automatically lift during operation to minimize foam and ensure clean filling. With adjustable filling speed and volume, it supports a wide range of container sizes from 5ml to 5000ml. Its 30L hopper, precise ±0.5%–±1% accuracy, and durable build make it perfect for medium to large-scale production. Designed for efficiency, flexibility, and clean operation, ZS-GTD2 is a reliable solution for liquid packaging lines.
Parameter
Filling Range 5–100ml / 10–200ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Power Supply 110V / 220V, 10W
Filling Speed 0–50 bottles/min
Filling Accuracy ±0.5%–±1%

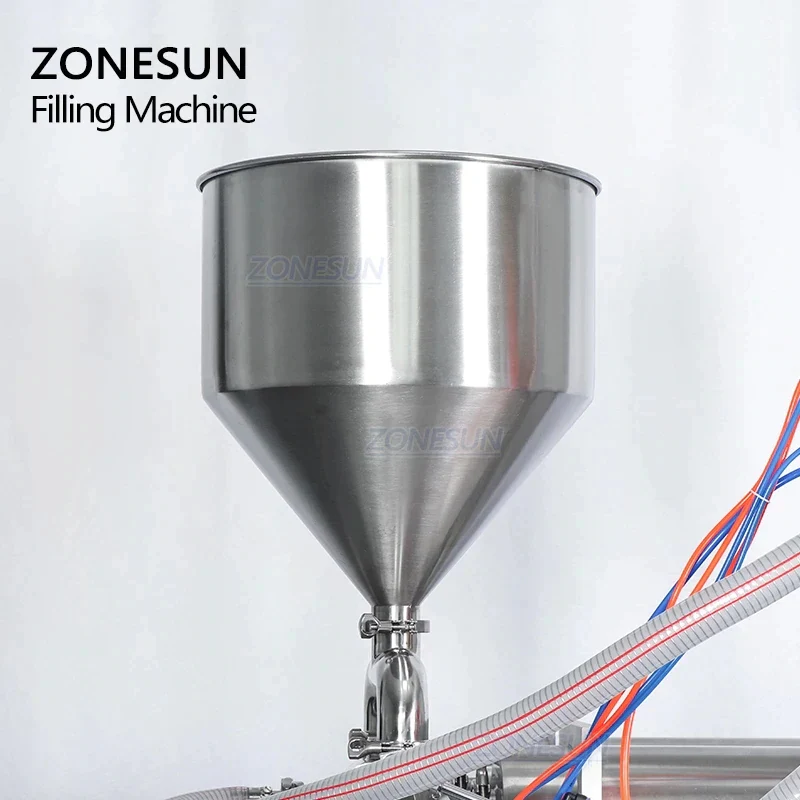

Hopper Capacity 30L
Air Pressure 0.4–0.6MPa
Air Connector Size OD10mm
Machine Weight 90.5kg
Machine Dimensions 111 × 55 × 113cm (L × W × H)
Filling Nozzle Size (Optional) Type A: ID15mm–OD19mm–L310mm<br>Type B: ID18mm–OD20mm–L411mm
The ZONESUN ZS-GTD2 is a pneumatic piston filling machine equipped with two diving nozzles, ideal for foamy or viscous liquids such as car shampoo, body wash, and hand soap. The nozzles automatically lift during operation to minimize foam and ensure clean filling. With adjustable filling speed and volume, it supports a wide range of container sizes from 5ml to 5000ml. Its 30L hopper, precise ±0.5%–±1% accuracy, and durable build make it perfect for medium to large-scale production. Designed for efficiency, flexibility, and clean operation, ZS-GTD2 is a reliable solution for liquid packaging lines.
Parameter
Filling Range 5–100ml / 10–200ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Power Supply 110V / 220V, 10W
Filling Speed 0–50 bottles/min
Filling Accuracy ±0.5%–±1%
Hopper Capacity 30L
Air Pressure 0.4–0.6MPa
Air Connector Size OD10mm
Machine Weight 90.5kg
Machine Dimensions 111 × 55 × 113cm (L × W × H)
Filling Nozzle Size (Optional) Type A: ID15mm–OD19mm–L310mm<br>Type B: ID18mm–OD20mm–L411mm
