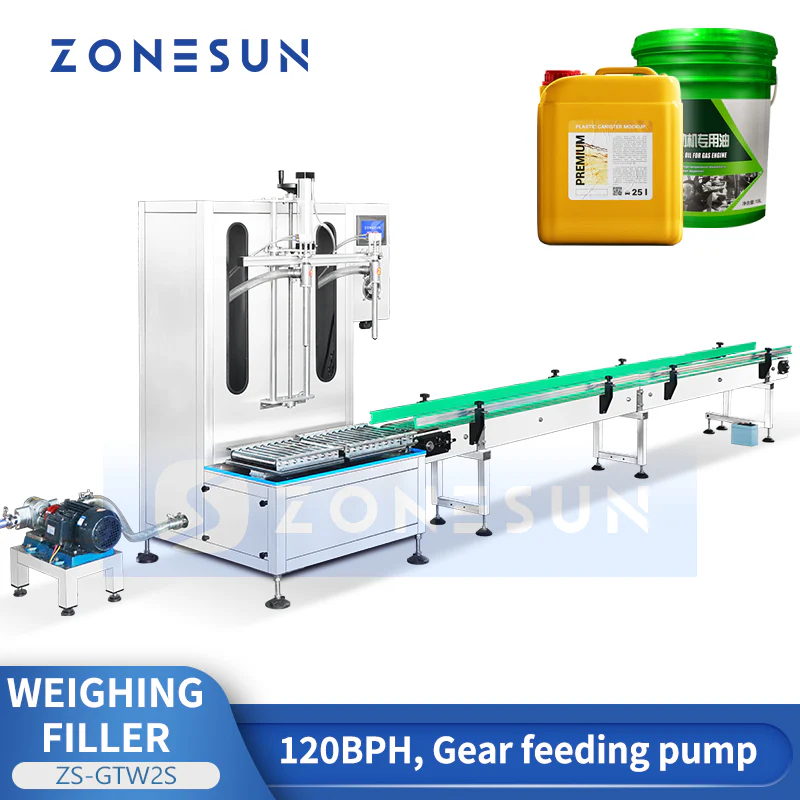

ZONESUN ZS-GTW2S Automatic Pail Bucket Filling Machine with Weighing System
DESCRIPTION
ZONESUN ZS-GTW2S is an efficient dual-head pail filling machine designed for precise subsurface filling. Diving nozzles minimize splashing, while the built-in weighing system ensures accurate volume control and auto-stop filling. Filled pails are smoothly conveyed out, enhancing workflow and reducing manual labor—ideal for chemicals, paints, and viscous liquids.
Parameter
- Model: ZS-GTW2S
- Voltage: 380V 50HZ
- Filling Range: 5L–30L (customizable)
- Filling Speed: 100–120 BPH (based on filling volume)
- Filling Accuracy: ± 0.5%

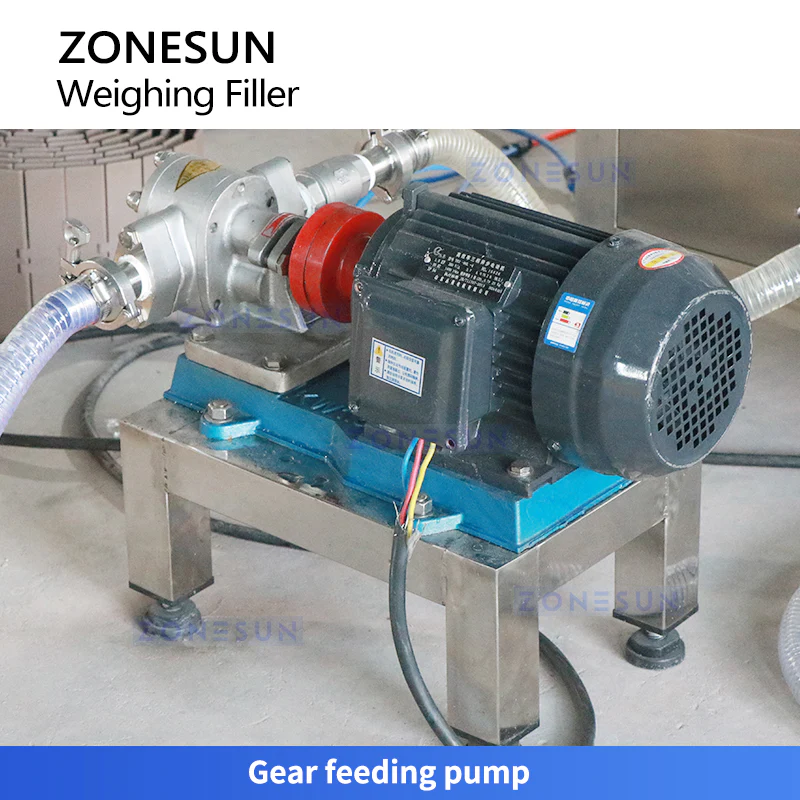

- Feeding Pump Type: Gear pump
- Air Pressure: 0.5–0.7MPa

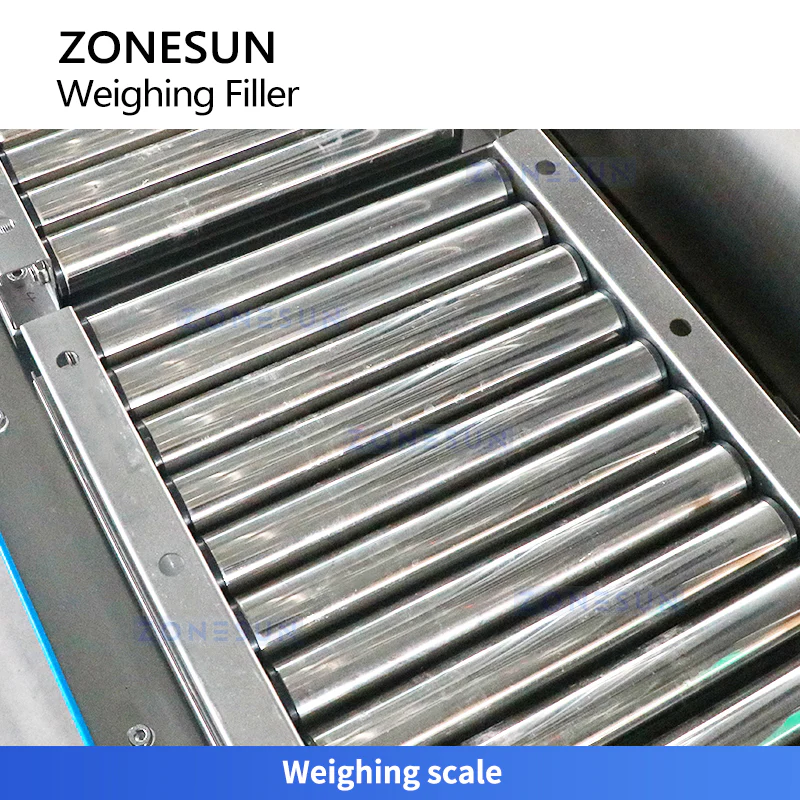

- Max Weighing Range: 50kg

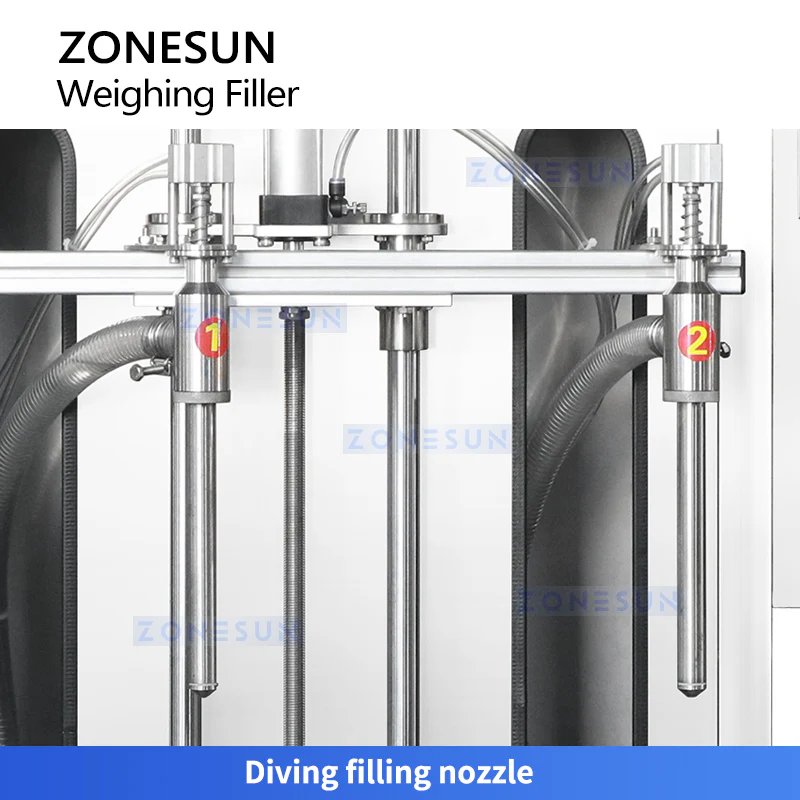

- Filling Heads Quantity: 2 diving nozzles
- Conveyor Dimensions: Approx. 4100 × 610 × 650mm
- Machine Dimensions: Approx. 1160 × 940 × 1800mm
- Packaging Dimensions: Approx. 1110 × 1110 × 1730mm
