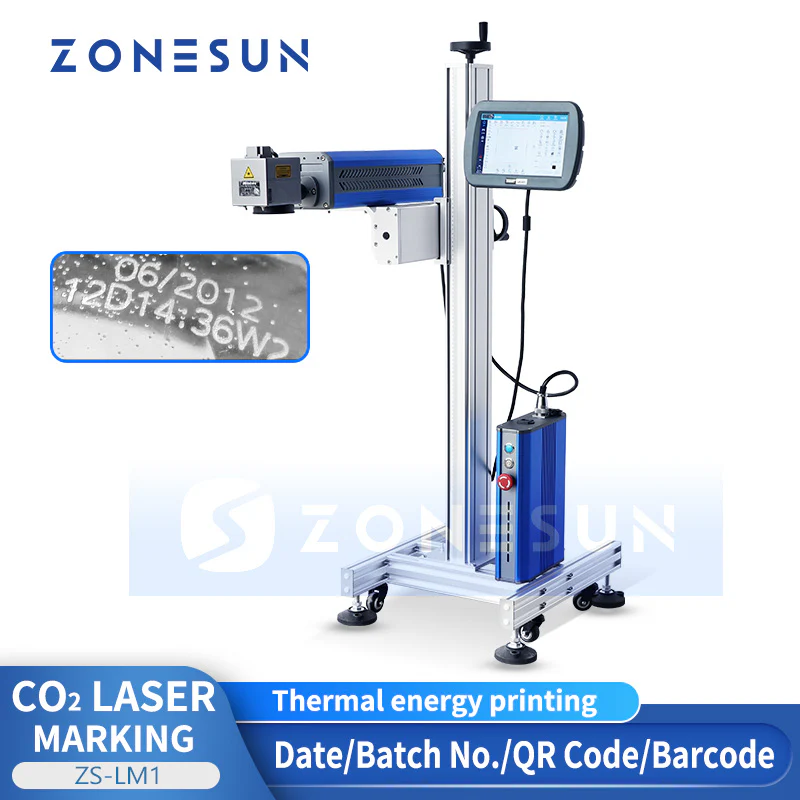

ZONESUN ZS-LM1 CO₂ Laser Coding Machine for Bottles & Cartons
The ZS-LM1 is a CO₂ laser marking machine designed for high-speed, ink-free printing of dates, batch numbers, QR codes, and barcodes. It supports a wide range of materials including PET, HDPE, coated paper, glass, leather, and cloth. Using spectral thermal energy, it eliminates the need for consumables, making it a cost-effective solution for food, cosmetics, chemical, and electronics packaging lines. ZONESUN delivers precision with zero waste.
ZONESUN ZS-LM1 CO₂ Laser Marking Machine – Technical Specifications
Parameter Specification
Machine Model ZS-LM1
Power Supply 110/220V, 50–60Hz, 30W
Cooling Method Air cooling
Laser Type CO₂
Supported Ports SD card, USB 2.0, RS232

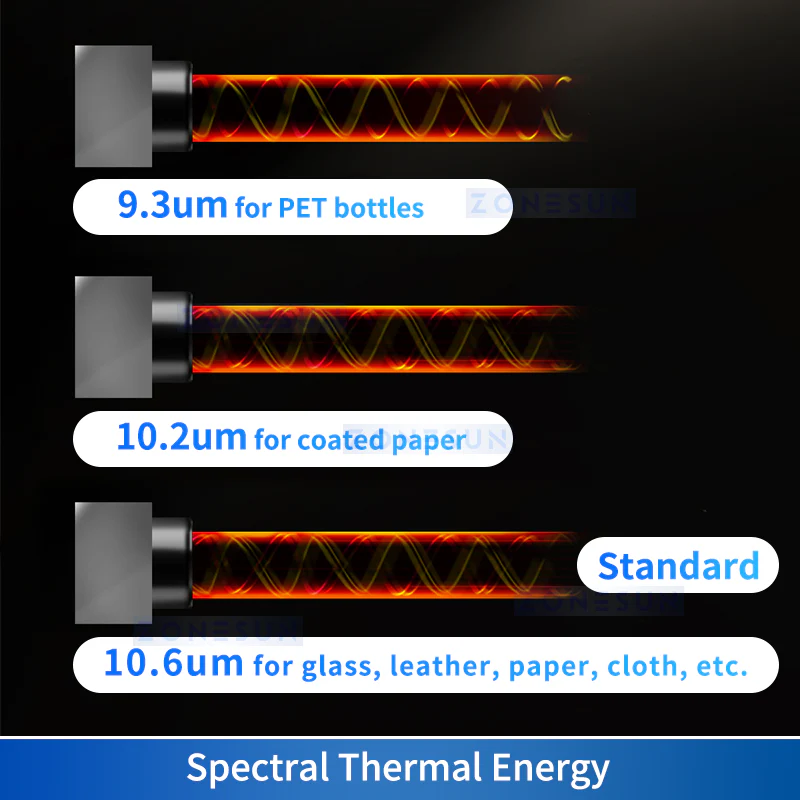

Wavelength Options 9.3 / 10.2 / 10.6 μm
Marking Speed PVC Tubes: 40 m/min<br>PET Bottles: 20,000 bottles/hour<br>Coated Cartons: 35 m/min
Marking Range 70×70 / 90×90 / 110×110 / 140×140 mm
Applicable Materials PET, Acrylic, Glass, Leather, Plastic, Cloth, Rubber
Net Weight Approx. 110 kg
Machine Dimensions Approx. 1430 × 565 × 930 mm
The ZS-LM1 is a CO₂ laser marking machine designed for high-speed, ink-free printing of dates, batch numbers, QR codes, and barcodes. It supports a wide range of materials including PET, HDPE, coated paper, glass, leather, and cloth. Using spectral thermal energy, it eliminates the need for consumables, making it a cost-effective solution for food, cosmetics, chemical, and electronics packaging lines. ZONESUN delivers precision with zero waste.
ZONESUN ZS-LM1 CO₂ Laser Marking Machine – Technical Specifications
Parameter Specification
Machine Model ZS-LM1
Power Supply 110/220V, 50–60Hz, 30W
Cooling Method Air cooling
Laser Type CO₂
Supported Ports SD card, USB 2.0, RS232
Wavelength Options 9.3 / 10.2 / 10.6 μm
Marking Speed PVC Tubes: 40 m/min<br>PET Bottles: 20,000 bottles/hour<br>Coated Cartons: 35 m/min
Marking Range 70×70 / 90×90 / 110×110 / 140×140 mm
Applicable Materials PET, Acrylic, Glass, Leather, Plastic, Cloth, Rubber
Net Weight Approx. 110 kg
Machine Dimensions Approx. 1430 × 565 × 930 mm
Original: $4,299.00
-70%$4,299.00
$1,289.70Description
The ZS-LM1 is a CO₂ laser marking machine designed for high-speed, ink-free printing of dates, batch numbers, QR codes, and barcodes. It supports a wide range of materials including PET, HDPE, coated paper, glass, leather, and cloth. Using spectral thermal energy, it eliminates the need for consumables, making it a cost-effective solution for food, cosmetics, chemical, and electronics packaging lines. ZONESUN delivers precision with zero waste.
ZONESUN ZS-LM1 CO₂ Laser Marking Machine – Technical Specifications
Parameter Specification
Machine Model ZS-LM1
Power Supply 110/220V, 50–60Hz, 30W
Cooling Method Air cooling
Laser Type CO₂
Supported Ports SD card, USB 2.0, RS232
Wavelength Options 9.3 / 10.2 / 10.6 μm
Marking Speed PVC Tubes: 40 m/min<br>PET Bottles: 20,000 bottles/hour<br>Coated Cartons: 35 m/min
Marking Range 70×70 / 90×90 / 110×110 / 140×140 mm
Applicable Materials PET, Acrylic, Glass, Leather, Plastic, Cloth, Rubber
Net Weight Approx. 110 kg
Machine Dimensions Approx. 1430 × 565 × 930 mm
